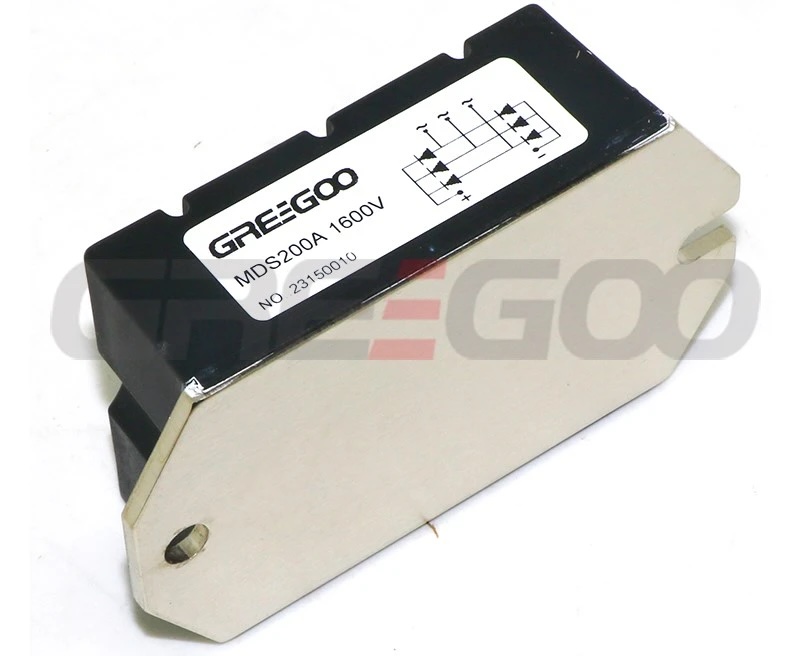

MDS200A-1600V-back-3 phase rectifier bridge

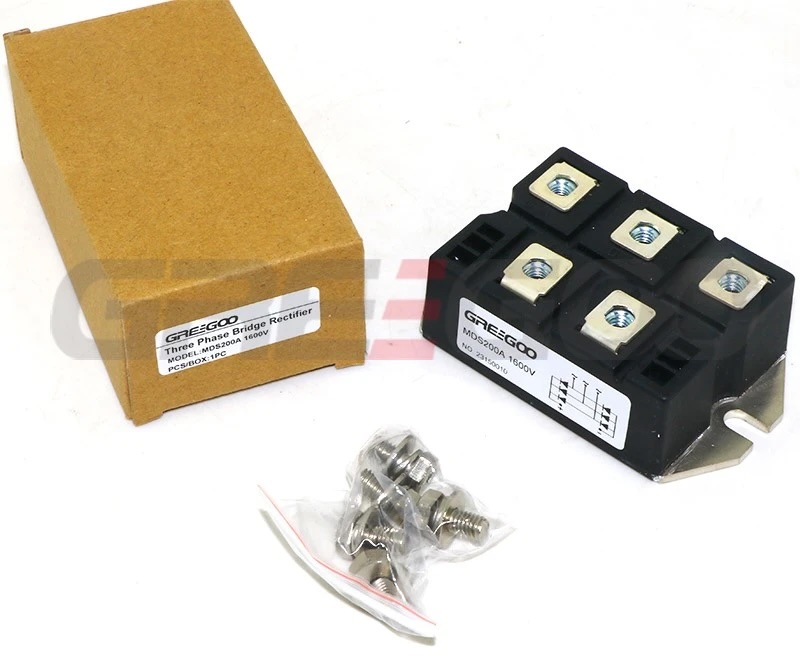

MDS200A-1600V-Packing-3 phase rectifier bridge

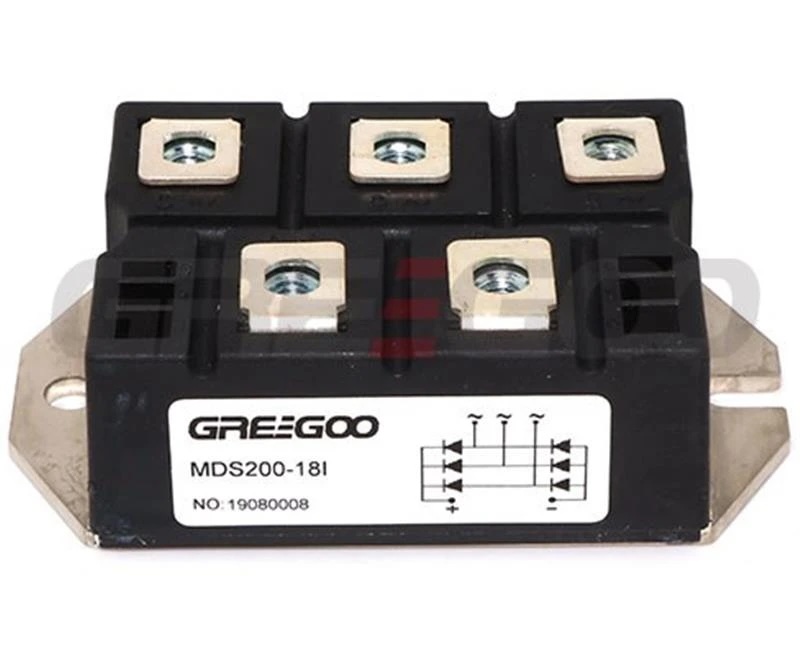

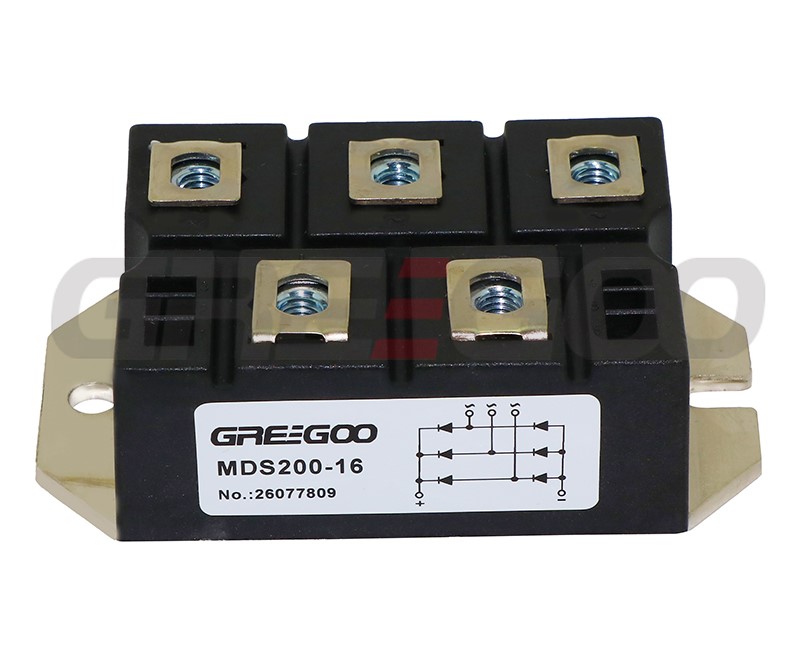

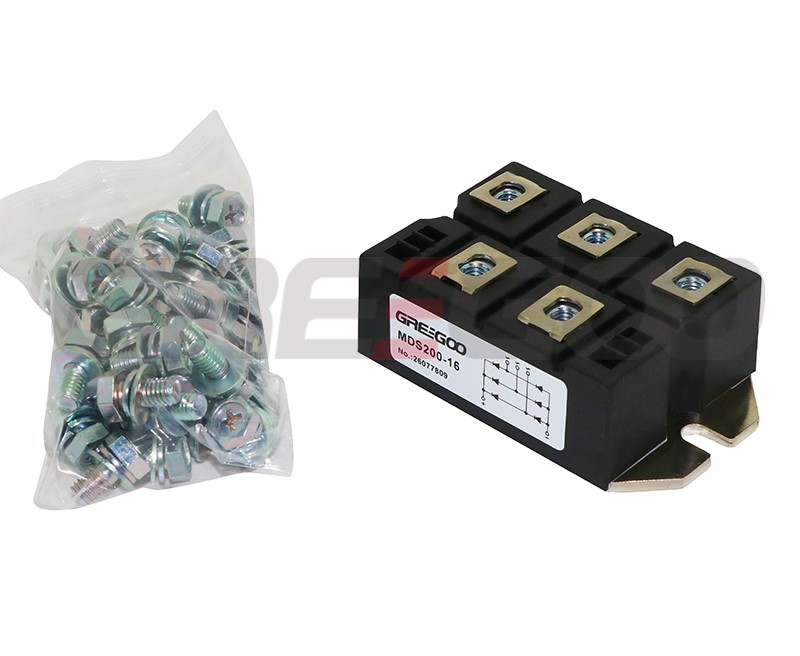

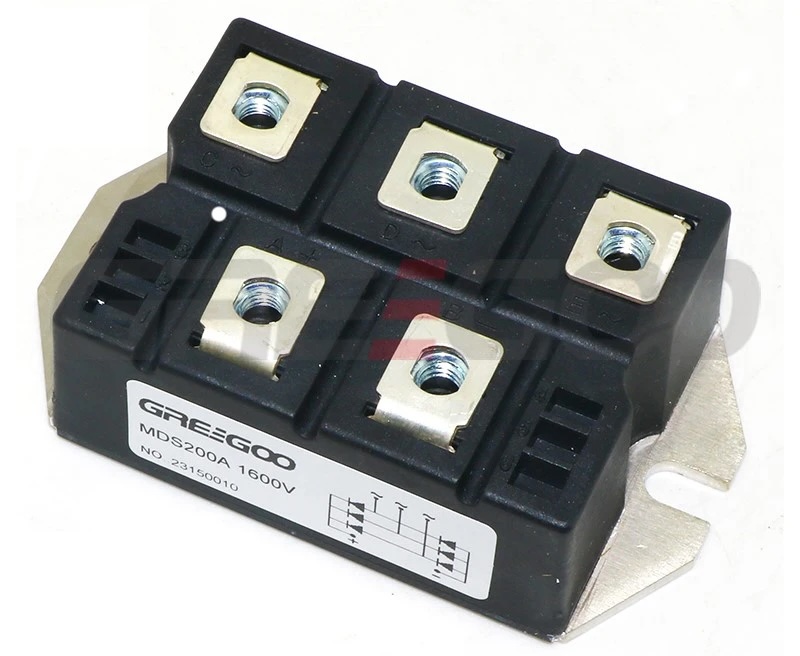

MDS200-16 3 phase rectifier bridge with screw

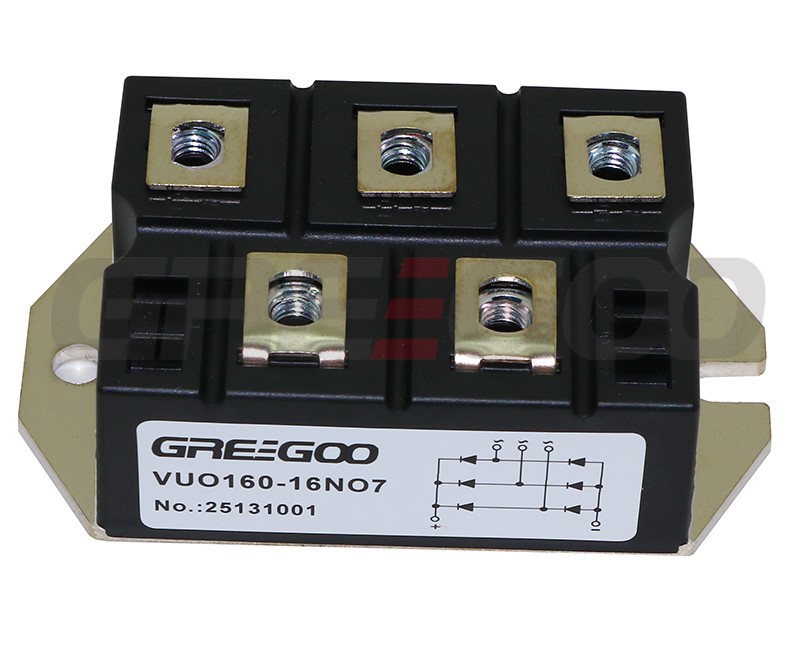

Product Details

3 phase rectifier bridge 125A to 240A

Three phase Rectifier Bridge

Feature:

Package with DCB ceramic
Improved temperature and power cycling
Planar passivated chips
Very low forward voltage drop
Very low leakage current
Industry standard outline
RoHS compliant
Easy to mount with two screws
Base plate: Copper internally DCB isolated
Advanced power cycling

Application:

Diode for main rectification
For three phase bridge configurations
Supplies for DC power equipment
Input rectifiers for PWM inverter
Battery DC power supplies
Field supply for DC motors

Technial Parameters

Part No	IXYS equivalent	VRRM	VRSM	IDAVM	@TH	@Tc	IFSM	VT0	rT	Tvjm	RthJC	RthJH	Package
		(V)	(V)	(A)	(°C)	(°C)	10ms	(V)	(mOhms)	(°C)	perchip	perchip	Style
							Tvj=45°C				(K/W)	(K/W)
							(A)
MDS125-08I	VUO110-08NO7	800	900	125	-	110	1200	0.79	4.5	150	0.7	1	PWS-E
MDS175-08I	VUO160-08NO7	800	900	175	110	-	1800	0.77	3.4	150	0.5	0.7	PWS-E
MDS240-08I	VUO190-08NO7	800	900	240	-	110	2800	0.74	2.4	150	0.4	0.55	PWS-E
MDS125-12I	VUO110-12NO7	1200	1300	125	-	110	1200	0.79	4.5	150	0.7	1	PWS-E
MDS175-12I	VUO160-12NO7	1200	1300	175	110	-	1800	0.77	3.4	150	0.5	0.7	PWS-E
MDS240-12I	VUO190-12NO7	1200	1300	240	-	110	2800	0.74	2.4	150	0.4	0.55	PWS-E
MDS125-16I	VUO110-16NO7	1600	1700	125	-	110	1200	0.79	4.5	150	0.7	1	PWS-E
MDS175-16I	VUO160-16NO7	1600	1700	175	110	-	1800	0.77	3.4	150	0.5	0.7	PWS-E
MDS240-16I	VUO190-16NO7	1600	1700	240	-	110	2800	0.74	2.4	150	0.4	0.55	PWS-E
MDS125-18I	VUO110-18NO7	1800	1900	125	-	110	1200	0.79	4.5	150	0.7	1	PWS-E
MDS175-18I	VUO160-18NO7	1800	1900	175	110	-	1800	0.77	3.4	150	0.5	0.7	PWS-E
MDS240-18I	VUO190-18NO7	1800	1900	240	-	110	2800	0.74	2.4	150	0.4	0.55	PWS-E

PSD part numbers

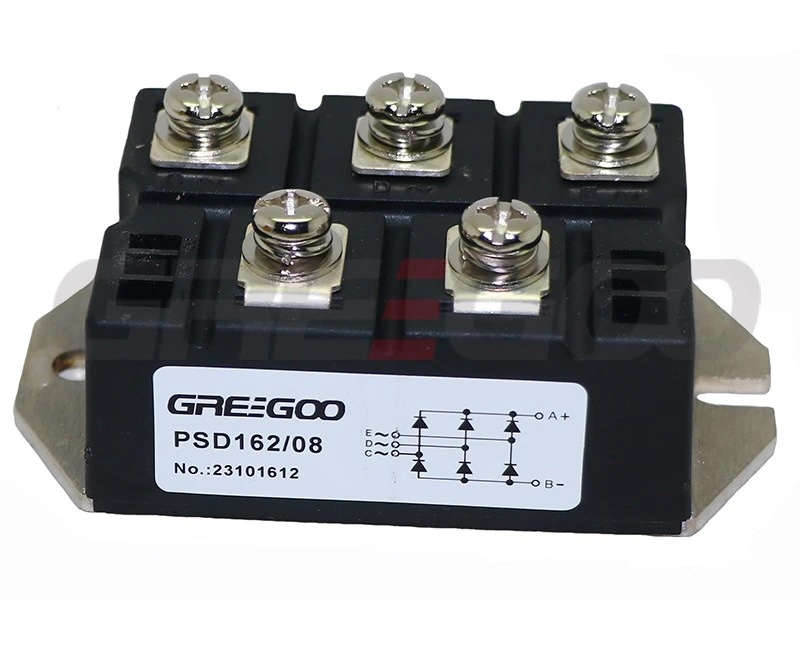

Three phase rectifier bridge PSD162 PSD192

Type	I_dAV	V_RSM	V_RRM
PSD162/08	175A	800V	800V
PSD162/12	175A	1200V	1200V
PSD162/14	175A	1400V	1400V
PSD162/16	175A	1600V	1600V
PSD162/18	175A	1800V	1800V
PSD192/08	248A	800V	800V
PSD192/12	248A	1200V	1200V
PSD192/14	248A	1400V	1400V
PSD192/16	248A	1600V	1600V
PSD192/18	248A	1800V	1800V

Dimensions

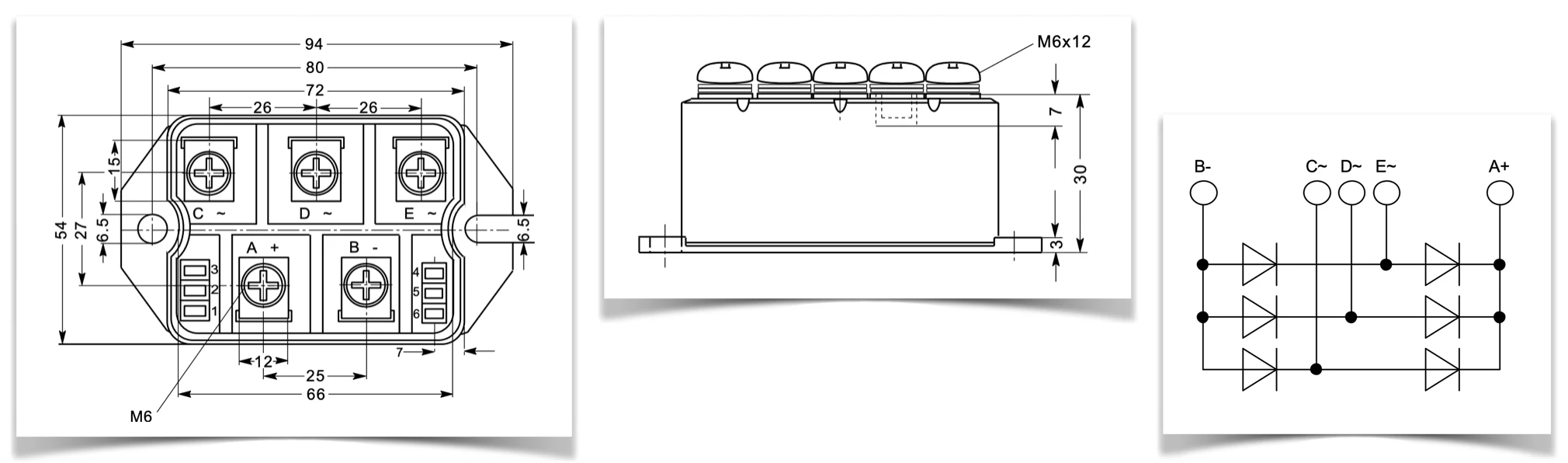

VUO160-08NO7
