VHF85 VHF125 Half Controlled Single Phase Rectifier Bridge with Freewheeling Diode
Features
• Package with screw terminals
• Isolation voltage 3000 V~
• Planar passivated chips
Applications
• DC motor control
Advantages
• Easy to mount with two screws
• Space and weight savings
• Improved temperature and power cycling
|
Part Numbers |
Vrrm/Vdrm (V) |
Vrsm/Vdsm (V) |
|
VHF85-12io7 |
1200 |
1300 |
|
VHF85-14io7 |
1400 |
1500 |
|
VHF125-12io7 |
1200 |
1300 |
|
VHF125-14io7 |
1400 |
1500 |
|
VHF125-16io7 |
1600 |
1700 |

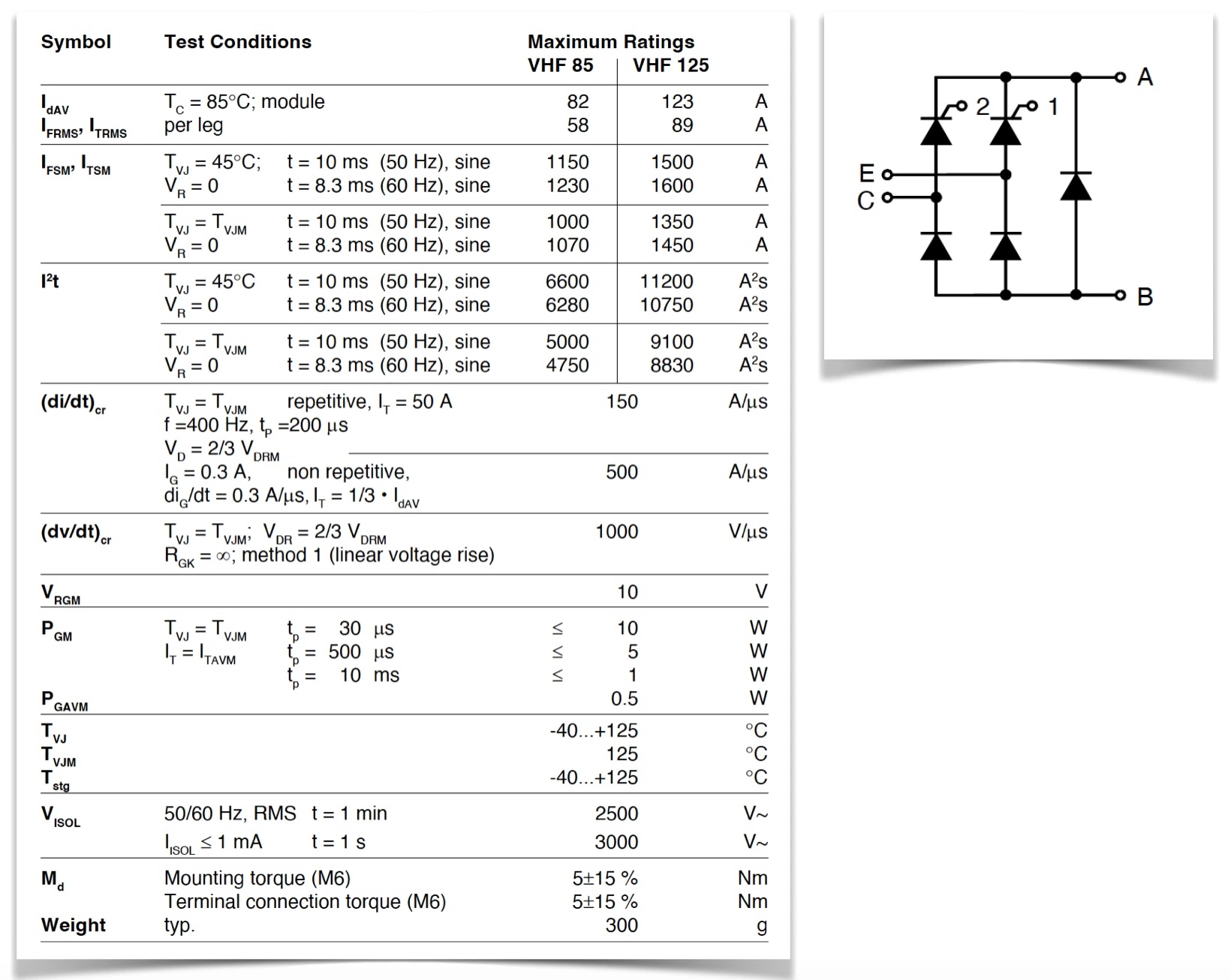

Half Controlled Single Phase Rectifier Bridge, B2HKF with Freewheeling Diode
