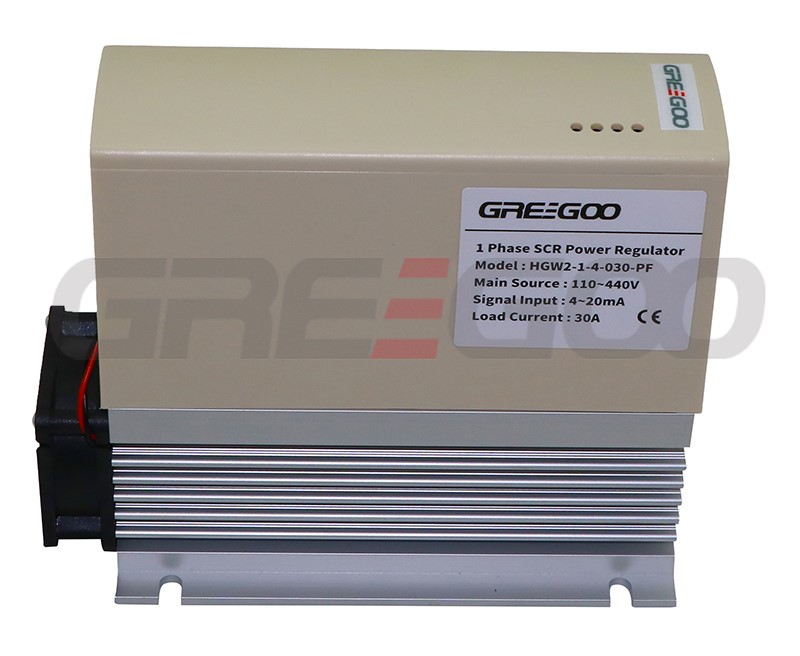

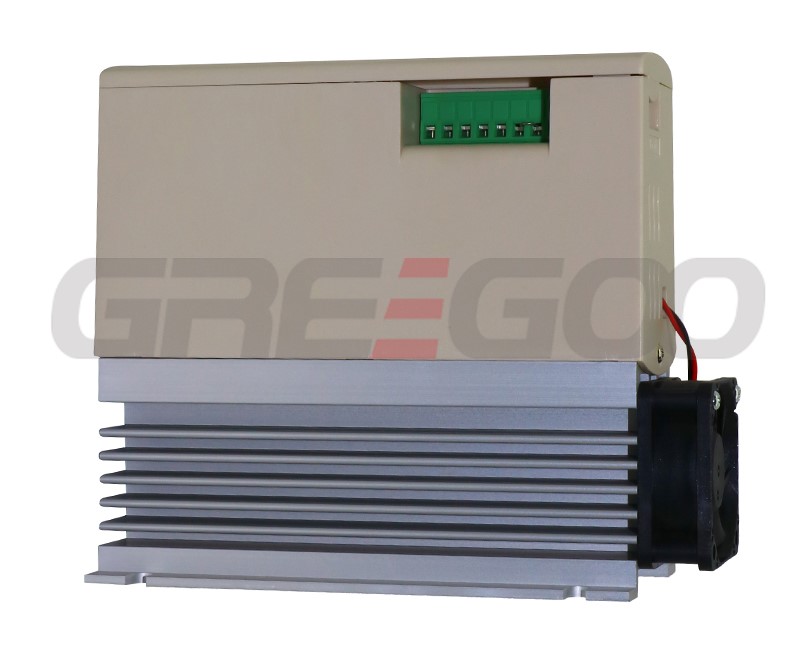

30A to 100A Single Phase SCR Voltage Regulator
Home Products SCR RegulatorsHGW2 Simple type30A to 100A Single Phase SCR Voltage Regulator
Feature
30A to 100A Single Phase SCR Voltage Regulator
Product Features
◎ Integrated molding

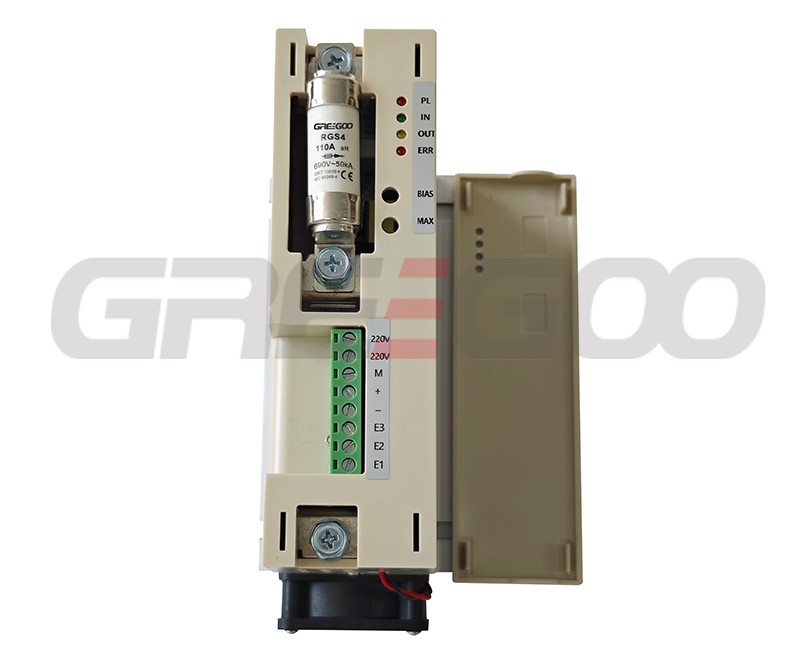

◎ Flip-cover design, built-in fuse, safe and reliable
◎ Compact design, saves control cabinet space
◎ Multiple input types, supports manual and automatic control
Specification
Model |
Phase | Input Voltage | Rated current |
Load power (KW) |
Weight (KG) |
Output mode | Control signal | |
| 220V | 380V | |||||||

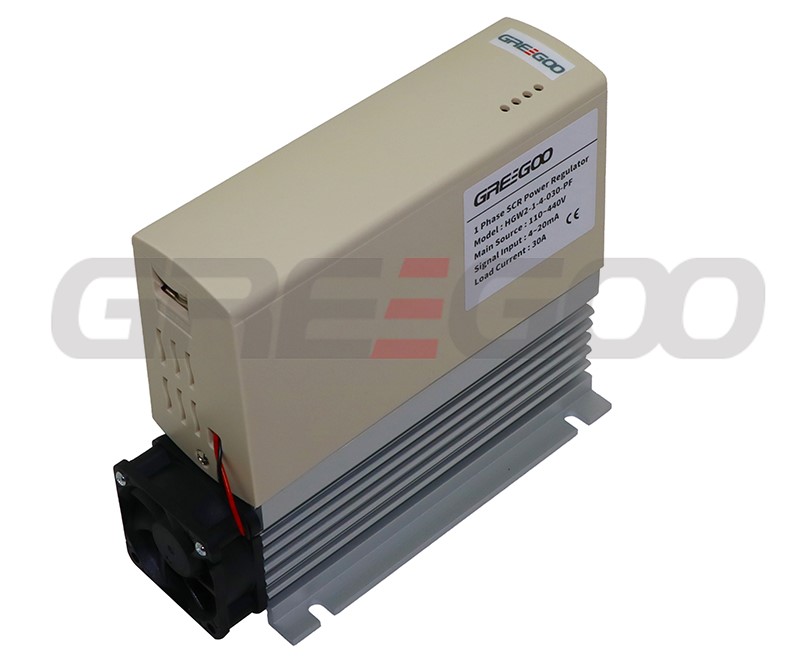

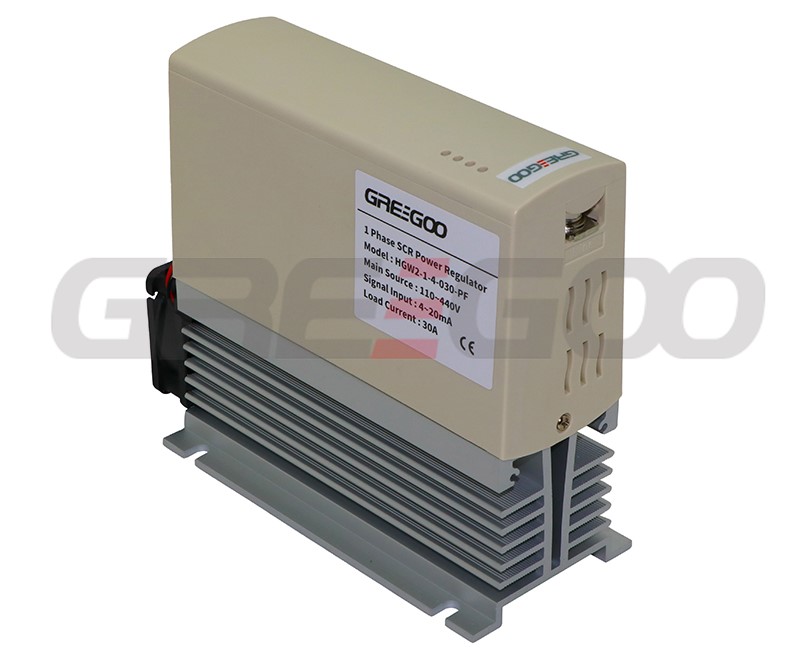

| HGW2-1-4-030-PF | 1PH | 100-440V | 30A | 5 | 9 | 1.5 | Phase angle | 4-20mA |
| HGW2-1-4-040-PF | 1PH | 100-440V | 40A | 6.5 | 10 | 1.5 | Phase angle | 4-20mA |

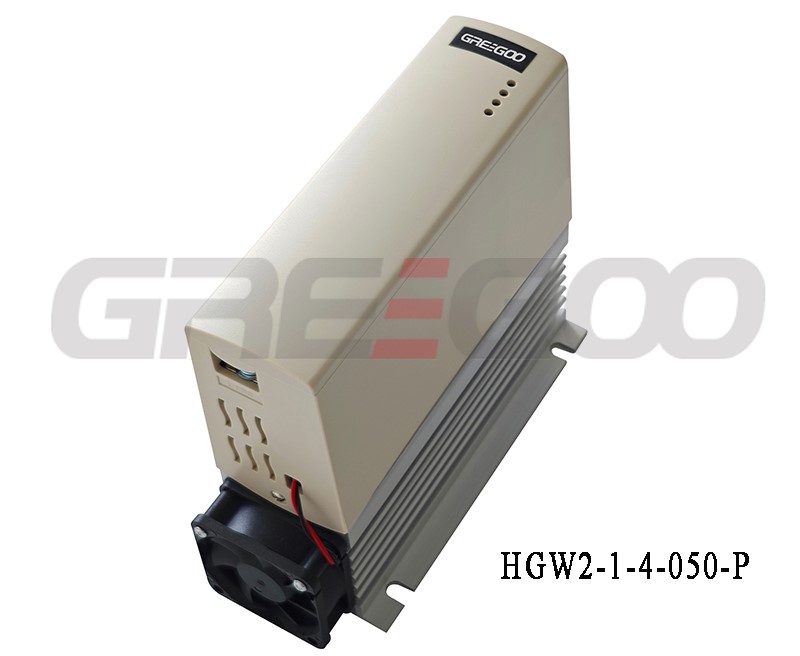

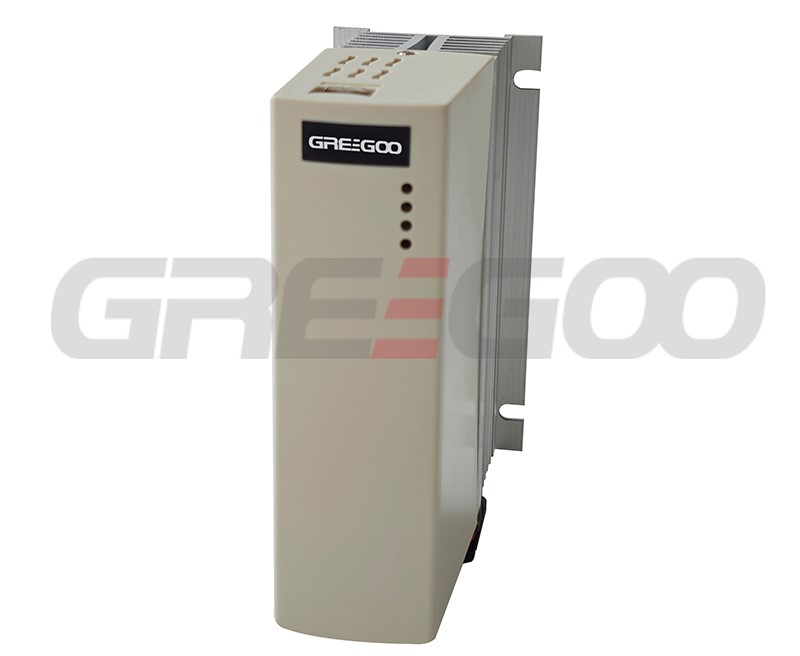

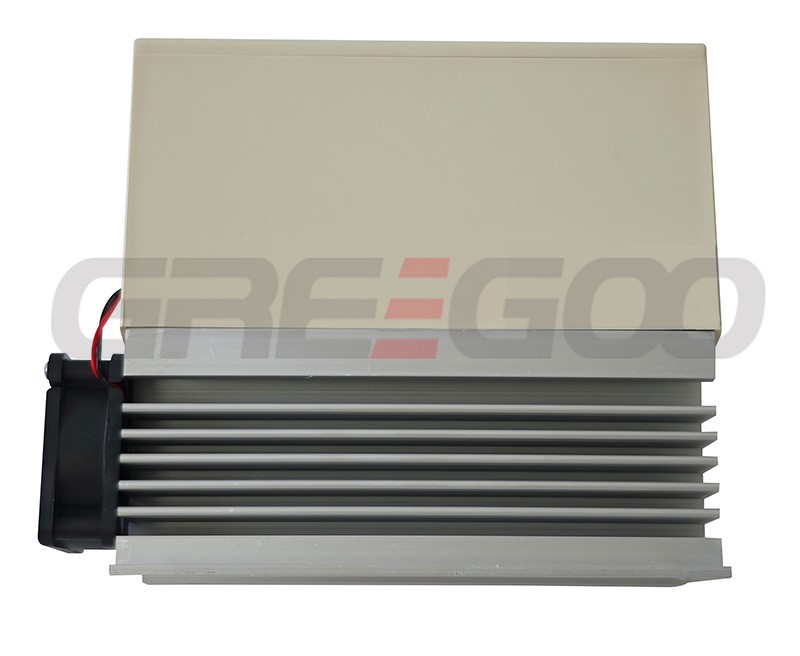

| HGW2-1-4-050-P | 1PH | 100-440V | 50A | 8.5 | 12 | 1.6 | Phase angle | 4-20mA |

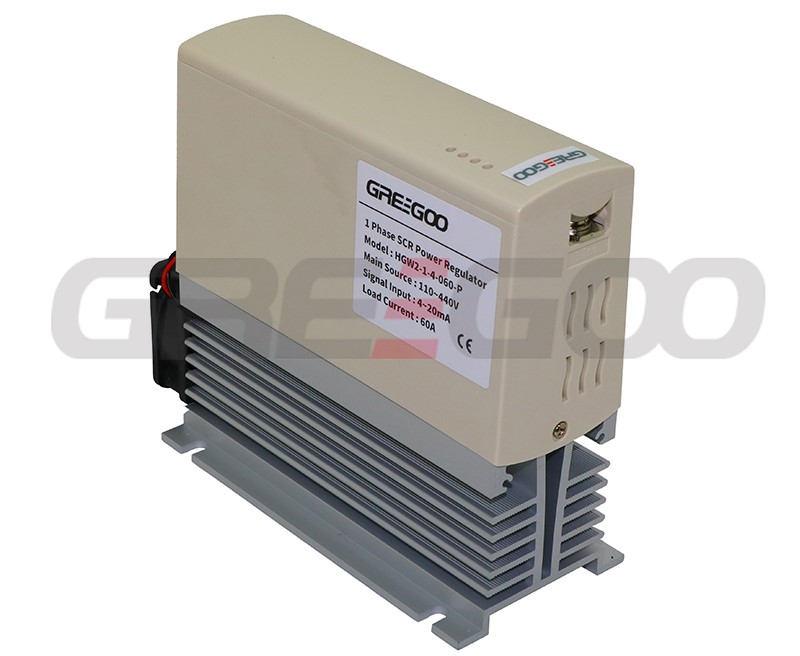

| HGW2-1-4-060-P | 1PH | 100-440V | 60A | 10 | 15 | 1.8 | Phase angle | 4-20mA |
| HGW2-1-4-075-P | 1PH | 100-440V | 75A | 14 | 23 | 1.8 | Phase angle | 4-20mA |

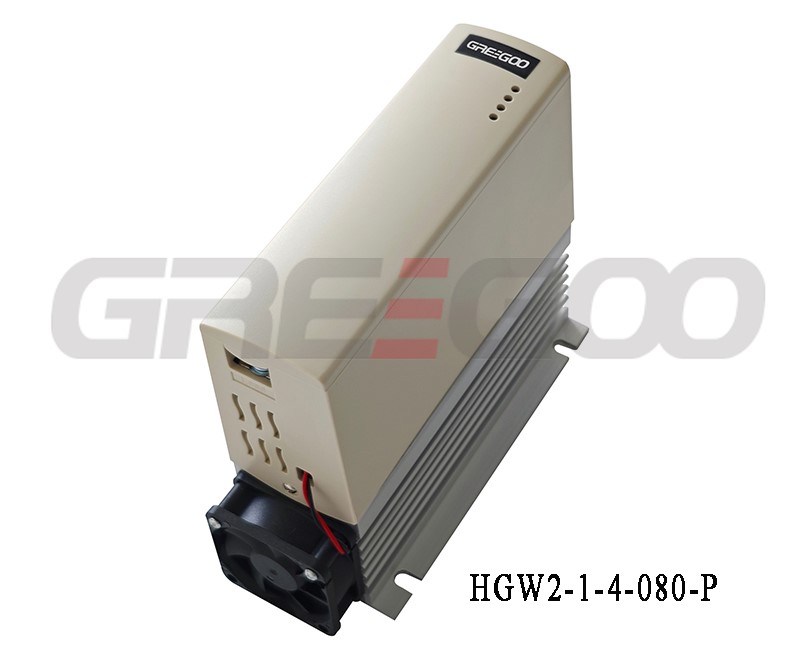

| HGW2-1-4-080-P | 1PH | 100-440V | 80A | 15 | 25 | 1.8 | Phase angle | 4-20mA |
| HGW2-1-4-090-P | 1PH | 100-440V | 90A | 16 | 27 | 1.8 | Phase angle | 4-20mA |
| HGW2-1-4-100-P | 1PH | 100-440V | 100A | 18 | 30 | 1.8 | Phase angle | 4-20mA |
| HGW2-1-4-030-PF1 | 1PH | 100-440V | 30A | 5 | 9 | 1.5 | Phase angle | 0-10V |
| HGW2-1-4-040-PF1 | 1PH | 100-440V | 40A | 6.5 | 10 | 1.5 | Phase angle | 0-10V |
| HGW2-1-4-050-P1 | 1PH | 100-440V | 50A | 8.5 | 12 | 1.6 | Phase angle | 0-10V |
| HGW2-1-4-060-P1 | 1PH | 100-440V | 60A | 10 | 15 | 1.8 | Phase angle | 0-10V |
| HGW2-1-4-075-P1 | 1PH | 100-440V | 75A | 14 | 23 | 1.8 | Phase angle | 0-10V |
| HGW2-1-4-080-P1 | 1PH | 100-440V | 80A | 15 | 25 | 1.8 | Phase angle | 0-10V |
| HGW2-1-4-090-P1 | 1PH | 100-440V | 90A | 16 | 27 | 1.8 | Phase angle | 0-10V |
| HGW2-1-4-100-P1 | 1PH | 100-440V | 100A | 18 | 30 | 1.8 | Phase angle | 0-10V |
| HGW2-1-4-030-SF | 1PH | 100-440V | 30A | 5 | 9 | 1.5 | Gate trigger | 4-20mA |
| HGW2-1-4-040-SF | 1PH | 100-440V | 40A | 6.5 | 10 | 1.5 | Gate trigger | 4-20mA |
| HGW2-1-4-050-S | 1PH | 100-440V | 50A | 8.5 | 12 | 1.6 | Gate trigger | 4-20mA |
| HGW2-1-4-060-S | 1PH | 100-440V | 60A | 10 | 15 | 1.8 | Gate trigger | 4-20mA |
| HGW2-1-4-075-S | 1PH | 100-440V | 75A | 14 | 23 | 1.8 | Gate trigger | 4-20mA |
| HGW2-1-4-080-S | 1PH | 100-440V | 80A | 15 | 25 | 1.8 | Gate trigger | 4-20mA |
| HGW2-1-4-090-S | 1PH | 100-440V | 90A | 16 | 27 | 1.8 | Gate trigger | 4-20mA |
| HGW2-1-4-100-S | 1PH | 100-440V | 100A | 18 | 30 | 1.8 | Gate trigger | 4-20mA |
| HGW2-1-4-030-SF1 | 1PH | 100-440V | 30A | 5 | 9 | 1.5 | Gate trigger | 0-10V |
| HGW2-1-4-040-SF1 | 1PH | 100-440V | 40A | 6.5 | 10 | 1.5 | Gate trigger | 0-10V |
| HGW2-1-4-050-S1 | 1PH | 100-440V | 50A | 8.5 | 12 | 1.6 | Gate trigger | 0-10V |
| HGW2-1-4-060-S1 | 1PH | 100-440V | 60A | 10 | 15 | 1.8 | Gate trigger | 0-10V |
| HGW2-1-4-075-S1 | 1PH | 100-440V | 75A | 14 | 23 | 1.8 | Gate trigger | 0-10V |
| HGW2-1-4-080-S1 | 1PH | 100-440V | 80A | 15 | 25 | 1.8 | Gate trigger | 0-10V |
| HGW2-1-4-090-S1 | 1PH | 100-440V | 90A | 16 | 27 | 1.8 | Gate trigger | 0-10V |
| HGW2-1-4-100-S1 | 1PH | 100-440V | 100A | 18 | 30 | 1.8 | Gate trigger | 0-10V |
