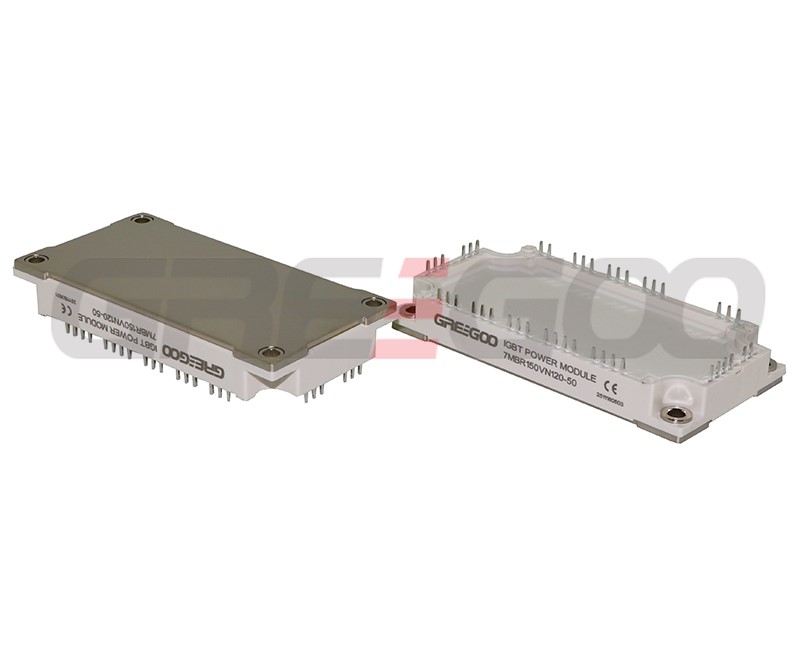

7MBR150VN120-50 PIM IGBT Module 150A 1200V

7MBR150VN120-50 is a 1200V, 150A Power Integrated Module (PIM) IGBT Module with an integrated converter, brake circuit, inverter stage, and thermistor.

Key Features

This module offers low saturation voltage for efficiency, high reliability for demanding conditions, and is compact and lightweight. It is also RoHS compliant.

Applications

It is suitable for use in motor drives, industrial automation, UPS systems, NC servos, welding machines, power converters, and solar inverters.

Main parameters

Parameter	Value	Units
Collector-Emitter Voltage (VCES)	1200	V
Collector Current (Ic) @ 80°C	150	A
Max. Junction Temperature (Tj max)	175 (Inverter, Brake) / 150 (Converter)	°C
Package Type	M720 (PCB mounting module, solder pins)
Power Dissipation (Pc)	885	W
Integrated Features	3-Phase Rectifier, 3-Phase Inverter, Brake Chopper, NTC Thermistor
