7MBR50VP120-50 PIM IGBT Module

The 7MBR50VP120-50 is a high-performance Power Integrated Module (PIM). It is an insulated gate bipolar transistor (IGBT) module part of V Series, heavily utilized for energy control, power electronics, and industrial automation.

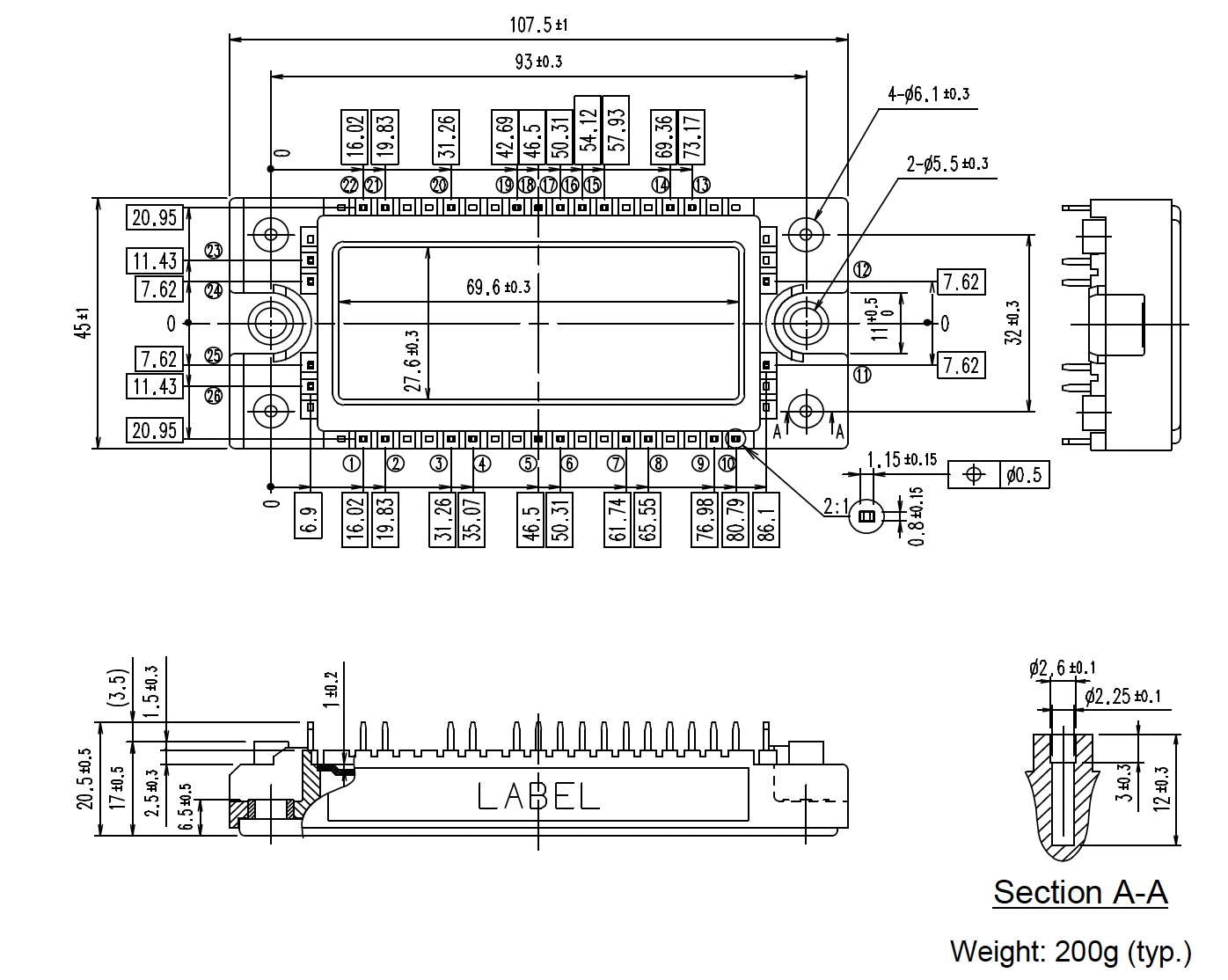

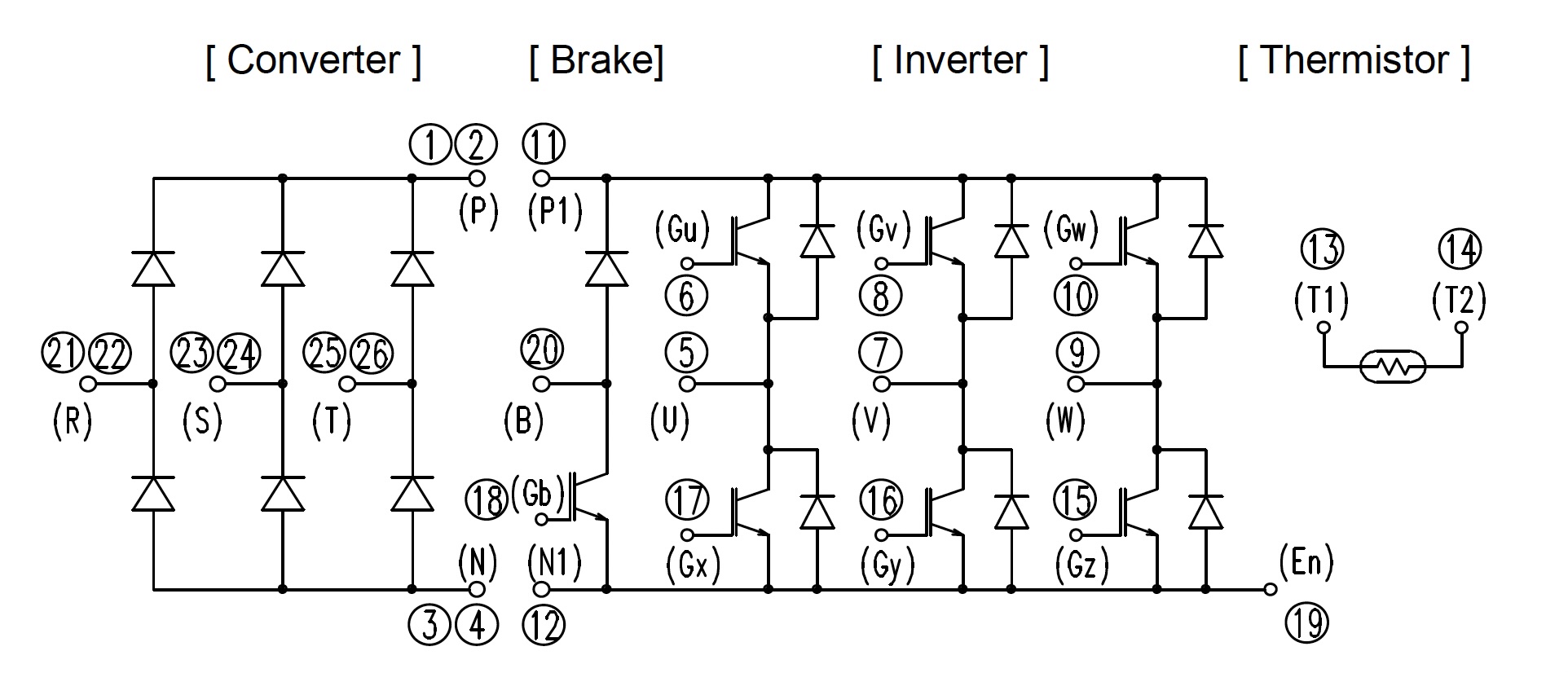

Configuration: Seven-pack (7MBR) layout featuring a three-phase inverter bridge, a dynamic brake chopper, and a three-phase converter diode bridge (all integrated into a single layout). Operating Temperature: Safe junction ranges from -40°C to 150°C. Thermal Monitoring: Features an integrated NTC Thermistor for real-time temperature sensing and overheat safety tracking.

Features
Low VcE(sat)
Compact Package
P.C.Board Mount Module
RoHS compliant product
Converter Diode Bridge Dynamic Brake Circuit

Applications
Inverter for Motor Drive
AC and DC Servo Drive Amplifier
Uninterruptible Power Supply
