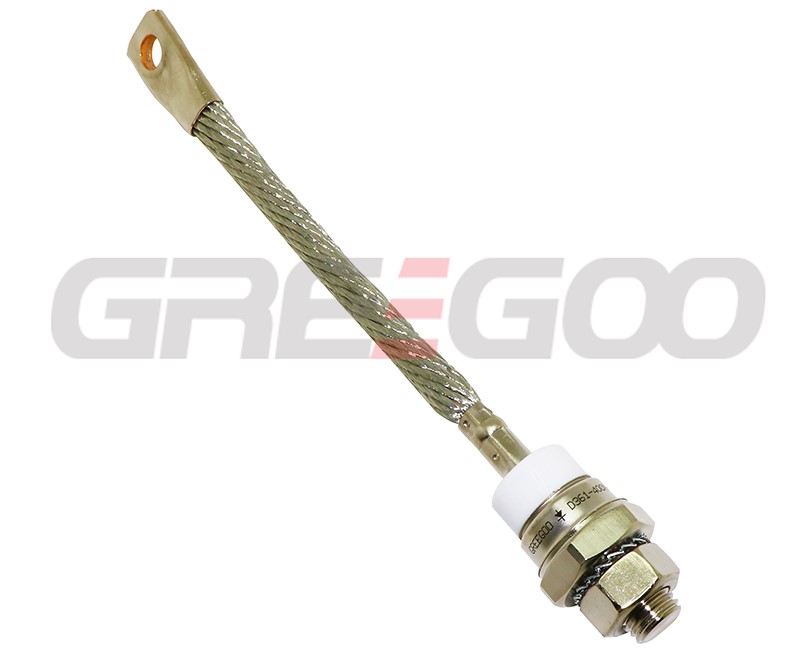

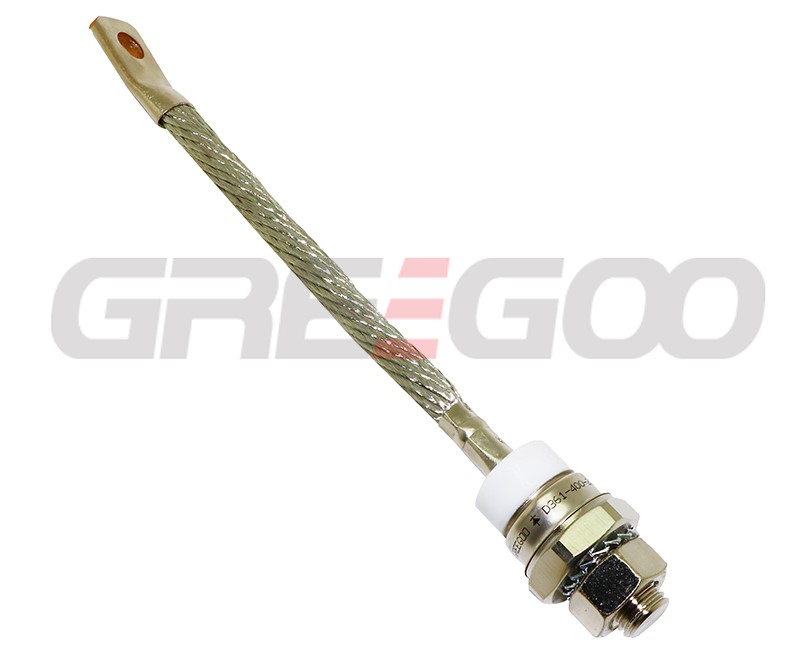

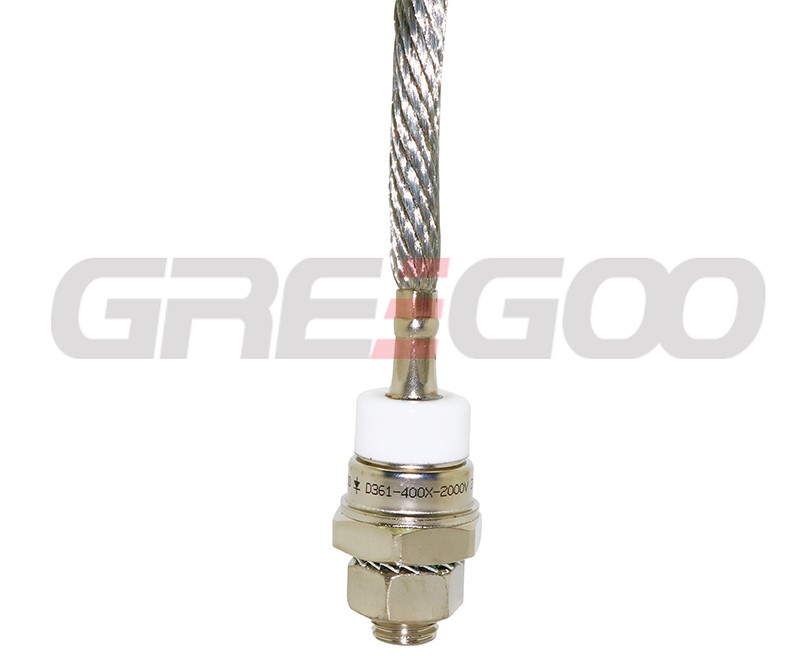

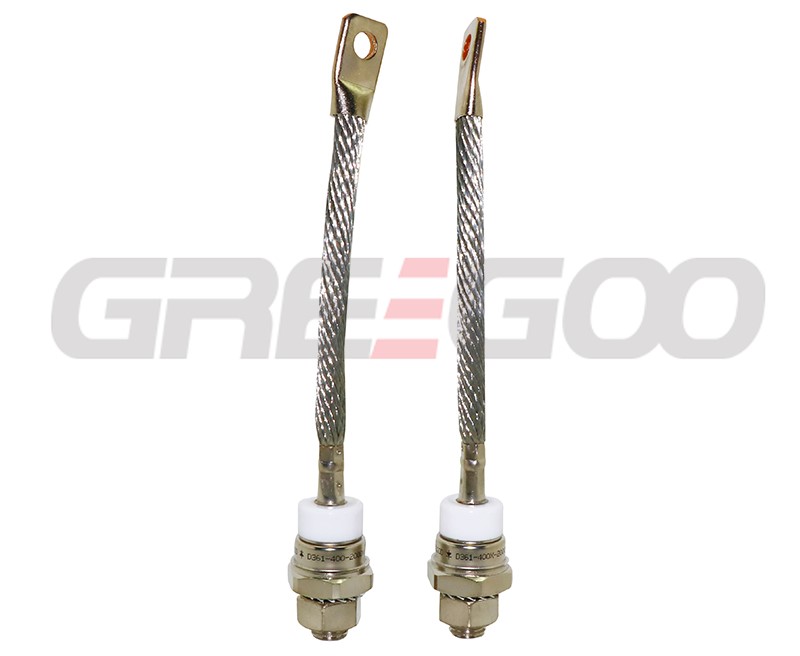

D361-400A-20 400A 2000V Stud Diode
The D361-400-20 is a high-power, industrial-grade standard recovery rectifier diode engineered for high-current and high-voltage rectification applications. Featuring a robust stud-mount design, it ensures reliable mechanical anchoring and optimized thermal dissipation
• Average Forward Current (IF(AV): 400A
• Repetitive Peak Reverse Voltage (VRRM): 2000V (indicated by the "-20" suffix code)
• Mounting Configuration: Stud Mount (typically utilizes an M20x1.5 thread size depending on the manufacturer line)
• Recovery Type: Standard recovery
Application
These heavy-duty stud diodes are predominantly deployed in demanding power conversion setups, including:
- High-power DC power supplies and industrial battery chargers.
- Welding equipment controls and traction applications.
- AC/DC motor drives and power converters.

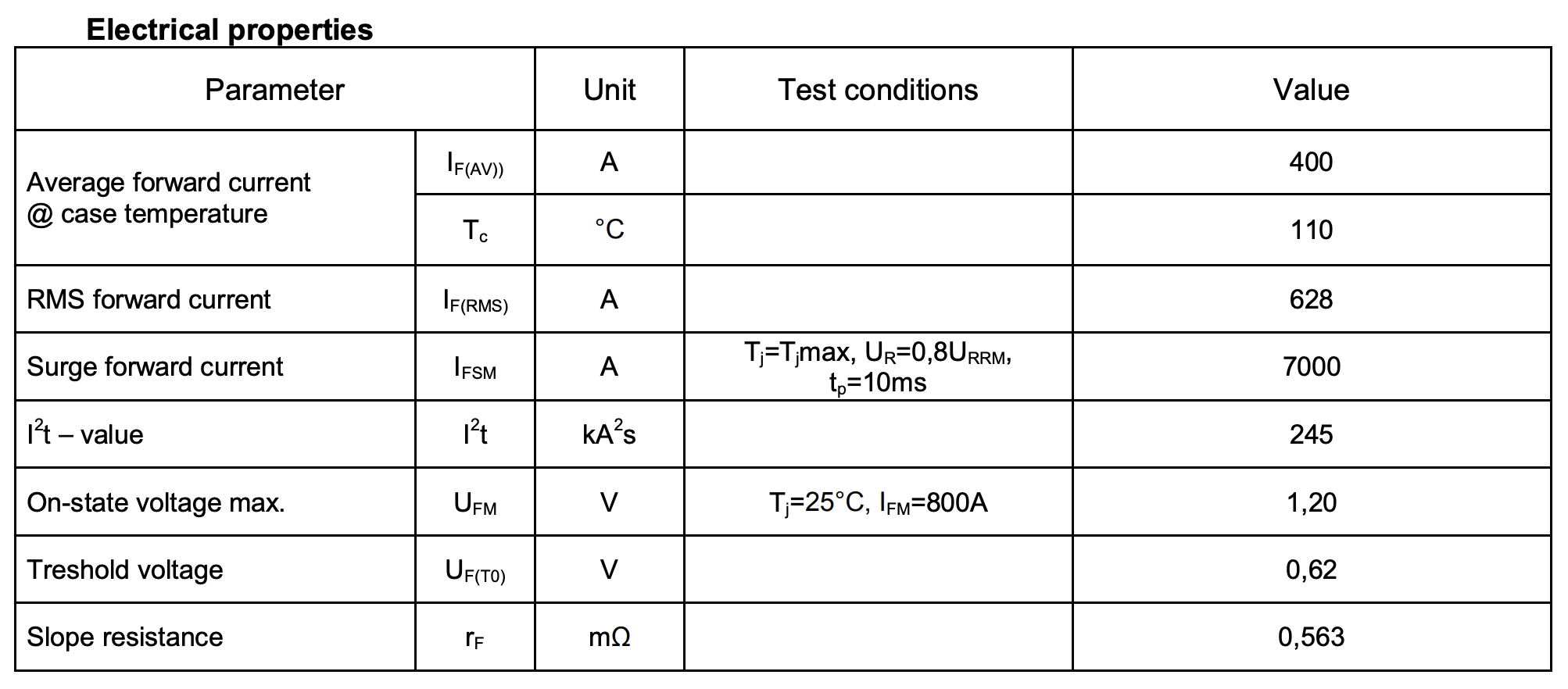

Electrical parameters

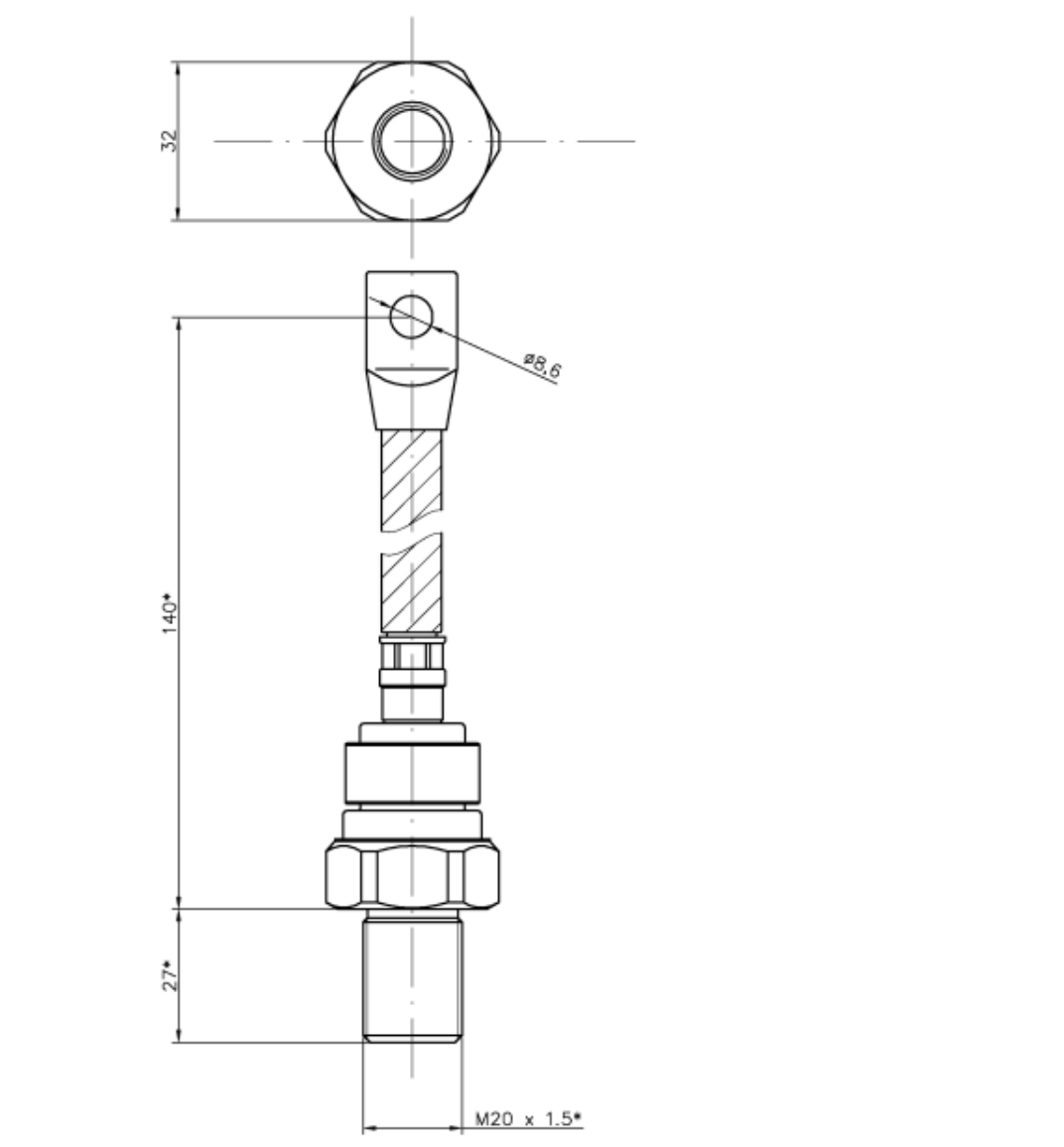

Dimensions
