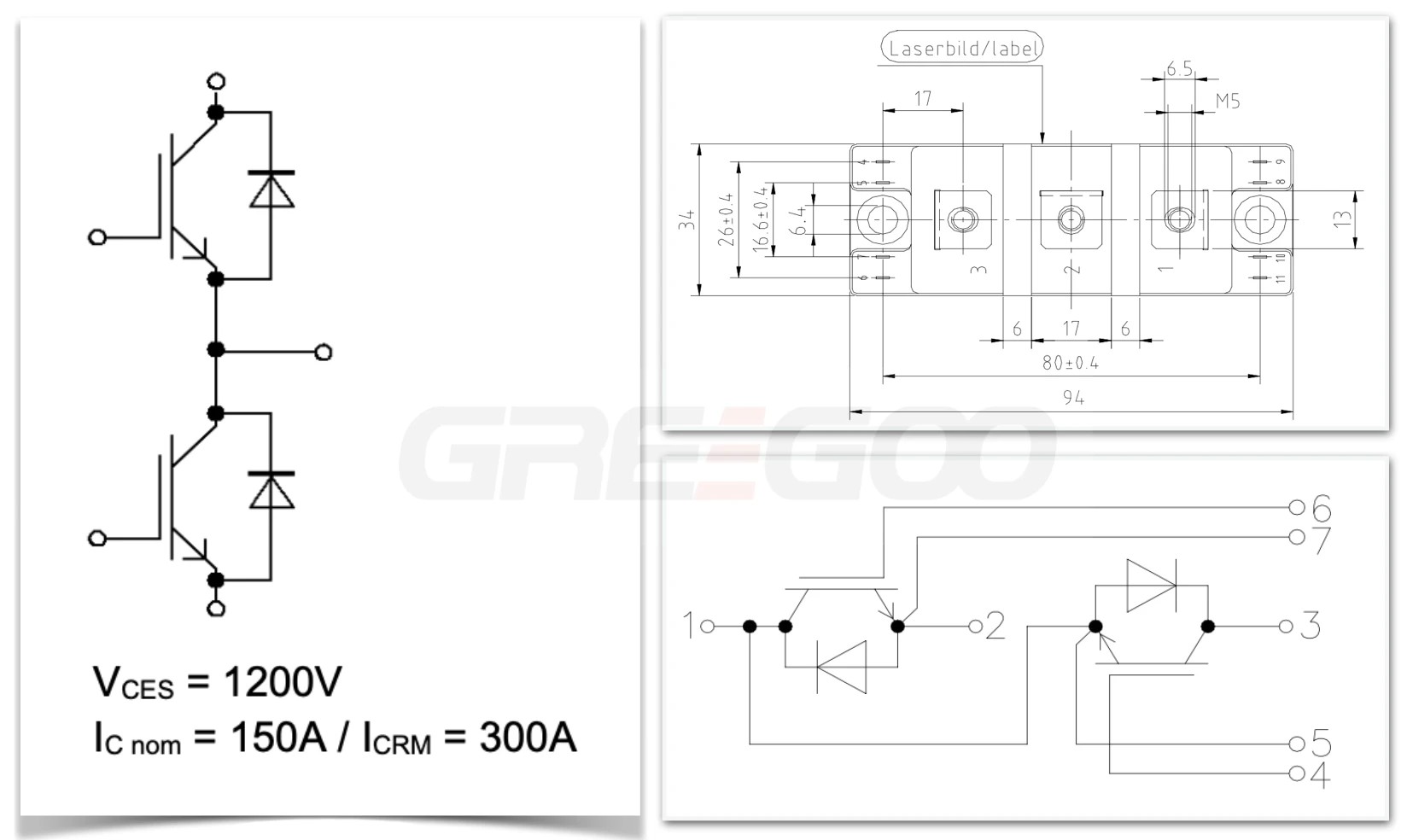

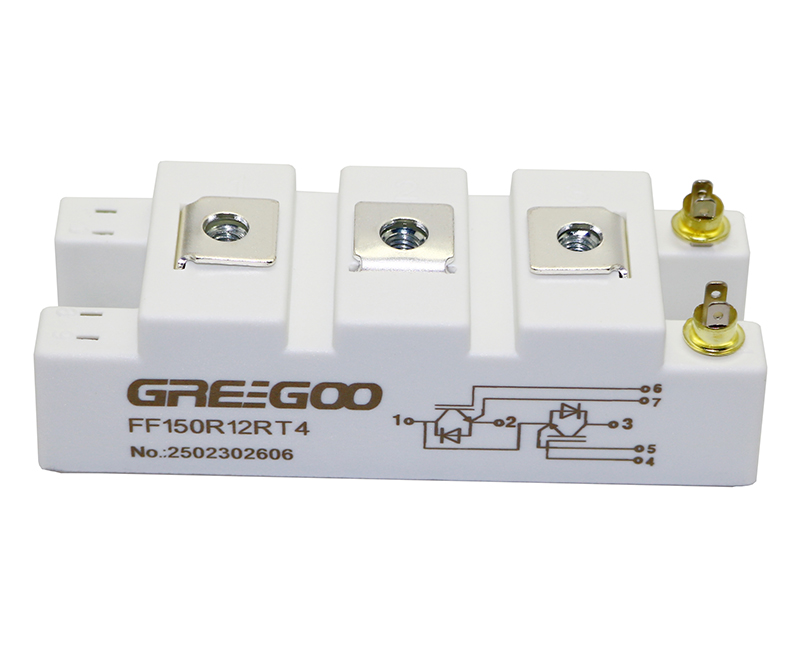

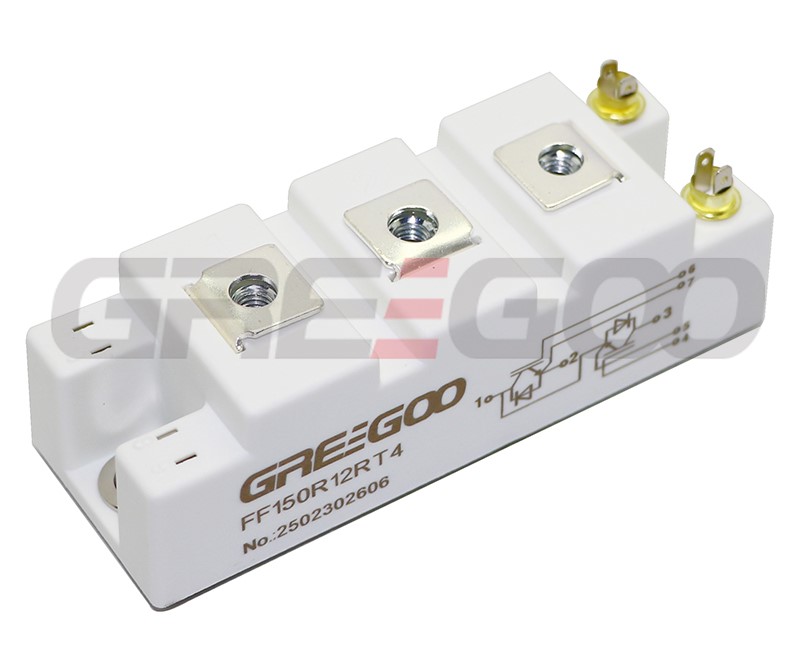

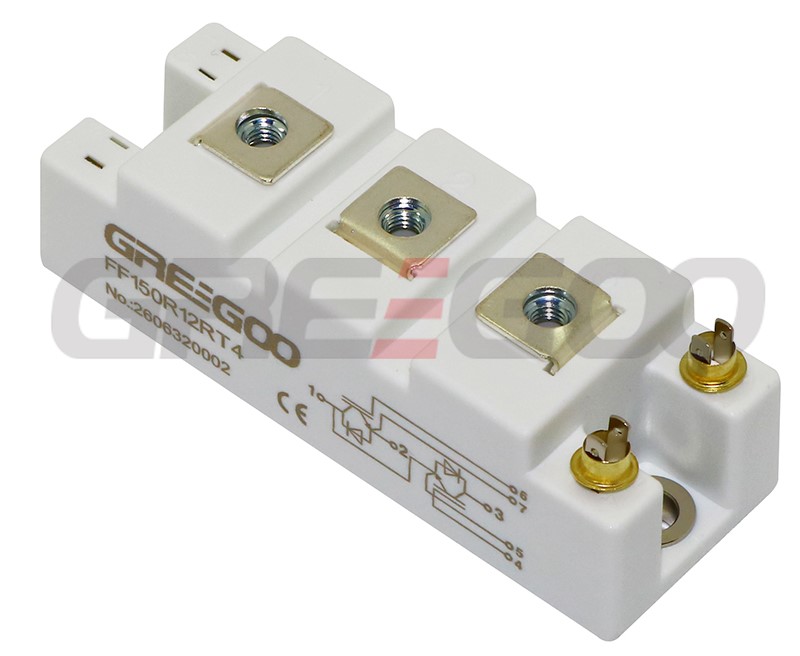

FF150R12RT4 IGBT Module

Typical Applications

• High Frequency Switching Application
• Motor Drives
• UPS Systems

Electrical Features

• Extended Operation Temperature Tvj op
• Low Switching Losses
• Low VCEsat
• Tvjop =150°C
• VCEsat with positive Temperature Coefficient

Mechanical Features

• Isolated Base Plate
• Standard Housing

34mm module with fast Trench/Fieldstop IGBT4 and Emitter Controlled 4 diode
