BSM50GD120DN2 IGBT Module

Home Products IGBT Power ModuleInfineon IGBT Module EquivalentBSM50GD120DN2 IGBT Module

Product details

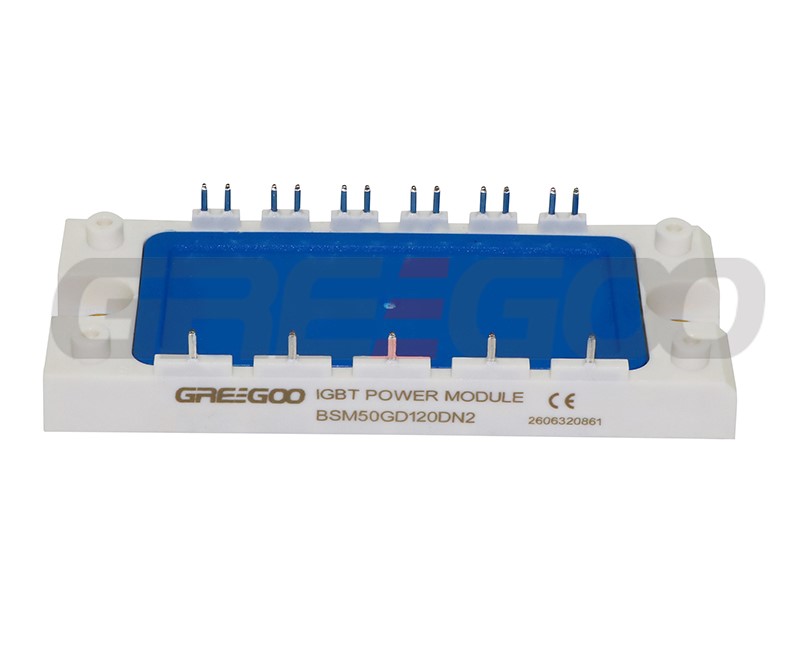

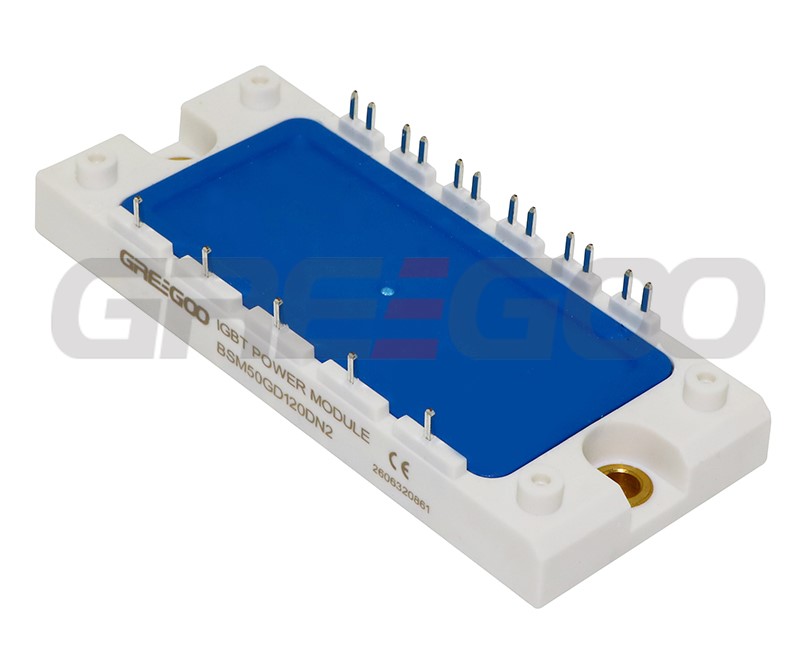

BSM50GD120DN2 IGBT Module

• Power module
• 3-phase full-bridge
• Including fast free-wheel diodes
• Package with insulated metal base plate

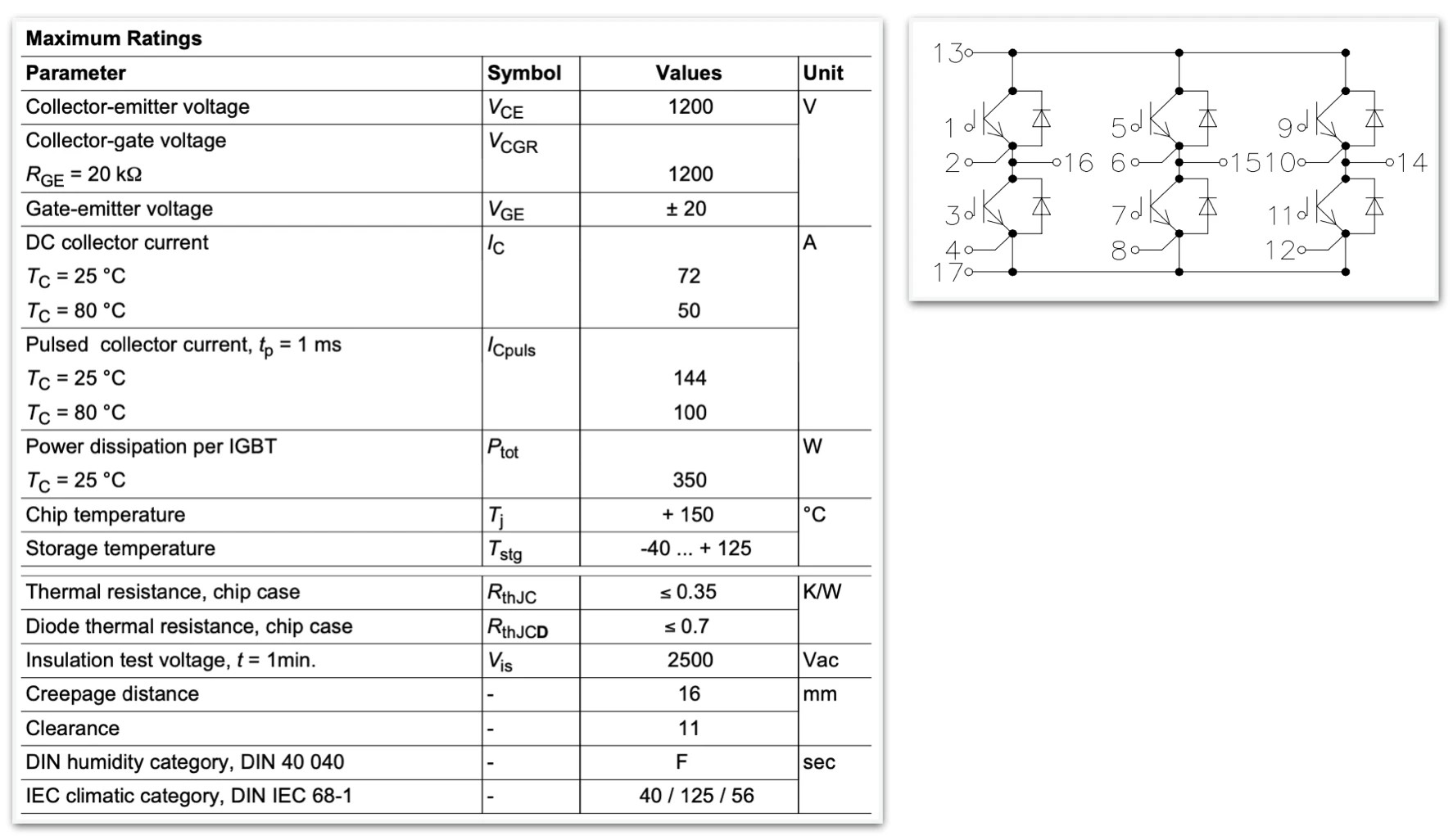

Specification

BSM 50 GD 120 DN2

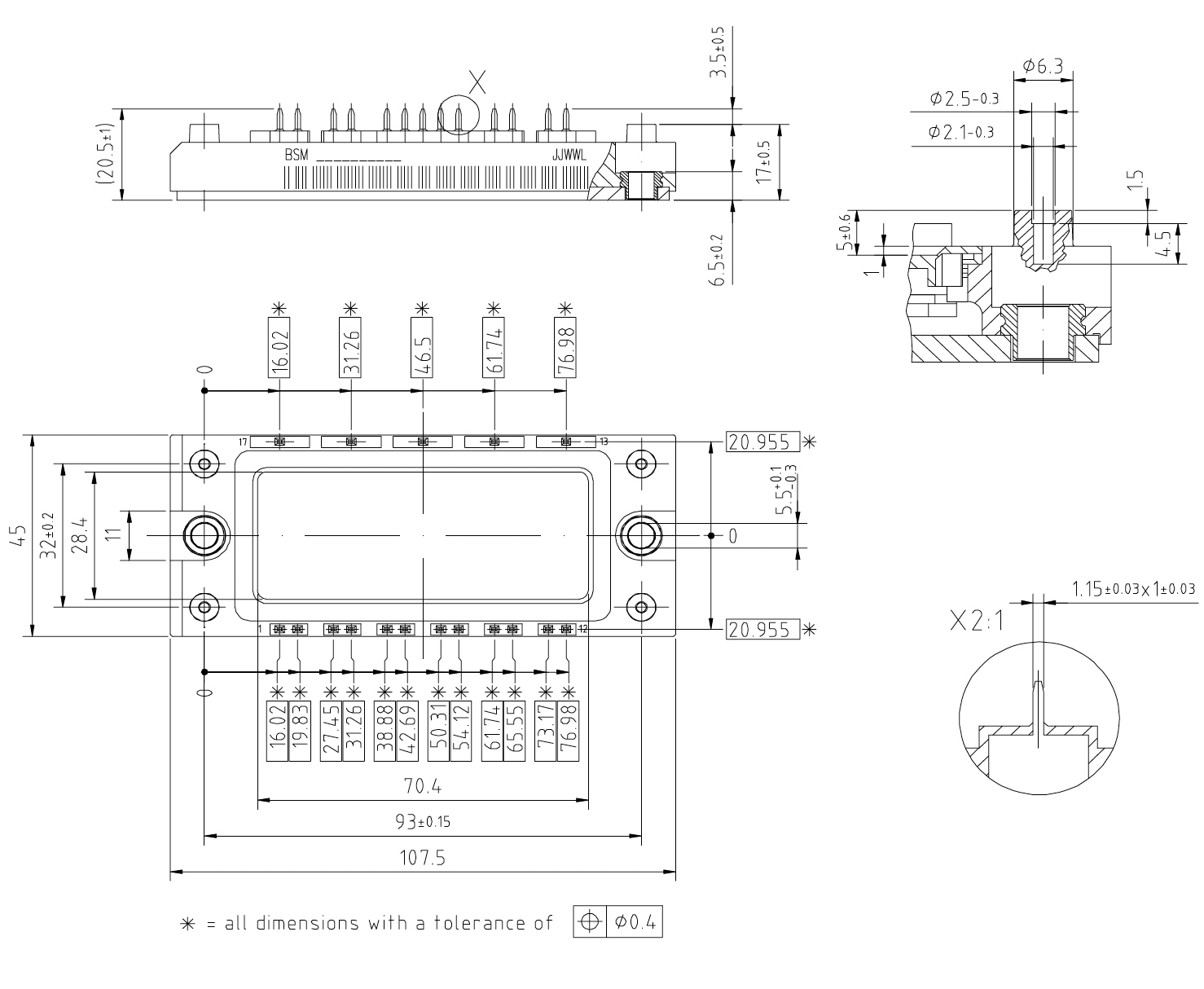

Package outline

BSM50GD120DN2 Package outline
