FRED Module - Dual Diode in Series

Home Products FRED ModuleFRED topology and applicationFRED Module - Dual Diode in Series

fred in series 3 terminals connection
fred in series 3 terminals connection

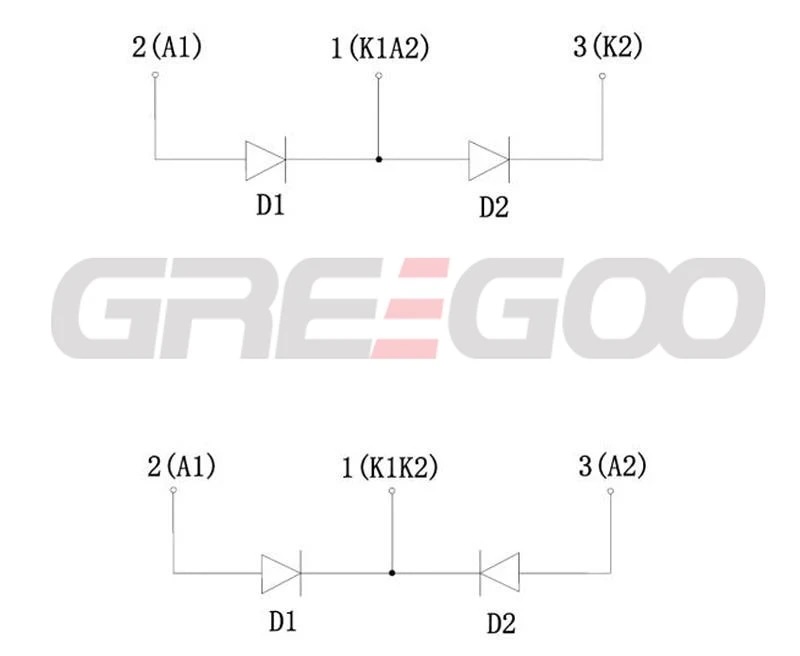

Dual FRED in series with 3 terminals

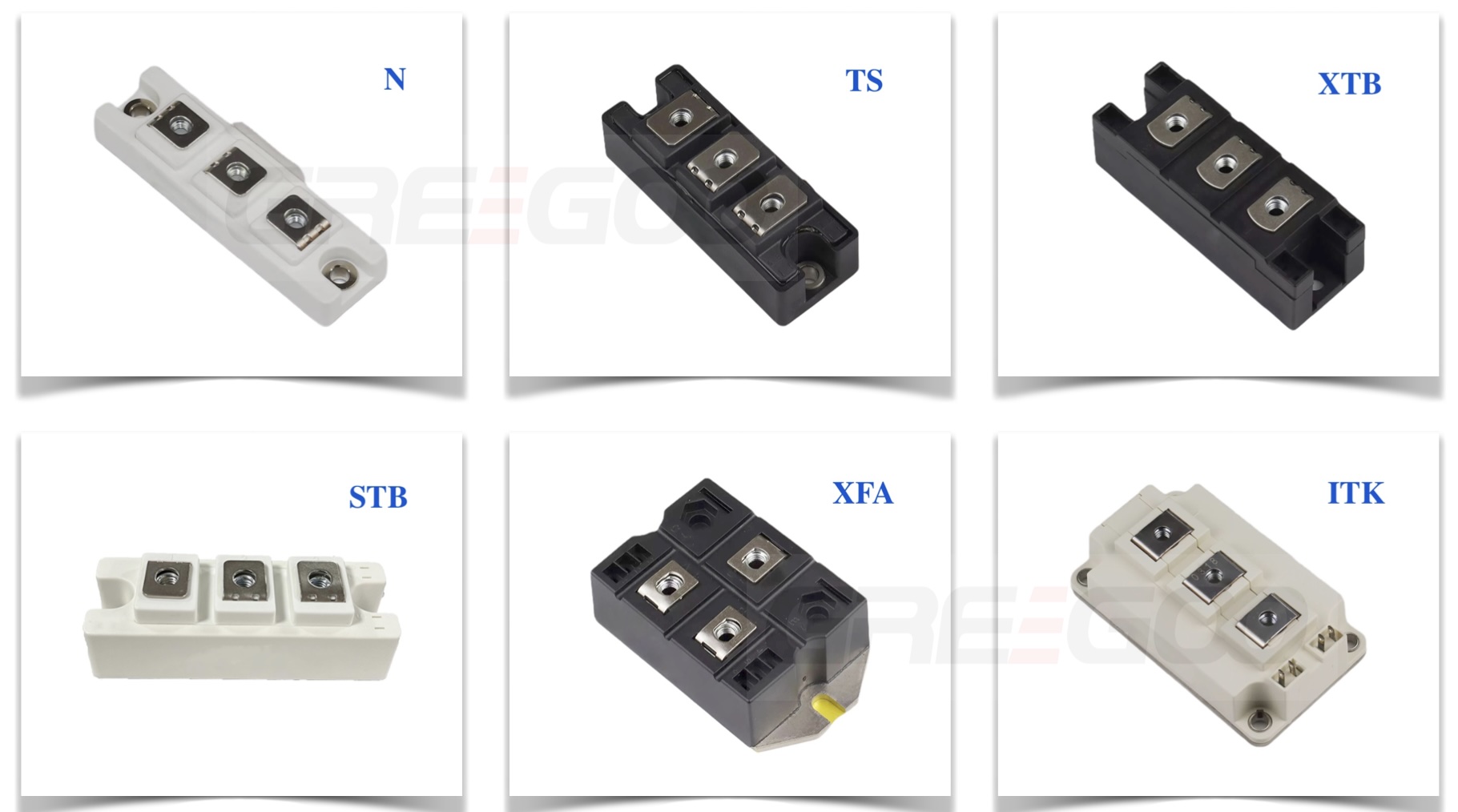

Package housing

FRED Module - Dual Diode in Series

fast recovery epitaxial diodes module

Product details
Product VRRM lFAV lFSM  VFM@IFM  trr RthJC Housing Equivalent
  d=0.5 10ms Tvj=45℃     typ Per Chip
V A A  V  A ns ℃/W MACMIC IXYS/SEMIKRON
GF200N70DK 700 200 700 1.2 100 140 0.34 N MMF200N070DK DAC2F100N6S
GF200N120DK 1200 200 1200 1.77 100 150 0.44 N MMF200N120DK DA2F100N12S
GF150STB60DK2 600 150 1500 1.25 150 95 0.3 STB MMF150S060DK
GF200STB60DK2 600 200 2000 1.15 200 140 0.18 STB MMF200S060DK SKMD205F06
GF300STB60DK2 600 300 3000 1.1 300 165 0.15 STB MMF300S060DK
GF150STB60DK1 600 150 1500 1.25 150 95 0.3 STB MMF150S060DK2B
GF200STB60DK1 600 200 2000 1.15 200 140 0.18 STB MMF200S060DK2B
GF300STB60DK1 600 300 3000 1.1 300 165 0.15 STB MMF300S060DK2B
GF400STB60DK1 600 400 4000 1.3 400 162 0.11 STB MMF400S060DK2B
MZK150TS60S 600 150 1500 1.25 150 95 0.3 TS   MZK150TS60S
MZK200TS60S 600 200 2000 1.15 200 140 0.18 TS   MZK200TS60S
MZK300TS60S 600 300 3000 1.1 300 165 0.15 TS   MZK300TS60S
MZK400TS60S 600 400 4000 1.3 400 200 0.11 TS   MZK400TS60S
GF150STB120DK2 1200 150 1500 1.6 150 145 0.22 STB MMF150S120DK
GF200STB120DK2 1200 200 1800 2.3 200 110 0.22 STB MMF200S120DK SKMD150F12
GF300STB120DK2 1200 300 2700 2.8 300 135 0.14 STB MMF300S120DK
GF150STB120DK1 1200 150 1500 1.6 150 145 0.22 STB MMF150S120DK2B
GF200STB120DK1 1200 200 1800 2.3 200 110 0.22 STB MMF200S120DK2B
GF300STB120DK1 1200 300 2700 2.8 300 135 0.14 STB MMF300S120DK2B
MZK150TS120S 1200 150 1500 1.6 150 145 0.22 TS   MZK150TS120S
MZK200TS120S 1200 200 1800 2.3 200 110 0.22 TS   MZK200TS120S
MZK300TS120S 1200 300 2700 2.8 300 135 0.14 TS   MZK300TS120S
MZK400TS120S 1200 400 3800 3 400 180 0.14 TS   MZK400TS120S
GF150XTA40DK1 400 150 1200 1.4 150 300 0.35 XTA   MEK150-04DA
GF100XTA60DK1 600 100 1200 1.36 100 250 0.45 XTA   MEK95-06DA
GF100XTA120DK1 1200 100 1200 1.85 100 250 0.45 XTA   MEK75-12DA
GF300XTB60DK2 600 300 2400 1.19 300 250 0.14 XTB   MEK300-06DA
GF300XTB120DK2 1200 300 2400 1.54 300 450 0.14 XTB   MEK250-12DA
GF400XTB20DK2 200 400 2400 0.92 400 150 0.14 XTB   MEK350-02DA
GF600XTB40DK2 400 600 3000 1.1 400 220 0.14 XTB   MEK600-04DA
GF200XFA12DK 1200 200 1800 2.3 200 110 0.22 XFA   PSMD200E12
GF100STB170DK2 1700 100 1000 1.8 100 500 0.22 STB MMF100S170DK
GF200STB170DK2 1700 200 2000 1.8 200 750 0.14 STB MMF200S170DK
GF200N70DA 700 200 700 1.2 100 140 0.34 N MMF200N070DA DAC2F100P6S
GF200N120DA 1200 200 1200 1.77 100 150 0.44 N MMF200N120DA DA2F100P12S
GF150STB60DA2 600 150 1500 1.25 150 95 0.3 STB MMF150S060DA
GF200STB60DA2 600 200 2000 1.15 200 140 0.18 STB MMF200S060DA SKND205F06
GF300STB60DA2 600 300 3000 1.1 300 165 0.15 STB MMF300S060DA
GF150STB120DA2 1200 150 1500 1.6 150 145 0.22 STB MMF150S120DA SKND150F12
GF200STB120DA2 1200 200 1800 2.3 200 110 0.22 STB MMF200S120DA
GF300STB120DA2 1200 300 2700 2.8 300 135 0.14 STB MMF300S120DA
GF300STB120DA1 1200 300 2700 2.8 300 135 0.14 STB MMF300S120DA2B
GF100XTA60DAl 600 100 1200 1.36 100 250 0.45 XTA   MEA95-06DA
GF100XTA120DAl 1200 100 1200 1.85 100 250 0.45 XTA   MEA75-12DA
GF300XTB60DA2 600 300 2400 1.19 300 250 0.14 XTB   MEA300-06DA
GF300XTB120DA2 1200 300 2400 1.54 300 450 0.14 XTB   MEA250-12DA
GF200XFA12DA 1200 200 1800 2.3 200 110 0.22 XFA   PSND200E12
GF100STB170DA2 1700 100 1000 1.8 100 500 0.22 STB MMF100S170DA
GF200STB170DA2 1700 200 2000 1.8 200 750 0.14 STB MMF200S170DA
GF100STB170DAl 1700 100 1000 1.8 100 500 0.14 STB MMF100S170DA2B
GF200STB170DA1 1700 200 2000 1.8 200 750 0.22 STB MMF200S170DA2B
GF300STB170DAl 1700 300 2700 1.8 300 135 0.14 STB MMF300S170DA2B
MZC150TS60S 600 150 1500 1.25 150 95 0.3 TS   MZC150TS60S
MZC200TS60S 600 200 2000 1.15 200 140 0.18 TS   MZC200TS60S
MZC300TS60S 600 300 3000 1.1 300 165 0.15 TS   MZC300TS60S
MZC400TS60S 600 400 4000 1.3 400 200 0.11 TS   MZC400TS60S
GF150STB60DC1 600 150 1500 1.25 150 95 0.3 STB MMF150S060B
GF200STB60DC1 600 200 2000 1.15 200 140 0.18 STB MMF200S060B SKKD205F06
GF300STB60DC1 600 300 3000 1.1 300 165 0.15 STB MMF300S060B
GF150STB120DC1 1200 150 1500 1.6 150 145 0.22 STB MMF150S120B SKKD150F12
GF200STB120DC1 1200 200 1800 2.3 200 110 0.22 STB MMF200S120B SKKD170F12
GF300STB120DC1 1200 300 2700 2.8 300 135 0.14 STB MMF300S120B
GF300MBA50D 500 300 3800 1.2 300 160 0.11 MBA MMF300YB050U
GF300RBA50D 500 300 3800 1.2 300 160 0.11 RBA FRS300BA50
GF300MBA70D 700 300 5000 1.2 300 180 0.12 MBA MMF300YB070U
GF300STB60D 600 300 4800 1.35 300 125 0.11 STB MMF300S060U SKKE290F06
GF400STB120D 1200 400 3600 2.75 300 150 0.14 STB MMF300S120U SKKE310F12
GF450XTB120D 1200 450 4800 1.76 520 450 0.07 XTB MMF400S120U MEO450-12DA
GF500XTB60D 600 500 4800 1.41 520 250 0.07 XTB MMF600S060U MEO500-06DA
GF550XTB20D 200 550 4800 1.08 520 150 0.07 XTB   MEO550-02DA
GF600STH120D 1200 600 5800 2.5 600 200 0.1 STH   SKKE600F12
GF150STB170D 1700 150 1800 1.5 150 1020 0.09 STB   SKKE120F17
GF400STH170D 1700 400 5200 1.5 400 990 0.09 STH   SKKE330F17
GF600ITH170D 1700 600 6500 2 600 990 0.09 ITH BYM600A170DN2
Circuit diagram

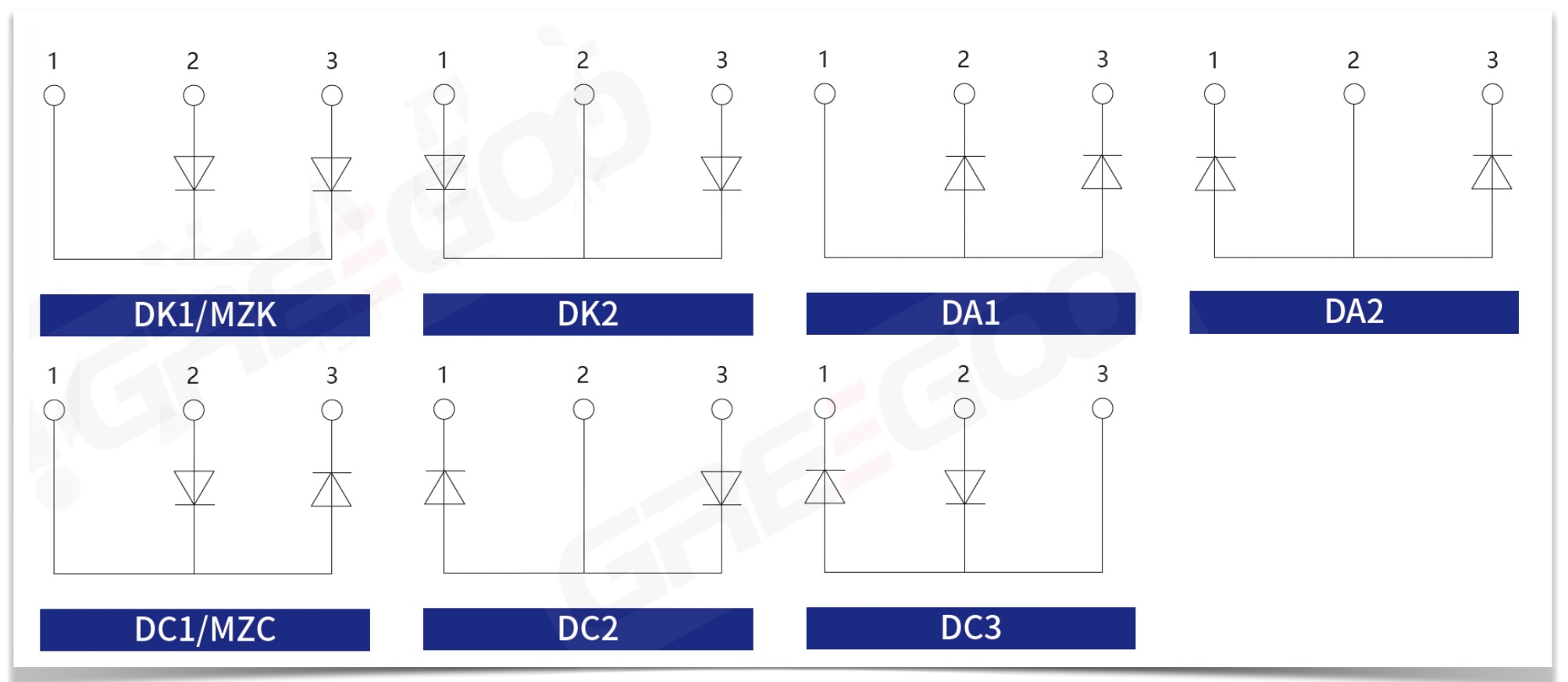

circuit diagram of 2 fred in series connection
