Fast Recovery Epitaxial Diode Module - Dual Diode in Series
Home Products FRED ModuleFRED topology and applicationFast Recovery Epitaxial Diode Module - Dual Diode in Series
Product detail
Fast Recovery Epitaxial Diode Module - Dual Diode in Series
| Product | VRRM | lFAV | lFSM | VFM@IFM | trr | RthJC | Housing | Equivalent | ||
| d=0.5 | 10ms Tvj=45℃ | typ | Per Chip | |||||||
| V | A | A | V | A | ns | ℃/W | MACMIC | Other | ||
| GF400U10DK | 100 | 400 | 1500 | 1 | 400 | 65 | 0.18 | U | MBRP400100CT | |
| GF400U20DK | 200 | 400 | 1800 | 0.95 | 400 | 90 | 0.2 | U | MBRP400200CT | |
| GF200U40DK | 400 | 200 | 1250 | 1 | 200 | 70 | 0.2 | U | MURP20040CT | |
| GF200U60DK | 600 | 200 | 1500 | 1.15 | 200 | 105 | 0.2 | U | MURP20060CT | |
| GF200U60DA | 600 | 200 | 1500 | 1.15 | 200 | 105 | 0.2 | U | MURL20056CTR | |
| GF400S10DK | 100 | 400 | 1500 | 1 | 400 | 65 | 0.18 | S | MMF400Z010DK | |
| GF400S20DK | 200 | 400 | 1800 | 0.95 | 400 | 90 | 0.2 | S | MMF400Z020DK | |
| GF200S40DK | 400 | 200 | 1250 | 1 | 200 | 70 | 0.2 | S | MMF200ZB040DK1 | |
| GF200S60DK | 600 | 200 | 1500 | 1.15 | 200 | 105 | 0.2 | S | MMF200ZB060DK1 | |
| GF200B40DK | 400 | 200 | 1250 | 1 | 200 | 70 | 0.1 | B | MMF200Y040DK1 | |
| GF200B40DK1 | 400 | 200 | 1250 | 1 | 200 | 70 | 0.1 | B | DH2F100N4S | |
| GF200B60DK | 600 | 200 | 1200 | 1 | 200 | 91 | 0.2 | B | MMF200Y060DK1 | |
| GF300B40DK | 400 | 300 | 1900 | 1.2 | 300 | 65 | 0.1 | B | MMF300Y040DK1 | |
| GF300B40DK1 | 400 | 300 | 1900 | 1.2 | 300 | 65 | 0.1 | B | DH2F150N4S | |
| GF300B60DK | 600 | 300 | 2500 | 1.2 | 300 | 100 | 0.08 | B | MMF300Y060DK1 | |
| GF400B40DK | 400 | 400 | 2550 | 1.2 | 400 | 75 | 0.08 | B | MMF400Y040DK1 | |
| GF800B20DK | 200 | 800 | 3000 | 1 | 800 | 165 | 0.08 | B | MMF800Y020DK1 | |
| GF1000B10DK | 100 | 1000 | 4000 | 0.76 | 1000 | 100 | 0.09 | B | MMF1000Y010DK1 | |
| 403CMQ100 | 100 | 400 | 1500 | 1 | 400 | 65 | 0.18 | Q | 203/303/403CMQ100 | |
| 403DMQ100 | 100 | 400 | 1500 | 1 | 400 | 65 | 0.18 | Q | 203/303/403DMQ100 | |
| 403CNQ100 | 100 | 400 | 1500 | 1 | 400 | 65 | 0.18 | Q | 203/303/403CNQ100 | |

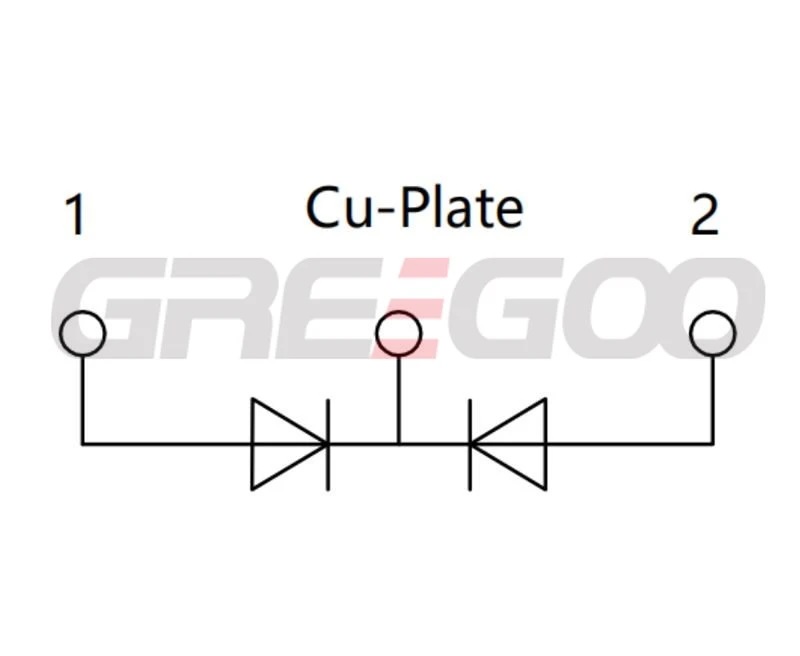

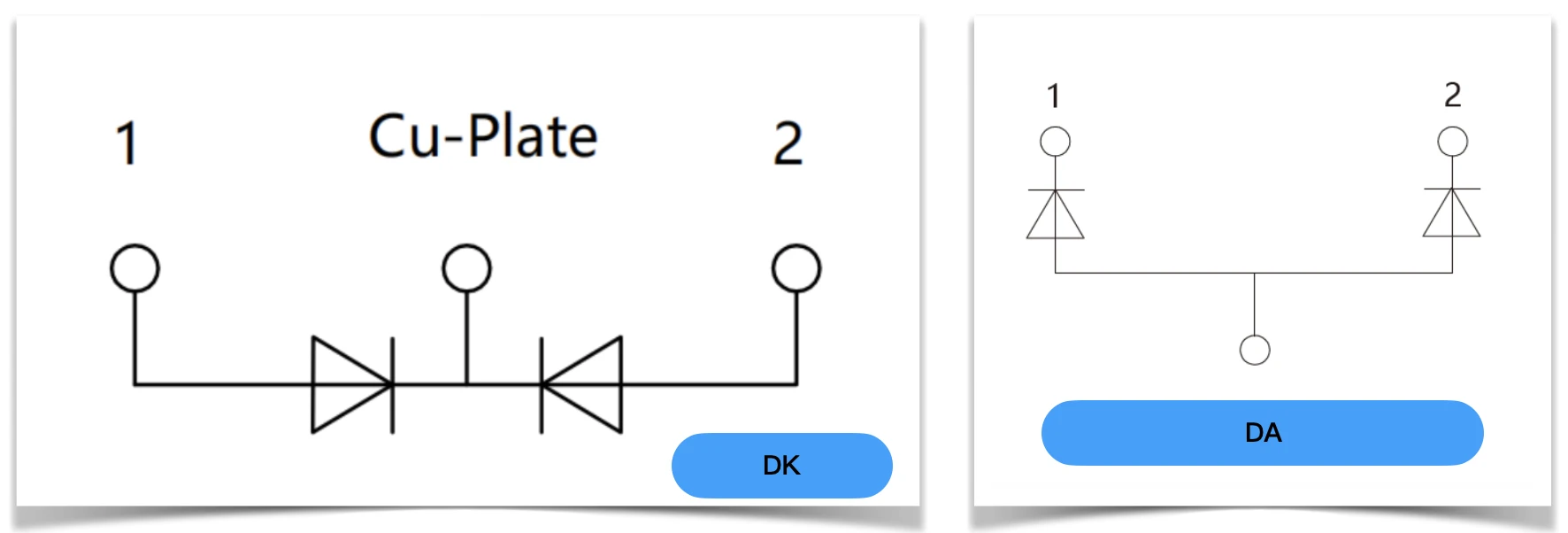

Circuit

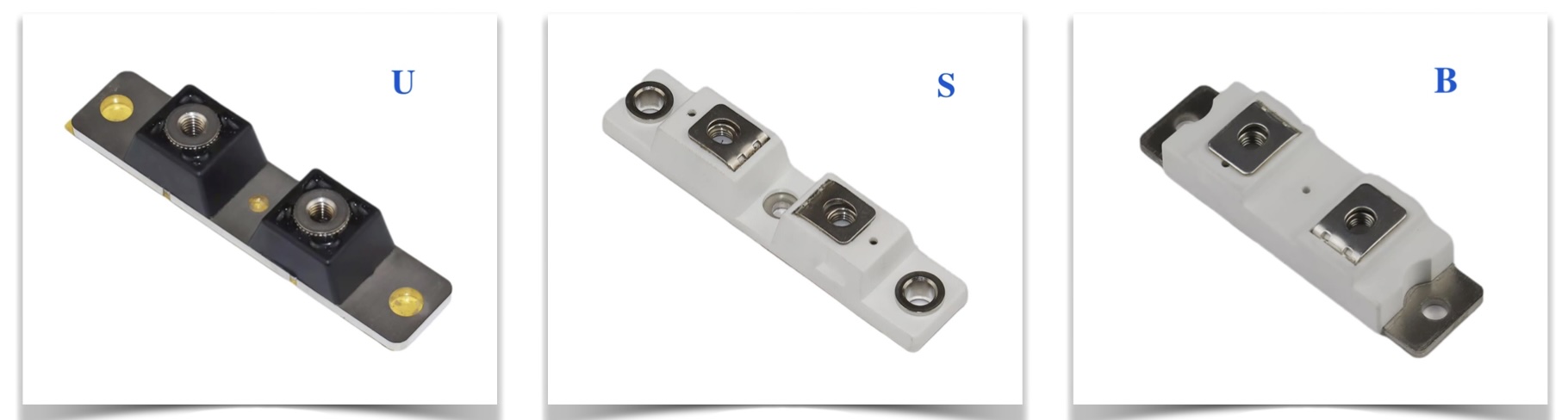

Package housing
