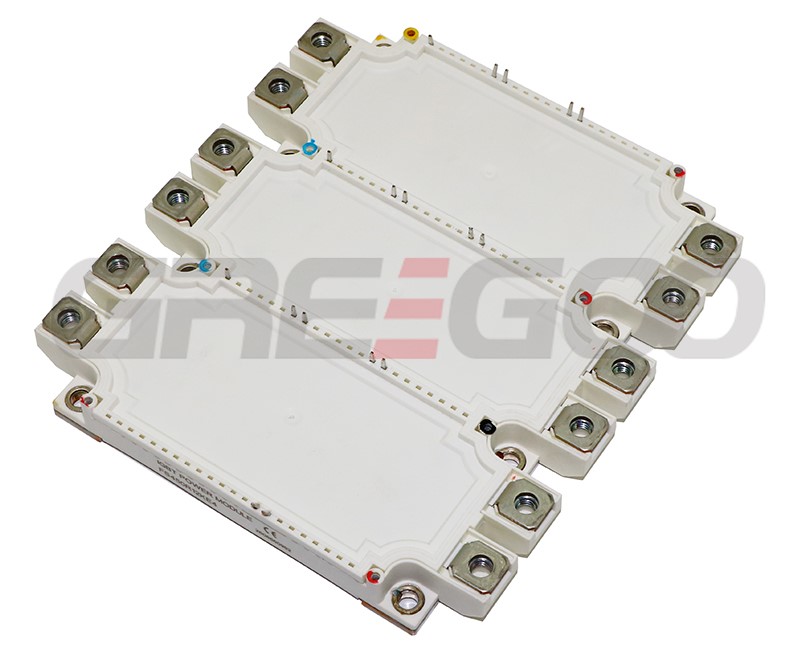

FS450R12KE4 IGBT Module

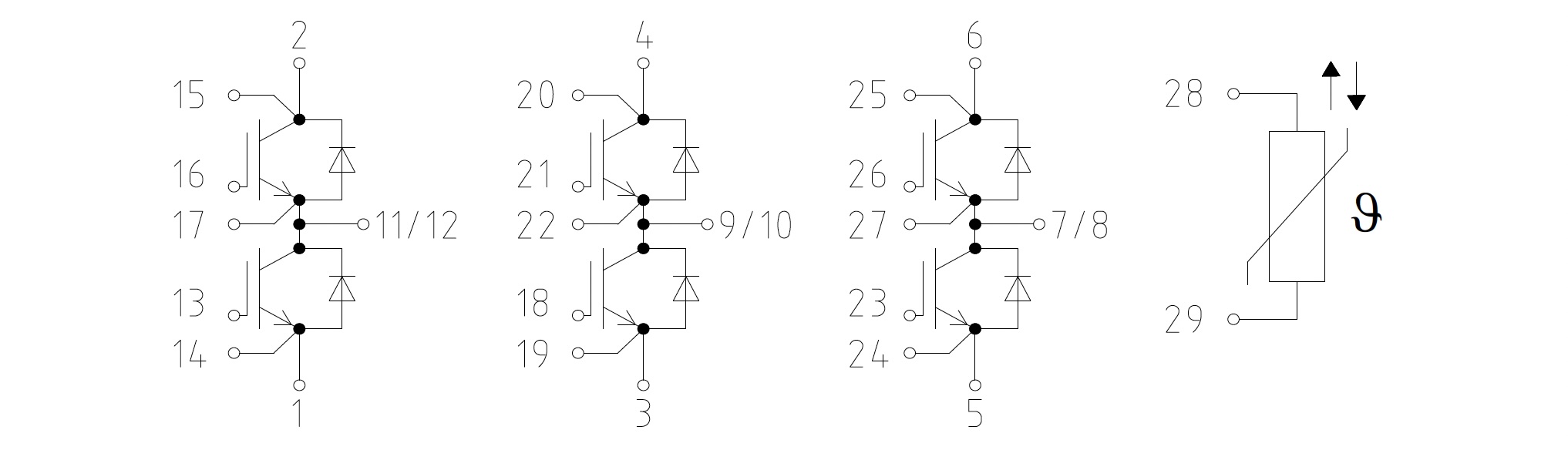

The FS450R12KE4 is a high-performance, industrial-grade IGBT (Insulated Gate Bipolar Transistor) power module. Built in a six-pack (sixfold) configuration, it features advanced TRENCHSTOP IGBT4 chip technology coupled with an optimized Emitter Controlled diode.

Feature

• Maximum Voltage (V _CES): 1200 V
• Nominal Continuous DC Current (Ic nom): 450 A
• Maximum Peak Collector Current (I_CRM): 900 A
• Total Power Dissipation (P _tot): 2250 W
• Housing Type: EconoPACK™ B-series
• Integrated Sensor: Includes an internal NTC temperature sensor for thermal monitoring.

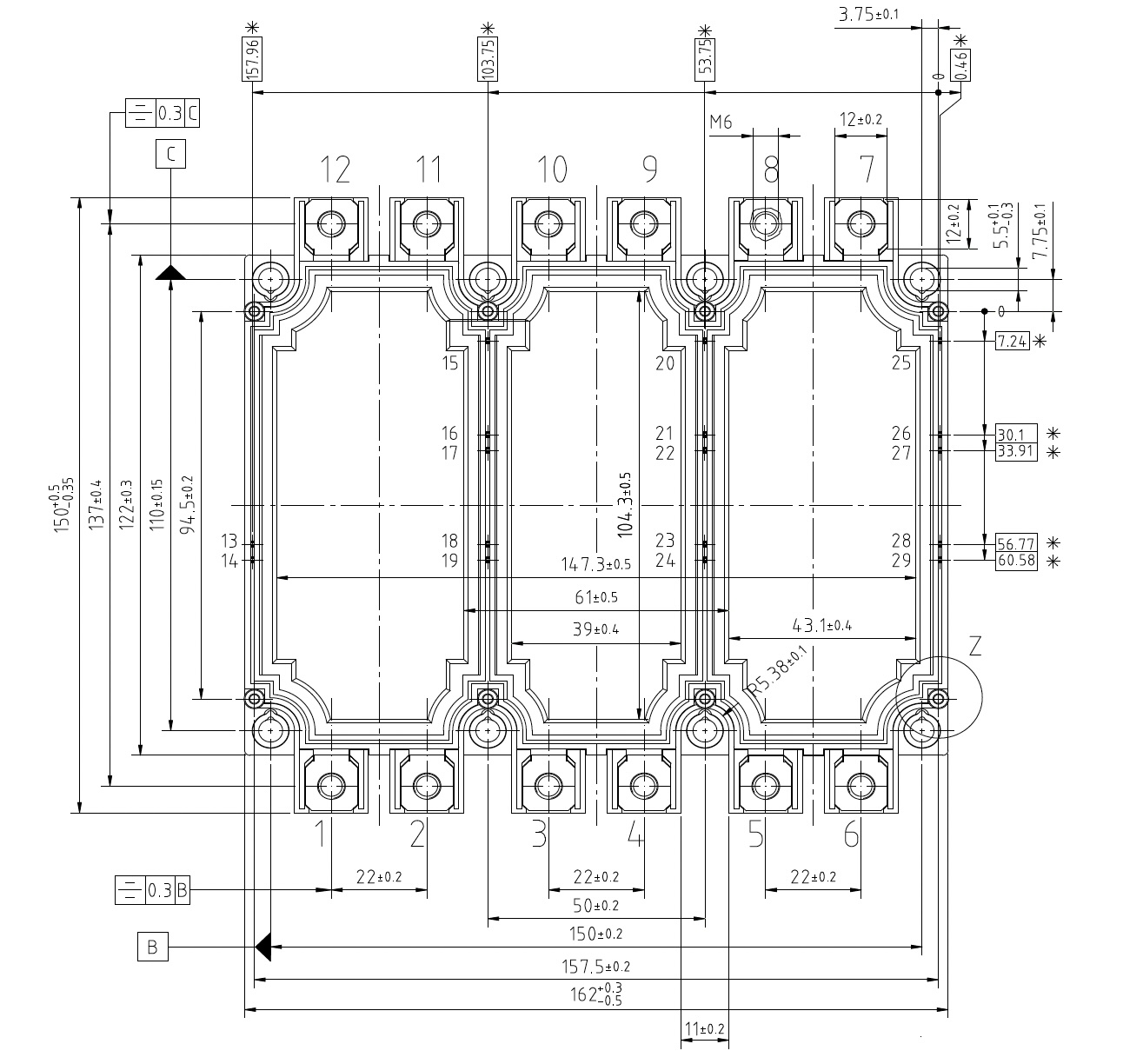

• Dimensions: 162 mm (Width) x 150 mm (Depth) x 20.5 mm (Height)

Application

• Industrial Motor Drives: Variable frequency drives (VFDs) and servo systems.
• Renewable Energy: Centralized solar inverters and wind turbine power converter.
• Power Infrastructure: Uninterruptible Power Supplies (UPS) and Power Factor Correction (PFC) systems.
• Heavy Duty Systems: Welding machines, induction heating, and railway traction control systems.
