FZ2400R17HE4P_B9 High-power IGBT module

Features

•Extended operation temp. T_{vj op}•Low switching losses
•Low V_CEsat
•T_{vj op} = 150°C
•4 kV AC 1min insulation
•Package with CTI > 400
•High creepage & clearance distancesCopper base plate

Applications

•General purpose motor drive
•Motor control

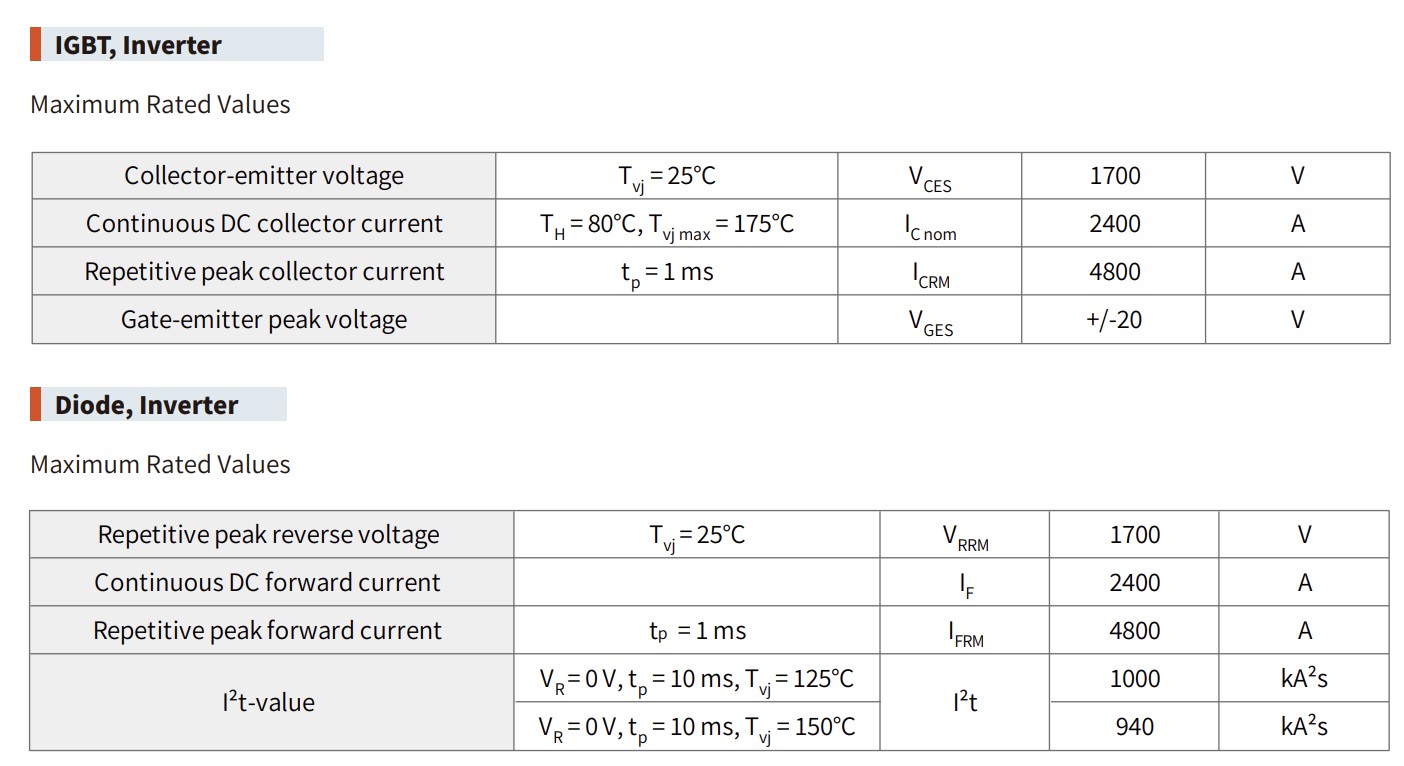

Specification

FZ2400R17HE4P_B9 Specification

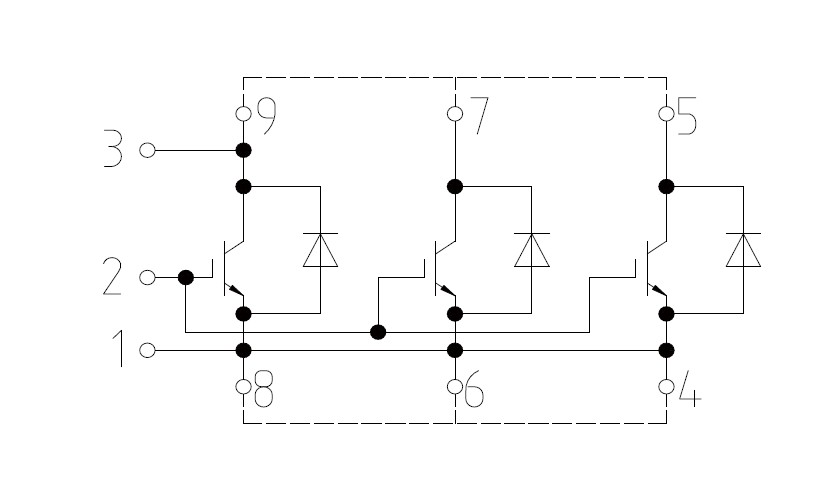

Circuit drawing

FZ2400R17HE4P_B9 High power IGBT module

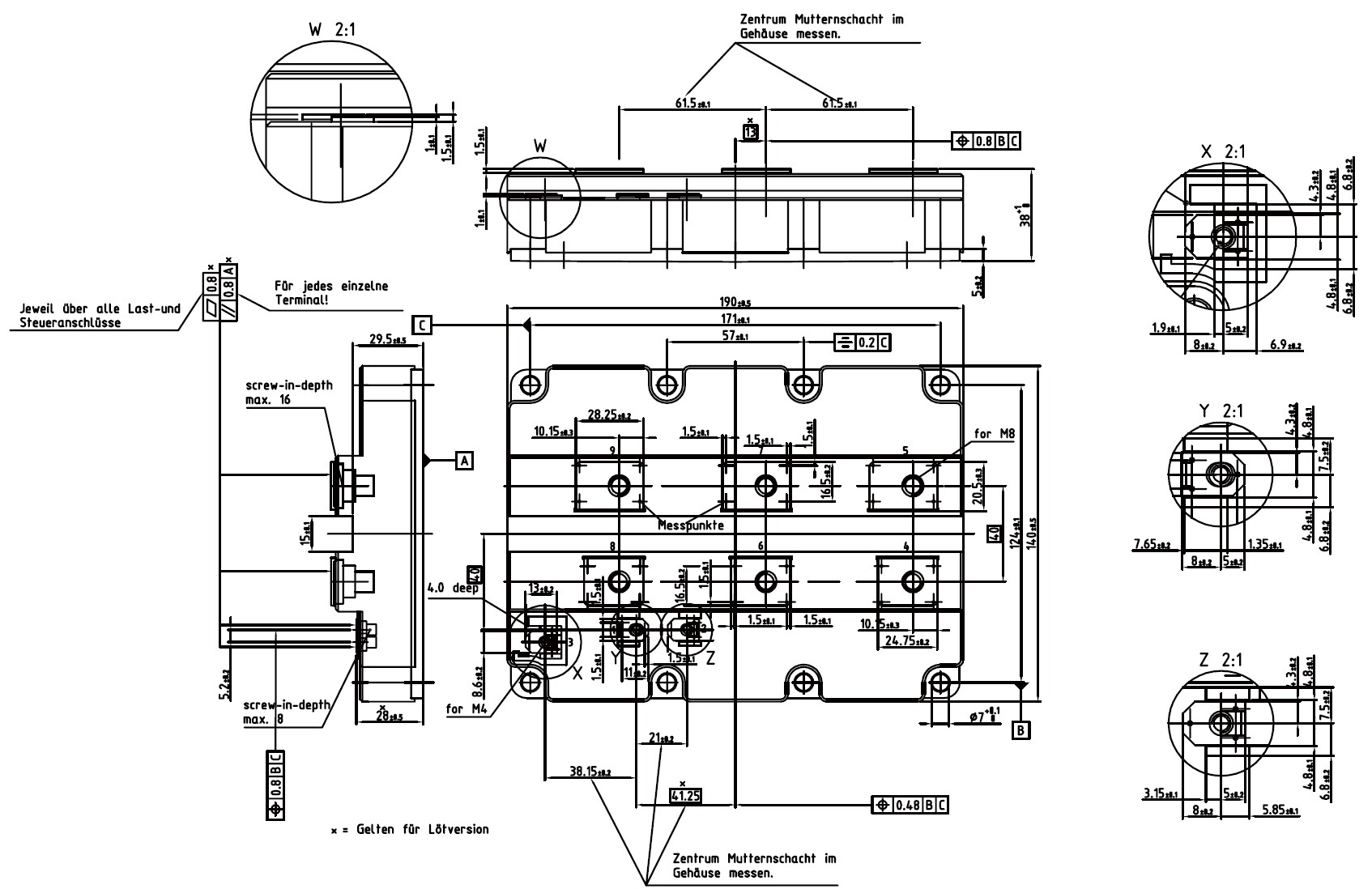

Dimensions

FZ2400R17HE4P_B9 Dimensions

Download

FZ2400R17HE4P_B9 High power IGBT module (PDF)
