GDH120053RD3M SSR
Home Products Solid State Relay (GDH...B series)500A-1200A Solid State RelayGDH120053RD3M SSR
Product details

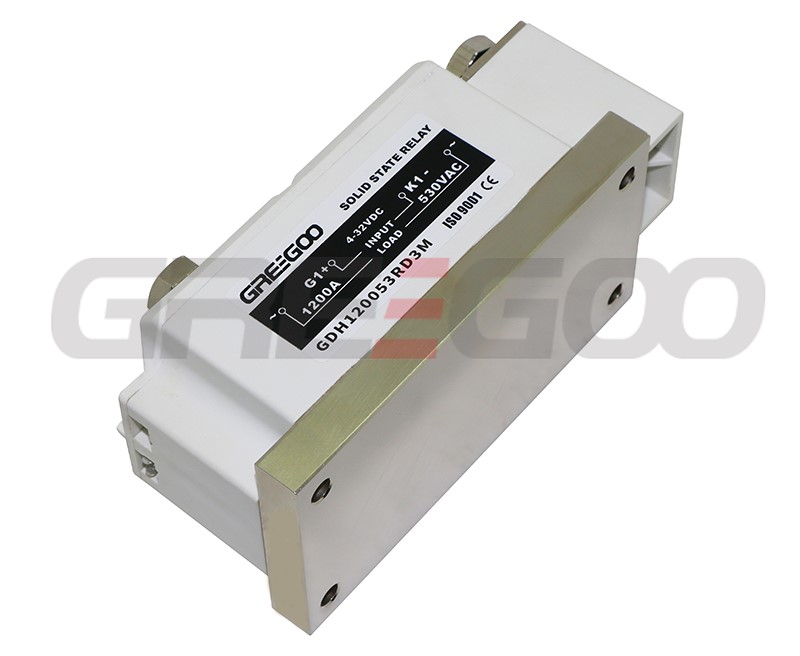

GDH120053RD3M SSR
| Name | High current Solid state relay |
| Phase | Single phase |
| Part numbers | GDH120053RD3M |
| Old part numbers | GDH120053RD3 |
| Input voltage | 4-32V |
| Input voltage type | DC |
| Rated output current | 1200A |
| Rated output voltage | 40-530V |
| Output voltage type | AC |
| Switching type | Random control |
| Output method | SCR output |
| Mounting | Panel mount |
| Contacts configuration | SPST NO |
| Manufacturer | Greegoo |
| Certificates | CE, RoHS |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
