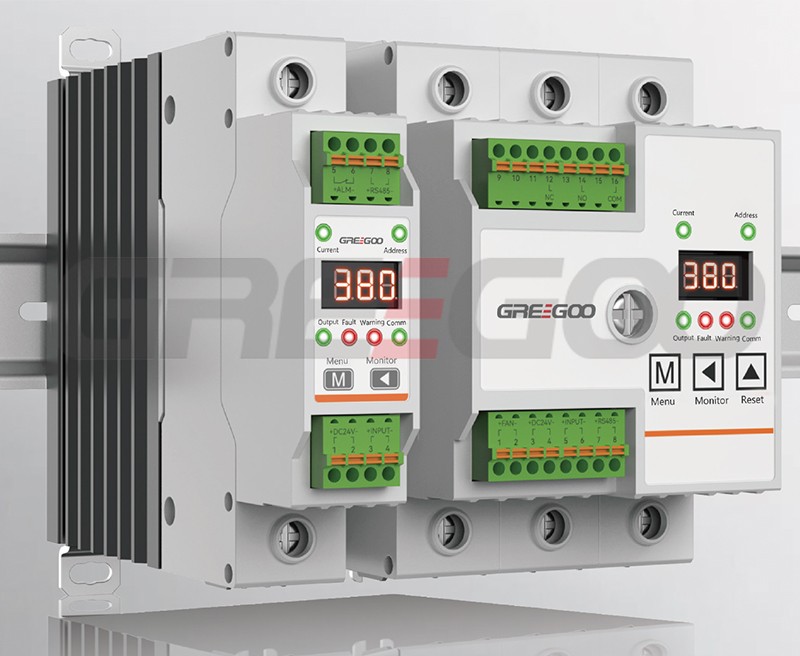

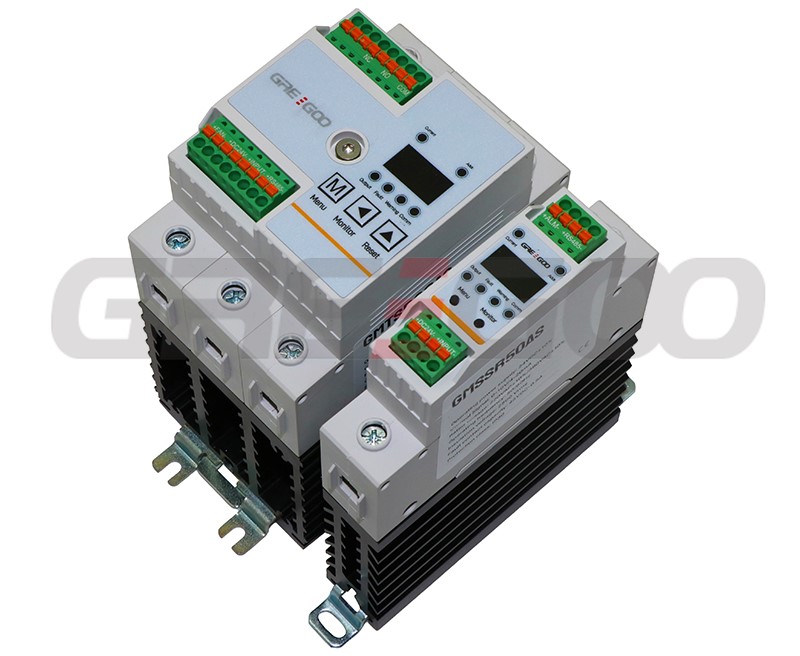

Intelligent Solid State Relay - Diagnostic SSR - Communication SSR
Features:
Temperature detection
Phase loss detection
MODBUS communication
Panel function LEDs for operational status monitoring
Overcurrent detection
Current display
Load open circuit detection
LED digital display and push-button parameter adjustment
Phase loss detection and protection SSR relay - Modbus SSR - Operational status monitoring Solid state relays - Phase loss detection and protection solid state relays, temperature detection SSR - Current LED display solid state switch - Over-current detection relay, Programmable solid state relays.
| Part Numbers | GMSSR50AS | GMSSR70AS | GMSSR90AS | GMSSR110AS |
| Control voltage range | 4-32VDC | 4-32VDC | 4-32VDC | 4-32VDC |
| Maximum current | 50A | 70A | 90A | 110A |
| Operating voltage | 24VDC | 24VDC | 24VDC | 24VDC |
| Input voltage range | 50-460VAC | 50-460VAC | 50-460VAC | 50-460VAC |
| Alarm output port voltage range | ≤36V(DC or AC) | ≤DC 36V | ≤36V(DC or AC) | ≤250V(DC or AC) |
| Alarm output port current(Max) | 0.2A | 0.2A | 0.2A | 0.5A |
Need more information?
Contact us to request pricing, availability and customization options.
