SD200N SD200R Stud Standard Recovery Diode
FEATURES
• Wide current range
• High voltage ratings up to 2400 V
• High surge current capabilities
• Stud cathode and stud anode version

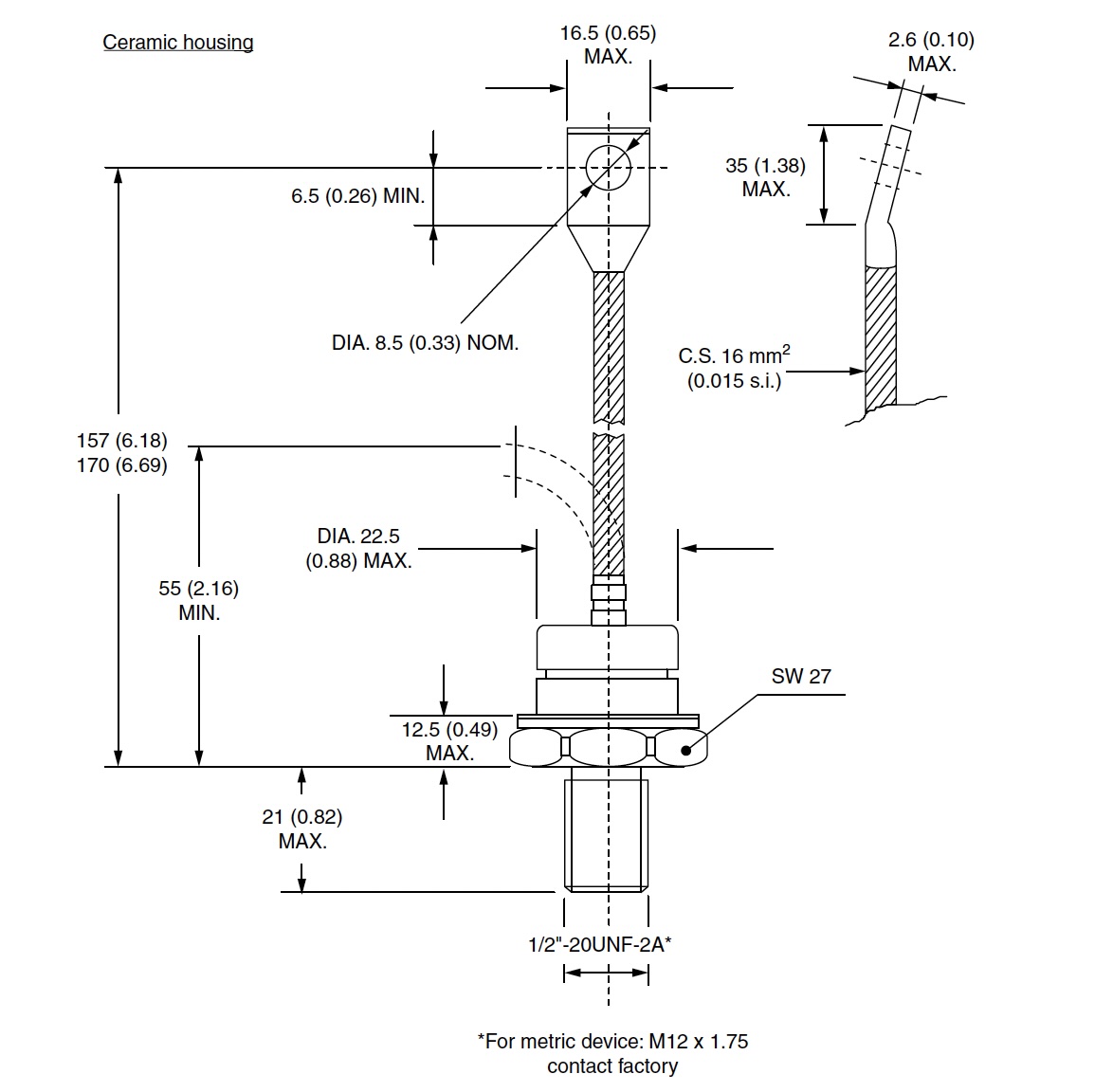

• Compression bonded encapsulations
• Designed and qualified for industrial level
TYPICAL APPLICATIONS
• Converters
• Power supplies
• Machine tool controls
• High power drives
• Medium traction applications
| TYPE NUMBER | VOLTAGE CODE | VRRM (V) | VRSM (V) | IRRM MAXIMUM AT TJ = TJ MAXIMUM (mA) | STUD | BASE | HOUSING |
| SD200N16PC | 16 | 1600 | 1700 | 15 | Normal
(cathode to stud) |
P:1/2" 20UNF-2A |
C = ceramic |
| SD200N20PC | 20 | 2000 | 2100 | 15 | Normal
(cathode to stud) |
P:1/2" 20UNF-2A | C = ceramic |
| SD200N24PC | 24 | 2400 | 2500 | 15 | Normal
(cathode to stud) |
P:1/2" 20UNF-2A |
C = ceramic |
| SD200R16PC | 16 | 1600 | 1700 | 15 | Reverse
(anode to stud) |
P:1/2" 20UNF-2A | C = ceramic |
| SD200R20PC | 20 | 2000 | 2100 | 15 | Reverse
(anode to stud) |
P:1/2" 20UNF-2A |
C = ceramic |
| SD200R24PC | 24 | 2400 | 2500 | 15 | Reverse
(anode to stud) |
P:1/2" 20UNF-2A | C = ceramic |
