Product details

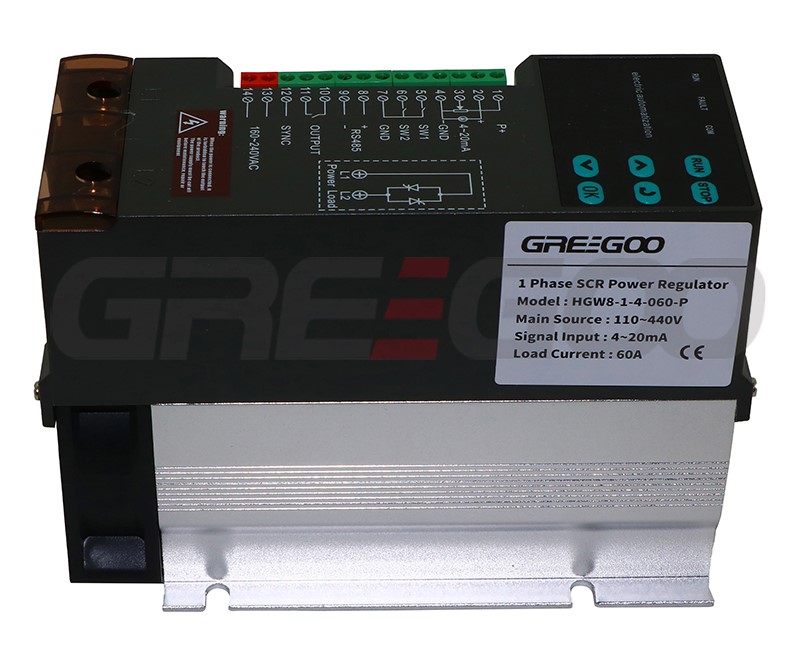

Single phase advanced SCR regulators with constant voltage and current limiting mode

· It adopts control technology of Microcontroller Unit (MCU) embedded single-chip and PID closed-loop, with 100% linear output.

· It supports digital display of input, output, current, voltage, and power.

· It has a dual-channel input signal design, supporting input of both current and voltage signals.

· It supports multiple control modes, including constant voltage, constant current, constant power, open-loop control, and cycle control.

· It is equipped with multiple protection functions, such as phase loss protection, overcurrent protection, overtemperature protection, and open-circuit protection.

· It features MODBUS RTU communication, allowing the host computer to directly control the output level.

Model selection

Model	Phase	Input voltage	Current	Load Power (KW)		Weight (kg)	Control mode	Control signal
Model	Phase	Input voltage	Current	220V	380V	Weight (kg)	Control mode	Control signal
HGW8-1-4-030-P	1Ph	330-440V	30	5.2	9.1	1.2	Phase angle (constant voltage and current limiting)	Selectable
HGW8-1-4-040-P	1Ph	330-440V	40	7.0	12.1	1.2	Phase angle (constant voltage and current limiting)	Selectable
HGW8-1-4-050-P	1Ph	330-440V	50	8.8	15.2	1.2	Phase angle (constant voltage and current limiting)	Selectable

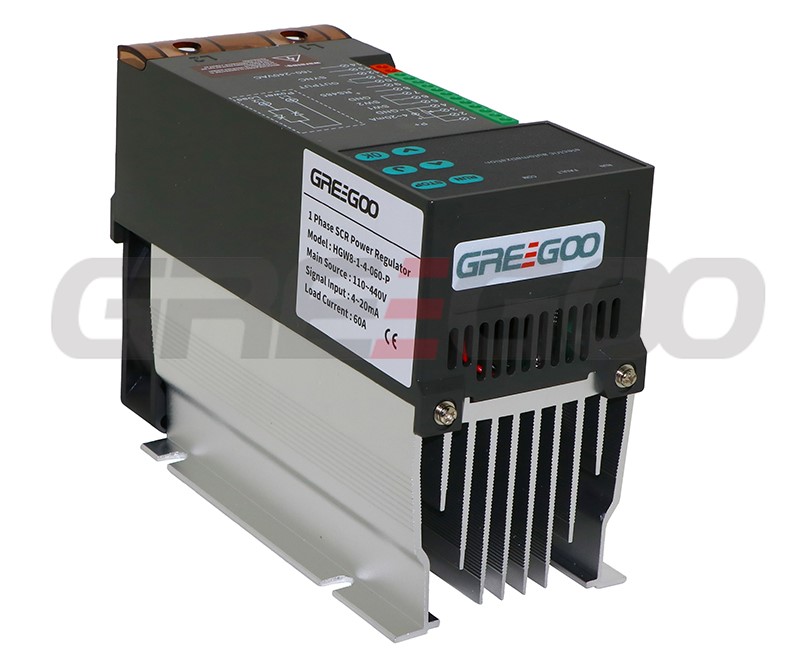

HGW8-1-4-060-P	1Ph	330-440V	60	10.5	18.2	1.2	Phase angle (constant voltage and current limiting)	Selectable
HGW8-1-4-075-P	1Ph	330-440V	75	13.2	22.8	1.2	Phase angle (constant voltage and current limiting)	Selectable
HGW8-1-4-080-P	1Ph	330-440V	80	14.0	24.3	1.2	Phase angle (constant voltage and current limiting)	Selectable
HGW8-1-4-090-P	1Ph	330-440V	90	15.8	27.3	1.2	Phase angle (constant voltage and current limiting)	Selectable
HGW8-1-4-100-P	1Ph	330-440V	100	17.6	30.4	1.2	Phase angle (constant voltage and current limiting)	Selectable
HGW8-1-4-125-P	1Ph	330-440V	125	22.0	38.0	1.2	Phase angle (constant voltage and current limiting)	Selectable
HGW8-1-4-150-P	1Ph	330-440V	150	26.4	45.6	1.2	Phase angle (constant voltage and current limiting)	Selectable

HGW8-1-2-030-P	1Ph	110-220V	30	5.2	9.1	1.2	Phase angle (constant voltage and current limiting)	Selectable
HGW8-1-2-040-P	1Ph	110-220V	40	7.0	12.1	1.2	Phase angle (constant voltage and current limiting)	Selectable
HGW8-1-2-050-P	1Ph	110-220V	50	8.8	15.2	1.2	Phase angle (constant voltage and current limiting)	Selectable
HGW8-1-2-060-P	1Ph	110-220V	60	10.5	18.2	1.2	Phase angle (constant voltage and current limiting)	Selectable
HGW8-1-2-075-P	1Ph	110-220V	75	13.2	22.8	1.2	Phase angle (constant voltage and current limiting)	Selectable
HGW8-1-2-080-P	1Ph	110-220V	80	14.0	24.3	1.2	Phase angle (constant voltage and current limiting)	Selectable
HGW8-1-2-090-P	1Ph	110-220V	90	15.8	27.3	1.2	Phase angle (constant voltage and current limiting)	Selectable
HGW8-1-2-100-P	1Ph	110-220V	100	17.6	30.4	1.2	Phase angle (constant voltage and current limiting)	Selectable
HGW8-1-2-125-P	1Ph	110-220V	125	22.0	38.0	1.2	Phase angle (constant voltage and current limiting)	Selectable
HGW8-1-2-150-P	1Ph	110-220V	150	26.4	45.6	1.2	Phase angle (constant voltage and current limiting)	Selectable

Control signal selectable: 4-20mA/0-5V/0-10V/Pot
