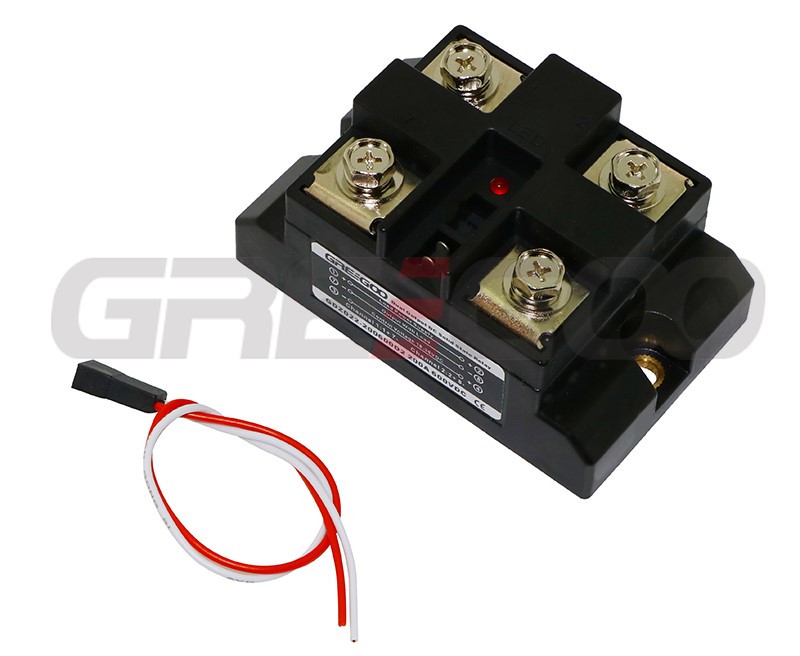

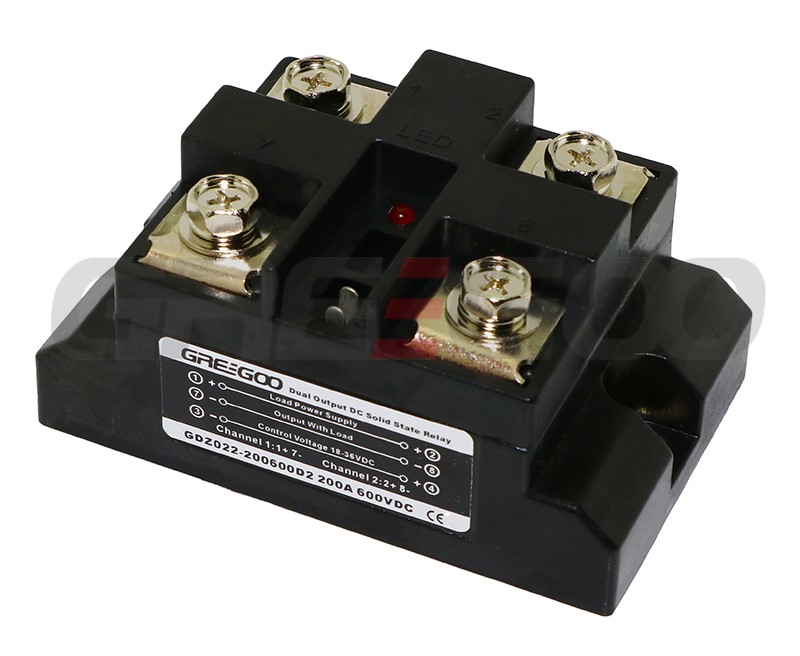

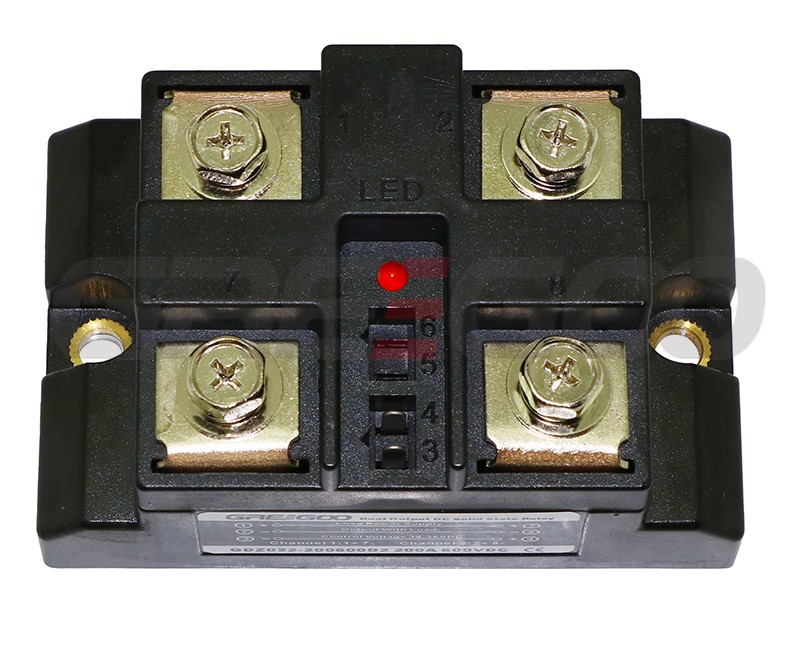

Dual output DC solid state relay (GDZ022)

Home Products DC to DC Solid State RelayMulti channel output dc dc ssr relayDual output DC solid state relay (GDZ022)

Dual nomal open output dc ssr, 30A to 200A, 100V to 1200VDC
Dual nomal open output dc ssr, 30A to 200A, 100V to 1200VDC
Product Details

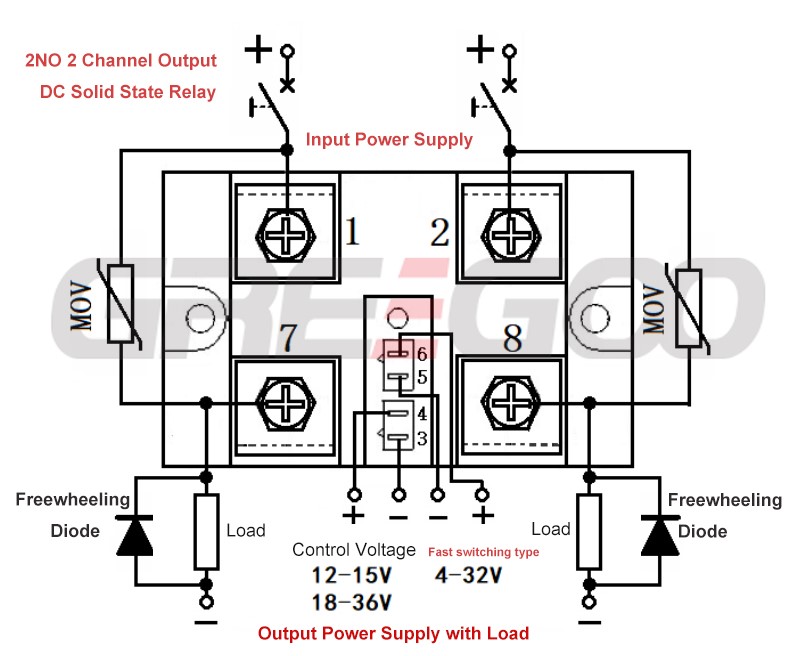

Dual output DC solid state relay (GDZ022)

Optomagnetic coupling isolation between input and output circuits.

Control signal compatible with PLC and TTL logic interfaces.

LED indicator for working status.

The L.Z series includes under-voltage protection, transient voltage absorption, and overcurrent short-circuit protection features.

Dual-channel normally open solid-state contactless outputs, which switch without sparks or arcing.

Encapsulated in epoxy resin, providing corrosion resistance and shock resistance, ensuring stable and reliable switch operation.

The product is primarily used for multi-channel control of DC power equipment, such as DC heaters, solenoid valves, motors, and charging/discharging equipment for new energy sources.

Part numbers
Model Numbers Max Current Max Voltage Control Voltage Contact Dimensions
GDZ022-30100D1 30A 100VDC 12-15VDC 2NO 95*60*46
GDZ022-30100D2 30A 100VDC 18-36VDC 2NO 95*60*46
GDZ022-30200D1 30A 200VDC 12-15VDC 2NO 95*60*46
GDZ022-30200D2 30A 200VDC 18-36VDC 2NO 95*60*46
GDZ022-30600D1 30A 600VDC 12-15VDC 2NO 95*60*46
GDZ022-30600D2 30A 600VDC 18-36VDC 2NO 95*60*46
GDZ022-301200D1 30A 1200VDC 12-15VDC 2NO 95*60*46
GDZ022-301200D2 30A 1200VDC 18-36VDC 2NO 95*60*46
GDZ022-60100D1 60A 100VDC 12-15VDC 2NO 95*60*46
GDZ022-60100D2 60A 100VDC 18-36VDC 2NO 95*60*46
GDZ022-60200D1 60A 200VDC 12-15VDC 2NO 95*60*46
GDZ022-60200D2 60A 200VDC 18-36VDC 2NO 95*60*46
GDZ022-60600D1 60A 600VDC 12-15VDC 2NO 95*60*46
GDZ022-60600D2 60A 600VDC 18-36VDC 2NO 95*60*46
GDZ022-601200D1 60A 1200VDC 12-15VDC 2NO 95*60*46
GDZ022-601200D2 60A 1200VDC 18-36VDC 2NO 95*60*46
GDZ022-80100D1 80A 100VDC 12-15VDC 2NO 95*60*46
GDZ022-80100D2 80A 100VDC 18-36VDC 2NO 95*60*46
GDZ022-80200D1 80A 200VDC 12-15VDC 2NO 95*60*46
GDZ022-80200D2 80A 200VDC 18-36VDC 2NO 95*60*46
GDZ022-80600D1 80A 600VDC 12-15VDC 2NO 95*60*46
GDZ022-80600D2 80A 600VDC 18-36VDC 2NO 95*60*46
GDZ022-801200D1 80A 1200VDC 12-15VDC 2NO 95*60*46
GDZ022-801200D2 80A 1200VDC 18-36VDC 2NO 95*60*46
GDZ022-100100D1 100A 100VDC 12-15VDC 2NO 95*60*46
GDZ022-100100D2 100A 100VDC 18-36VDC 2NO 95*60*46
GDZ022-100200D1 100A 200VDC 12-15VDC 2NO 95*60*46
GDZ022-100200D2 100A 200VDC 18-36VDC 2NO 95*60*46
GDZ022-100600D1 100A 600VDC 12-15VDC 2NO 95*60*46
GDZ022-100600D2 100A 600VDC 18-36VDC 2NO 95*60*46
GDZ022-1001200D1 100A 1200VDC 12-15VDC 2NO 95*60*46
GDZ022-1001200D2 100A 1200VDC 18-36VDC 2NO 95*60*46
GDZ022-120100D1 120A 100VDC 12-15VDC 2NO 95*60*46
GDZ022-120100D2 120A 100VDC 18-36VDC 2NO 95*60*46
GDZ022-120200D1 120A 200VDC 12-15VDC 2NO 95*60*46
GDZ022-120200D2 120A 200VDC 18-36VDC 2NO 95*60*46
GDZ022-120600D1 120A 600VDC 12-15VDC 2NO 95*60*46
GDZ022-120600D2 120A 600VDC 18-36VDC 2NO 95*60*46
GDZ022-1201200D1 120A 1200VDC 12-15VDC 2NO 95*60*46
GDZ022-1201200D2 120A 1200VDC 18-36VDC 2NO 95*60*46
GDZ022-150100D1 150A 100VDC 12-15VDC 2NO 95*60*46
GDZ022-150100D2 150A 100VDC 18-36VDC 2NO 95*60*46
GDZ022-150200D1 150A 200VDC 12-15VDC 2NO 95*60*46
GDZ022-150200D2 150A 200VDC 18-36VDC 2NO 95*60*46
GDZ022-150600D1 150A 600VDC 12-15VDC 2NO 95*60*46
GDZ022-150600D2 150A 600VDC 18-36VDC 2NO 95*60*46
GDZ022-1501200D1 150A 1200VDC 12-15VDC 2NO 95*60*46
GDZ022-1501200D2 150A 1200VDC 18-36VDC 2NO 95*60*46
GDZ022-180100D1 180A 100VDC 12-15VDC 2NO 95*60*46
GDZ022-180100D2 180A 100VDC 18-36VDC 2NO 95*60*46
GDZ022-180200D1 180A 200VDC 12-15VDC 2NO 95*60*46
GDZ022-180200D2 180A 200VDC 18-36VDC 2NO 95*60*46
GDZ022-180600D1 180A 600VDC 12-15VDC 2NO 95*60*46
GDZ022-180600D2 180A 600VDC 18-36VDC 2NO 95*60*46
GDZ022-1801200D1 180A 1200VDC 12-15VDC 2NO 95*60*46
GDZ022-1801200D2 180A 1200VDC 18-36VDC 2NO 95*60*46
GDZ022-200100D1 200A 100VDC 12-15VDC 2NO 95*60*46
GDZ022-200100D2 200A 100VDC 18-36VDC 2NO 95*60*46
GDZ022-200200D1 200A 200VDC 12-15VDC 2NO 95*60*46
GDZ022-200200D2 200A 200VDC 18-36VDC 2NO 95*60*46
GDZ022-200600D1 200A 600VDC 12-15VDC 2NO 95*60*46
GDZ022-200600D2 200A 600VDC 18-36VDC 2NO 95*60*46
GDZ022-2001200D1 200A 1200VDC 12-15VDC 2NO 95*60*46
GDZ022-2001200D2 200A 1200VDC 18-36VDC 2NO 95*60*46
Specification
Model GDZ022
Control Voltage 12–15VDC or 18–36VDC
Control Current 70–160mA or 50–140mA
Under-Voltage Protection Locks under <10VDC or <16VDC
Operating Indicator LED
Maximum Voltage 100, 200, 600, 1200VDC
Maximum Current 30, 60, 80, 100, 120, 150, 180, 200A
On-State Voltage Drop 0.8 – 4.5 V
Off-State Voltage 100V, 200V, 600V, 1200V
Transient Voltage Protection 80V, 180V, 480V, 1000V
Overcurrent Protection None; L: Output current 50%; Z: Output current 100%
Switching Time ≤0.15ms
Switching Characteristics MOS or IGBT - Solid-state contactless switching
Isolation Voltage ≥1800–2500 V
Insulation Voltage ≥2000–2500 V
Operating Temperature -30 to 75 ℃
Heat Dissipation Condition Heat sink with additional fan cooling required
Load Current Safety Factor Resistive load: 2.5-3 times; Inductive load: 3-6 times
