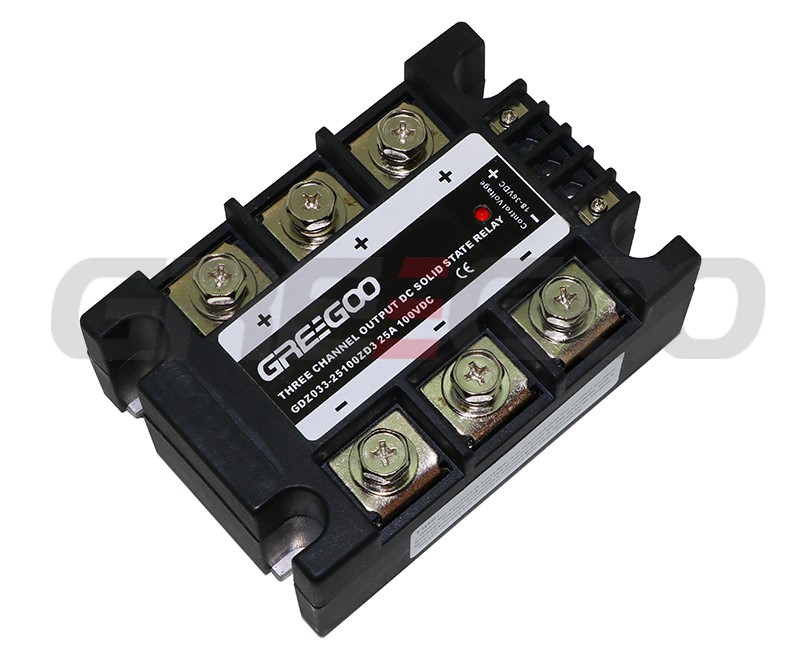

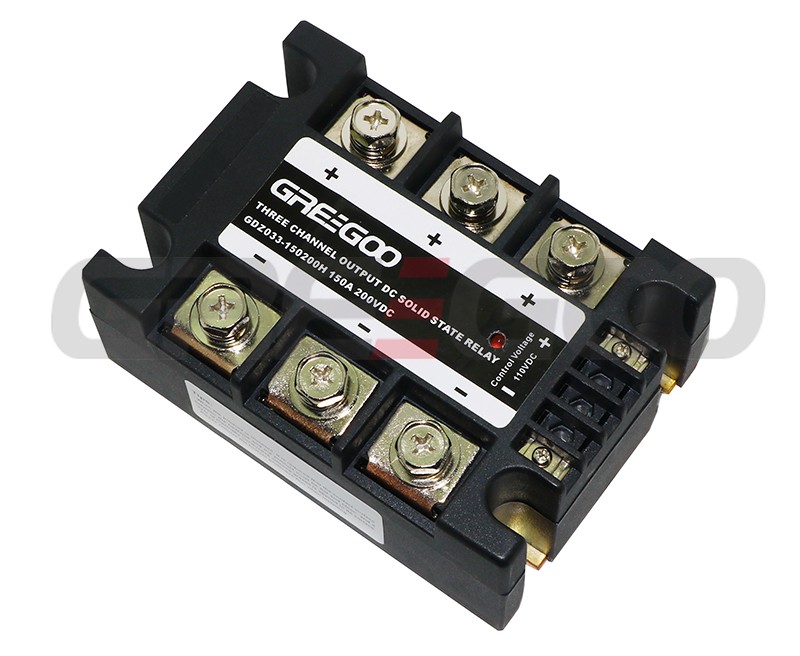

Three channel output dc solid state relay (GDZ033)
Optomagnetic coupling isolation between input and output circuits.
Control signal compatible with PLC and TTL logic interfaces.
LED indicator for working status.
Built-in under-voltage, transient over-voltage absorption, overcurrent, and short-circuit protection.
Three-channel normally open solid-state contactless outputs, which switch without sparks or arcing.
Encapsulated in one piece with epoxy resin, providing corrosion resistance, shock resistance, and ensuring stable and reliable switch operation.
The product is mainly used for multi-channel control of DC power equipment, such as DC heaters, solenoid valves, motors, and charging/discharging equipment for new energy sources.
Part numbers
| Model Numbers | Max Current | Max Voltage | Control Voltage | Contact | Dimensions |
| GDZ033-25100D1 | 25A | 100VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-25100D2 | 25A | 100VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-25200D1 | 25A | 200VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-25200D2 | 25A | 200VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-25600D1 | 25A | 600VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-25600D2 | 25A | 600VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-251200D1 | 25A | 1200VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-251200D2 | 25A | 1200VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-60100D1 | 60A | 100VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-60100D2 | 60A | 100VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-60200D1 | 60A | 200VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-60200D2 | 60A | 200VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-60600D1 | 60A | 600VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-60600D2 | 60A | 600VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-601200D1 | 60A | 1200VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-601200D2 | 60A | 1200VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-80100D1 | 80A | 100VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-80100D2 | 80A | 100VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-80200D1 | 80A | 200VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-80200D2 | 80A | 200VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-80600D1 | 80A | 600VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-80600D2 | 80A | 600VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-801200D1 | 80A | 1200VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-801200D2 | 80A | 1200VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-100100D1 | 100A | 100VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-100100D2 | 100A | 100VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-100200D1 | 100A | 200VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-100200D2 | 100A | 200VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-100600D1 | 100A | 600VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-100600D2 | 100A | 600VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-1001200D1 | 100A | 1200VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-1001200D2 | 100A | 1200VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-120100D1 | 120A | 100VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-120100D2 | 120A | 100VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-120200D1 | 120A | 200VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-120200D2 | 120A | 200VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-120600D1 | 120A | 600VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-120600D2 | 120A | 600VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-1201200D1 | 120A | 1200VDC | 12-15VDC | 3NO | 104*74*41 |
| GDZ033-1201200D2 | 120A | 1200VDC | 18-36VDC | 3NO | 104*74*41 |
| GDZ033-150100D1 | 150A | 100VDC | 12-15VDC | 3NO | 120*84*56 |
| GDZ033-150100D2 | 150A | 100VDC | 18-36VDC | 3NO | 120*84*56 |
| GDZ033-150200D1 | 150A | 200VDC | 12-15VDC | 3NO | 120*84*56 |
| GDZ033-150200D2 | 150A | 200VDC | 18-36VDC | 3NO | 120*84*56 |
| GDZ033-150600D1 | 150A | 600VDC | 12-15VDC | 3NO | 120*84*56 |
| GDZ033-150600D2 | 150A | 600VDC | 18-36VDC | 3NO | 120*84*56 |
| GDZ033-1501200D1 | 150A | 1200VDC | 12-15VDC | 3NO | 120*84*56 |
| GDZ033-1501200D2 | 150A | 1200VDC | 18-36VDC | 3NO | 120*84*56 |
| GDZ033-180100D1 | 180A | 100VDC | 12-15VDC | 3NO | 120*84*56 |
| GDZ033-180100D2 | 180A | 100VDC | 18-36VDC | 3NO | 120*84*56 |
| GDZ033-180200D1 | 180A | 200VDC | 12-15VDC | 3NO | 120*84*56 |
| GDZ033-180200D2 | 180A | 200VDC | 18-36VDC | 3NO | 120*84*56 |
| GDZ033-180600D1 | 180A | 600VDC | 12-15VDC | 3NO | 120*84*56 |
| GDZ033-180600D2 | 180A | 600VDC | 18-36VDC | 3NO | 120*84*56 |
| GDZ033-1801200D1 | 180A | 1200VDC | 12-15VDC | 3NO | 120*84*56 |
| GDZ033-1801200D2 | 180A | 1200VDC | 18-36VDC | 3NO | 120*84*56 |
| GDZ033-200100D1 | 200A | 100VDC | 12-15VDC | 3NO | 120*84*56 |
| GDZ033-200100D2 | 200A | 100VDC | 18-36VDC | 3NO | 120*84*56 |
| GDZ033-200200D1 | 200A | 200VDC | 12-15VDC | 3NO | 120*84*56 |
| GDZ033-200200D2 | 200A | 200VDC | 18-36VDC | 3NO | 120*84*56 |
| GDZ033-200600D1 | 200A | 600VDC | 12-15VDC | 3NO | 120*84*56 |
| GDZ033-200600D2 | 200A | 600VDC | 18-36VDC | 3NO | 120*84*56 |
| GDZ033-2001200D1 | 200A | 1200VDC | 12-15VDC | 3NO | 120*84*56 |
| GDZ033-2001200D2 | 200A | 1200VDC | 18-36VDC | 3NO | 120*84*56 |
Specification
| Model | GDZ033 |
|---|---|
| Control Voltage | 12–15VDC or 18–36VDC |
| Control Current | 110–220mA or 80–210mA |
| Under-Voltage Protection | <10VDC or <16VDC self-locking |
| Operating Indicator | LED |
| Maximum Voltage | 100, 200, 600, 1200VDC |
| Maximum Current | 30, 60, 80, 100, 120, 150, 180, 200A |
| On-State Voltage Drop | 0.8 – 4.5 V |
| Off-State Voltage | 100V, 200V, 600V, 1200V |
| Transient Voltage Protection | 80V, 180V, 480V, 1000V |
| Overcurrent Protection | None; L: Output current 50%; Z: Output current 100% |
| Switching Time | ≤0.15ms (120A-200A); ≤0.17ms (300A-2000A) |
| Switching Characteristics | MOS or IGBT - Solid-state contactless switching characteristics |
| Isolation Voltage | ≥1800–2500 V |
| Insulation Voltage | ≥2000–2500 V |
| Operating Temperature | -30 to 75 ℃ |
| Heat Dissipation Condition | Heat sink with additional fan cooling required |
| Load Current Safety Factor | Resistive load: 2.5-3 times; Inductive load: 3-6 times |
