Product Details

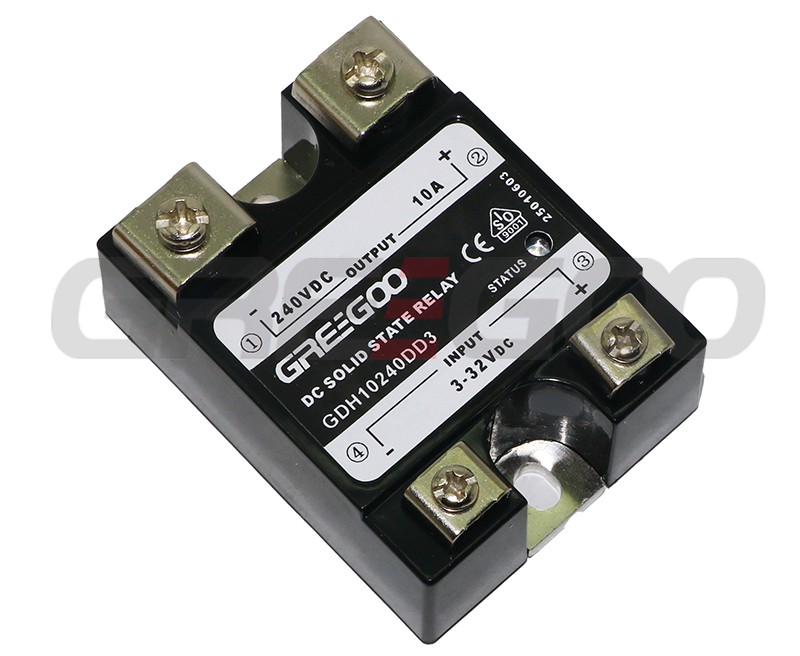

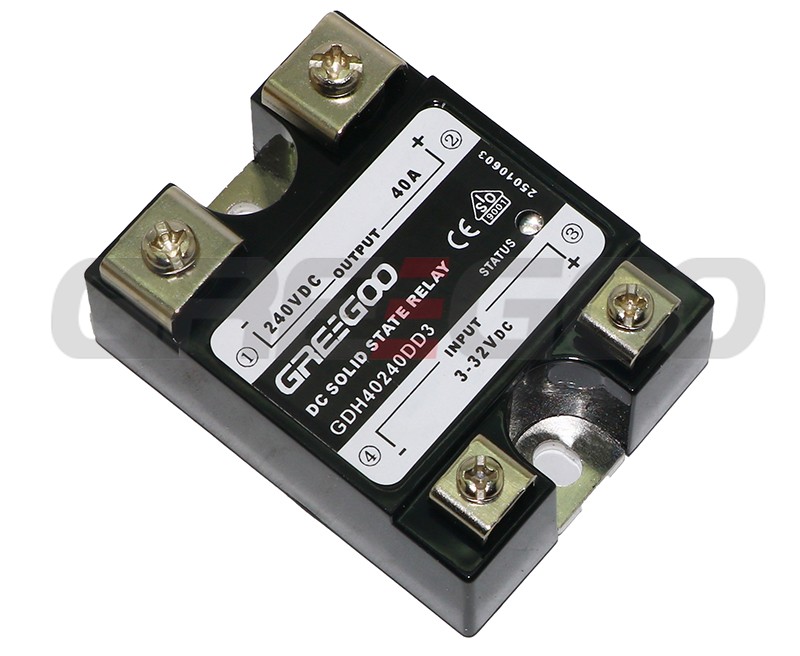

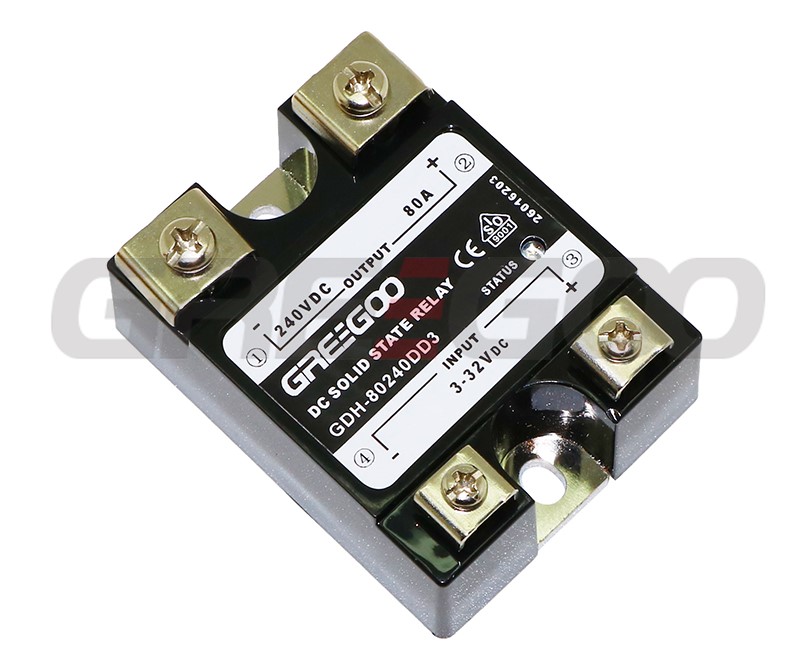

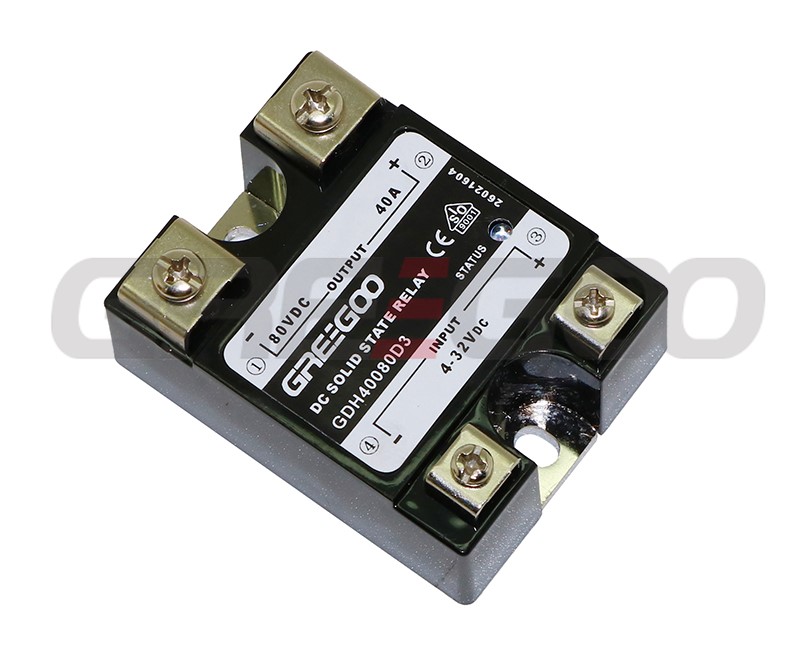

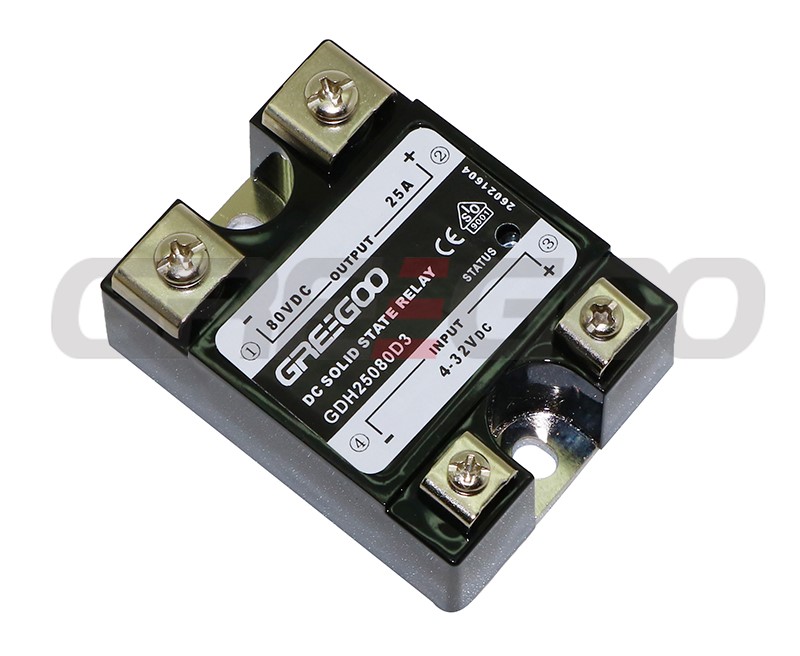

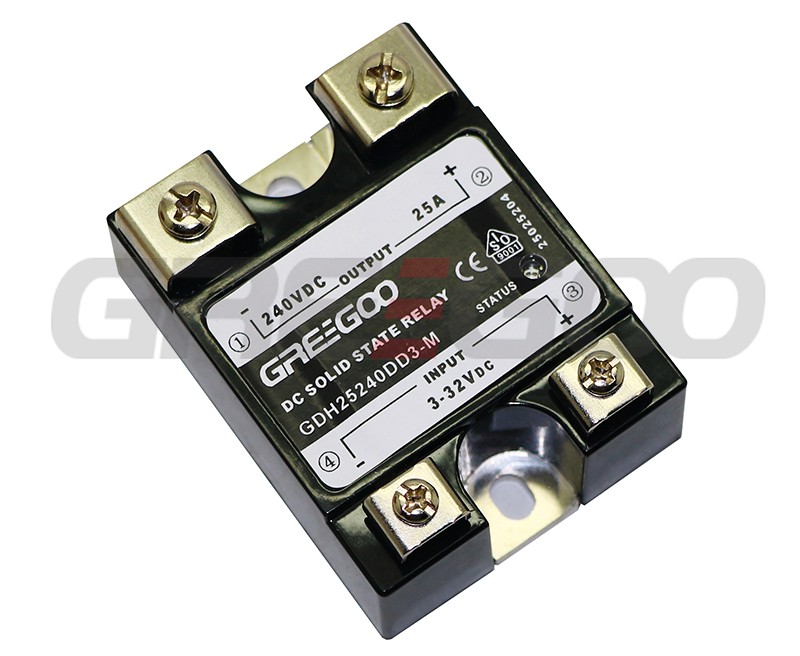

DC solid state relays

DC Solid state relay is low impedance which is MOSFET/IGBT output and maximum to avoid total power consumption, suitable for sensitive and inductive load.

Load voltage	5-80VDC 12-120VDC 12-400VDC 12-600VDC
Max Load current	10A 25A 40A 60A 80A 100A 120A
Isolation bet.In & out	≧2000VAC
Isolation to case	≧2500VAC
Control voltage	3.5-32VDC
Control current	6-25mA
Turn-on voltage	≦1.3VAC
Frequency range	47/63Hz
Status indicator	LED
Operating temperature	-40～80℃

Part Numbers

Control voltage	Load Voltage	Rated operational current
		10A	25A	40A	60A	80A	100A	120A

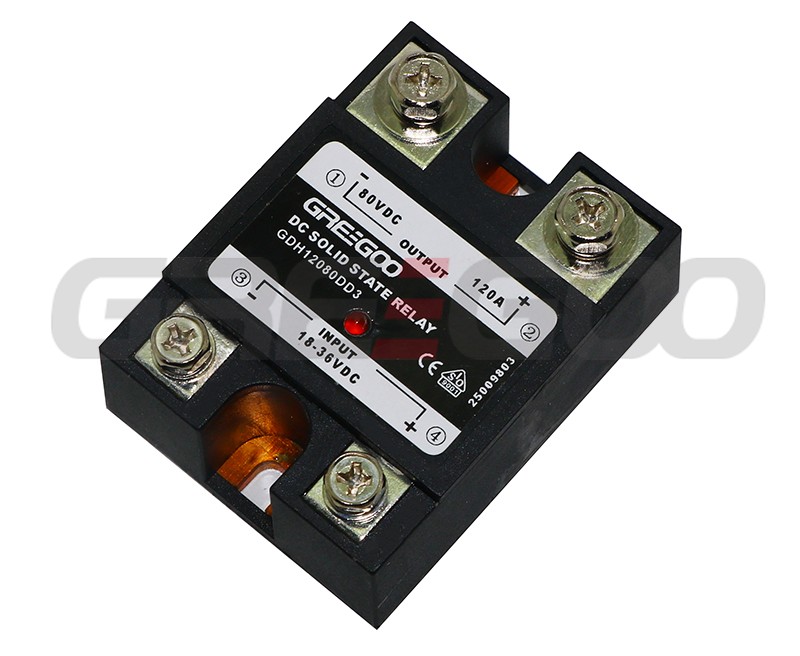

3 to 32 Vdc	80VDC	GDH1080DD3	GDH2580DD3	GDH4080DD3	GDH6080DD3	GDH8080DD3	GDH10080DD3	GDH12080DD3

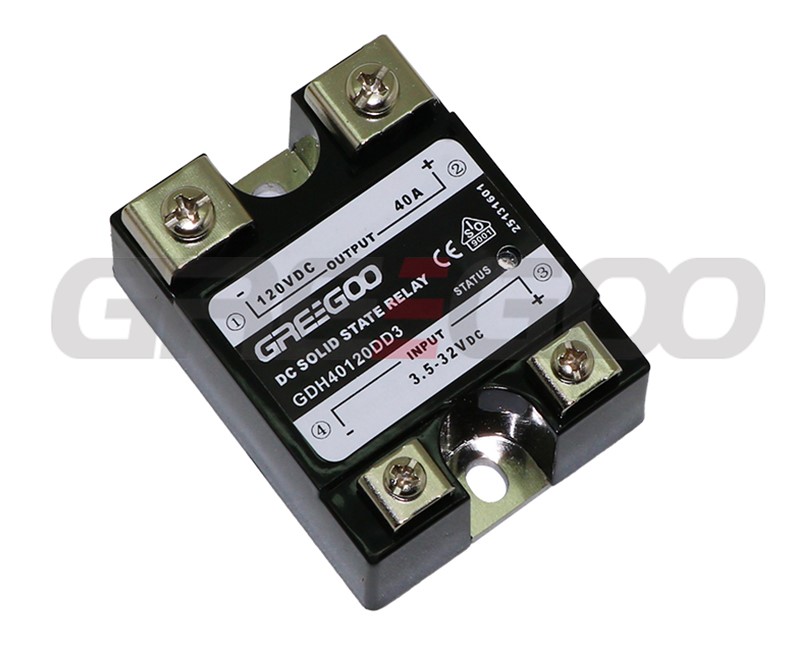

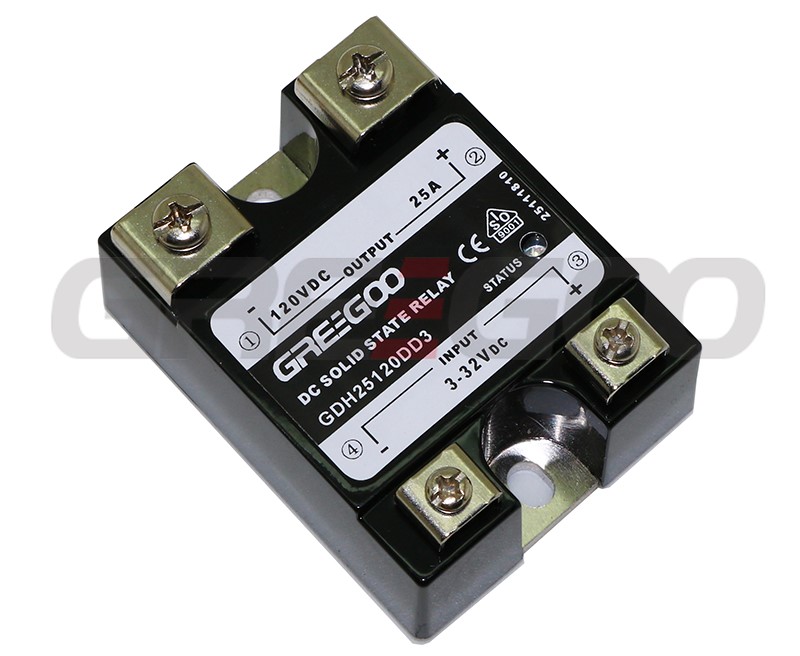

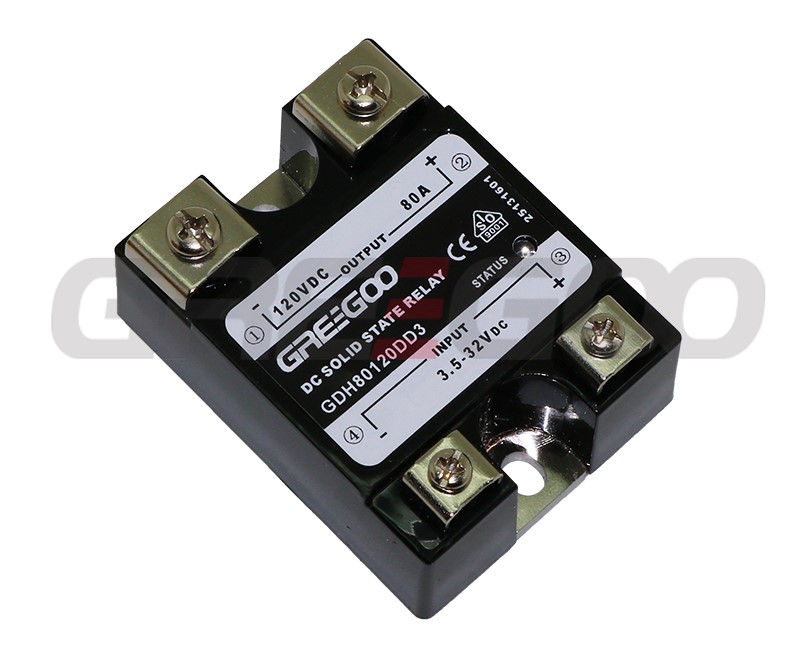

3 to 32 Vdc	120VDC	GDH10120DD3	GDH25120DD3	GDH40120DD3	GDH60120DD3	GDH80120DD3	GDH100120DD3	GDH120120DD3

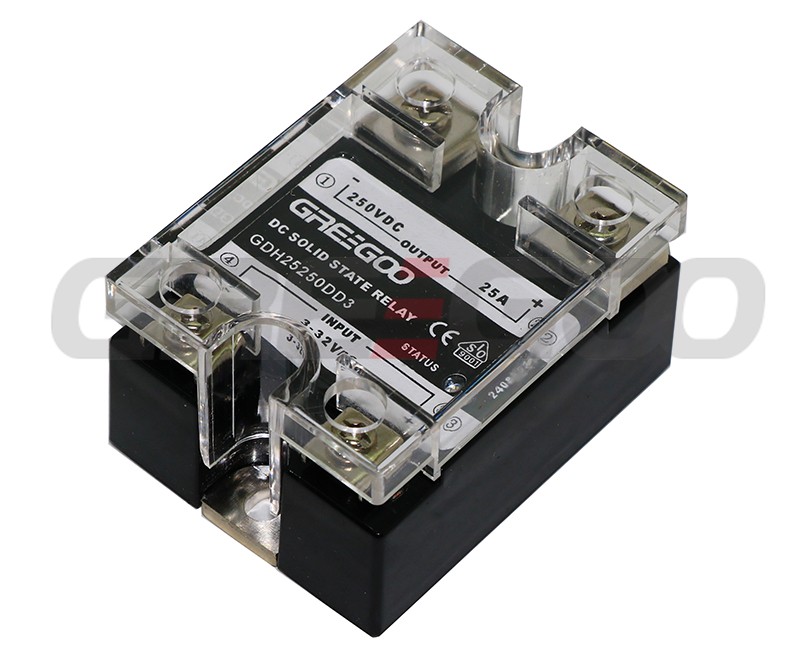

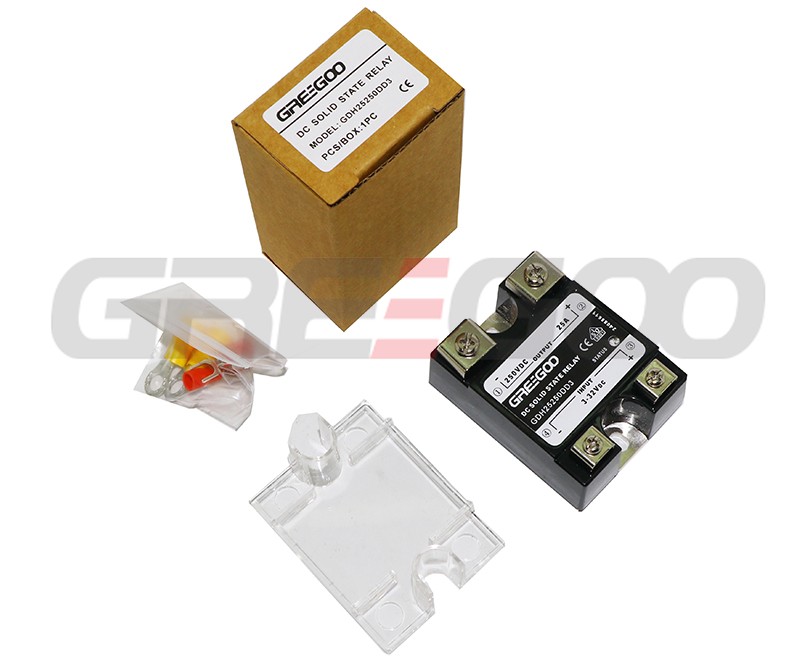

3 to 32 Vdc	250VDC	GDH10250DD3	GDH25250DD3	GDH40250DD3	GDH60250DD3	GDH80250DD3	GDH100250DD3	GDH120250DD3
3 to 32 Vdc	400VDC	GDH10400DD3	GDH25400DD3	GDH40400DD3	GDH60400DD3	GDH80400DD3	GDH100400DD3	GDH120400DD3

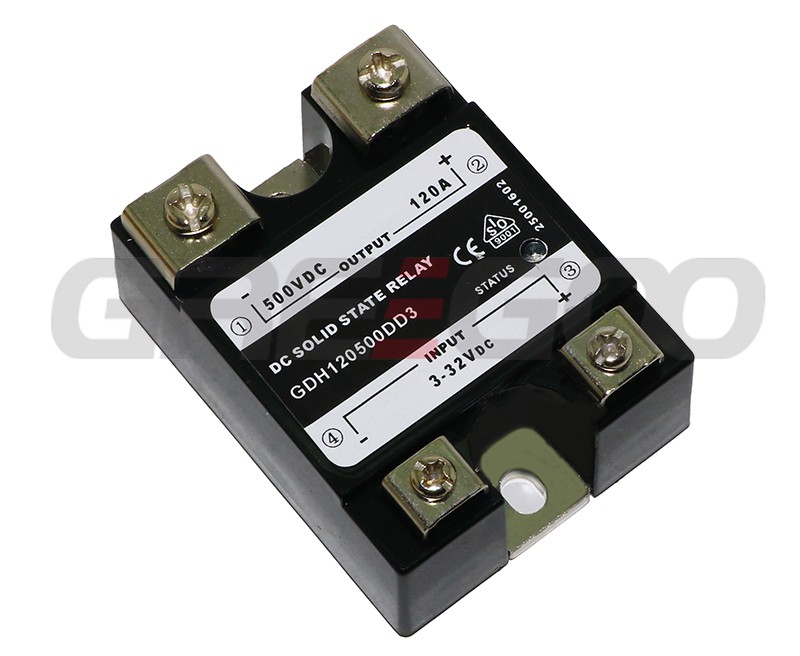

3 to 32 Vdc	500VDC	GDH10500DD3	GDH25500DD3	GDH40500DD3	GDH60500DD3	GDH80500DD3	GDH100500DD3	GDH120500DD3
3 to 32 Vdc	600VDC	GDH10600DD3	GDH25600DD3	GDH40600DD3	GDH60600DD3	GDH80600DD3	GDH100600DD3	GDH120600DD3

FAQ

Q:What is a DC Solid State Relay?

A DC Solid State Relay (DC SSR) is an electronic switch used to control DC circuits. It operates through semiconductor devices like MOSFETs or IGBTs, without mechanical parts, resulting in long lifespan, fast response, noiseless operation, and high reliability. Solid state relays are suitable for applications requiring rapid and frequent switching, such as automation control systems, industrial equipment, and heating control, enhancing system efficiency and reducing maintenance costs.

Q:How to confirm the current and voltage of the solid state relay against inductive load and resistive load?

A margin should be left when selecting the voltage and current of the solid state relay. For resistive load: the current is selected according to 2.5~4 times the load current, and the voltage is selected according to 2~2.5 times the load power. Inductive load: current is selected according to 3-7 times load current, voltage is selected according to 2.5-3 times load voltage.
