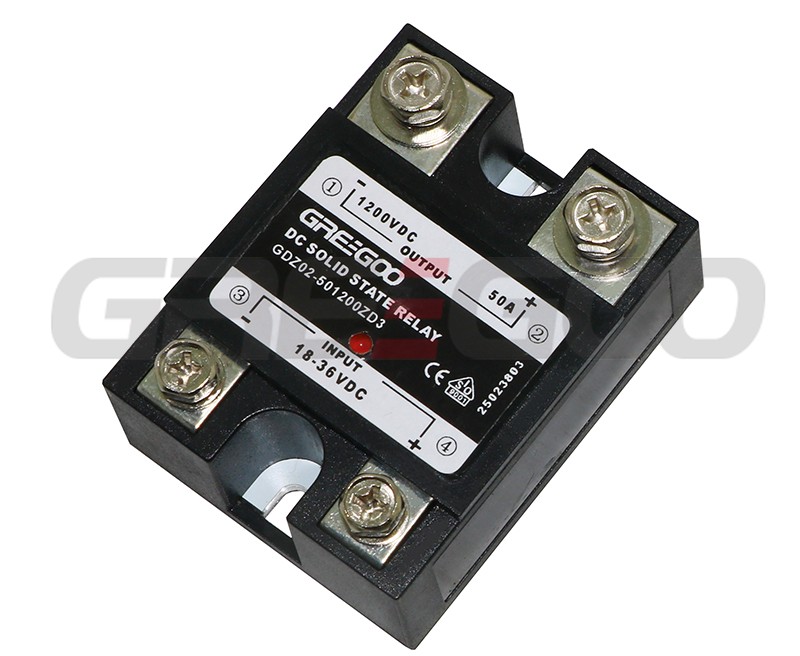

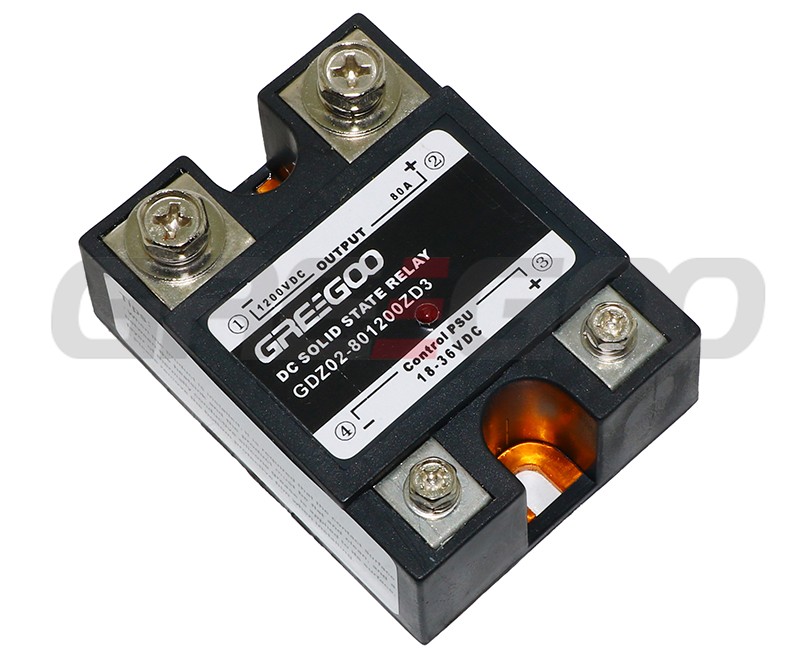

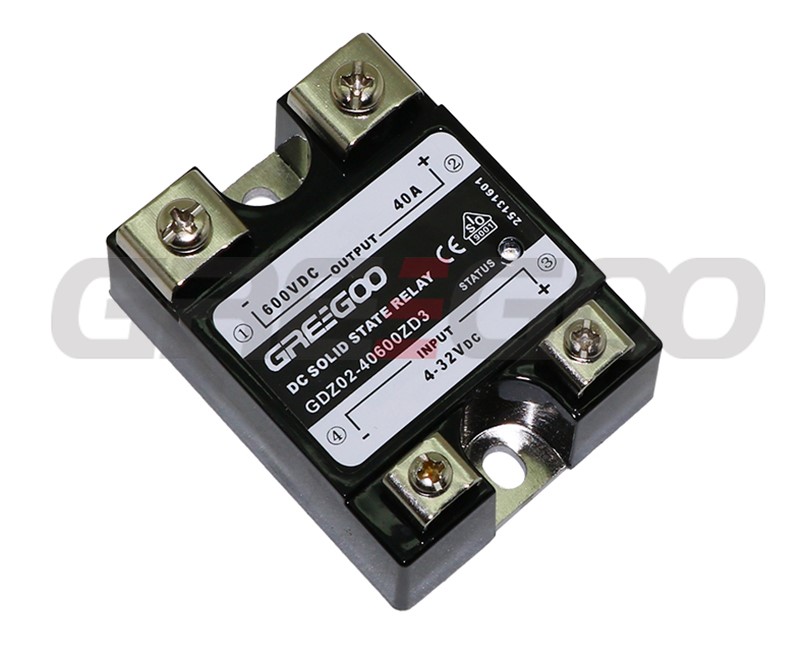

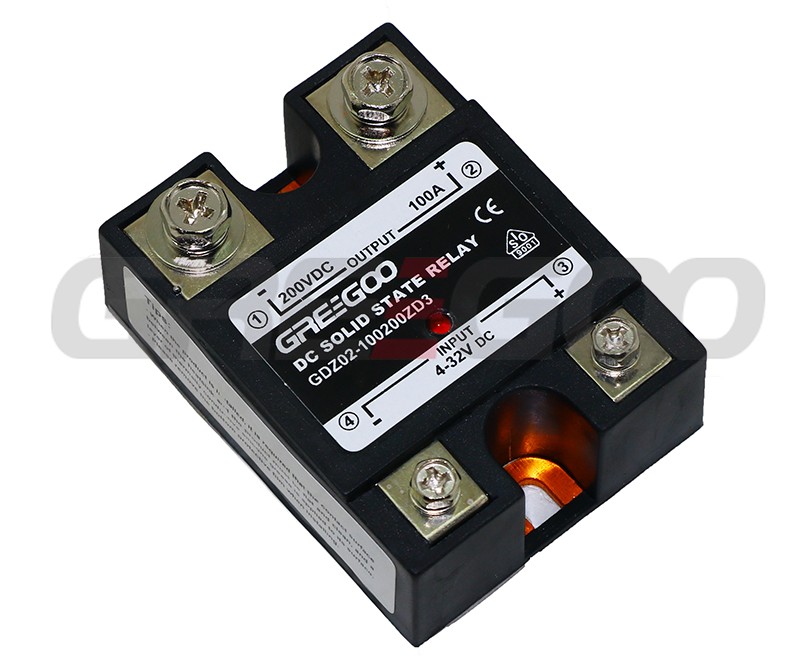

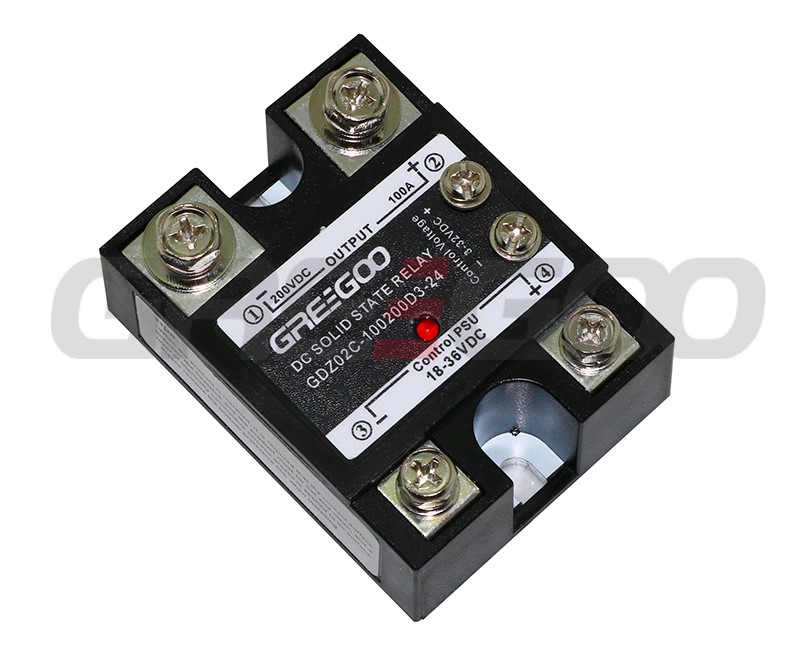

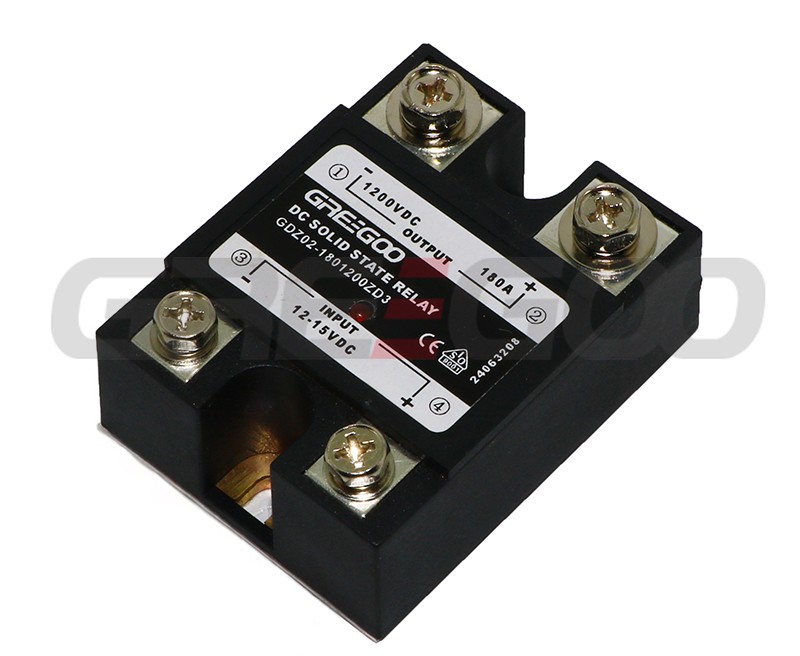

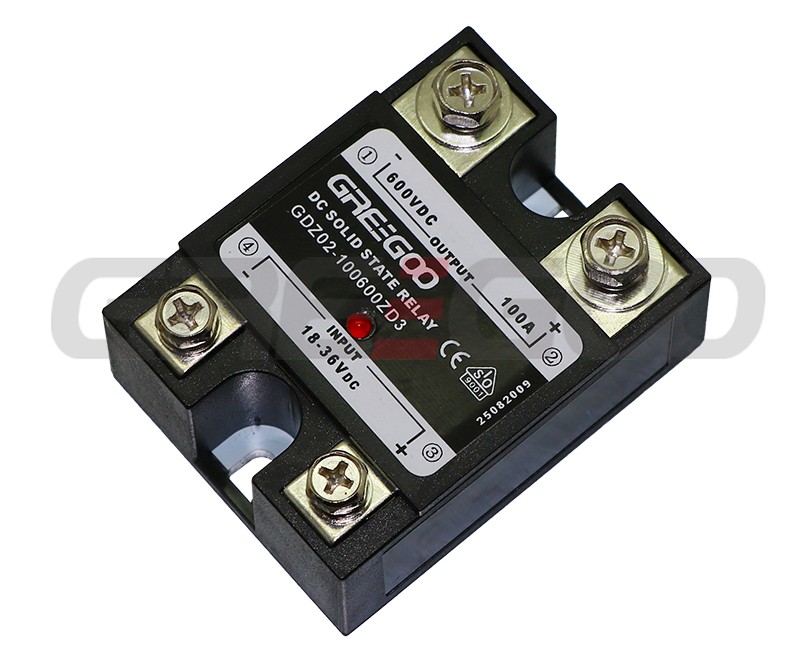

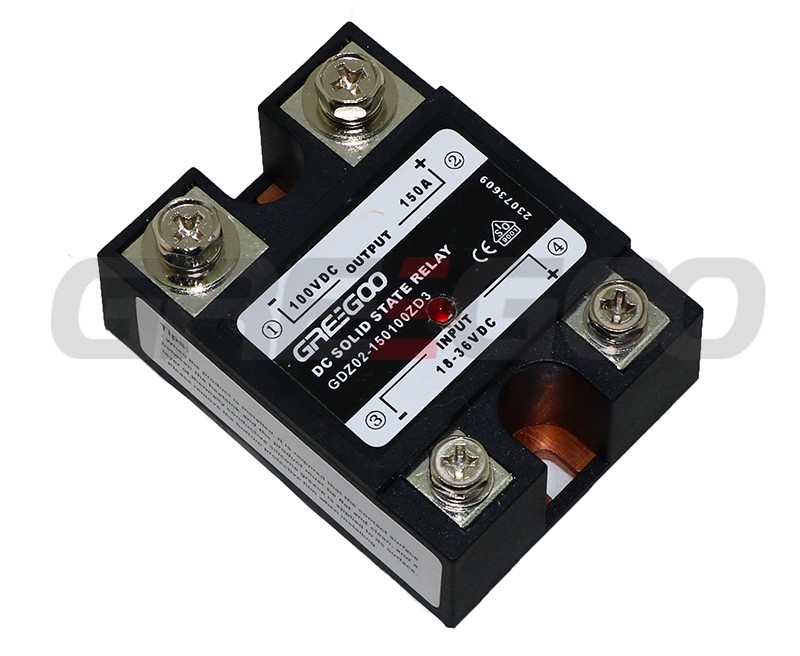

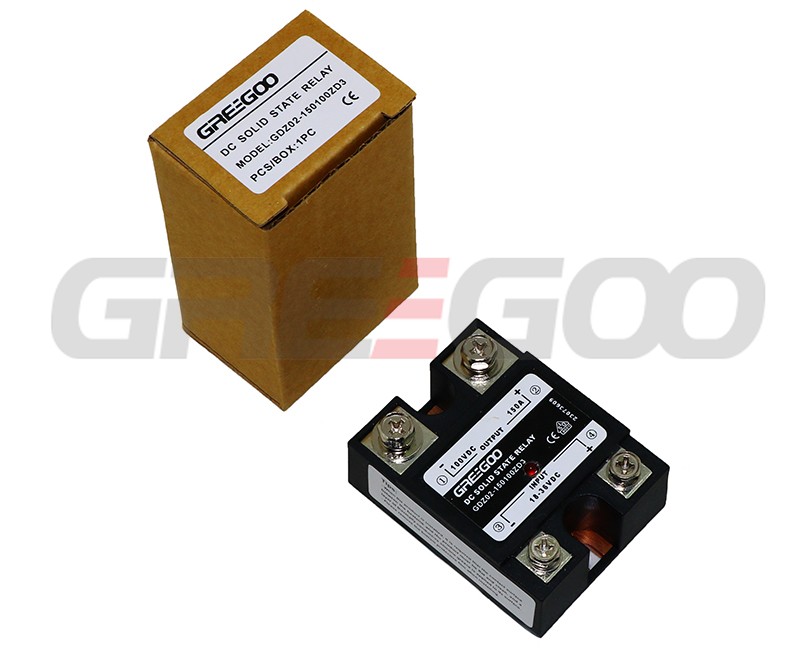

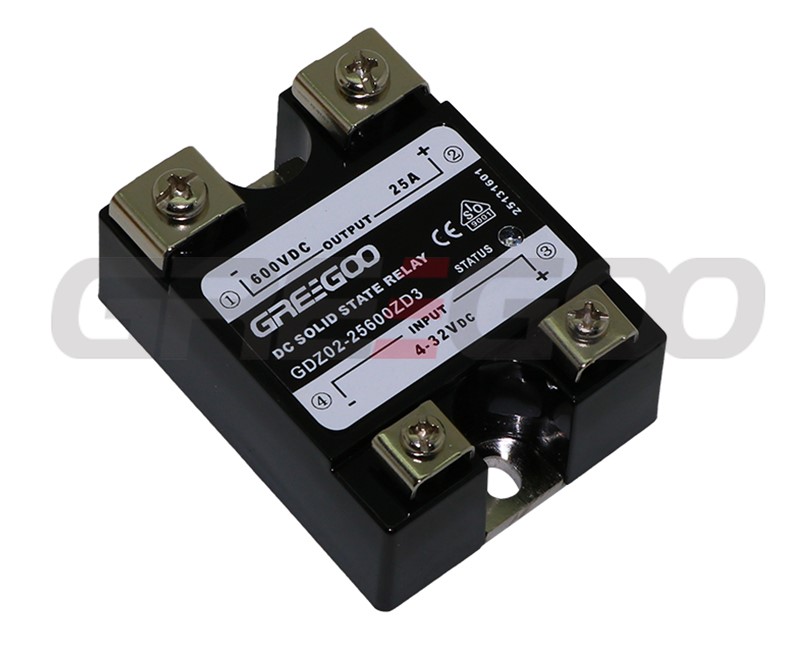

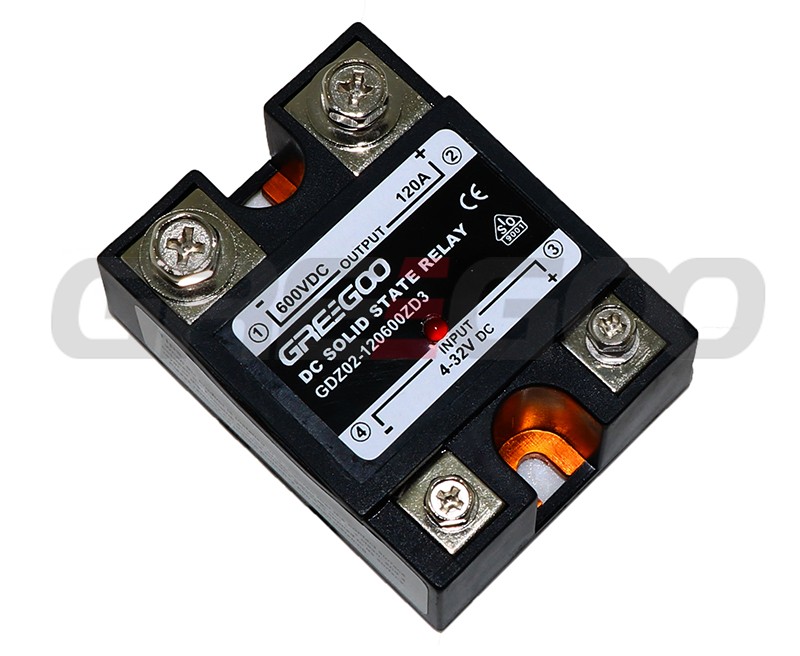

10A to 180A DC to DC Solid State Relay

Electromagnetic coupling isolation between input and output circuits.

Control signal interface with PLC, TTL logic.

Light-emitting diode indicates operating status.

Built-in input undervoltage protection, output transient overvoltage absorption protection.

Solid non-contact output, fast switching speed, no spark and no arcing on and off.

Epoxy resin encapsulation, anti-corrosion, fire and shock resistance, stable and reliable switch work.

The product is mainly used in the new energy vehicles of high-power DC appliances non-contact switch. Such as PTC DC heater, battery charging and discharging, DC motor, solenoid valve and other switching switches.

A margin should be left when selecting the voltage and current of the product. For resistive load: the current is selected according to 2.5~4 times the load current, and the voltage is selected according to 2~2.5 times the load power. Inductive load: current is selected according to 3-7 times load current, voltage is selected according to 2.5-3 times load voltage.

According to the relationship between load current and ambient temperature, when the ambient temperature is high or heat dissipation conditions are not good, the current capacity of the solid state relay should be increased accordingly.

In order to prevent the product from short-circuiting during use, it is necessary to connect a fast circuit breaker or a fast fuse in series with the product in the load circuit.

For inductive loads, a freewheeling diode must be connected to both ends of the load, and a varistor must be connected to the output end (the varistor (MOV) is selected according to 1~1.5 times of the power supply voltage) to prevent the high voltage generated during switching from damaging the solid-state switch.

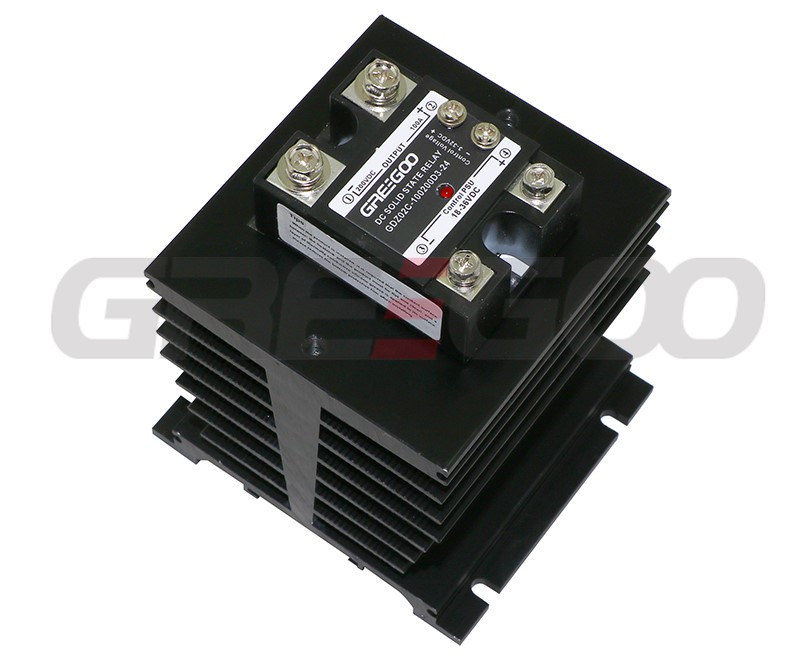

When the product is installed, it is required that the contact surface between the heatsink and the product must be flat and clean, and a layer of thermally conductive silicone grease is applied to its surface, and then finally the screws set with flat washers andSpring washersare tightened symmetrically to fix.
