Phase Control Thyristors (Alloying Type)

Home Products Capsule Power SemiconductorsCapsule Phase Control ThyristorPhase Control Thyristors (Alloying Type)

T805-551A -1600V-Phase Control Thyristors

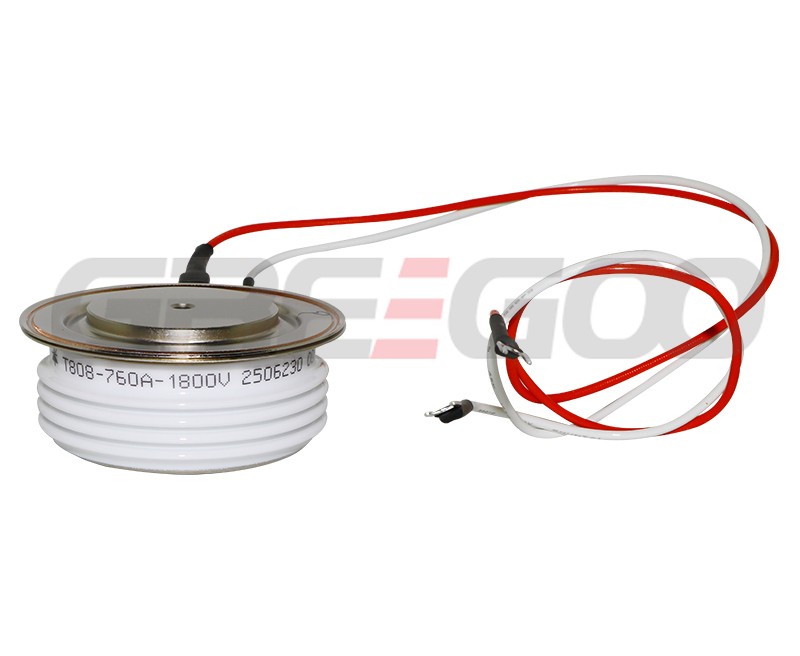

T808-760A-1800V-Phase Control Thyristors

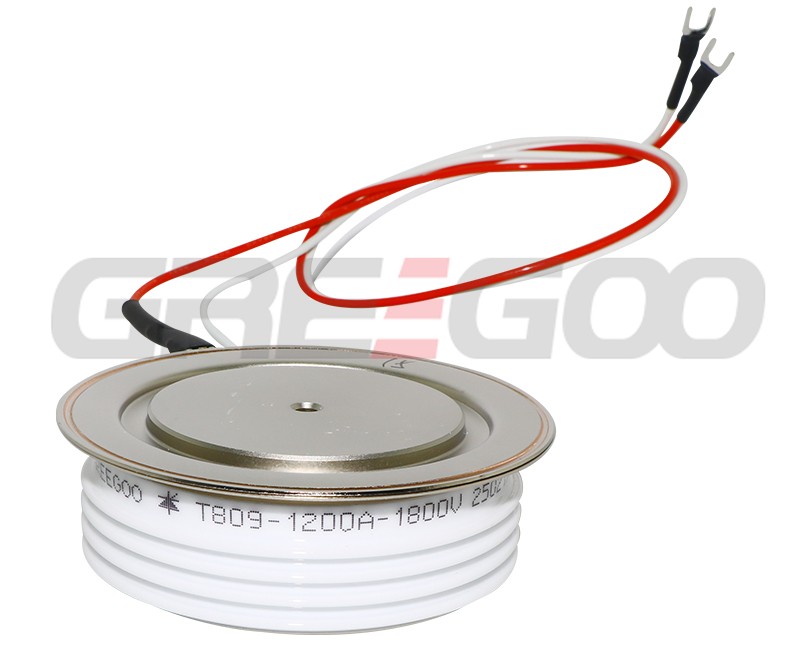

T809-1200A -1800V-Phase Control Thyristors

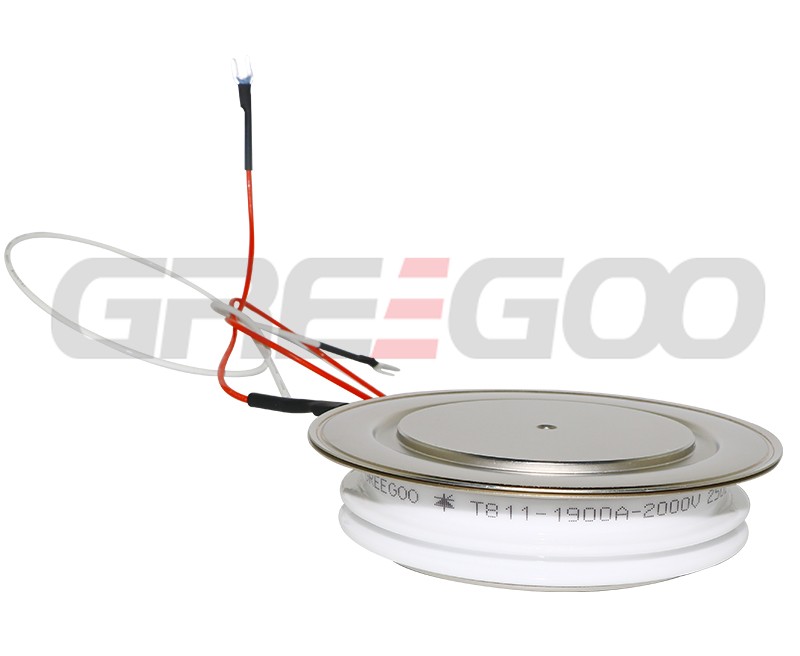

T811-1900A-2000V-Phase Control Thyristors

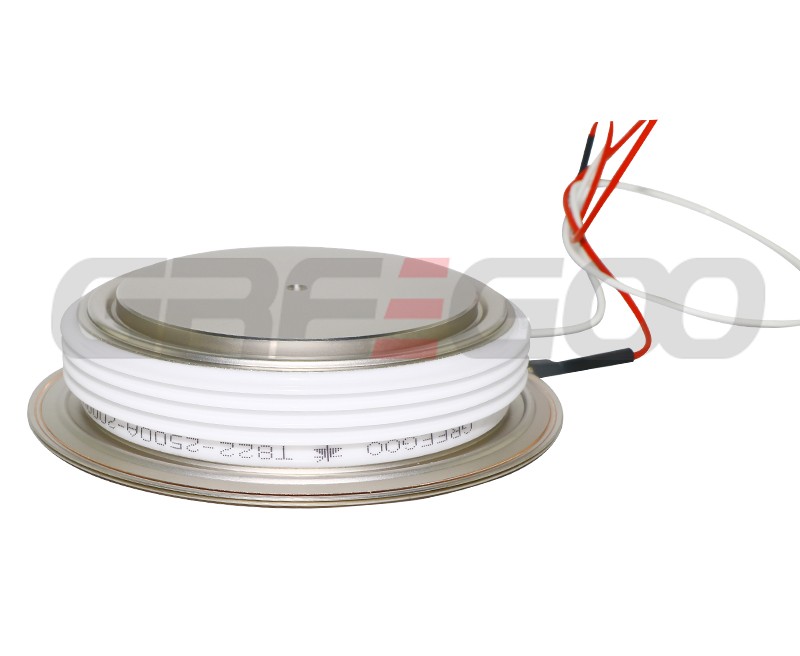

T822-2500A-2000V-Phase Control Thyristors

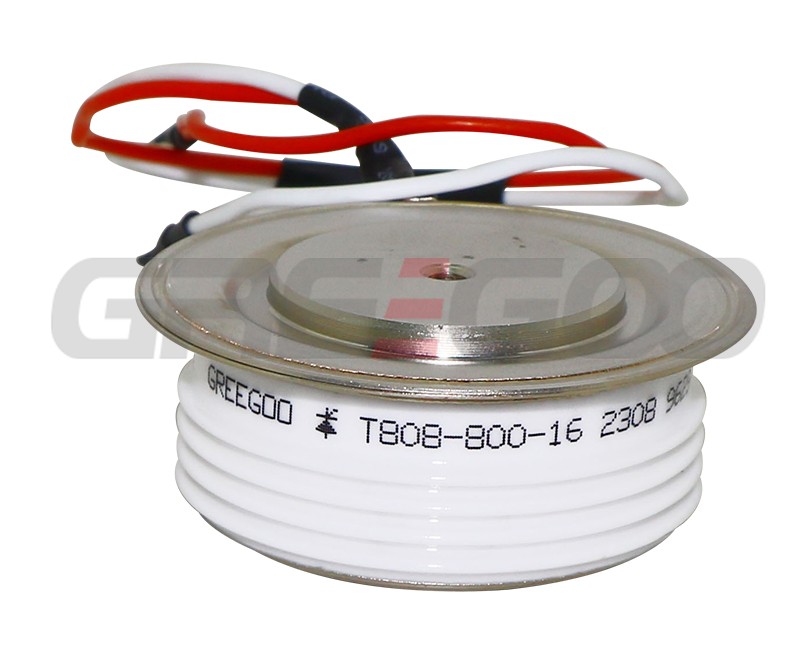

Product Details

Phase Control Thyristors (Alloying Type)

Features
- Double-side cooling
- High mean current
- High surge current

Typical applications
- High power drive
- High voltage supplies
- Motor control

Type= VRRM/100	IT(AV)@ Tc=70oC	VDRM VRRM	ITSM@ TVJM &10ms	VTM@ITM &TC=25oC		VTO@ TVJM	rT@ TVJM	TVJM	RthJC	RthCH	F±10%	Outline
Type= VRRM/100	A	V	kA	A	V	V	mΩ	oC	K/W	K/W	kN	Outline
UP to 1400V
T806-400	400	600-1400	6.3	600	1.4	0.85	0.64	125	0.08	0.02	5	19/42/13
T805-700	700	600-1400	9.1	1500	1.75	0.95	0.53	125	0.041	0.01	5	25/42/14
T807-800	850	600-1400	12.8	1500	1.6	0.87	0.382	125	0.035	0.01	10	29/47/14
T808-900	900	600-1400	15	1500	1.35	0.85	0.33	125	0.035	0.008	15	34/58/26
T809-1700	1700	600-1400	26	1500	1.2	0.86	0.16	125	0.02	0.005	22	47/75/26
T804-1800	1850	600-1400	29	3000	1.4	0.84	0.13	125	0.018	0.005	30	53/85/26
T811-2600	2640	600-1400	47	3000	1.3	0.87	0.098	125	0.0125	0.004	45	63/100/26
T822-3300	3310	600-1400	60	3000	1.15	0.83	0.092	125	0.01	0.003	56	73/110/26
UP to 1800V
T806-300	320	1200-1800	5	600	1.8	0.93	1.15	125	0.08	0.02	5	19/42/13
T805-600	640	1200-1800	8.3	1500	1.9	1.09	0.587	125	0.041	0.01	5	25/42/14
T807-700	770	1200-1800	11.5	1500	1.8	0.9	0.5	125	0.035	0.01	10	29/47/14
T808-800	850	1200-1800	14	1500	1.6	0.91	0.36	125	0.035	0.008	15	34/58/26
T809-1500	1520	1200-1800	25	1500	1.35	0.88	0.2	125	0.02	0.005	22	47/75/26
T804-1700	1710	1200-1800	28	3000	1.5	0.88	0.16	125	0.018	0.005	30	53/85/26
T811-2500	2520	1200-1800	45	3000	1.45	0.91	0.12	125	0.0125	0.004	45	63/100/26
T822-3000	3030	1200-1800	60	3000	1.35	0.9	0.11	125	0.01	0.003	56	73/110/26
UP to 2600V
T805-500	510	2000-2400	7.8	1500	2.4	0.94	1.036	125	0.041	0.01	5	25/42/14
T807-600	670	2000-2400	10	1500	2.15	0.92	0.72	125	0.035	0.01	10	29/47/14
T804-1400	1470	2000-2400	23	3000	1.8	0.96	0.23	125	0.018	0.005	30	53/85/26
T811-2100	2110	2000-2400	35	3000	1.65	0.96	0.179	125	0.0125	0.004	45	63/100/26
T822-2700	2730	2000-2400	45	3000	1.45	0.9	0.137	125	0.01	0.003	56	73/110/26
T808-750	750	2000-2600	11	1500	1.85	0.95	0.5	125	0.035	0.008	15	34/58/26
T809-1400	1400	2000-2600	24	1500	1.5	0.89	0.27	125	0.02	0.005	22	47/75/26
UP to 3400V
T811-1800	1850	2400-2800	30	3000	1.9	1.02	0.25	125	0.0125	0.004	45	63/100/26
T822-2400	2470	2400-2800	43	3000	1.65	0.98	0.17	125	0.01	0.003	56	73/110/26
T808-700	700	2400-3000	10.5	1500	1.9	1	0.6	125	0.035	0.008	15	34/58/26
T809-1300	1300	2400-3000	23	1500	1.55	0.95	0.3	125	0.02	0.005	22	47/75/26
T805-400	410	2400-3400	6.3	1500	2.8	1.04	1.725	125	0.041	0.01	5	25/42/14
T807-500	530	2400-3400	8	1500	2.65	0.98	1.2	125	0.035	0.01	10	29/47/14
T808-500	580	2800-3400	8.4	1500	2.4	1.03	0.97	125	0.035	0.008	15	34/58/26
T809-1000	1010	2800-3400	17	1500	2.05	1.08	0.56	125	0.02	0.005	22	47/75/26
T804-1200	1240	2400-3400	19.2	3000	2.25	1.06	0.35	125	0.018	0.005	30	53/85/26
T811-1700	1770	2800-3400	30	3000	2.1	1.05	0.298	125	0.0125	0.004	45	63/100/26
T822-2100	2190	2800-3400	33	3000	1.85	1	0.235	125	0.01	0.003	56	73/110/26
UP to 5200V
T808-400	480	3600-4200	7	1000	2.85	1.15	1.47	125	0.035	0.008	15	34/58/26
T809-800	870	3600-4200	15	1500	2.5	1.15	0.799	125	0.02	0.005	22	47/75/26
T804-900	960	3600-4200	14.7	3000	2.8	1.15	0.68	125	0.018	0.005	30	53/85/26
T811-1400	1440	3600-4200	25	3000	2.45	1.15	0.452	125	0.0125	0.004	45	63/100/26
T822-1800	1880	3600-4200	25	3000	2.2	1.14	0.36	125	0.01	0.003	56	73/110/26
T822-1400	1470	4600-5200	23.5	3000	2.8	1.18	0.525	125	0.01	0.003	56	73/110/26
