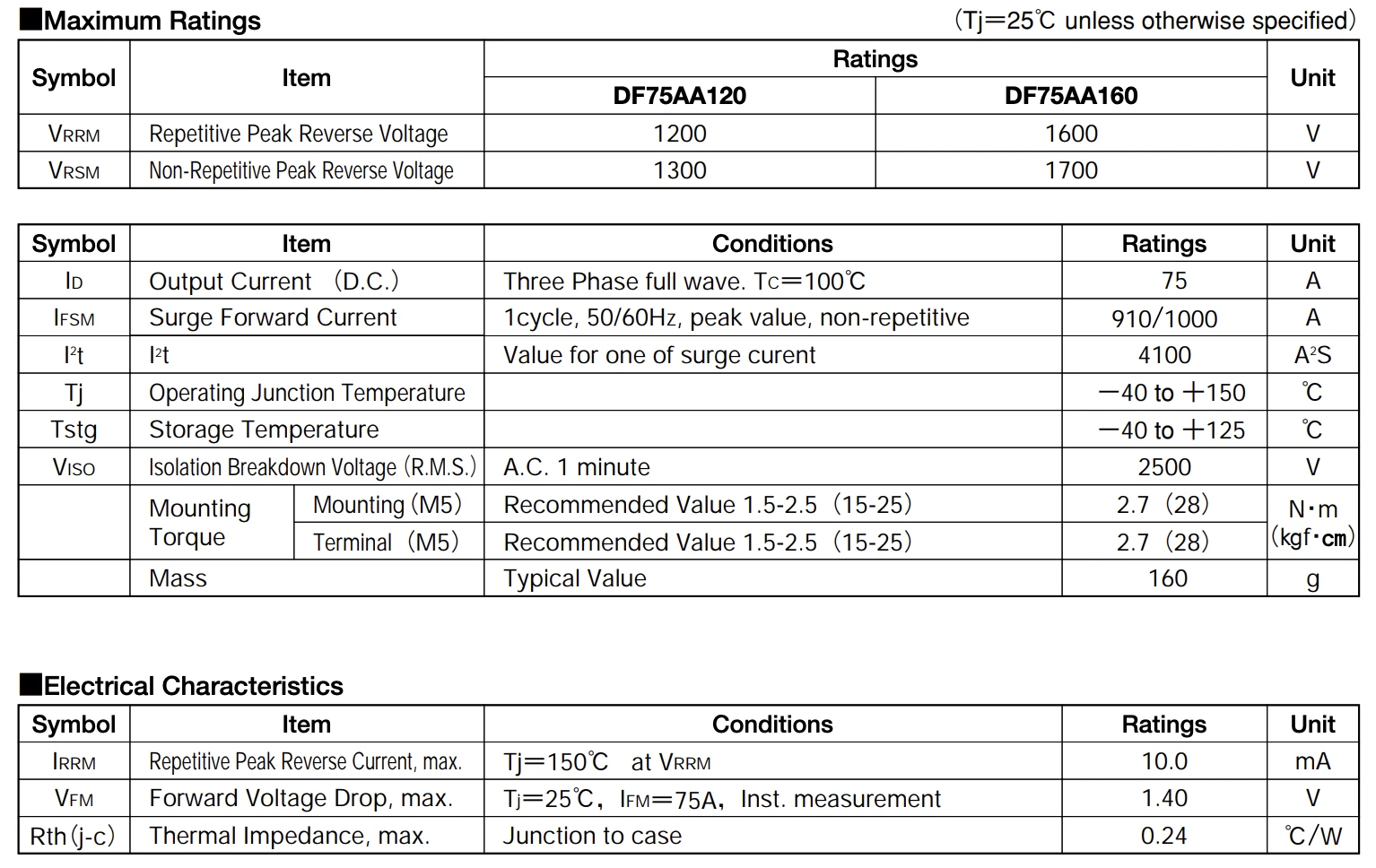

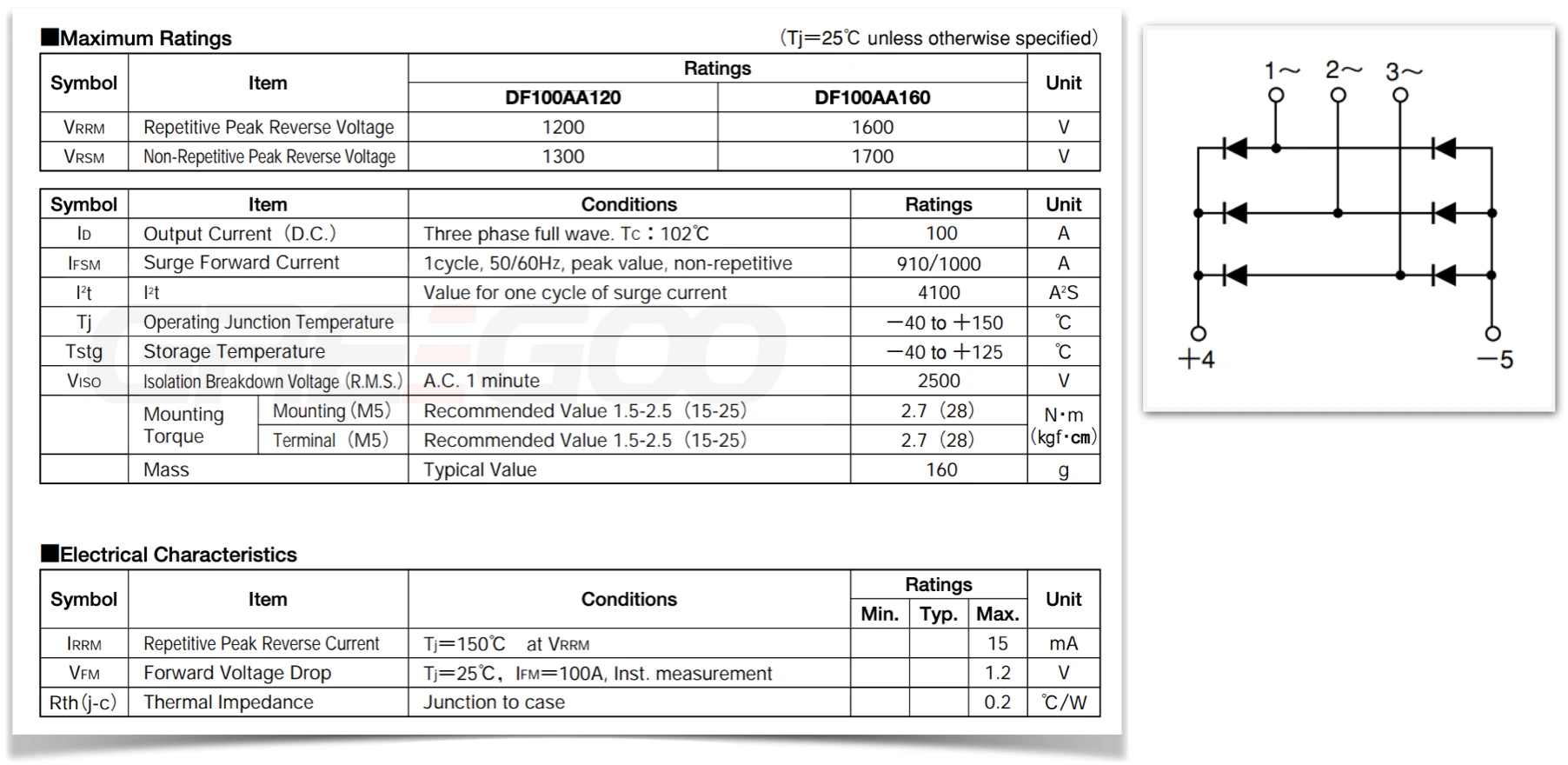

DF100AA120 DF100AA160 DF75AA120 DF75AA160 Three phase Power Diode Module
Home Products Diode Bridge ModuleSingle and 3 phase Diode Bridge moduleDF100AA120 DF100AA160 DF75AA120 DF75AA160 Three phase Power Diode Module
DF100AA120 DF100AA160 DF75AA120 DF75AA160 Three phase Power Diode Module
Power Diode Module DF75AA DF100AA is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction. Output DC current is 100Amp （Tc＝102℃） Repetitive peak reverse voltage is up to 1,600V.
Feature:
● TjMax＝150℃
● Isolated mounting base
● High reliability by unique glass passivation
● Size: 80x40x23mm (height 23mm only)
Applications:
AC, DC Motor Drive/AVR/Switching -for three phase rectification
Need more information?
Contact us to request pricing, availability and customization options.
