Stud Diode 100A to 500A
Home Products Stud Semiconductor DeviceStud DiodeStud Diode 100A to 500A
Product Details
Stud Diode 100A to 500A
| Series | VRRM | IF(AV) (TC) |
IFRMS | IFSM | Tjm | VFM/IFM | VF(TO) | rT | IRRM | I²t | Rₜₕ(j-c) | Md | W |
| V | A (ºC) | A | kA | °C | V/A | V | mOhm | mA | kA²·s | °C/W | N·m | Kg | |
| D141-100 | 300-1600 | 100 (135) | 157 | 2 | 190 | 1.35/314 | 0.95 | 1.6 | 20 | 24 | 0.38 | 6-10 | 0.09 |
| D141-100X | 300-1600 | 100 (135) | 157 | 2 | 190 | 1.35/314 | 0.95 | 1.6 | 20 | 24 | 0.38 | 6-10 | 0.09 |
| D151-125 | 300-1600 | 125 (140) | 196 | 3.0 | 190 | 1.35/392 | 0.90 | 1.3 | 20 | 45 | 0.3 | 10-20 | 0.165 |
| D151-160 | 300-1600 | 160 (140) | 300 | 4.5 | 190 | 1.35/502 | 0.90 | 1.0 | 20 | 100 | 0.24 | 10-20 | 0.165 |

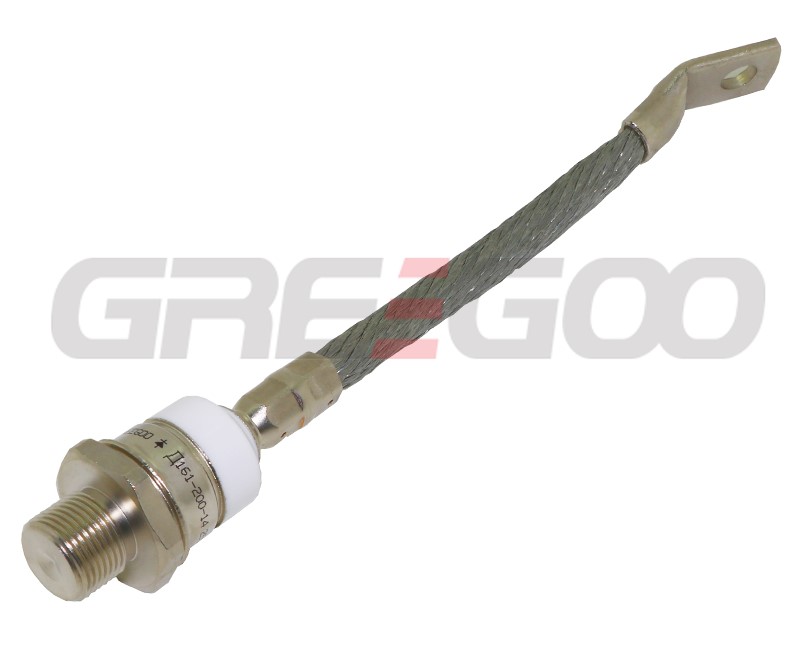

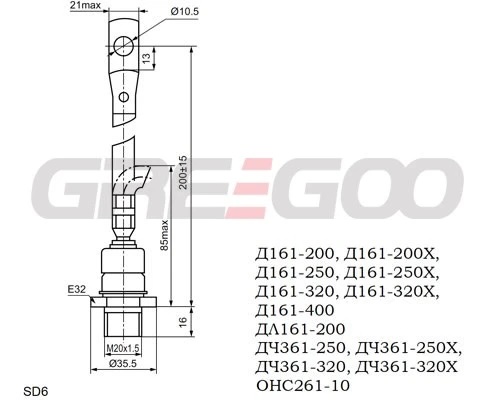

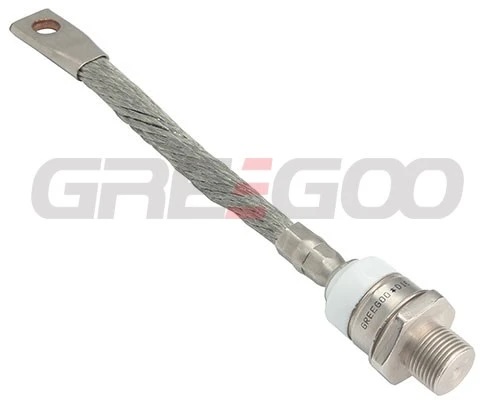

| D161-200 | 300-1800 | 200 (145) | 314 | 5.5 | 190 | 1.35/623 | 0.9 | 0.85 | 40 | 150 | 0.15 | 20-30 | 0.265 |
| D161-250 | 300-1800 | 250 (140) | 382 | 6.4 | 190 | 1.35/785 | 0.9 | 0.64 | 40 | 200 | 0.15 | 20-30 | 0.265 |
| D161-320 | 300-1800 | 320 (130) | 500 | 7.5 | 190 | 1.35/1005 | 0.9 | 0.5 | 40 | 280 | 0.15 | 20-30 | 0.265 |
| D161-400 | 300-1600 | 400 (120) | 628 | 7.5 | 190 | 1.45/1258 | 0.838 | 0.516 | 40 | 280 | 0.13 | 20-30 | 0.265 |
| D161-200X | 300-1600 | 200 (145) | 314 | 5.5 | 190 | 1.35/623 | 0.9 | 0.85 | 40 | 150 | 0.15 | 20-30 | 0.265 |
| D161-250X | 300-1600 | 250 (140) | 382 | 6.4 | 190 | 1.45/785 | 0.9 | 0.765 | 40 | 200 | 0.14 | 20-30 | 0.265 |
| D161-320X | 300-1600 | 320 (130) | 500 | 7.5 | 190 | 1.50/1005 | 0.9 | 0.65 | 40 | 280 | 0.13 | 20-30 | 0.265 |
| D161-400X | 300-1600 | 400 (120) | 628 | 7.5 | 190 | 1.45/1256 | 0.838 | 0.516 | 40 | 280 | 0.13 | 20-30 | 0.265 |
| D171-400 | 300-1800 | 400 (150) | 625 | 14 | 190 | 1.4/1256 | 0.9 | 0.56 | 50 | 980 | 0.085 | 25-35 | 0.465 |
| D171-500 | 400-1800 | 500 (150) | 785 | 16 | 190 | 1.4/1570 | 0.81 | 0.38 | 40 | 1200 | 0.085 | 25-35 | 0.465 |
