Thyristor Diode Modules DCB plate technology
Home Products Thyristor Diode ModuleIXYS Diode Thyristor ModuleThyristor Diode Modules DCB plate technology
Product Details

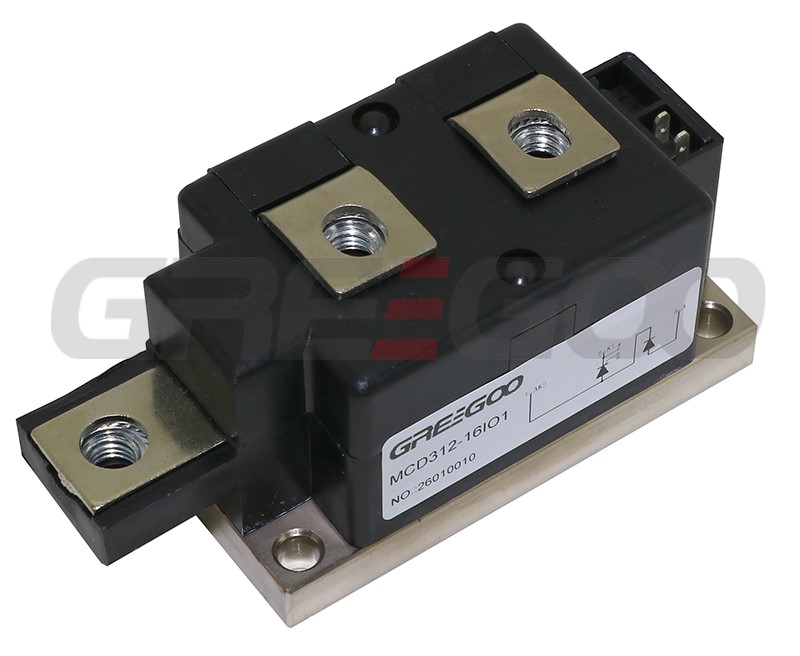

Thyristor Diode Modules DCB plate technology
Thyristor Diode Modules
| Part Number | VRRM | ITAVM | ITRMS | ITSM | ITSM | VT0 | rT | Tvjm | RthJC | RthCH | PackageStyle |
| VDRM | Tc=85°C (A) | (A) | 10ms | 8.33ms | (V) | (mOhms) | (°C) | max | (K/W) | ||
| (V) | Tvj=45°C (A) | Tvj=45°C (A) | (K/W) | ||||||||
| MCD26-16io8B | 1600 | 27 | 50 | 520 | 560 | 0.85 | 11 | 125 | 0.88 | 0.2 | TO-240 AA |
| MCD26-16io1B | 1600 | 27 | 50 | 520 | 560 | 0.85 | 11 | 125 | 0.88 | 0.2 | TO-240 AA |
| MCD40-16io6 | 1600 | 40 | 63 | 500 | 540 | 0.87 | 10.5 | 150 | 0.7 | 0.1 | TO-240 AA |
| MCD44-16io1B | 1600 | 49 | 77 | 1150 | 1240 | 0.85 | 5.3 | 125 | 0.53 | 0.2 | TO-240 AA |
| MCD44-16io8B | 1600 | 49 | 77 | 1150 | 1240 | 0.85 | 5.3 | 125 | 0.53 | 0.2 | TO-240 AA |
| MCD56-16io1B | 1600 | 60 | 100 | 1500 | 1620 | 0.85 | 3.7 | 125 | 0.45 | 0.2 | TO-240 AA |
| MCD56-16io8B | 1600 | 60 | 100 | 1500 | 1620 | 0.85 | 3.7 | 125 | 0.45 | 0.2 | TO-240 AA |
| MCD72-16io1B | 1600 | 85 | 180 | 1700 | 1840 | 0.85 | 3.2 | 125 | 0.3 | 0.2 | TO-240 AA |
| MCD72-16io8B | 1600 | 85 | 180 | 1700 | 1840 | 0.85 | 3.2 | 125 | 0.3 | 0.2 | TO-240 AA |
| MCD95-16io1B | 1600 | 116 | 180 | 2250 | 2430 | 0.85 | 2.4 | 125 | 0.22 | 0.2 | TO-240 AA |
| MCD95-16io8B | 1600 | 116 | 180 | 2250 | 2430 | 0.85 | 2.4 | 125 | 0.22 | 0.2 | TO-240 AA |
| MCD132-16io1 | 1600 | 130 | 300 | 4750 | 5130 | 0.8 | 1.5 | 125 | 0.23 | 0.1 | Y4-M6 |
| MCD162-16io1 | 1600 | 181 | 300 | 6000 | 6480 | 0.88 | 1.15 | 125 | 0.155 | 0.07 | Y4-M6 |
| MCD200-16io1 | 1600 | 216 | 340 | 8000 | 8640 | 0.8 | 1.4 | 125 | 0.13 | 0.05 | Y4-M6 |
| MCD225-16io1 | 1600 | 220 | 400 | 8000 | 8640 | 0.79 | 0.83 | 140 | 0.157 | 0.04 | Y1-CU |
| MCD255-16io1 | 1600 | 250 | 450 | 9200 | 9940 | 0.8 | 0.68 | 140 | 0.14 | 0.04 | Y1-CU |
| MCD310-16io1 | 1600 | 320 | 500 | 9200 | 9940 | 0.8 | 0.82 | 140 | 0.11 | 0.04 | Y2-DCB |
| MCD312-16io1 | 1600 | 320 | 520 | 9600 | 10400 | 0.8 | 0.68 | 140 | 0.12 | 0.04 | Y2-DCB |
| MCD501-16io2 | 1600 | - | - | 14500 | - | - | - | 125 | 0.062 | 0.02 | GCC-501 |
| MCD551-16io2 | 1600 | - | - | 18000 | - | - | - | 125 | 0.062 | 0.02 | GCC-501 |
