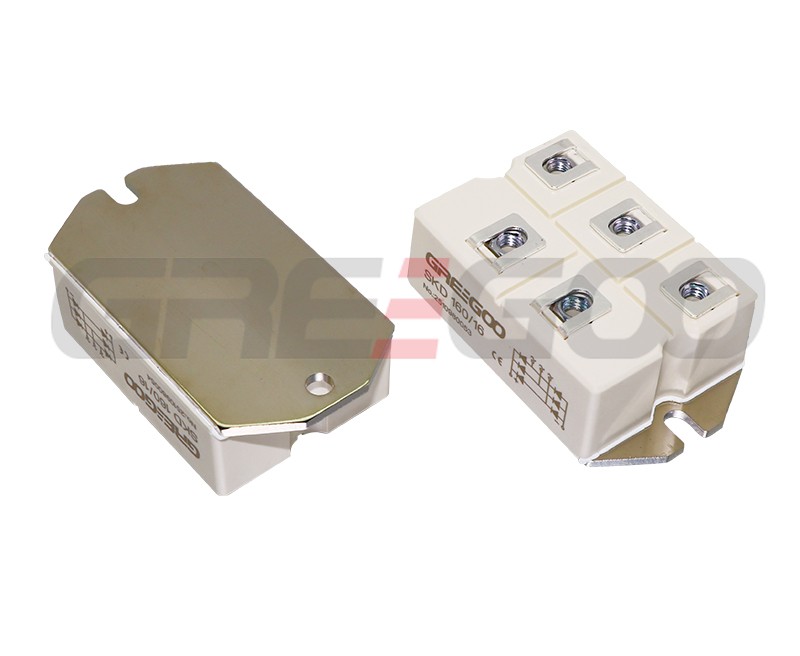

3 phase bridge rectifier modules SKD110 SKD160 SKD210

Features

• Robust plastic case with screw terminals

• Large, isolated base plate

• Blocking voltage up to 1800 V

• High surge currents

• Three phase brige rectifier

• Easy chassis mounting

Typical Applications

• Three phase rectifiers for power supplies

• Input rectifiers for variable frequency drives

• Rectifiers for DC motor field supplies

• Battery charger rectifiers

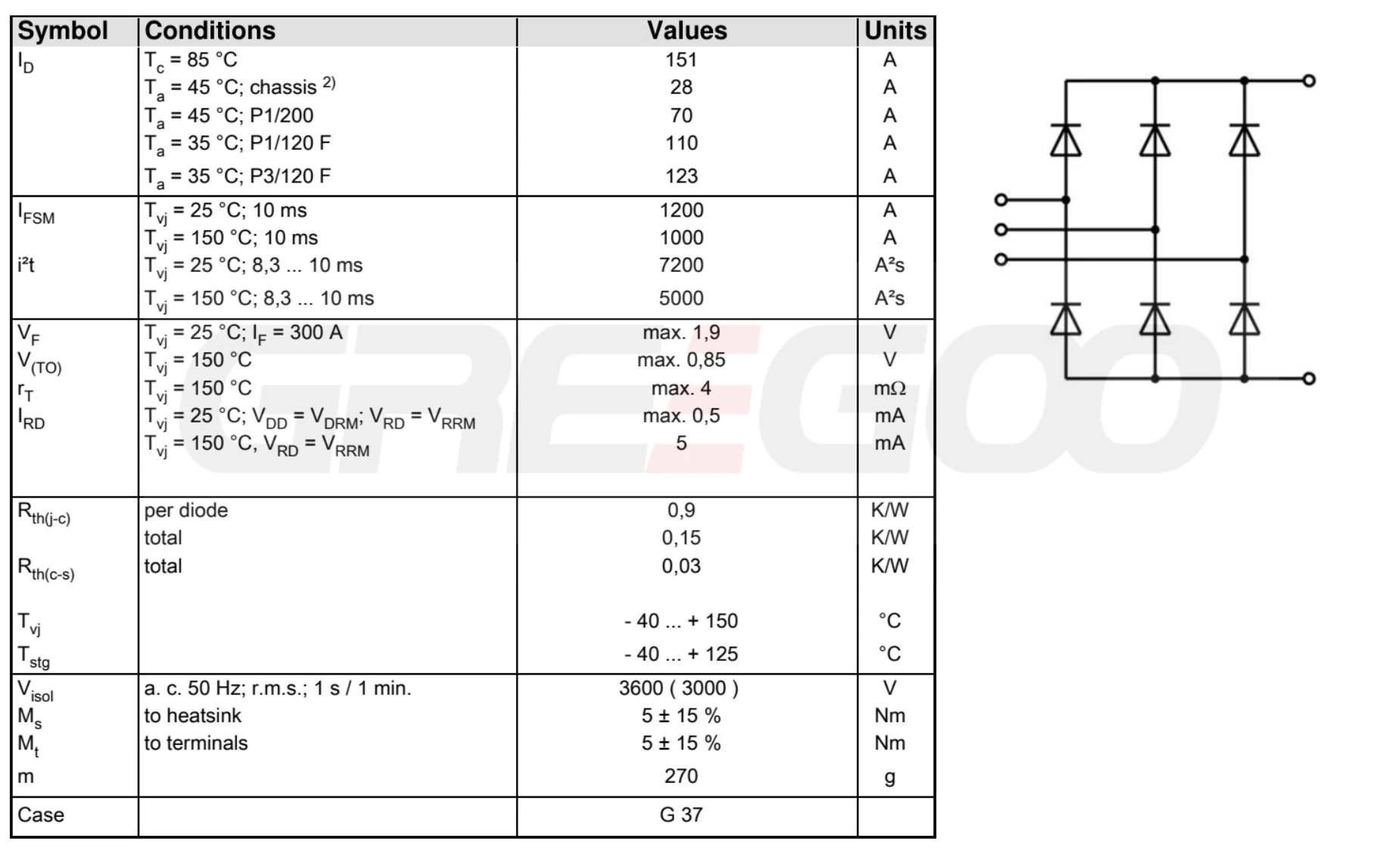

SKD110/08 SKD110/12 SKD110/14 SKD110/16 SKD110/18

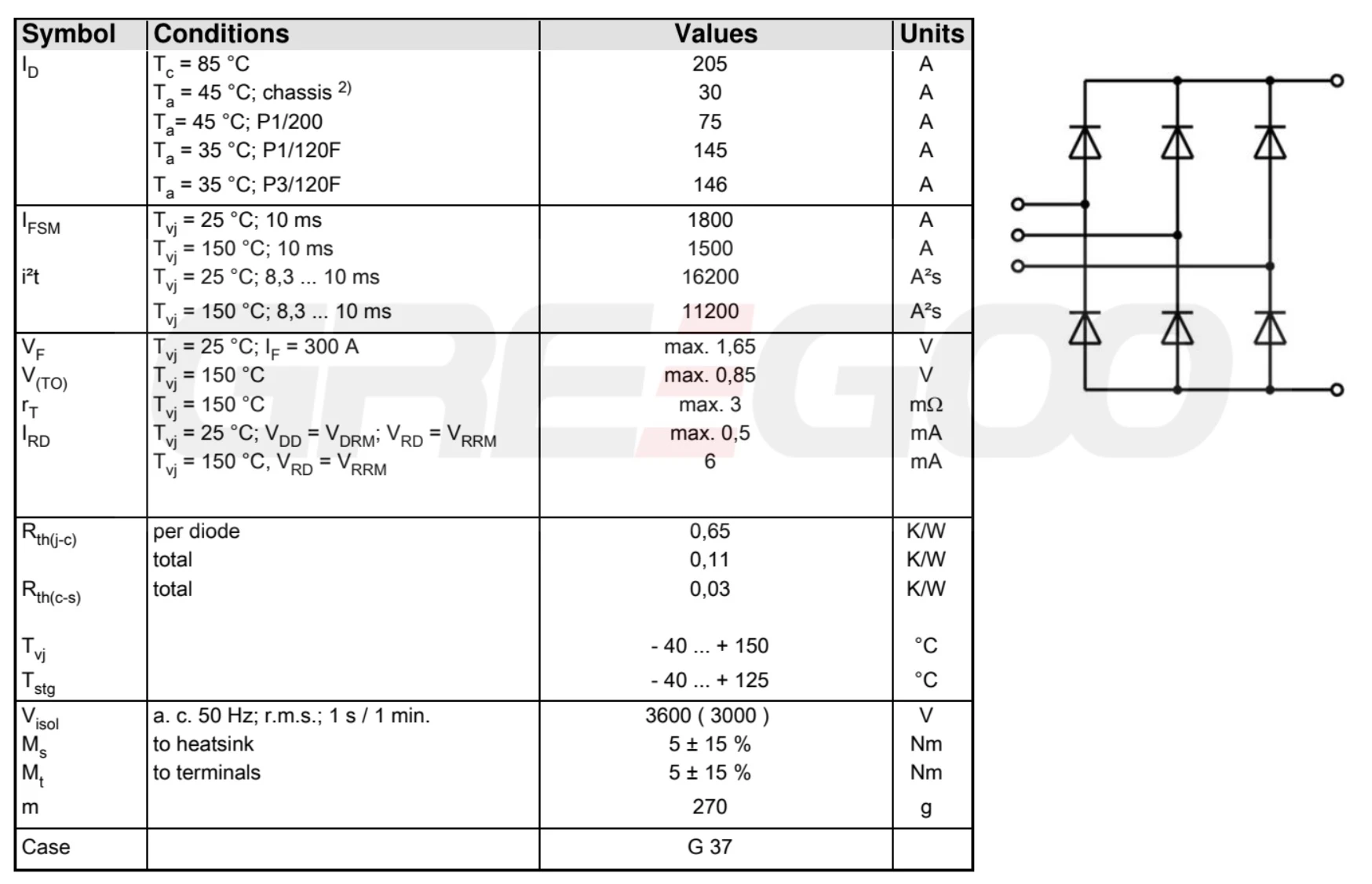

SKD160/08 SKD160/12 SKD160/14 SKD160/16 SKD160/18

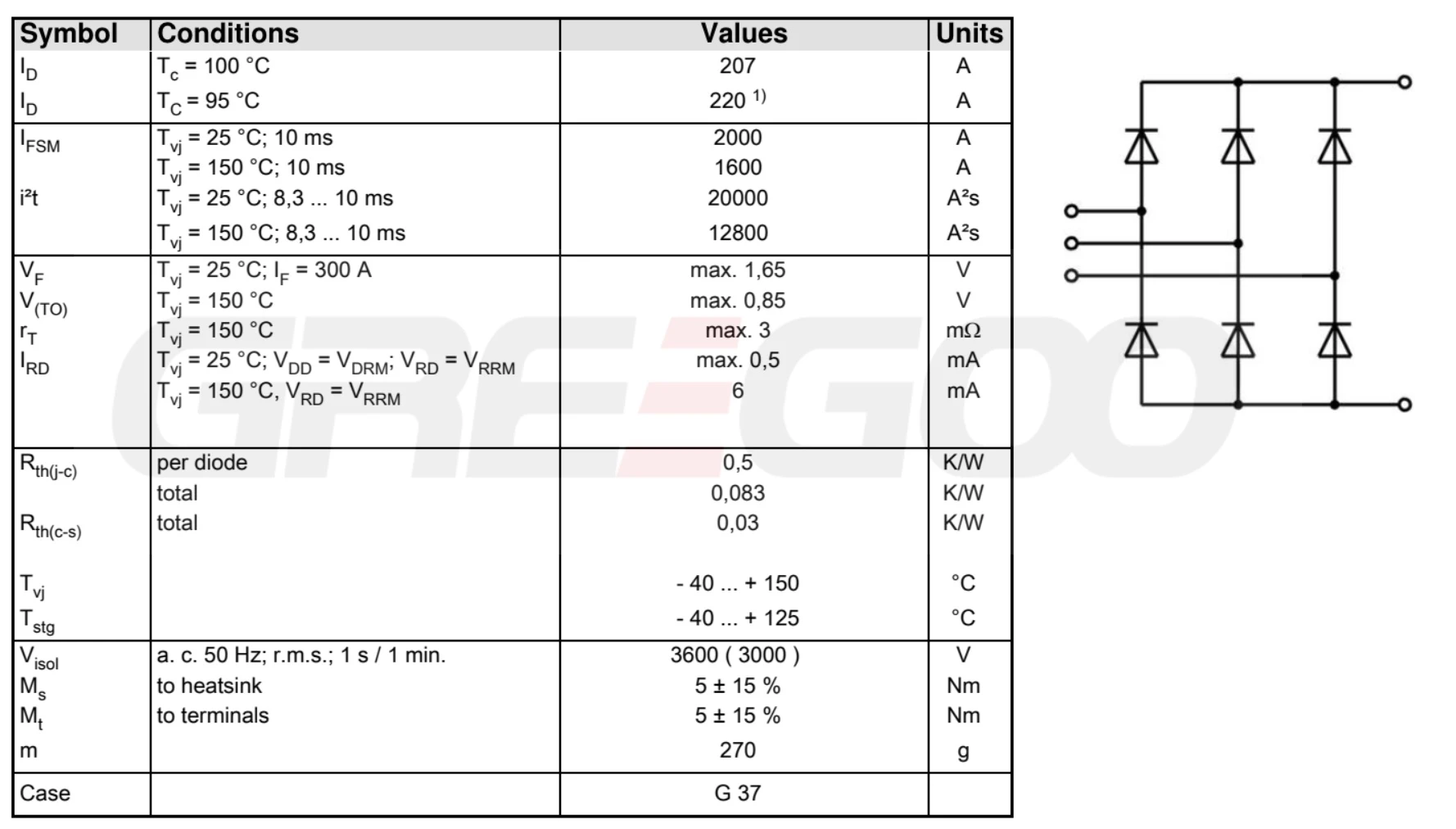

SKD210/08 SKD210/12 SKD210/14 SKD210/18
