Solid state relay dc to dc 1500A 100V
Home Products DC Solid State Relays 120A to 2000A100V DC SSRSolid state relay dc to dc 1500A 100V
Product details
Solid state relay dc to dc 1500A 100V
| Name | DC to DC Solid state relay | DC to DC Solid state relay | DC to DC Solid state relay | DC to DC Solid state relay |
| Type | Standard | Standard | Standard | Fast switching |
| Part numbers | GDZ09-1500100D1 | GDZ09-1500100D2 | GDZ09-1500100D4 | GDZ09C-1500100D3 |
| Control voltage | 12-15VDC | 18-36VDC | 12-60VDC | 4-32VDC |
| Control power supply | / | / | / | 12/24VDC |
| Max.switching current per phase | 1500A | 1500A | 1500A | 1500A |
| Max.switching voltage | 0-100VDC | 0-100VDC | 0-100VDC | 0-100VDC |
| Switching time | ≤5mS | ≤5mS | ≤8mS | ≤0.1mS |
| Output method | Mosfet DC output | Mosfet DC output | Mosfet DC output | Mosfet DC output |
| Mounting | Panel mount | Panel mount | Panel mount | Panel mount |
| Contacts configuration | 1NO | 1NO | 1NO | 1NO |
| Manufacturer | Greegoo | Greegoo | Greegoo | Greegoo |
| Certificates | CE, RoHS | CE, RoHS | CE, RoHS | CE, RoHS |
| Note | Part numbers with "L" for over current protection, e.g. GDZ09-1500100D2L, Part numbers with "T" for over temperature protection, e.g. GDZ09-1500100D2T | |||
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
Related Products
Solid state relay dc to dc 600A 100V
600A 100V GDZ08-600100 GDZ08C-600100
Solid state relay dc to dc 400A 100V
400A 100V GDZ08-400100 GDZ08C-400100

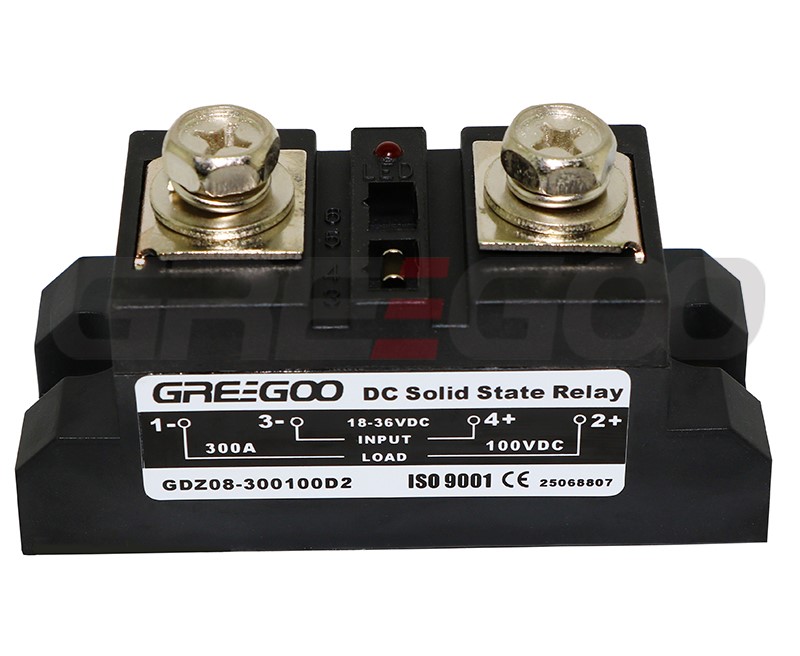

Solid state relay dc to dc 300A 100V
