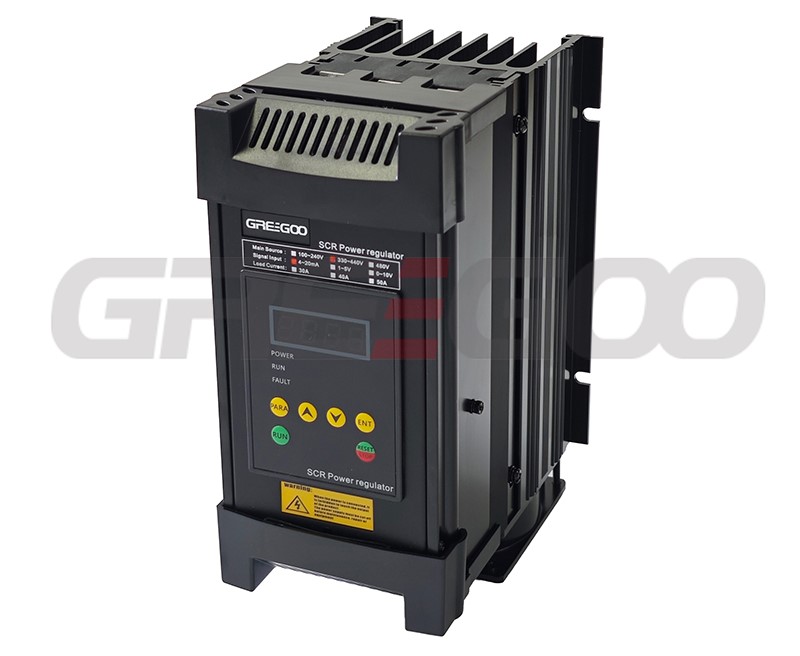

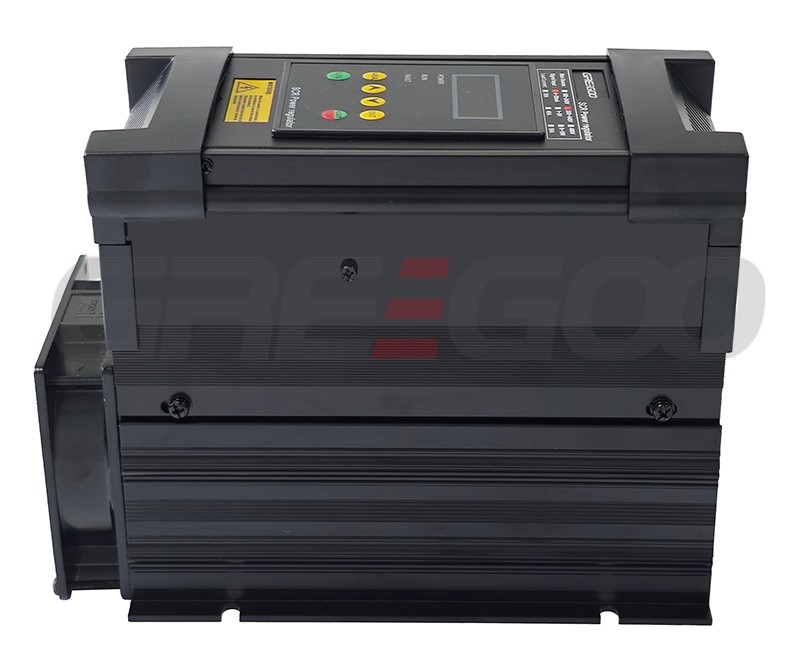

3 Phase Digital Thyristor Controller 30A and 40A with fan cooling
Product Features
◎ Utilizes MCU embedded microcontroller control technology and PID closed-loop control for 100% linear output.
◎ Three-phase full-control 6-pulse output, compatible with transformer loads or loads with neutral wire connection.
◎ Dual-channel input signal design: 0~5V, 0~10V, 4~20mA, or potentiometer limit, with direct switching.
◎ Fast-acting fuse combined with electronic transformer for dual overcurrent protection.
◎ Digital display for input, output, current, voltage, power, with one-key switching.
| Part Numbers | Phase | Input voltage | Current | Load Power (KW) |
Weight (kg) |
Control mode | |
| 220V | 380V | ||||||
| HGW5-4-4-030-PF | 3PH | 380-440V | 30A | 9.5 | 16.5 | 2.2 | Phase angle (constant voltage limiting current) |

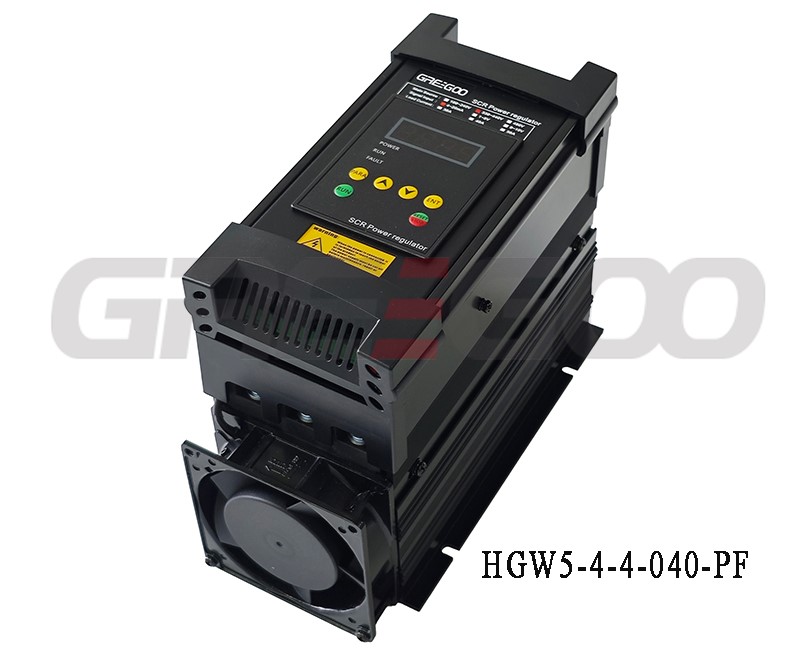

| HGW5-4-4-040-PF | 3PH | 380-440V | 40A | 12.5 | 20 | 2.5 | Phase angle (constant voltage limiting current) |
| HGW5-4-4-030-ZF | 3PH | 380-440V | 30A | 9.5 | 16.5 | 2.2 | Zero crossing (Power regulating) |
| HGW5-4-4-040-ZF | 3PH | 380-440V | 40A | 12.5 | 20 | 2.5 | Zero crossing (Power regulating) |
| HGW5-4-2-030-PF | 3PH | 110-220V | 30A | 9.5 | 16.5 | 2.2 | Phase angle (constant voltage limiting current) |
| HGW5-4-2-040-PF | 3PH | 110-220V | 40A | 12.5 | 20 | 2.5 | Phase angle (constant voltage limiting current) |
| HGW5-4-2-030-ZF | 3PH | 110-220V | 30A | 9.5 | 16.5 | 2.2 | Zero crossing (Power regulating) |
| HGW5-4-2-040-ZF | 3PH | 110-220V | 40A | 12.5 | 20 | 2.5 | Zero crossing (Power regulating) |
Selectable inputs: 0-5V, 0-10V, 4-20mA, or potentiometer with limiting function.
