3 phase rectifier bridge 60A to 100A
Home Products Diode Bridge ModuleIXYS Diode Bridge module3 phase rectifier bridge 60A to 100A
Product Details
3 phase rectifier bridge 60A to 100A
Three phase Rectifier Bridge
Feature:
- Package with DCB ceramic
- Improved temperature and power cycling
- Planar passivated chips
- Very low forward voltage drop
- Very low leakage current
- Industry standard outline
- RoHS compliant
- Easy to mount with two screws
- Base plate: Copper internally DCB isolated
- Advanced power cycling
Application:
- Diode for main rectification
- For three phase bridge configurations
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors
| Part No | Part Number | VRRM | VRSM | IDAVM | @TH | @Tc | IFSM | VT0 | rT | Tvjm | RthJC | RthJH | Package |
| (V) | (V) | (A) | (°C) | (°C) | 10ms | (V) | (mOhms) | (°C) | perchip | perchip | Style | ||
| Tvj=45°C | (K/W) | (K/W) | |||||||||||
| (A) | |||||||||||||
| MDS60-08I | VUO62-08NO7 | 800 | 900 | 60 | - | 120 | 550 | 0.78 | 8.1 | 150 | 1.1 | 1.5 | PWS-D |
| MDS90-08I | VUO82-08NO7 | 800 | 900 | 90 | - | 115 | 750 | 0.78 | 6 | 150 | 0.9 | 1.3 | PWS-D |
| MDS60-12I | VUO62-12NO7 | 1200 | 1300 | 60 | - | 120 | 550 | 0.78 | 8.1 | 150 | 1.1 | 1.5 | PWS-D |
| MDS90-12I | VUO82-12NO7 | 1200 | 1300 | 90 | - | 115 | 750 | 0.78 | 6 | 150 | 0.9 | 1.3 | PWS-D |
| MDS60-16I | VUO62-16NO7 | 1600 | 1700 | 60 | - | 120 | 550 | 0.78 | 8.1 | 150 | 1.1 | 1.5 | PWS-D |
| MDS90-16I | VUO82-16NO7 | 1600 | 1700 | 90 | - | 115 | 750 | 0.78 | 6 | 150 | 0.9 | 1.3 | PWS-D |
| MDS60-18I | VUO62-18NO7 | 1800 | 1900 | 60 | - | 120 | 550 | 0.78 | 8.1 | 150 | 1.1 | 1.5 | PWS-D |
| MDS90-18I | VUO82-18NO7 | 1800 | 1900 | 90 | - | 115 | 750 | 0.78 | 6 | 150 | 0.9 | 1.3 | PWS-D |

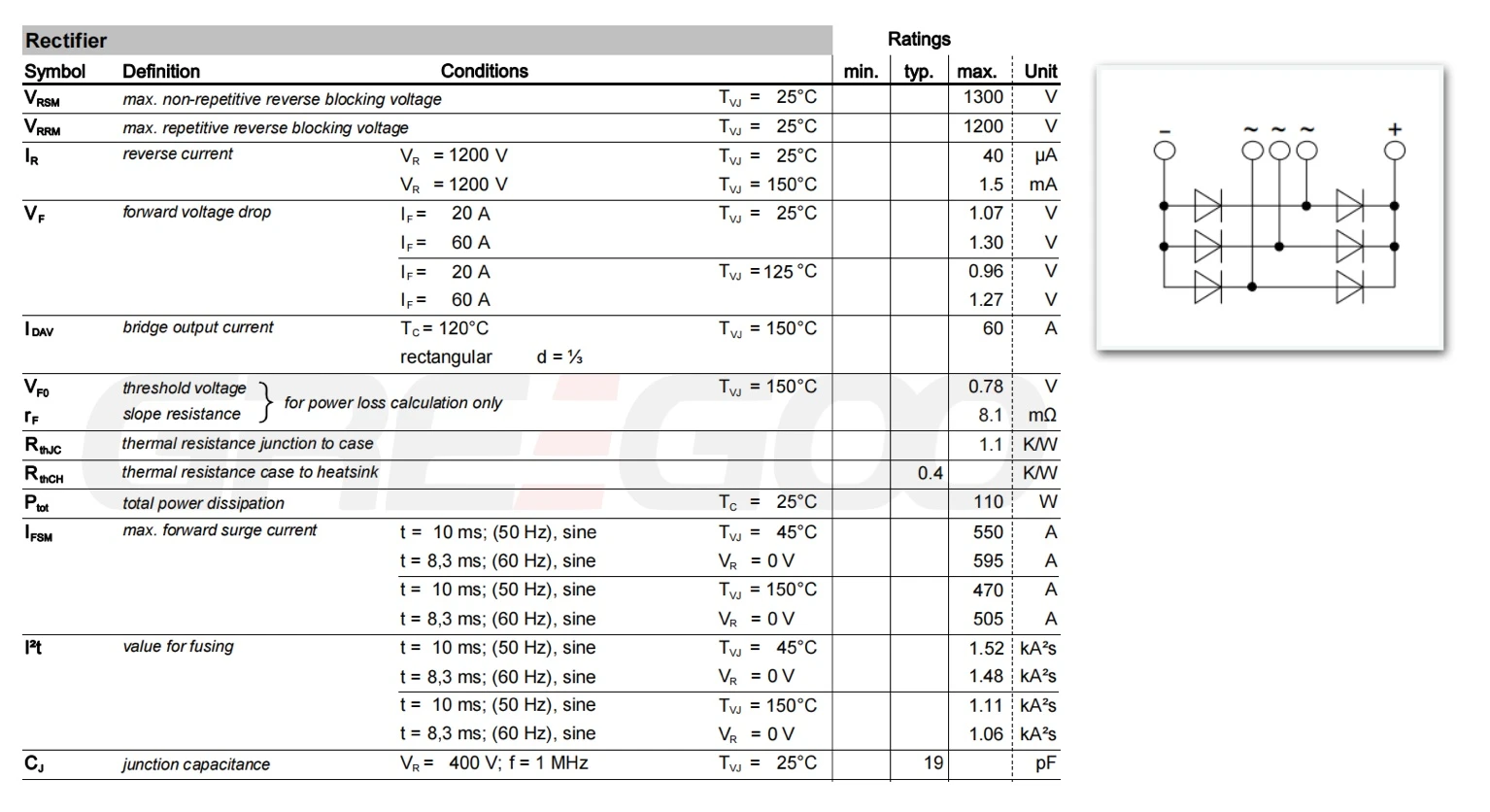

VUO62
VUO62/08 VUO62/12 VUO62/16 VUO62/18

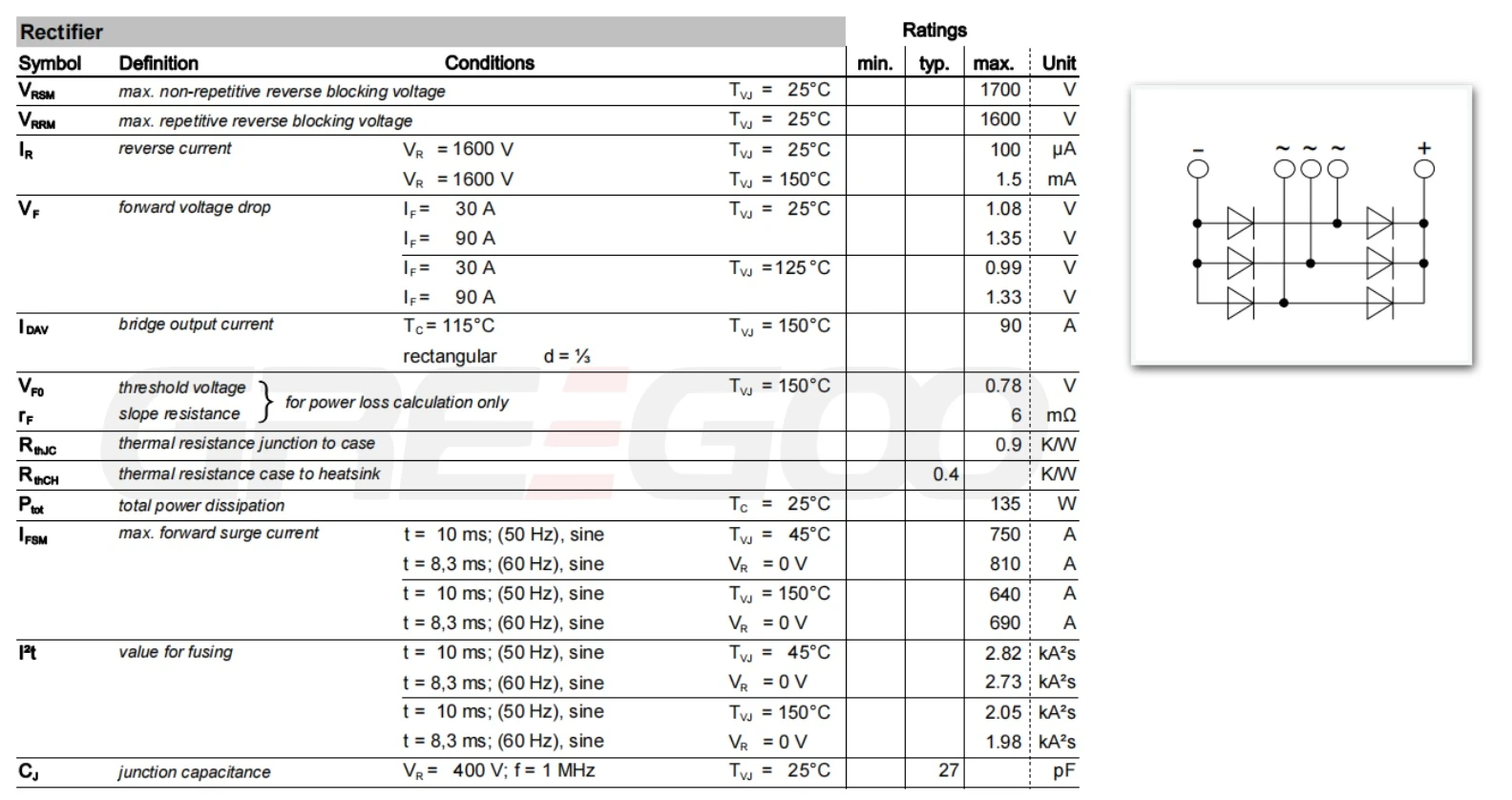

VUO82
VUO82/08 VUO82/12 VUO82/16 VUO82/18
