PWB series 3 phase thyristor module 60A to 200A

Home Products Thyristor Diode ModuleSemiconductor Power ModulesPWB series 3 phase thyristor module 60A to 200A

Features and Application

PWB series 3 phase thyristor module 60A to 200A

👉 Features

・ IT(AV)130A (each device)

・ High Surge Current 3500 A (50/60Hz)

・ Easy Construction

・ Non-isolated. Mounting base as common Anode terminal

👉 Applications

・ Power Supply / Welding equipment

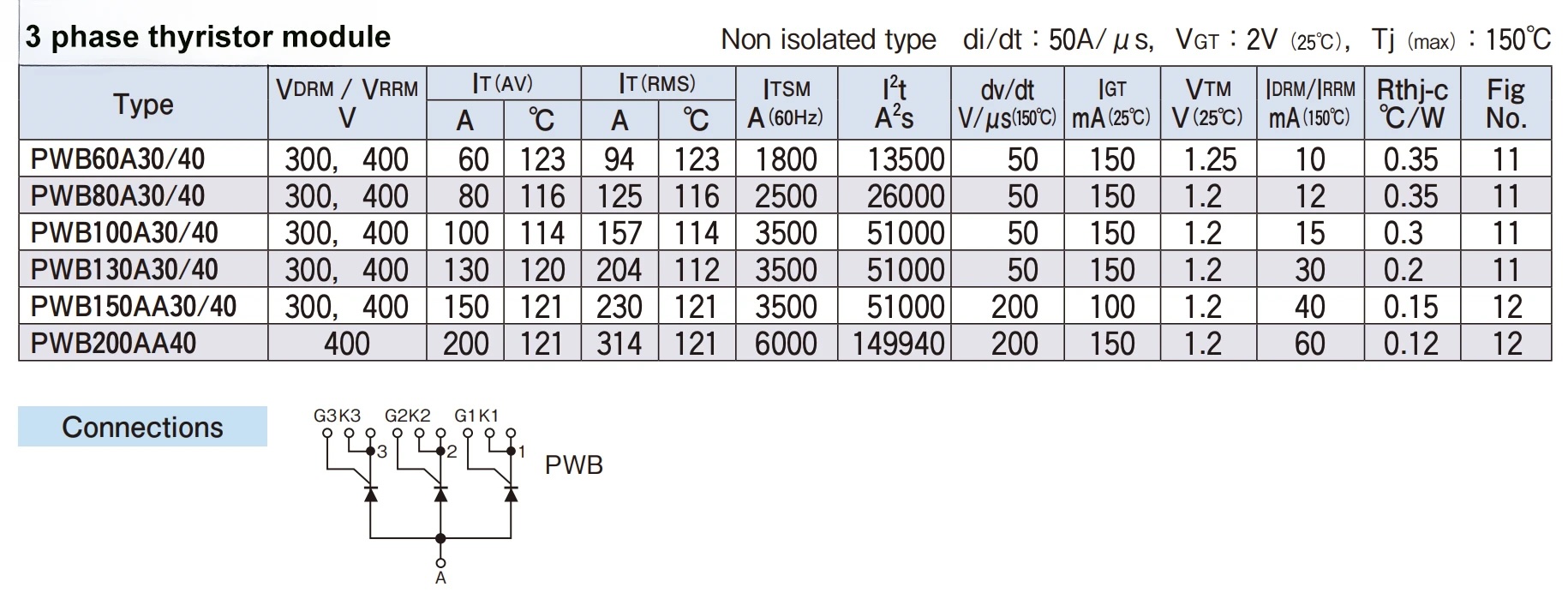

Specification

3 phase thyristor module PWB series

Part Numbers: PWB60 PWB80 PWB100 PWB130 PWB150 PWB200

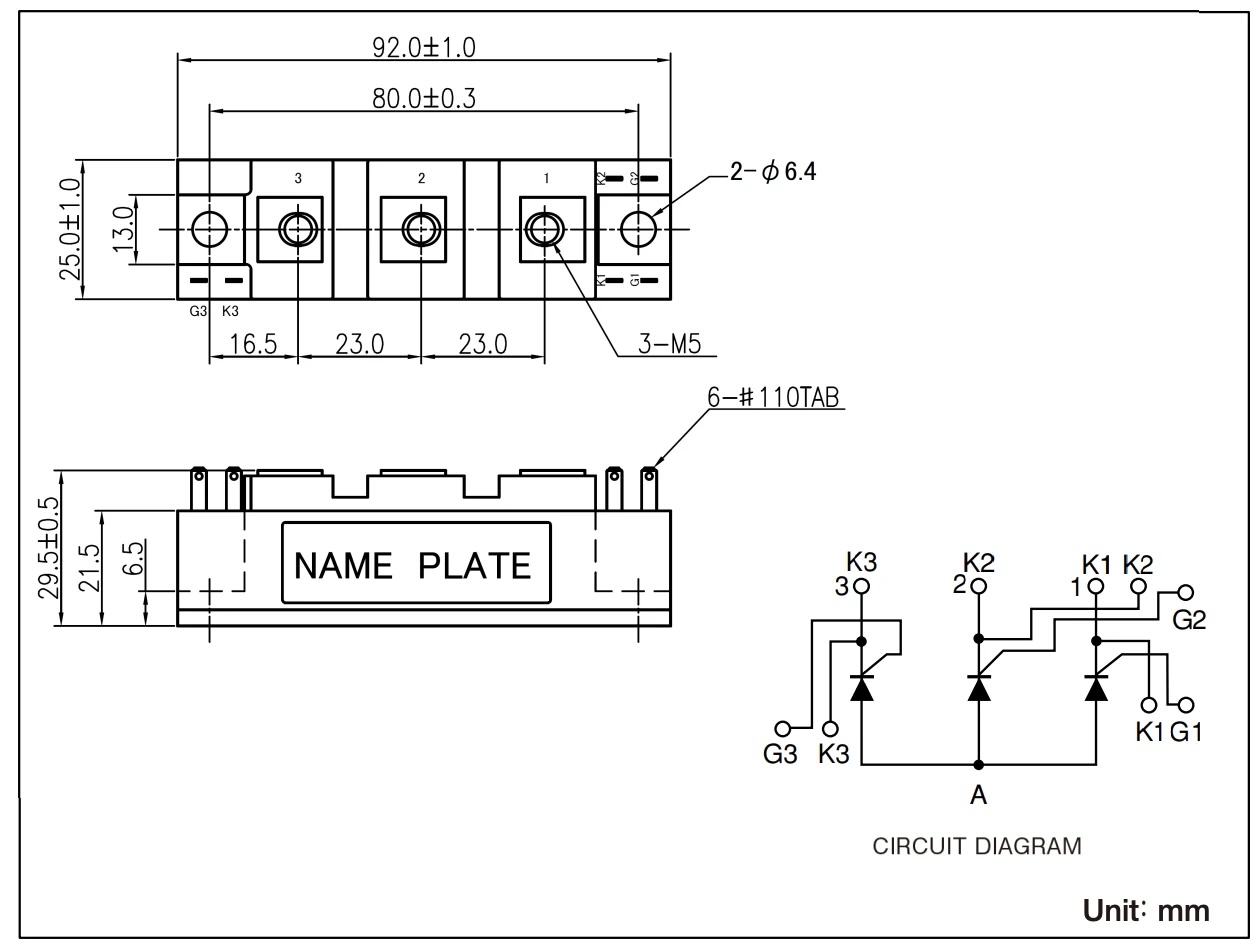

Dimensions

three phase thyristor module dimensions
