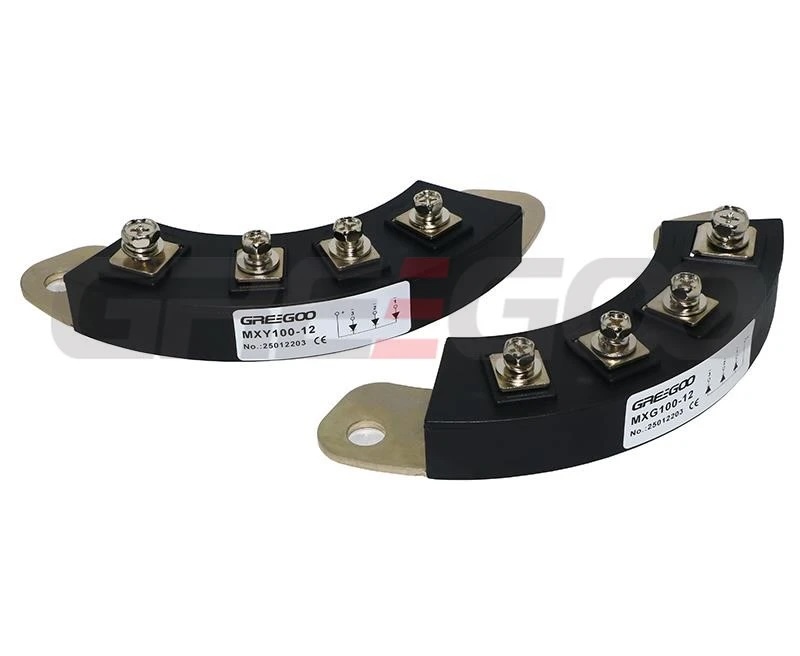

Rotating Diode (Generator Rotary Rectifier Diode Bridge)
Home Products Thyristor Diode ModuleSemiconductor Power ModulesRotating Diode (Generator Rotary Rectifier Diode Bridge)
Rotating Diode (Generator Rotary Rectifier Diode Bridge)
|
Model |
IF（AV） |
IFSM |
I2t |
VRRM |
IRRM |
VFM |
Tj |
Rjc |
VISO |
Torque Force |
Note |
|
|
# |
A |
A |
A2S |
V |
mA |
V |
°C |
°C/W |
V |
N (Module) |
N (Terminals) |
|
|
MXG25S |
25 |
570 |
1.6×103 |
800~1800 |
≤2 |
≤1.20 |
-40 ~ 150 |
0.45 |
≥2500 |
4.5 |
2.3 |
Soldering type |
|
MXG40S |
40 |
750 |
2.8×103 |
800~1800 |
≤4 |
≤1.30 |
-40 ~ 150 |
0.35 |
≥2500 |
4.5 |
2.3 |
Soldering type |
|
MXG40P |
40 |
900 |
4.0×103 |
800~1800 |
≤4 |
≤1.30 |
-40 ~ 150 |
0.45 |
≥2500 |
4.5 |
3.5 |
Press contact type |
|
MXG50S |
50 |
940 |
5.0×103 |
800~1800 |
≤4 |
≤1.30 |
-40 ~ 150 |
0.30 |
≥2500 |
4.5 |
3.5 |
Soldering type |
|
MXG50P |
50 |
1200 |
7.2×103 |
800~1800 |
≤4 |
≤1.30 |
-40 ~ 150 |
0.40 |
≥2500 |
4.5 |
3.5 |
Press contact type |
|
MXG70P |
70 |
1540 |
11.8×103 |
800~1800 |
≤4 |
≤1.30 |
-40 ~ 150 |
0.35 |
≥2500 |
4.5 |
3.5 |
Press contact type |
|
MXG40T |
40 |
750 |
2.8×103 |
800~1800 |
≤4 |
≤1.30 |
-40 ~ 150 |
0.35 |
≥2500 |
4.5 |
3.5 |
Soldering type |
|
MXG50T |
50 |
940 |
5.0×103 |
800~1800 |
≤4 |
≤1.30 |
-40 ~ 150 |
0.30 |
≥2500 |
4.5 |
3.5 |
Soldering type |
|
MXG100P |
100 |
2200 |
24.0×103 |
800~1800 |
≤5 |
≤1.65 |
-40 ~ 150 |
0.40 |
≥2500 |
4.5 |
3.5 |
Press contact type |
|
MXG150P |
150 |
3400 |
56.0×103 |
800~1800 |
≤8 |
≤1.80 |
-40 ~ 150 |
0.50 |
≥2500 |
4.5 |
3.5 |
Press contact type |
|
MXY25S |
25 |
570 |
1.6×103 |
800~1800 |
≤2 |
≤1.20 |
-40 ~ 150 |
0.45 |
≥2500 |
4.5 |
2.3 |
Soldering type |
|
MXY40S |
40 |
750 |
2.8×103 |
800~1800 |
≤4 |
≤1.30 |
-40 ~ 150 |
0.35 |
≥2500 |
4.5 |
2.3 |
Soldering type |
|
MXY40P |
40 |
900 |
4.0×103 |
800~1800 |
≤4 |
≤1.30 |
-40 ~ 150 |
0.45 |
≥2500 |
4.5 |
3.5 |
Press contact type |
|
MXY50S |
50 |
940 |
5.0×103 |
800~1800 |
≤4 |
≤1.30 |
-40 ~ 150 |
0.30 |
≥2500 |
4.5 |
3.5 |
Soldering type |
|
MXY50P |
50 |
1200 |
7.2×103 |
800~1800 |
≤4 |
≤1.30 |
-40 ~ 150 |
0.40 |
≥2500 |
4.5 |
3.5 |
Press contact type |
|
MXY70P |
70 |
1540 |
11.8×103 |
800~1800 |
≤4 |
≤1.30 |
-40 ~ 150 |
0.35 |
≥2500 |
4.5 |
3.5 |
Press contact type |
|
MXY40T |
40 |
750 |
2.8×103 |
800~1800 |
≤4 |
≤1.30 |
-40 ~ 150 |
0.35 |
≥2500 |
4.5 |
3.5 |
Soldering type |
|
MXY50T |
50 |
940 |
5.0×103 |
800~1800 |
≤4 |
≤1.30 |
-40 ~ 150 |
0.30 |
≥2500 |
4.5 |
3.5 |
Soldering type |
|
MXY100P |
100 |
2200 |
24.0×103 |
800~1800 |
≤5 |
≤1.65 |
-40 ~ 150 |
0.40 |
≥2500 |
4.5 |
3.5 |
Press contact type |
|
MXY150P |
150 |
3400 |
56.0×103 |
800~1800 |
≤8 |
≤1.80 |
-40 ~ 150 |
0.50 |
≥2500 |
4.5 |
3.5 |
Press contact type |
A rotating diode is a special type of rectifier diode used in the brushless excitation system of synchronous generators (alternators). It is mounted on the rotating part of the machine (rotor) and plays a crucial role in converting AC (alternating current) to DC (direct current) to provide stable excitation to the generator's main field winding.
