7MBR15VKD120-50 IGBT Module
Home Products IGBT Power ModuleInfineon IGBT Module Equivalent7MBR15VKD120-50 IGBT Module
Product details
7MBR15VKD120-50 IGBT Module
Feature
- Low VCE (sat)
- Compact package
- PCB mounting module

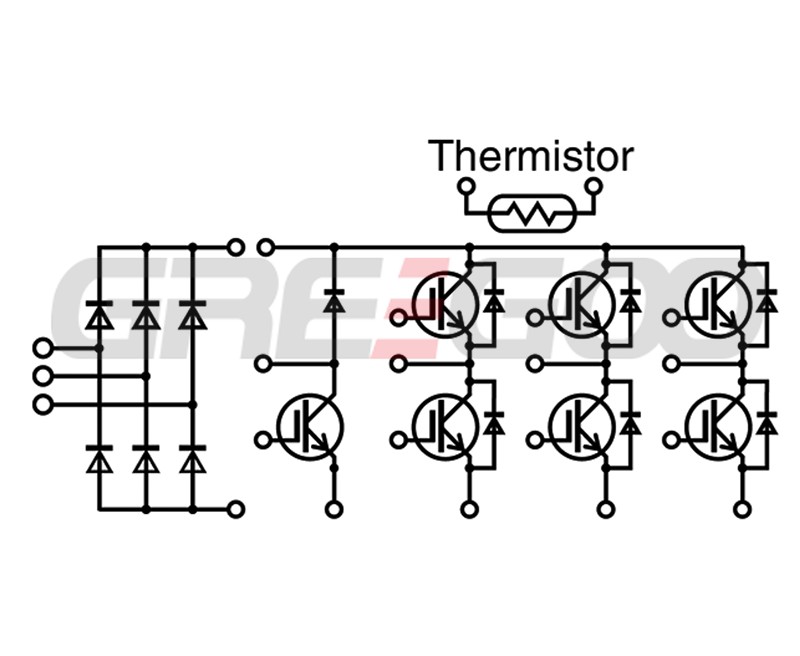

- Converter diode bridge dynamic brake circuit
Application
- Inverters
- NC Servos
- UPS
Specifications
| Configuration | PIM |
|---|---|
| Inverter VCES(V) | 1200 |
| Inverter IC(A) | 15 |
| Inverter,Brake Tvj max(℃) | 175 |
| Inverter,Brake Tvjop max(℃) | 150 |
| Converter Tvj max(℃) | 150 |
| Converter Tvjop max(℃) | 150 |
| Tc(℃) | 125 |
| Tstg(℃) | -40 to 125 |
| Terminal type | Solder pins |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
