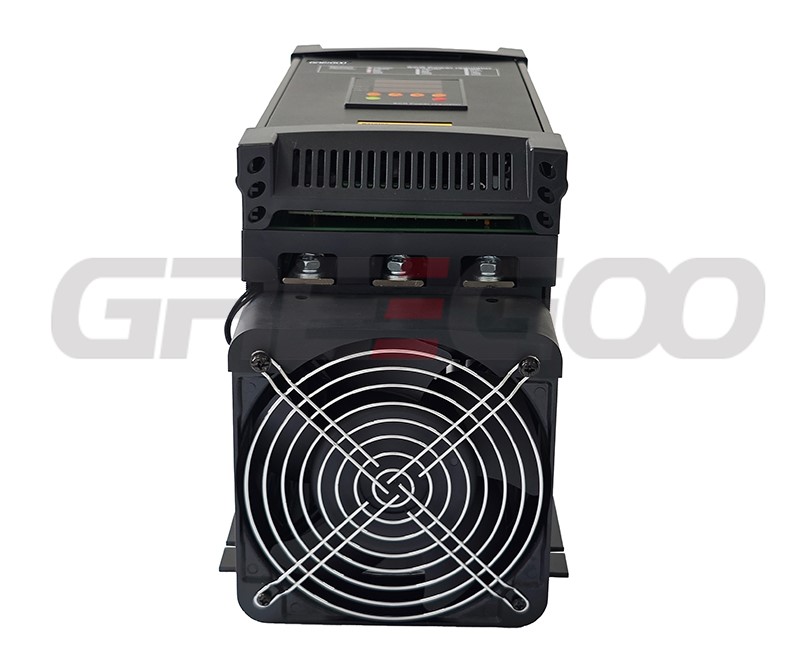

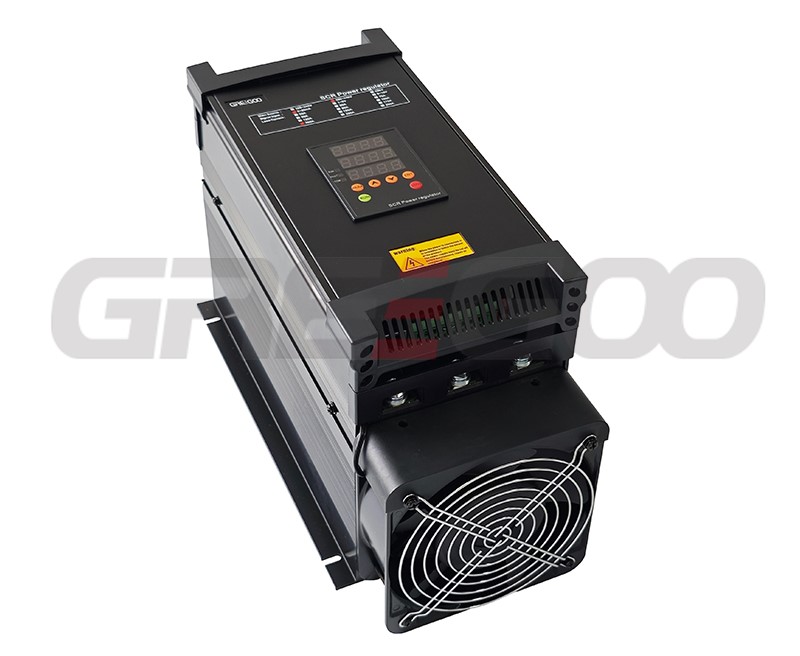

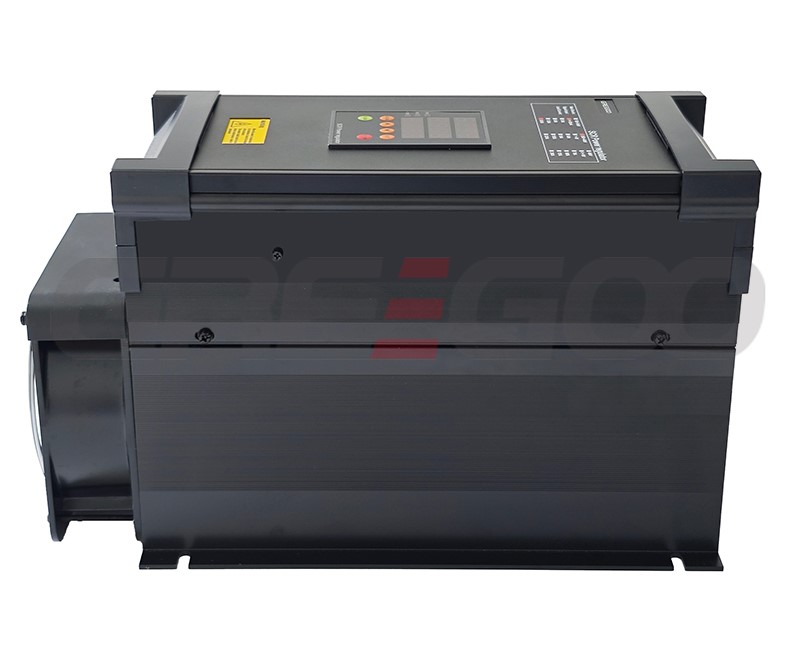

Intelligent Thyristor Regulator Three phase HGW9 200A

HGW9 Series Three-Phase Intelligent Power Regulator

Product Features

◎ Three-row digital display, capable of separately showing three-phase current, voltage, and power.

◎ Equipped with both MODBUS TCP Ethernet communication and MODBUS RTU 485 communication interfaces.

◎ Single-channel universal input design, with one input port compatible with 4-20mA, 0-10V, and other signals simultaneously.

◎ Both current and voltage adopt RMS (effective value) display, closer to actual measurement values.

Specification

Model	Phase	Input voltage	Rated Current	Load Power(KW)		Weight (KG)	Control mode	Control signal
				220V	380V
HGW9-4-4-200-P	3Ph	380-440V	200A	60	100	13	Selectable	Selectable
HGW9-4-2-200-P	3Ph	110-220V	200A	60	100	13	Selectable	Selectable
HGW9-4-8-200-P	3Ph	480V-600V	200A	60	100	13	Selectable	Selectable

Control mode selectable: P - phase angle constant voltage with current limiting; C - constant current; CV - constant power; Z - zero crossing cycle power regulating; ZV - fixed cycle zero crossing power regulating.

Control signal selectable: 4-20mA/0-20mA/0-5V/0-10V/1-5V/2-10V/Pot
