Product details

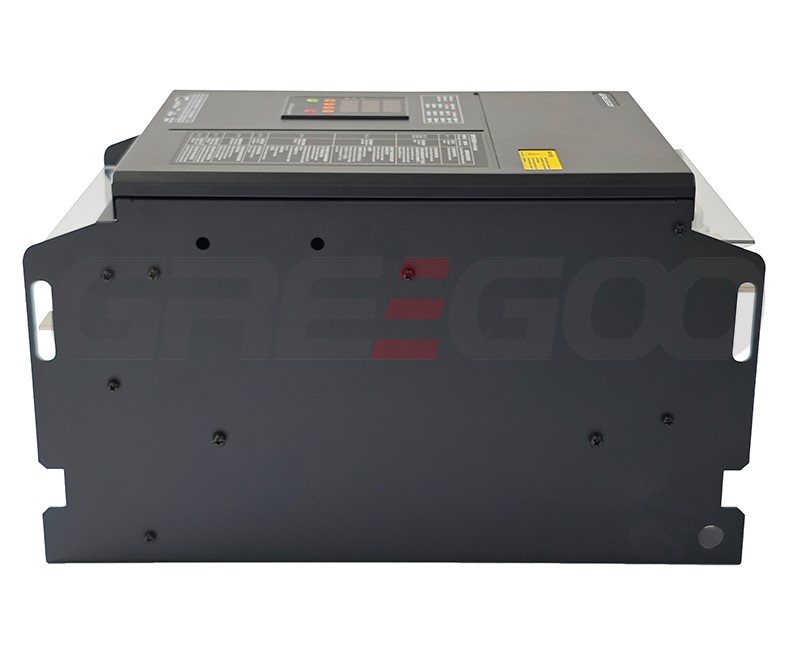

Intelligent Thyristor Regulator Three phase HGW9 250A to 500A

HGW9 Series Three-Phase Intelligent Power Regulator

Product Features

◎ Three-row digital display, capable of separately showing three-phase current, voltage, and power.

◎ Equipped with both MODBUS TCP Ethernet communication and MODBUS RTU 485 communication interfaces.

◎ Single-channel universal input design, with one input port compatible with 4-20mA, 0-10V, and other signals simultaneously.

◎ Both current and voltage adopt RMS (effective value) display, closer to actual measurement values.

Specification

Model	Phase	Input voltage	Rated Current	Load Power(KW)		Weight (KG)	Control mode	Control signal
				220V	380V
HGW9-4-4-250-P	3Ph	380-440V	250A	73	125	13	Selectable	Selectable
HGW9-4-4-300-P	3Ph	380-440V	300A	87	150	15	Selectable	Selectable
HGW9-4-4-350-P	3Ph	380-440V	350A	100	177	18	Selectable	Selectable
HGW9-4-4-400-P	3Ph	380-440V	400A	115	200	22	Selectable	Selectable
HGW9-4-4-450-P	3Ph	380-440V	450A	130	220	25	Selectable	Selectable
HGW9-4-4-500-P	3Ph	380-440V	500A	150	240	25	Selectable	Selectable

HGW9-4-2-250-P	3Ph	110-220V	250A	73	125	13	Selectable	Selectable
HGW9-4-2-300-P	3Ph	110-220V	300A	87	150	15	Selectable	Selectable
HGW9-4-2-350-P	3Ph	110-220V	350A	100	177	18	Selectable	Selectable
HGW9-4-2-400-P	3Ph	110-220V	400A	115	200	22	Selectable	Selectable
HGW9-4-2-450-P	3Ph	110-220V	450A	130	220	25	Selectable	Selectable
HGW9-4-2-500-P	3Ph	110-220V	500A	150	240	25	Selectable	Selectable

HGW9-4-8-250-P	3Ph	480-600V	250A	73	125	13	Selectable	Selectable
HGW9-4-8-300-P	3Ph	480-600V	300A	87	150	15	Selectable	Selectable
HGW9-4-8-350-P	3Ph	480-600V	350A	100	177	18	Selectable	Selectable
HGW9-4-8-400-P	3Ph	480-600V	400A	115	200	22	Selectable	Selectable
HGW9-4-8-450-P	3Ph	480-600V	450A	130	220	25	Selectable	Selectable
HGW9-4-8-500-P	3Ph	480-600V	500A	150	240	25	Selectable	Selectable

Control mode selectable: P - phase angle constant voltage with current limiting; C - constant current; CV - constant power; Z - zero crossing cycle power regulating; ZV - fixed cycle zero crossing power regulating.

Control signal selectable: 4-20mA/0-20mA/0-5V/0-10V/1-5V/2-10V/Pot
