Feature and Application

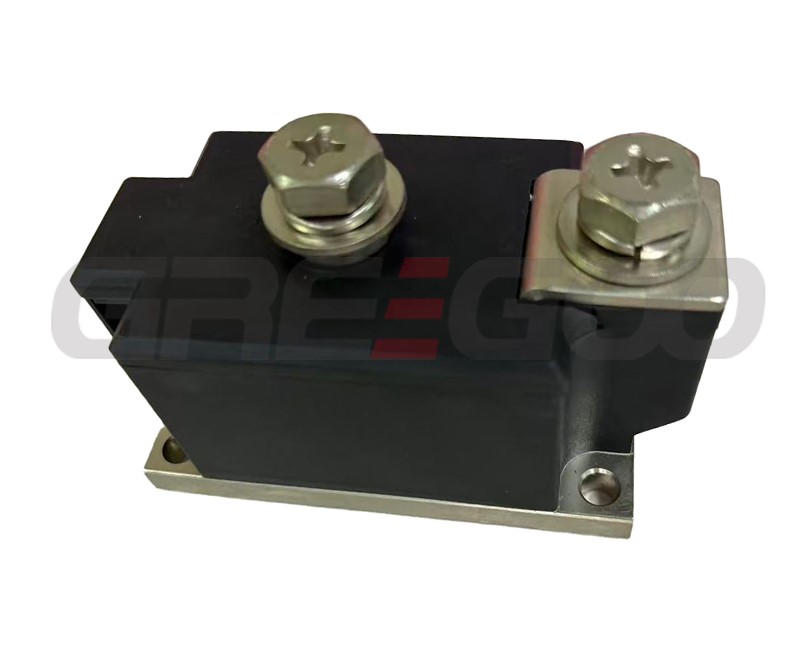

MT130 MT160 MT200 MT250 Single Thyristor Modules
Features
- Soldering contact for high reliability
- Industial standard package
- Electrically insulated baseplate
- Advanced medium power technology
Typical Applications
- Rectifier for Drives Applications
- Rectifiers for UPS
- Battery chargers
- Soft starter
- Crowbar applications
- Power controllers
- Static switches
Part numbers
| Part numbers | IF(AV) | Tc |
VRRM |
| MT130-04 | 130A | 100℃ | 400V |
| MT130-06 | 130A | 100℃ | 600V |
| MT130-08 | 130A | 100℃ | 800V |
| MT130-10 | 130A | 100℃ | 1000V |
| MT130-12 | 130A | 100℃ | 1200V |
| MT130-16 | 130A | 100℃ | 1600V |
| MT130-18 | 130A | 100℃ | 1800V |
| MT130-20 | 130A | 100℃ | 2000V |
| MT130-22 | 130A | 100℃ | 2200V |
| MT160-04 | 160A | 100℃ | 400V |
| MT160-06 | 160A | 100℃ | 600V |
| MT160-08 | 160A | 100℃ | 800V |
| MT160-10 | 160A | 100℃ | 1000V |
| MT160-12 | 160A | 100℃ | 1200V |
| MT160-16 | 160A | 100℃ | 1600V |
| MT160-18 | 160A | 100℃ | 1800V |
| MT160-20 | 160A | 100℃ | 2000V |
| MT160-22 | 160A | 100℃ | 2200V |
| MT200-04 | 200A | 100℃ | 400V |
| MT200-06 | 200A | 100℃ | 600V |
| MT200-08 | 200A | 100℃ | 800V |
| MT200-10 | 200A | 100℃ | 1000V |
| MT200-12 | 200A | 100℃ | 1200V |
| MT200-16 | 200A | 100℃ | 1600V |
| MT200-18 | 200A | 100℃ | 1800V |
| MT200-20 | 200A | 100℃ | 2000V |
| MT200-22 | 200A | 100℃ | 2200V |
| MT250-04 | 250A | 100℃ | 400V |
| MT250-06 | 250A | 100℃ | 600V |
| MT250-08 | 250A | 100℃ | 800V |
| MT250-10 | 250A | 100℃ | 1000V |
| MT250-12 | 250A | 100℃ | 1200V |
| MT250-16 | 250A | 100℃ | 1600V |
| MT250-18 | 250A | 100℃ | 1800V |
| MT250-20 | 250A | 100℃ | 2000V |
| MT250-22 | 250A | 100℃ | 2200V |

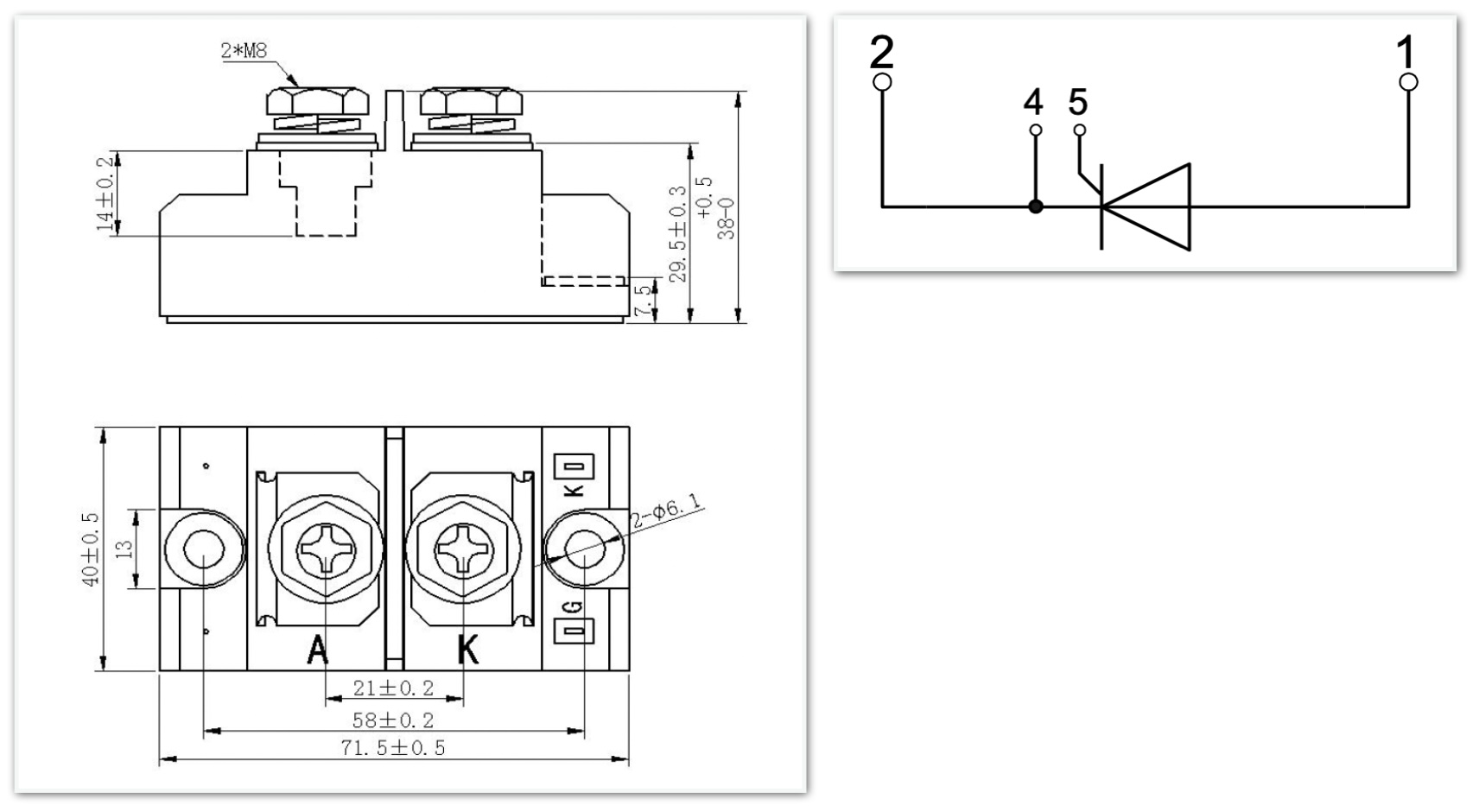

Dimensions
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
