Feature and Application
MT25 MT40 MT60 MT80 MT100 MT110 Single Thyristor Modules
Features
- Soldering contact for high reliability
- Industial standard package
- Electrically insulated baseplate
- Advanced medium power technology
Typical Applications
- Rectifier for Drives Applications
- Rectifiers for UPS
- Battery chargers
- Soft starter
- Crowbar applications
- Power controllers
- Static switches
Part numbers
| Part numbers | IF(AV) | Tc |
VRRM |
| MT25-04 | 25A | 100℃ | 400V |
| MT25-06 | 25A | 100℃ | 600V |
| MT25-08 | 25A | 100℃ | 800V |
| MT25-10 | 25A | 100℃ | 1000V |
| MT25-12 | 25A | 100℃ | 1200V |
| MT25-16 | 25A | 100℃ | 1600V |
| MT25-18 | 25A | 100℃ | 1800V |
| MT25-20 | 25A | 100℃ | 2000V |
| MT25-22 | 25A | 100℃ | 2200V |
| MT40-04 | 40A | 100℃ | 400V |
| MT40-06 | 40A | 100℃ | 600V |
| MT40-08 | 40A | 100℃ | 800V |
| MT40-10 | 40A | 100℃ | 1000V |
| MT40-12 | 40A | 100℃ | 1200V |
| MT40-16 | 40A | 100℃ | 1600V |
| MT40-18 | 40A | 100℃ | 1800V |
| MT40-20 | 40A | 100℃ | 2000V |
| MT40-22 | 40A | 100℃ | 2200V |
| MT60-04 | 60A | 100℃ | 400V |
| MT60-06 | 60A | 100℃ | 600V |
| MT60-08 | 60A | 100℃ | 800V |
| MT60-10 | 60A | 100℃ | 1000V |
| MT60-12 | 60A | 100℃ | 1200V |
| MT60-16 | 60A | 100℃ | 1600V |
| MT60-18 | 60A | 100℃ | 1800V |
| MT60-20 | 60A | 100℃ | 2000V |
| MT60-22 | 60A | 100℃ | 2200V |
| MT80-04 | 80A | 100℃ | 400V |
| MT80-06 | 80A | 100℃ | 600V |
| MT80-08 | 80A | 100℃ | 800V |
| MT80-10 | 80A | 100℃ | 1000V |
| MT80-12 | 80A | 100℃ | 1200V |
| MT80-16 | 80A | 100℃ | 1600V |
| MT80-18 | 80A | 100℃ | 1800V |
| MT80-20 | 80A | 100℃ | 2000V |
| MT80-22 | 80A | 100℃ | 2200V |
| MT100-04 | 100A | 100℃ | 400V |
| MT100-06 | 100A | 100℃ | 600V |
| MT100-08 | 100A | 100℃ | 800V |
| MT100-10 | 100A | 100℃ | 1000V |
| MT100-12 | 100A | 100℃ | 1200V |
| MT100-16 | 100A | 100℃ | 1600V |
| MT100-18 | 100A | 100℃ | 1800V |
| MT100-20 | 100A | 100℃ | 2000V |
| MT100-22 | 100A | 100℃ | 2200V |
| MT110-04 | 110A | 100℃ | 400V |
| MT110-06 | 110A | 100℃ | 600V |
| MT110-08 | 110A | 100℃ | 800V |
| MT110-10 | 110A | 100℃ | 1000V |
| MT110-12 | 110A | 100℃ | 1200V |
| MT110-16 | 110A | 100℃ | 1600V |
| MT110-18 | 110A | 100℃ | 1800V |
| MT110-20 | 110A | 100℃ | 2000V |
| MT110-22 | 110A | 100℃ | 2200V |

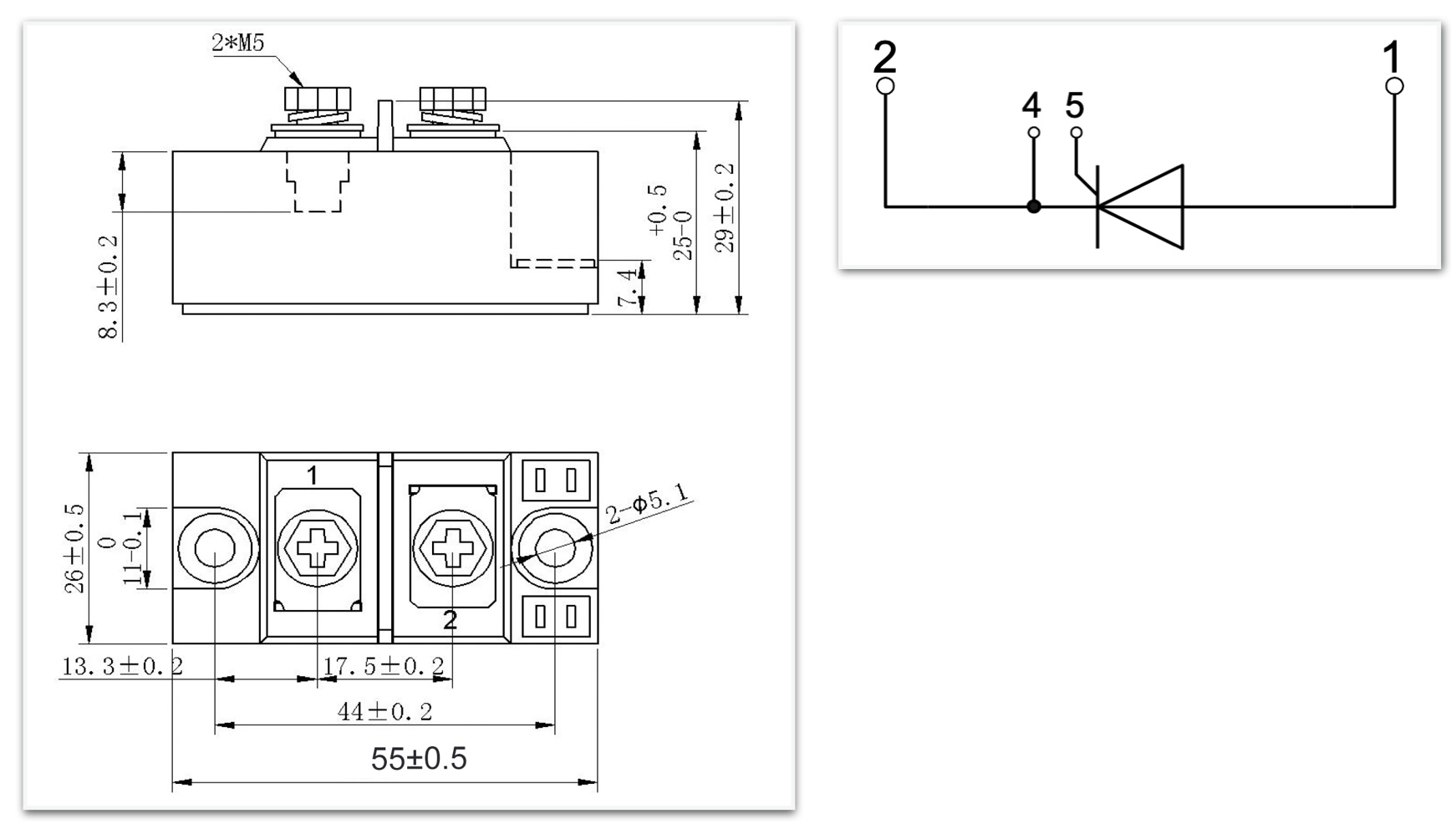

Dimensions
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
