Feature and Application
MT200 MT250 MT300 MT400 MT500 MT600 Single Thyristor Modules
Features
- Pressure contact technology for high reliability
- Industial standard package
- Electrically insulated baseplate
- Advanced medium power technology
Typical Applications
- Rectifier for Drives Applications
- Rectifiers for UPS
- Battery chargers
- Soft starter
- Crowbar applications
- Power controllers
- Static switches
Part numbers
| Part numbers | IF(AV) | Tc |
VRRM |
| MT200-04 | 200A | 100℃ | 400V |
| MT200-06 | 200A | 100℃ | 600V |
| MT200-08 | 200A | 100℃ | 800V |
| MT200-10 | 200A | 100℃ | 1000V |
| MT200-12 | 200A | 100℃ | 1200V |
| MT200-16 | 200A | 100℃ | 1600V |
| MT200-18 | 200A | 100℃ | 1800V |
| MT200-20 | 200A | 100℃ | 2000V |
| MT200-25 | 200A | 100℃ | 2500V |
| MT200-30 | 200A | 100℃ | 3000V |
| MT200-40 | 200A | 100℃ | 4000V |
| MT200-50 | 200A | 100℃ | 5000V |
| MT250-04 | 250A | 100℃ | 400V |
| MT250-06 | 250A | 100℃ | 600V |
| MT250-08 | 250A | 100℃ | 800V |
| MT250-10 | 250A | 100℃ | 1000V |
| MT250-12 | 250A | 100℃ | 1200V |
| MT250-16 | 250A | 100℃ | 1600V |
| MT250-18 | 250A | 100℃ | 1800V |
| MT250-20 | 250A | 100℃ | 2000V |
| MT250-25 | 250A | 100℃ | 2500V |
| MT250-30 | 250A | 100℃ | 3000V |
| MT250-40 | 250A | 100℃ | 4000V |
| MT250-50 | 250A | 100℃ | 5000V |
| MT300-04 | 300A | 100℃ | 400V |
| MT300-06 | 300A | 100℃ | 600V |
| MT300-08 | 300A | 100℃ | 800V |
| MT300-10 | 300A | 100℃ | 1000V |
| MT300-12 | 300A | 100℃ | 1200V |
| MT300-16 | 300A | 100℃ | 1600V |
| MT300-18 | 300A | 100℃ | 1800V |
| MT300-20 | 300A | 100℃ | 2000V |
| MT300-25 | 300A | 100℃ | 2500V |
| MT300-30 | 300A | 100℃ | 3000V |
| MT300-40 | 300A | 100℃ | 4000V |
| MT300-50 | 300A | 100℃ | 5000V |
| MT400-04 | 400A | 100℃ | 400V |
| MT400-06 | 400A | 100℃ | 600V |
| MT400-08 | 400A | 100℃ | 800V |
| MT400-10 | 400A | 100℃ | 1000V |
| MT400-12 | 400A | 100℃ | 1200V |
| MT400-16 | 400A | 100℃ | 1600V |
| MT400-18 | 400A | 100℃ | 1800V |
| MT400-20 | 400A | 100℃ | 2000V |
| MT400-25 | 400A | 100℃ | 2500V |
| MT400-30 | 400A | 100℃ | 3000V |
| MT400-40 | 400A | 100℃ | 4000V |
| MT400-40 | 400A | 100℃ | 5000V |
| MT500-04 | 500A | 100℃ | 400V |
| MT500-06 | 500A | 100℃ | 600V |
| MT500-08 | 500A | 100℃ | 800V |
| MT500-10 | 500A | 100℃ | 1000V |
| MT500-12 | 500A | 100℃ | 1200V |
| MT500-16 | 500A | 100℃ | 1600V |
| MT500-18 | 500A | 100℃ | 1800V |
| MT500-20 | 500A | 100℃ | 2000V |
| MT500-25 | 500A | 100℃ | 2500V |
| MT500-30 | 500A | 100℃ | 3000V |
| MT500-40 | 500A | 100℃ | 4000V |
| MT500-50 | 500A | 100℃ | 5000V |
| MT600-04 | 600A | 100℃ | 400V |
| MT600-06 | 600A | 100℃ | 600V |
| MT600-08 | 600A | 100℃ | 800V |
| MT600-10 | 600A | 100℃ | 1000V |
| MT600-12 | 600A | 100℃ | 1200V |
| MT600-16 | 600A | 100℃ | 1600V |
| MT600-18 | 600A | 100℃ | 1800V |
| MT600-20 | 600A | 100℃ | 2000V |
| MT600-25 | 600A | 100℃ | 2500V |
| MT600-30 | 600A | 100℃ | 3000V |
| MT600-40 | 600A | 100℃ | 4000V |
| MT600-50 | 600A | 100℃ | 5000V |

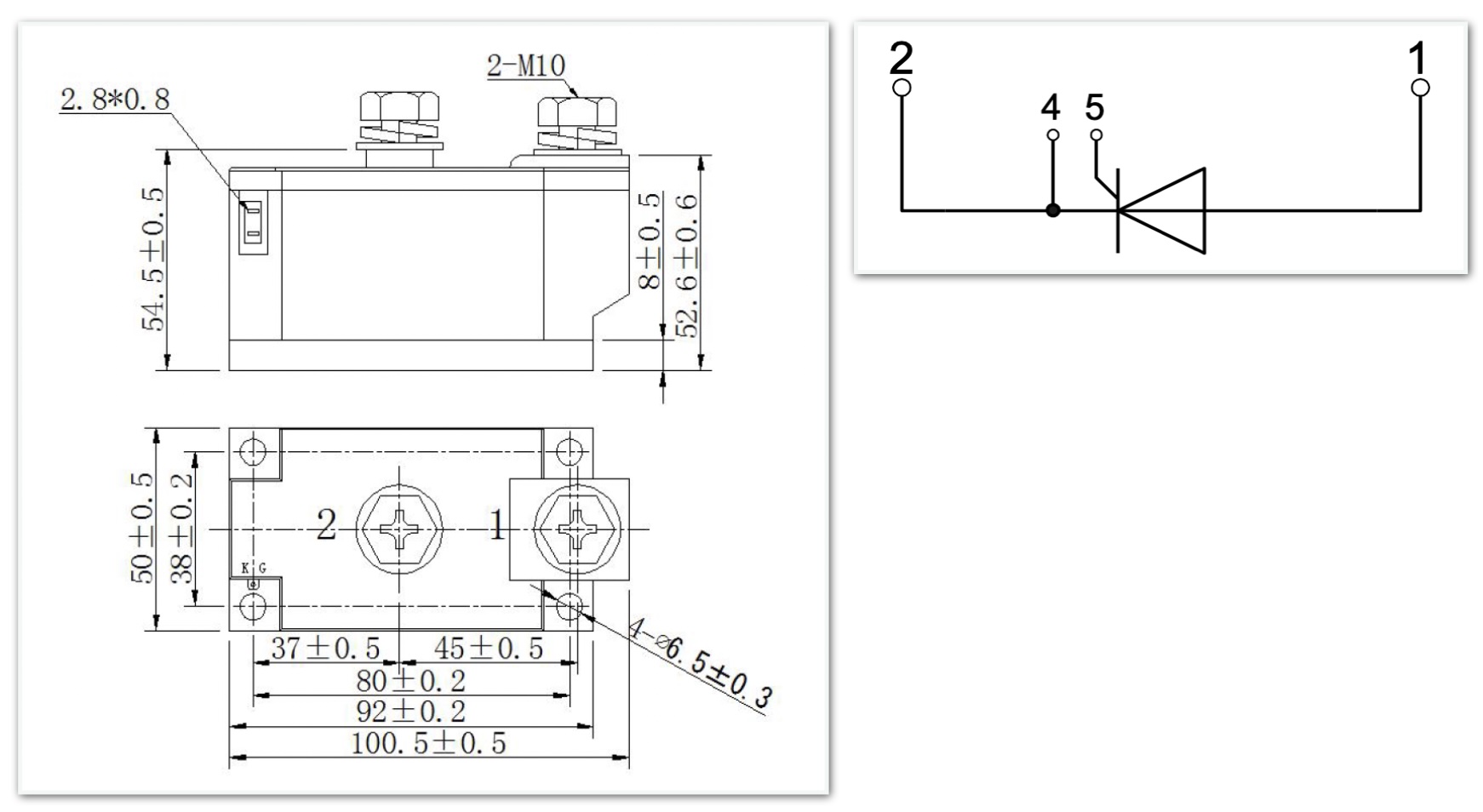

Dimensions
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
