SCR Voltage Regulator Single Phase 125A and 200A
Home Products SCR RegulatorsHGW3 Analog Indicator Basic typeSCR Voltage Regulator Single Phase 125A and 200A
Specification
SCR Voltage Regulator Single Phase 125A and 200A
| Mode | Phase | Input Voltage | Max. Current |
Load(KW) | Weight (KG) |
Control mode | Control signal | |
| 220V | 380V | |||||||

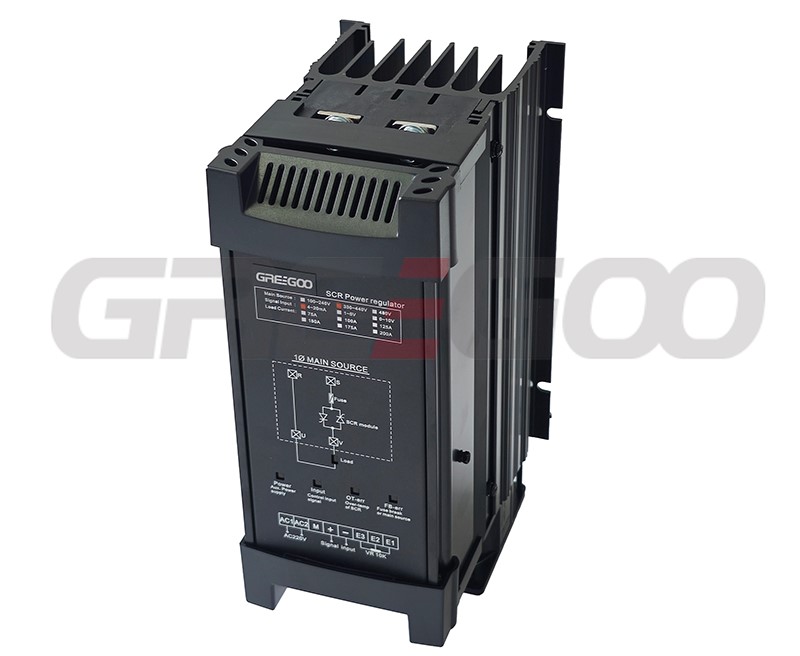

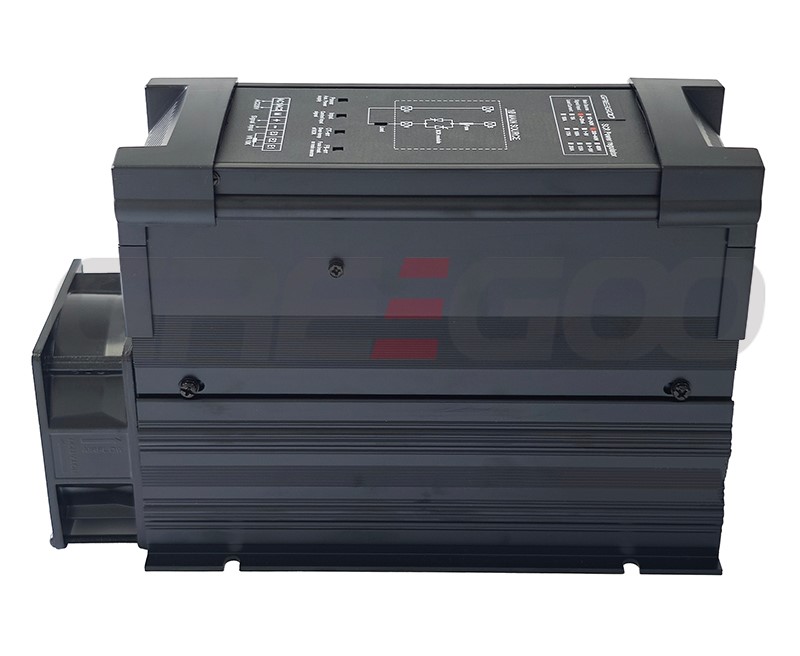

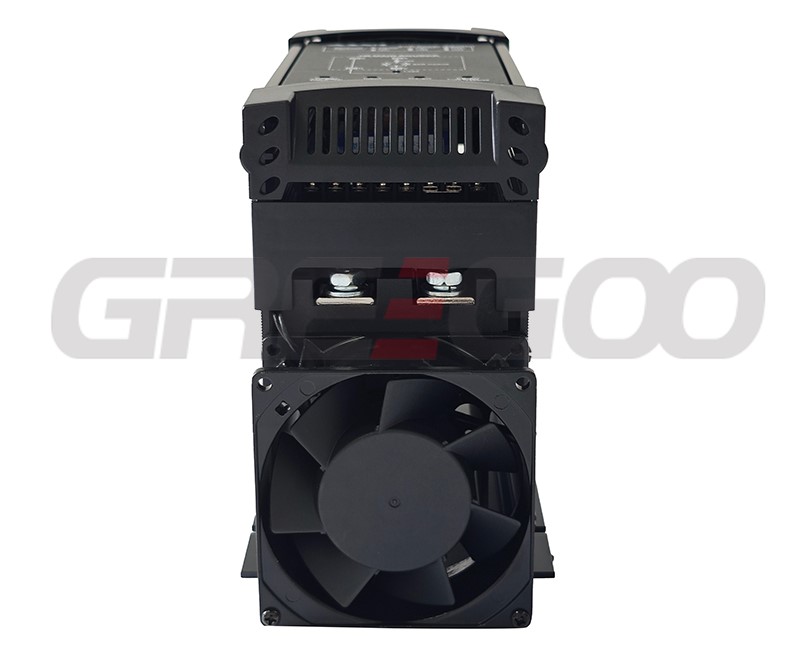

| HGW3-1-4-125-P | 1PH | 330-440V | 125A | 22 | 36 | 2.8 | Phase angle | 4-20mA |

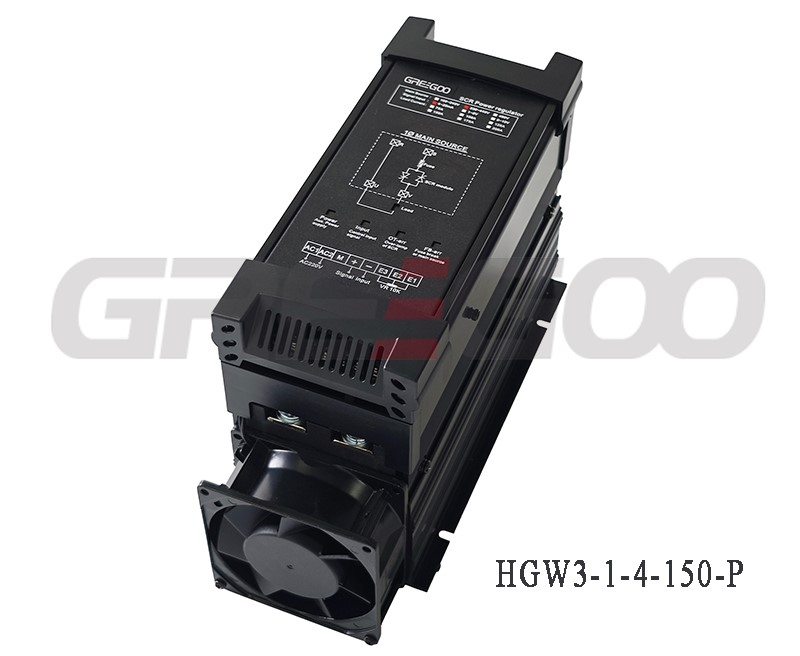

| HGW3-1-4-150-P | 1PH | 330-440V | 150A | 26 | 44 | 3.5 | Phase angle | 4-20mA |
| HGW3-1-4-175-P | 1PH | 330-440V | 175A | 30 | 50 | 3.5 | Phase angle | 4-20mA |
| HGW3-1-4-200-P | 1PH | 330-440V | 200A | 35 | 60 | 3.5 | Phase angle | 4-20mA |
| HGW3-1-4-125-P1 | 1PH | 330-440V | 125A | 22 | 36 | 2.8 | Phase angle | 0-10V |
| HGW3-1-4-150-P1 | 1PH | 330-440V | 150A | 26 | 44 | 3.5 | Phase angle | 0-10V |
| HGW3-1-4-175-P1 | 1PH | 330-440V | 175A | 30 | 50 | 3.5 | Phase angle | 0-10V |
| HGW3-1-4-200-P1 | 1PH | 330-440V | 200A | 35 | 60 | 3.5 | Phase angle | 0-10V |
| HGW3-1-2-125-P | 1PH | 100-240V | 125A | 22 | 36 | 2.8 | Phase angle | 4-20mA |
| HGW3-1-2-150-P | 1PH | 100-240V | 150A | 26 | 44 | 3.5 | Phase angle | 4-20mA |
| HGW3-1-2-175-P | 1PH | 100-240V | 175A | 30 | 50 | 3.5 | Phase angle | 4-20mA |
| HGW3-1-2-200-P | 1PH | 100-240V | 200A | 35 | 60 | 3.5 | Phase angle | 4-20mA |
| HGW3-1-2-125-P1 | 1PH | 100-240V | 125A | 22 | 36 | 2.8 | Phase angle | 0-10V |
| HGW3-1-2-150-P1 | 1PH | 100-240V | 150A | 26 | 44 | 3.5 | Phase angle | 0-10V |
| HGW3-1-2-175-P1 | 1PH | 100-240V | 175A | 30 | 50 | 3.5 | Phase angle | 0-10V |
| HGW3-1-2-200-P1 | 1PH | 100-240V | 200A | 35 | 60 | 3.5 | Phase angle | 0-10V |
| HGW3-1-8-125-P | 1PH | 480V | 125A | 22 | 36 | 2.8 | Phase angle | 4-20mA |
| HGW3-1-8-150-P | 1PH | 480V | 150A | 26 | 44 | 3.5 | Phase angle | 4-20mA |
| HGW3-1-8-175-P | 1PH | 480V | 175A | 30 | 50 | 3.5 | Phase angle | 4-20mA |
| HGW3-1-8-200-P | 1PH | 480V | 200A | 35 | 60 | 3.5 | Phase angle | 4-20mA |
| HGW3-1-8-125-P1 | 1PH | 480V | 125A | 22 | 36 | 2.8 | Phase angle | 0-10V |
| HGW3-1-8-150-P1 | 1PH | 480V | 150A | 26 | 44 | 3.5 | Phase angle | 0-10V |
| HGW3-1-8-175-P1 | 1PH | 480V | 175A | 30 | 50 | 3.5 | Phase angle | 0-10V |
| HGW3-1-8-200-P1 | 1PH | 480V | 200A | 35 | 60 | 3.5 | Phase angle | 0-10V |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
