SD1500C_L Hockey PUK Standard Recovery Diodes
Home Products Capsule Power SemiconductorsBest Selling Capsule ThyristorSD1500C_L Hockey PUK Standard Recovery Diodes
FEATURES & TYPICAL APPLICATIONS
SD1500C_L Hockey PUK Standard Recovery Diodes
FEATURES
• Wide current range up to 1600A
• High voltage ratings up to 3000V
• High surge current capabilities
• Diffused junction
• Hockey PUK version
• Case style B-PUK (DO-200AB)
TYPICAL APPLICATIONS
• Converters
• Power supplies
• Machine tool controls
• High power drives
• Medium traction applications
Part numbers
| TYPE NUMBER | VOLTAGE CODE | VRRM (V) | VRSM (V) | IRRM MAX AT TJ = TJ MAX (mA) |
| SD1500C04L | 04 | 400 | 500 | 50 |
| SD1500C08L | 08 | 800 | 900 | 50 |
| SD1500C12L | 12 | 1200 | 1300 | 50 |
| SD1500C16L | 16 | 1600 | 1700 | 50 |
| SD1500C20L | 20 | 2000 | 2100 | 50 |
| SD1500C25L | 25 | 2500 | 2600 | 50 |
| SD1500C30L | 30 | 3000 | 3100 | 50 |

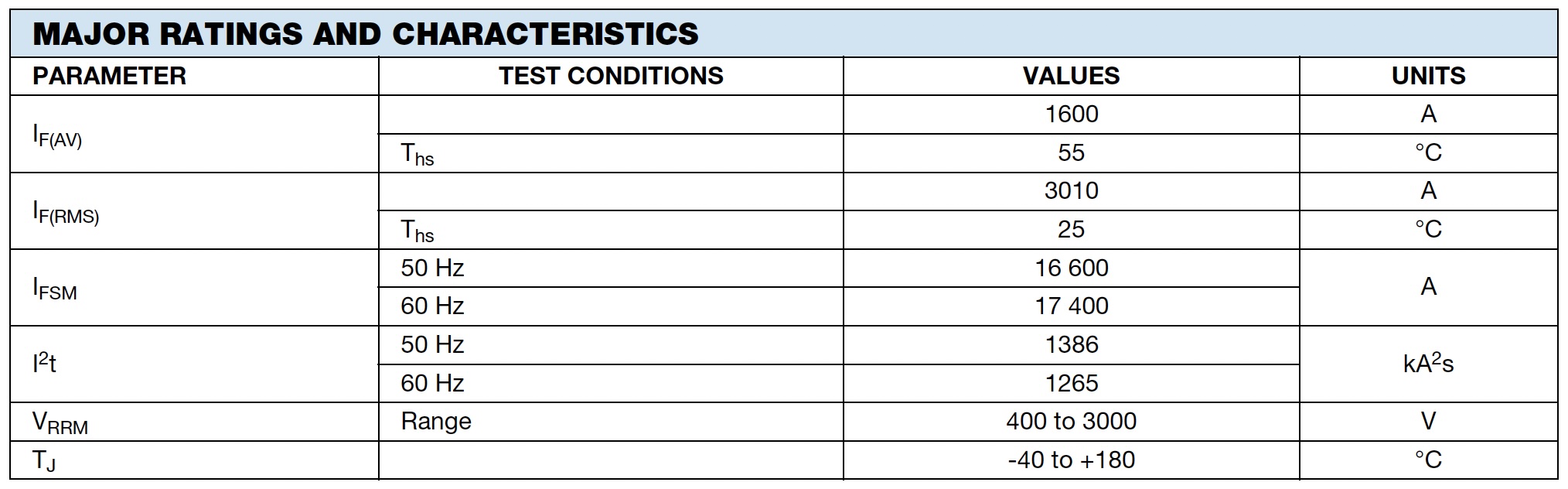

MAJOR RATINGS AND CHARACTERISTICS

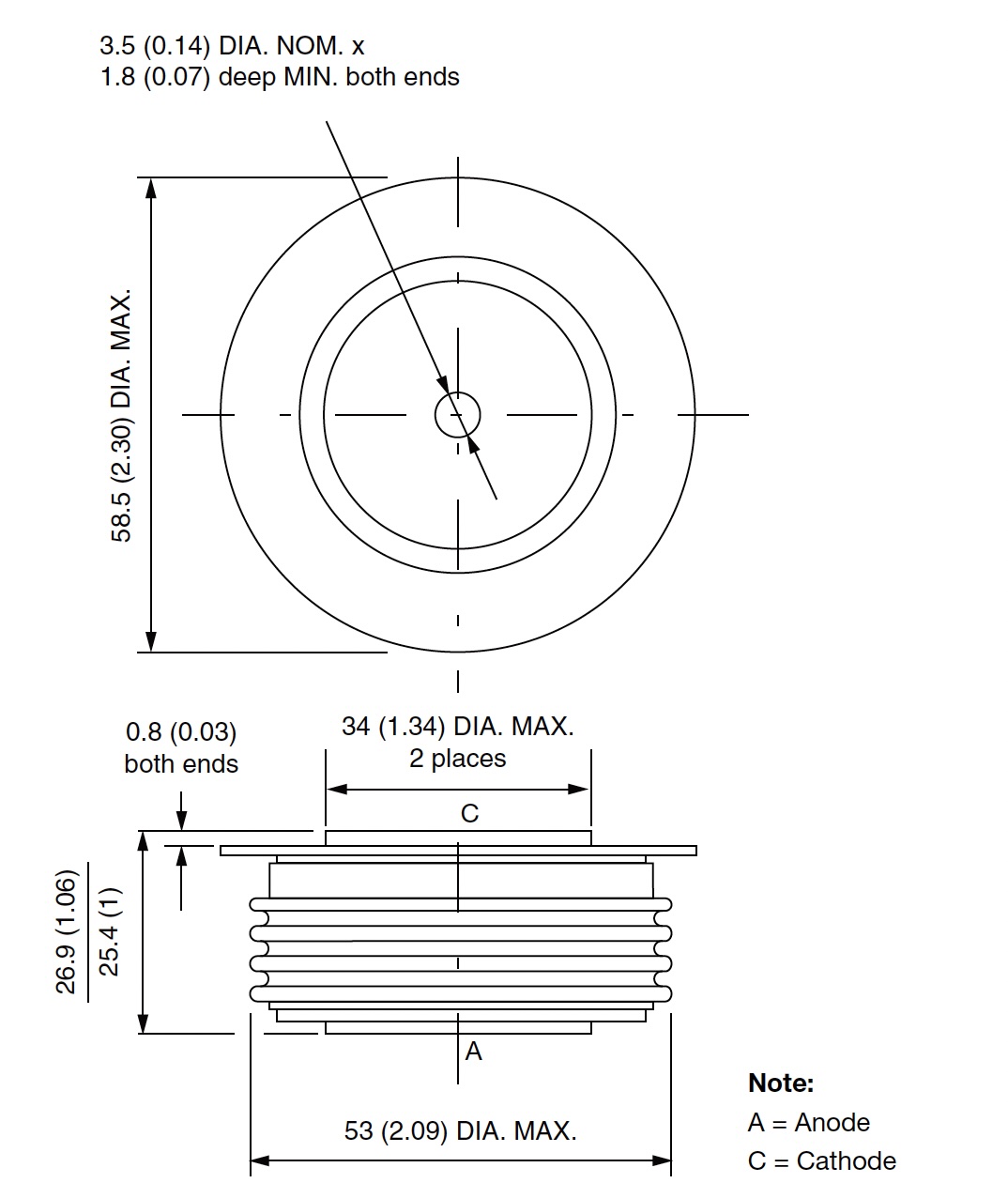

Dimensions
