T709N 2400 700A 2400V Phase control thyristor

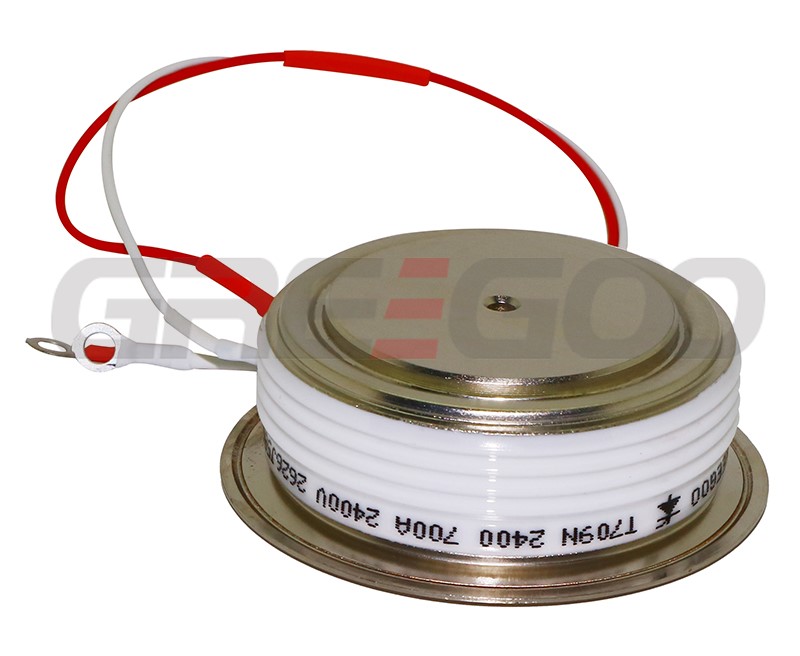

T709N 2400 700A 2400V Phase control thyristor back

Product details

T709N Phase control thyristor

Average forward on-state current I_TAV – 700 ampere, repetitive peak forward and reverse blocking voltage V_DRM/V_RRM– 2000-2600 V. Phase control thyristor are designed to convert and control DC and AC currents.

Specifications

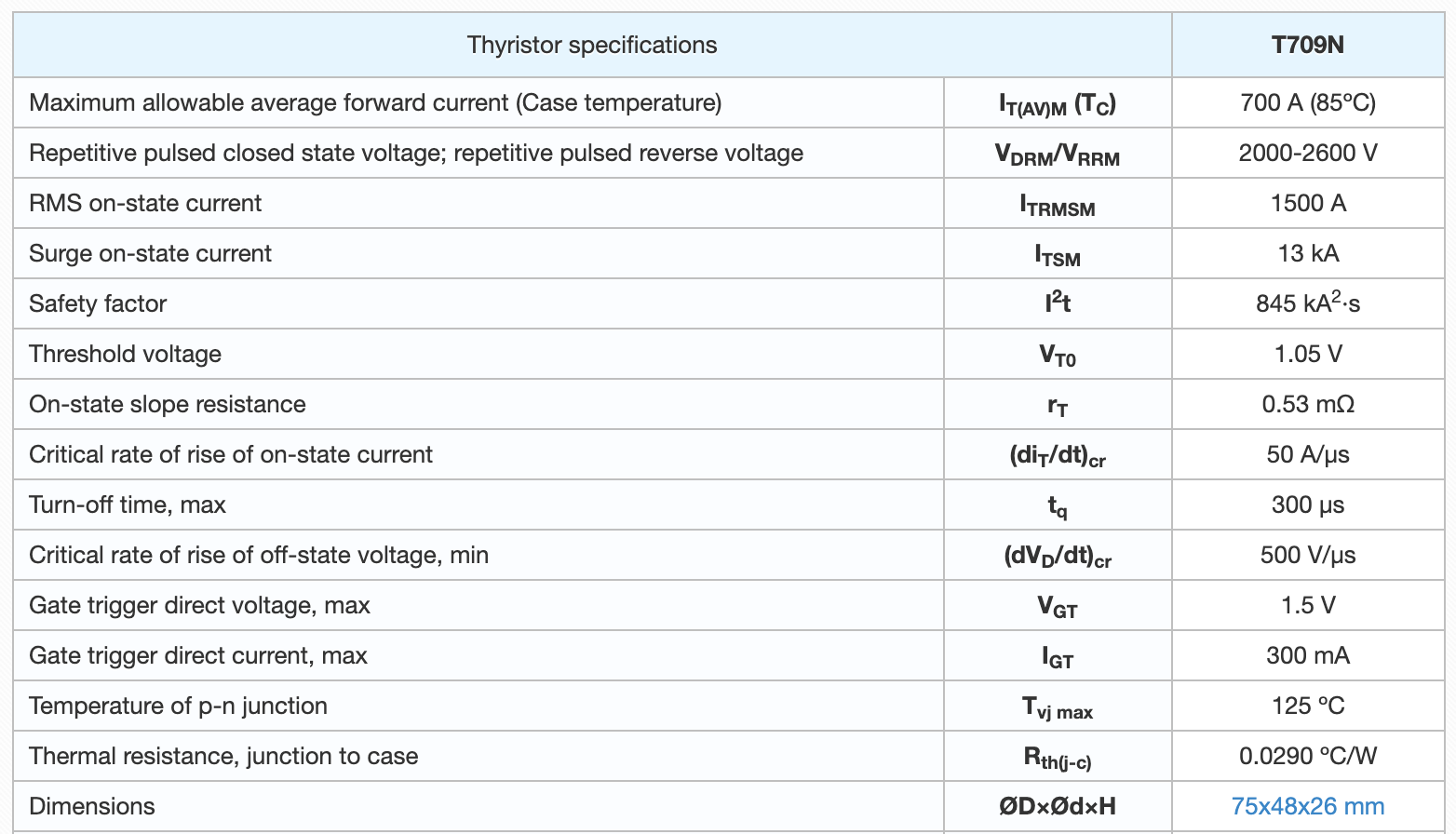

T709N specifications

Dimensions

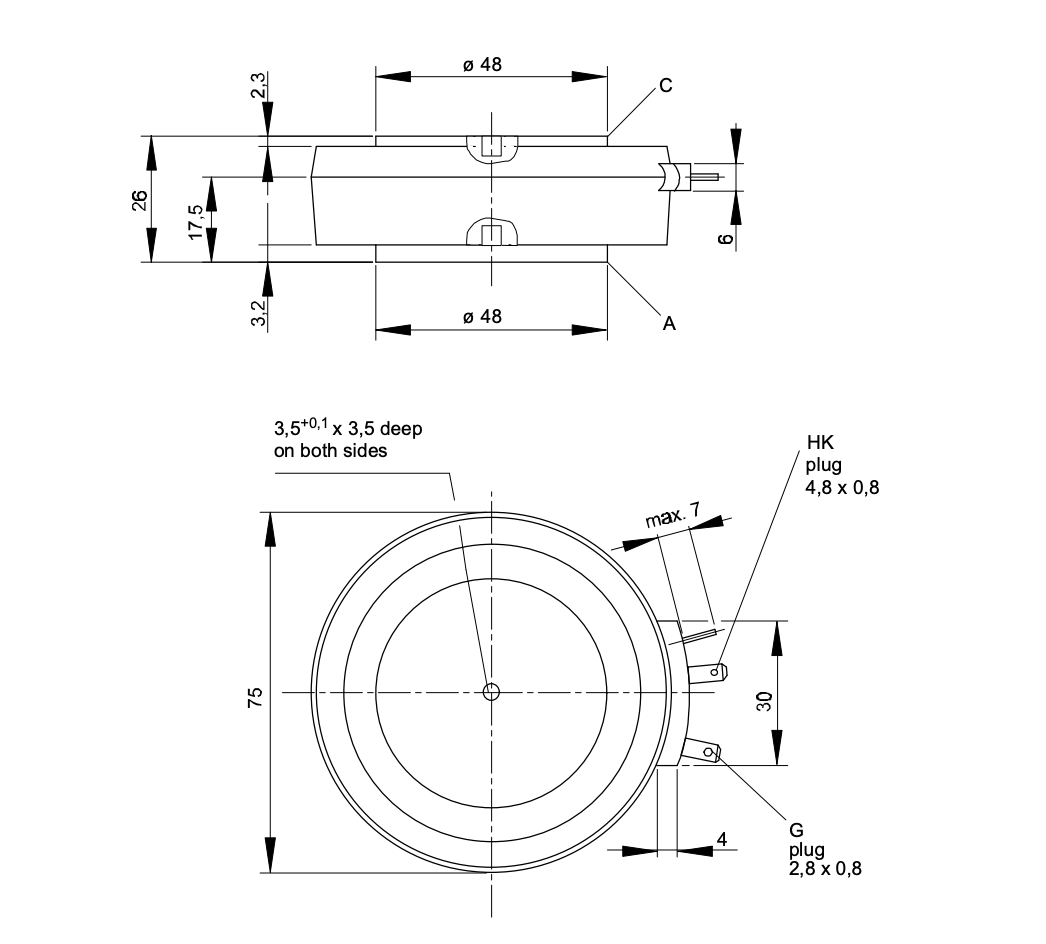

T709N dimensions
