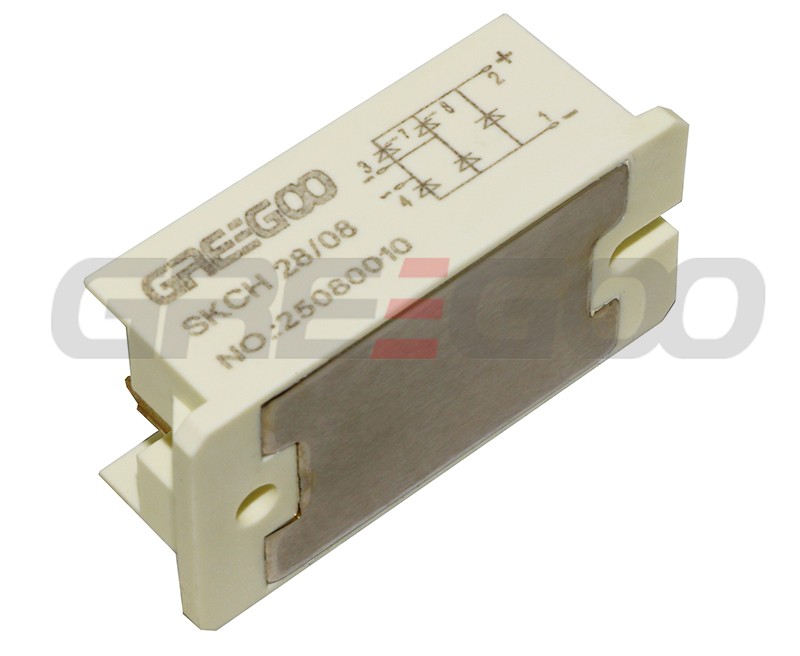

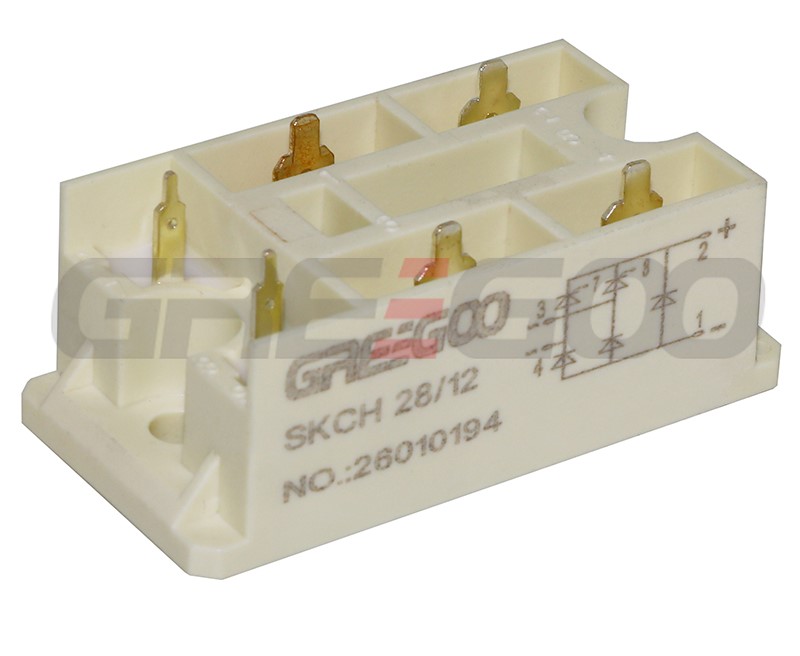

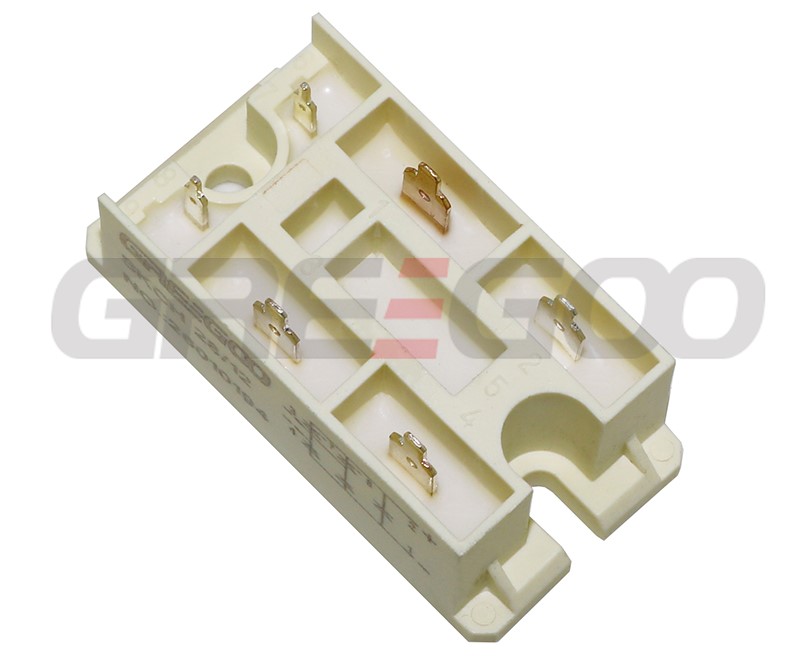

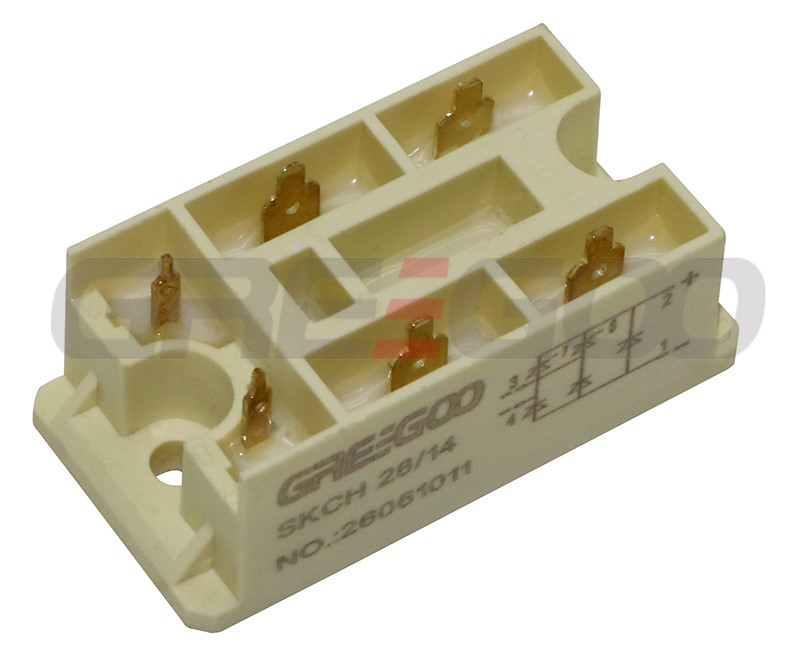

Controllable Bridge Rectifiers SKCH28
Half controllable bridge rectifiers SKCH28
Feature
Sturdy isolated metal baseplate
Fast-on terminals with solder tips
Suitable for wave soldering
High surge current rating
Typical applications
Controllable single phase rectifier
DC power supplies
DC motor controllers
DC motor field controolers

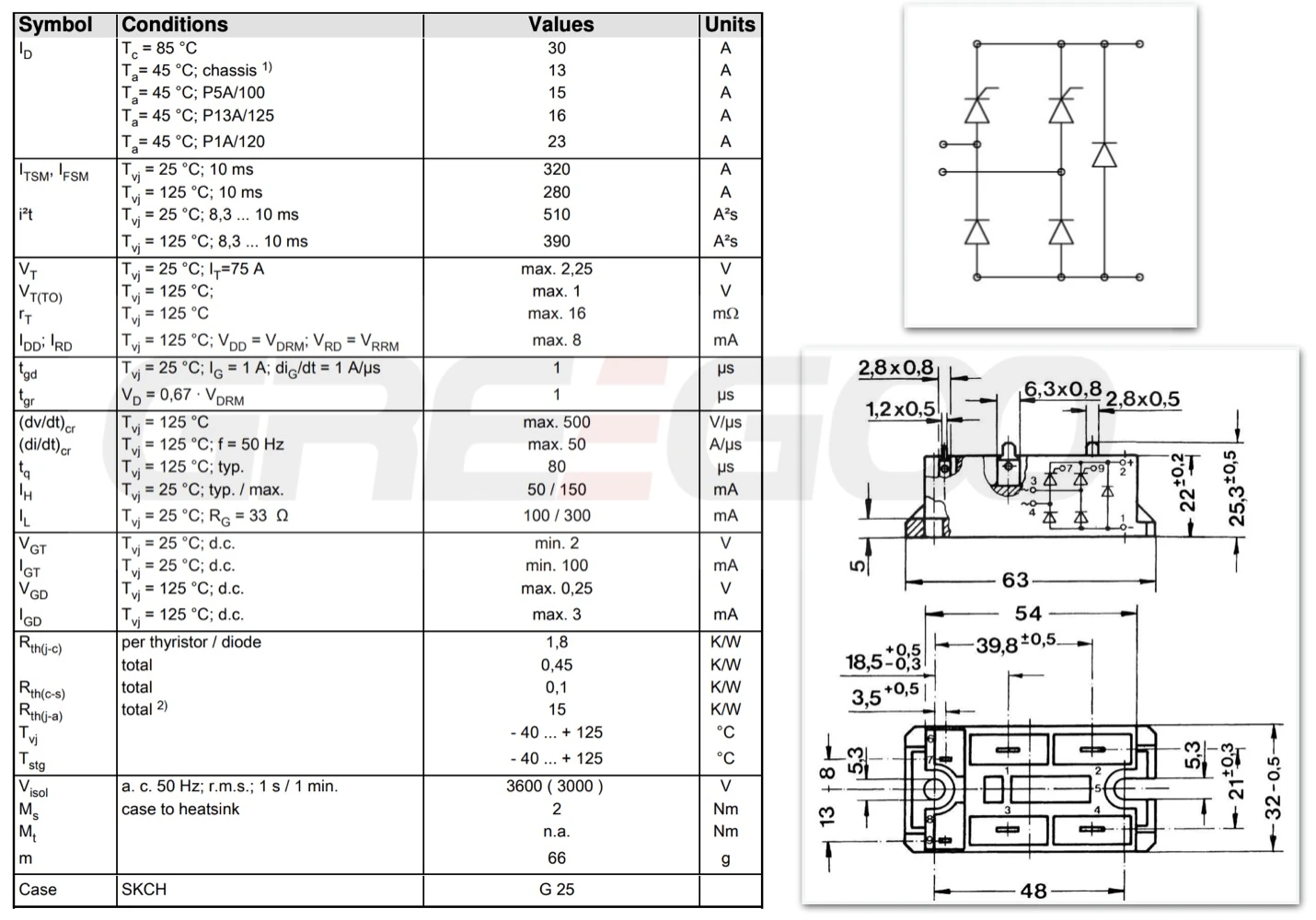

| VRSM | VRRD,VDRM | ID=28A (full conduction) |
| V | V | Tc=85 ℃ |
| 400 | 400 | SKCH 28/04 |
| 600 | 600 | SKCH 28/06 |
| 800 | 800 | SKCH 28/08 |
| 1200 | 1200 | SKCH 28/12 |
| 1400 | 1400 | SKCH 28/14 |
