M50 Diode Bridge Module
Home Products Diode Bridge ModuleSingle and 3 phase Diode Bridge moduleM50 Diode Bridge Module
Feature
M50 Diode Bridge Module
M50 Diode Series
High Surge Current Rectifier Circuits
5 Different Circuits to Choose from
Up to 1600 Volt Blocking Standard

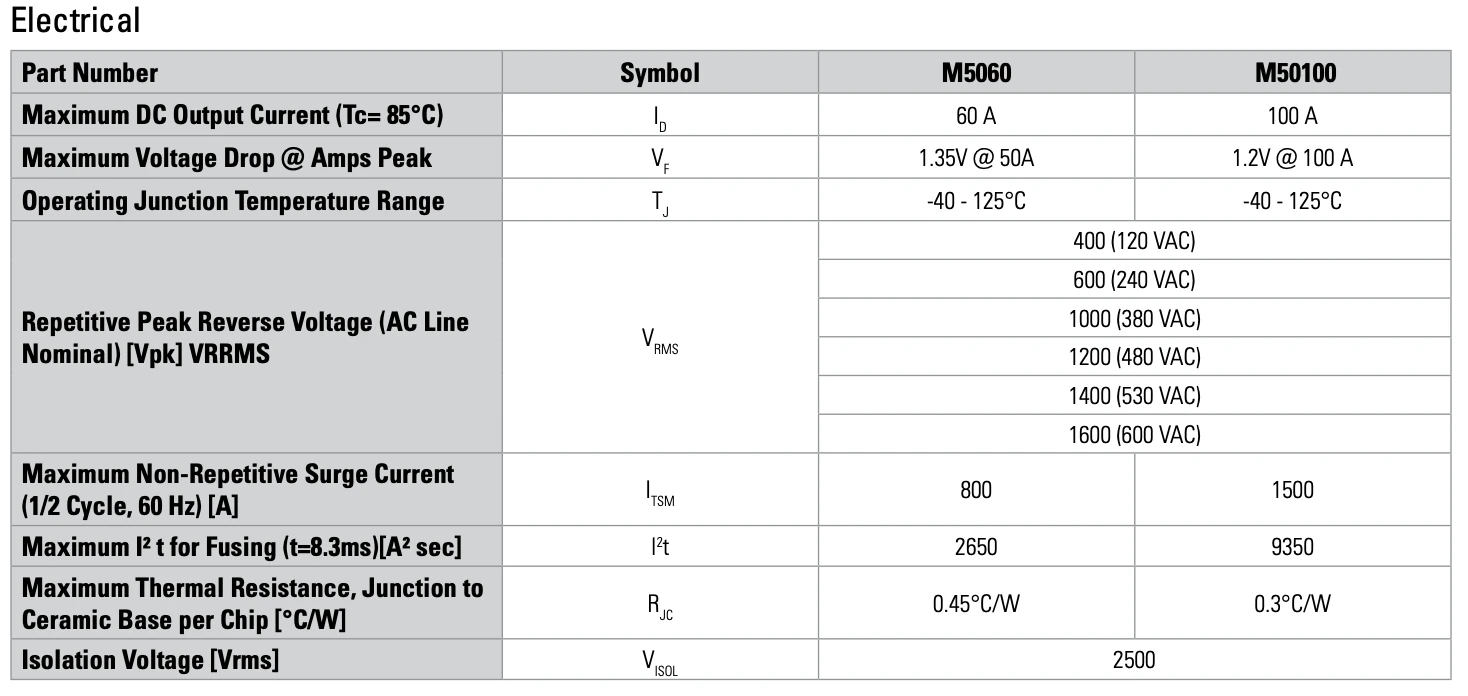

Specification
Part Numbers: M5060 M50100

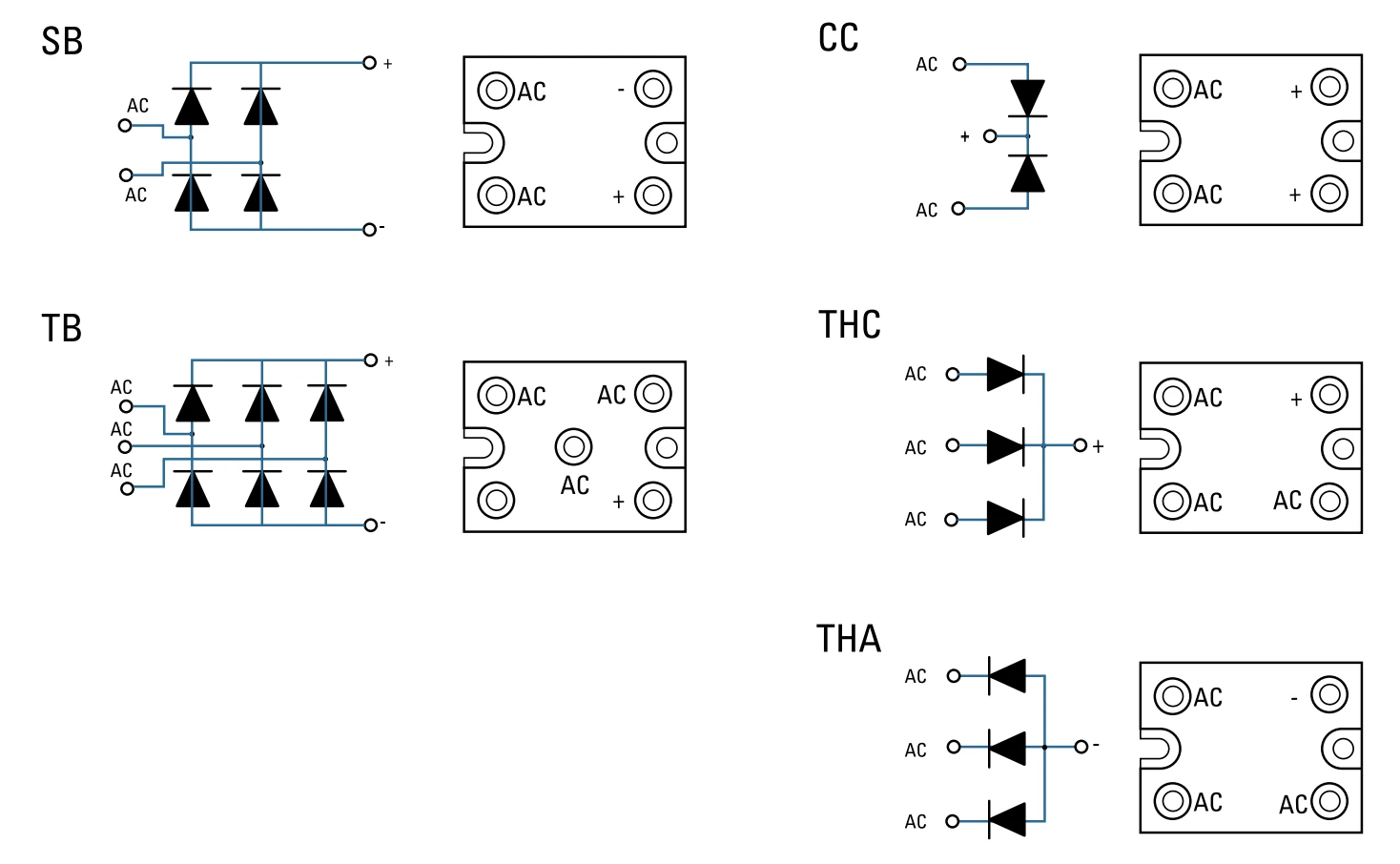

Circuit Diagram
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
