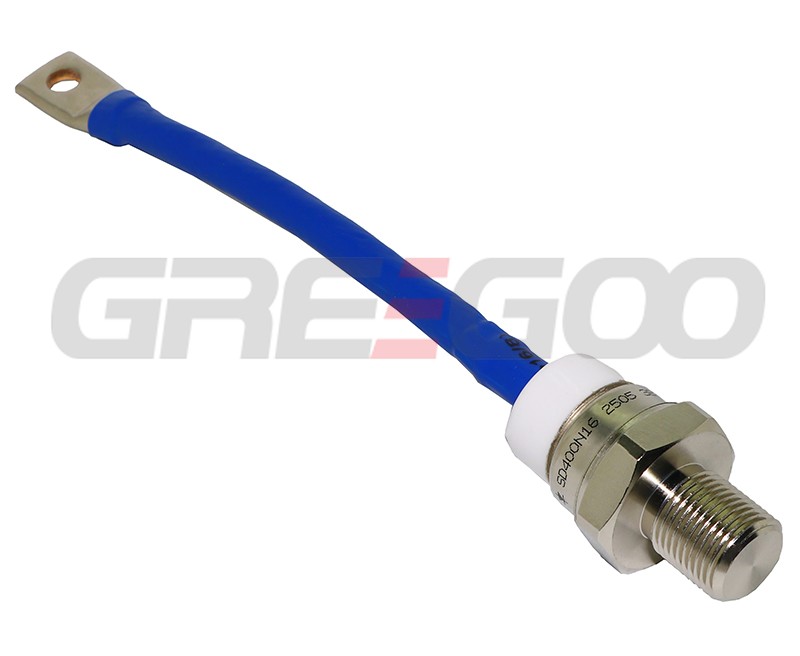

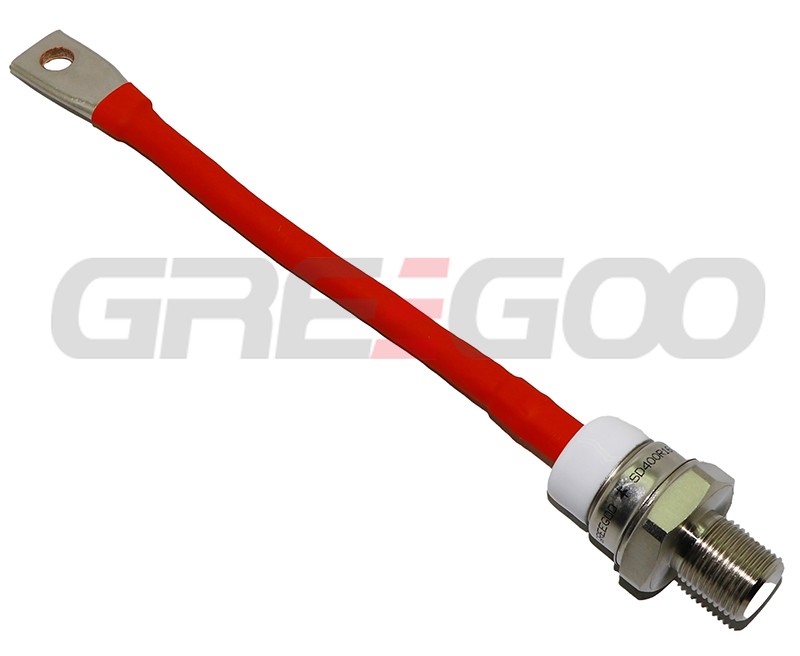

Standard Recovery Diode 400A 500A 600A
| Type | IF(AV) | VFM/IFM | IFRMS | VRRM | IRRM | Rjc | M2 | Wt | Outline | |
| THS55℃ | 25℃ | |||||||||
| A | V | A | A | V | mA | ℃/W | N/m | kg | ||
| SD400N | 400 | 1.6 | 1200 | 640 | 200-2400 | ≤40 | ≤0.07 | ≤25 | 0.58 | B-8 |
| SD500N | 500 | 1.6 | 1500 | 800 | 200-2400 | ≤40 | ≤0.065 | ≤25 | 0.58 | |
| SD600N | 600 | 1.5 | 1800 | 960 | 200-2400 | ≤40 | ≤0.065 | ≤30 | 0.58 | |
| SD400NR | 400 | 1.6 | 1200 | 640 | 200-2400 | ≤40 | ≤0.07 | ≤25 | 0.58 | B-8 |
| SD500NR | 500 | 1.6 | 1500 | 800 | 200-2400 | ≤40 | ≤0.065 | ≤25 | 0.58 | |
| SD600NR | 600 | 1.5 | 1800 | 960 | 200-2400 | ≤40 | ≤0.065 | ≤30 | 0.58 | |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
