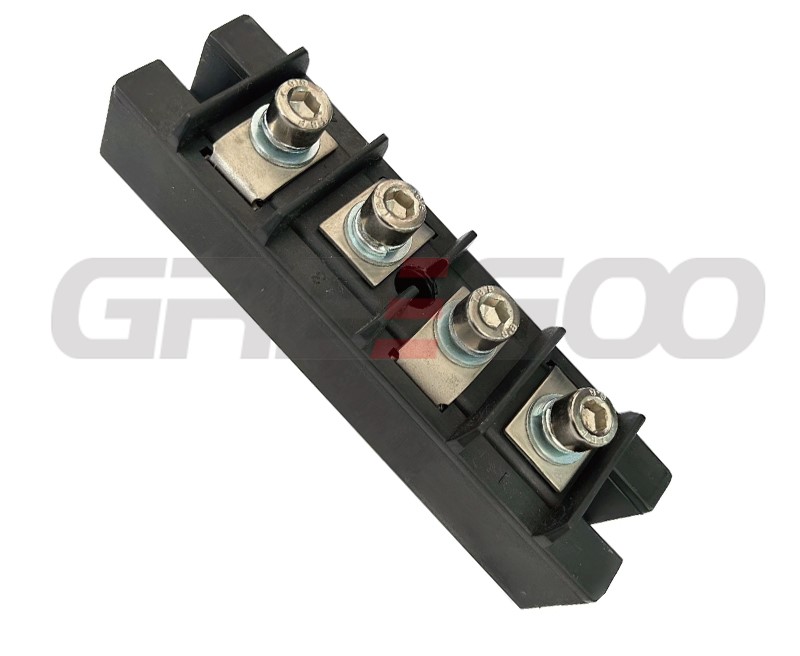

Dual Diode Module 250A and 350A
Home Products Thyristor Diode ModuleDual Diode Modules 26A to 1200ADual Diode Module 250A and 350A

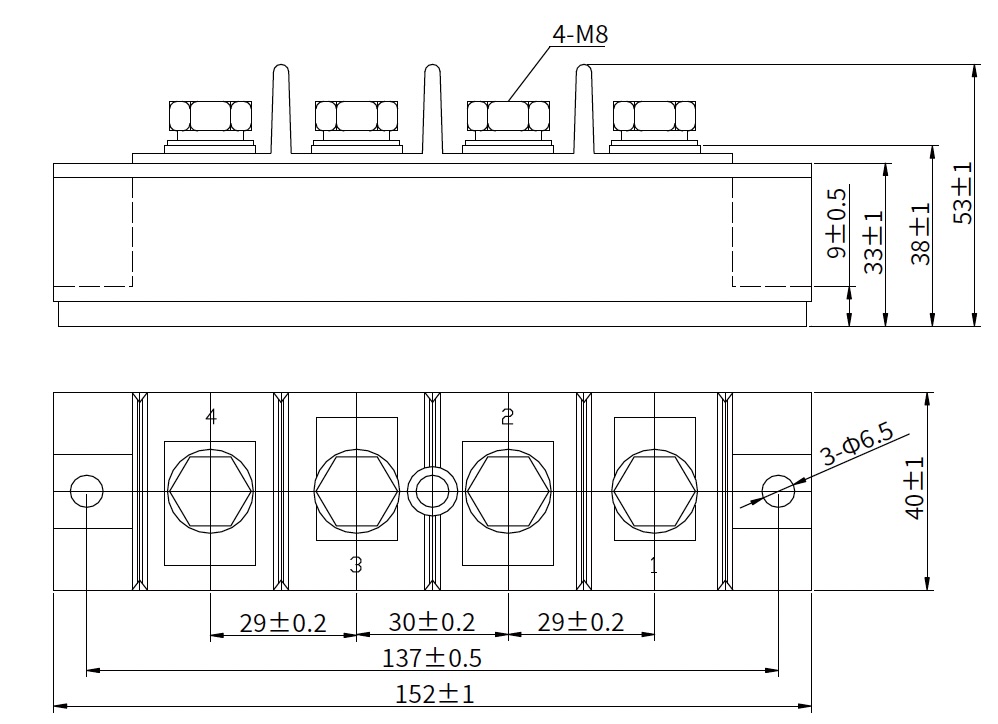

40mm width (H)
Dual Diode Module 250A and 350A
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MDC250H-12-W40 | 250A | 1200V | 1300V | in Series | W40 |
| MDC250H-16-W40 | 250A | 1600V | 1700V | in Series | W40 |
| MDC250H-18-W40 | 250A | 1800V | 1900V | in Series | W40 |
| MDC250H-20-W40 | 250A | 2000V | 2100V | in Series | W40 |
| MDC250H-24-W40 | 250A | 2400V | 2500V | in Series | W40 |
| MDA250H-12-W40 | 250A | 1200V | 1300V | Common Anode | W40 |
| MDA250H-16-W40 | 250A | 1600V | 1700V | Common Anode | W40 |
| MDA250H-18-W40 | 250A | 1800V | 1900V | Common Anode | W40 |
| MDA250H-20-W40 | 250A | 2000V | 2100V | Common Anode | W40 |
| MDA250H-24-W40 | 250A | 2400V | 2500V | Common Anode | W40 |
| MDK250H-12-W40 | 250A | 1200V | 1300V | Common Cathode | W40 |
| MDK250H-16-W40 | 250A | 1600V | 1700V | Common Cathode | W40 |
| MDK250H-18-W40 | 250A | 1800V | 1900V | Common Cathode | W40 |
| MDK250H-20-W40 | 250A | 2000V | 2100V | Common Cathode | W40 |
| MDK250H-24-W40 | 250A | 2400V | 2500V | Common Cathode | W40 |
| MDC350H-12-W40 | 350A | 1200V | 1300V | in Series | W40 |
| MDC350H-16-W40 | 350A | 1600V | 1700V | in Series | W40 |
| MDC350H-18-W40 | 350A | 1800V | 1900V | in Series | W40 |
| MDC350H-20-W40 | 350A | 2000V | 2100V | in Series | W40 |
| MDC350H-24-W40 | 350A | 2400V | 2500V | in Series | W40 |
| MDA350H-12-W40 | 350A | 1200V | 1300V | Common Anode | W40 |
| MDA350H-16-W40 | 350A | 1600V | 1700V | Common Anode | W40 |
| MDA350H-18-W40 | 350A | 1800V | 1900V | Common Anode | W40 |
| MDA350H-20-W40 | 350A | 2000V | 2100V | Common Anode | W40 |
| MDA350H-24-W40 | 350A | 2400V | 2500V | Common Anode | W40 |
| MDK350H-12-W40 | 350A | 1200V | 1300V | Common Cathode | W40 |
| MDK350H-16-W40 | 350A | 1600V | 1700V | Common Cathode | W40 |
| MDK350H-18-W40 | 350A | 1800V | 1900V | Common Cathode | W40 |
| MDK350H-20-W40 | 350A | 2000V | 2100V | Common Cathode | W40 |
| MDK350H-24-W40 | 350A | 2400V | 2500V | Common Cathode | W40 |
 |
 |

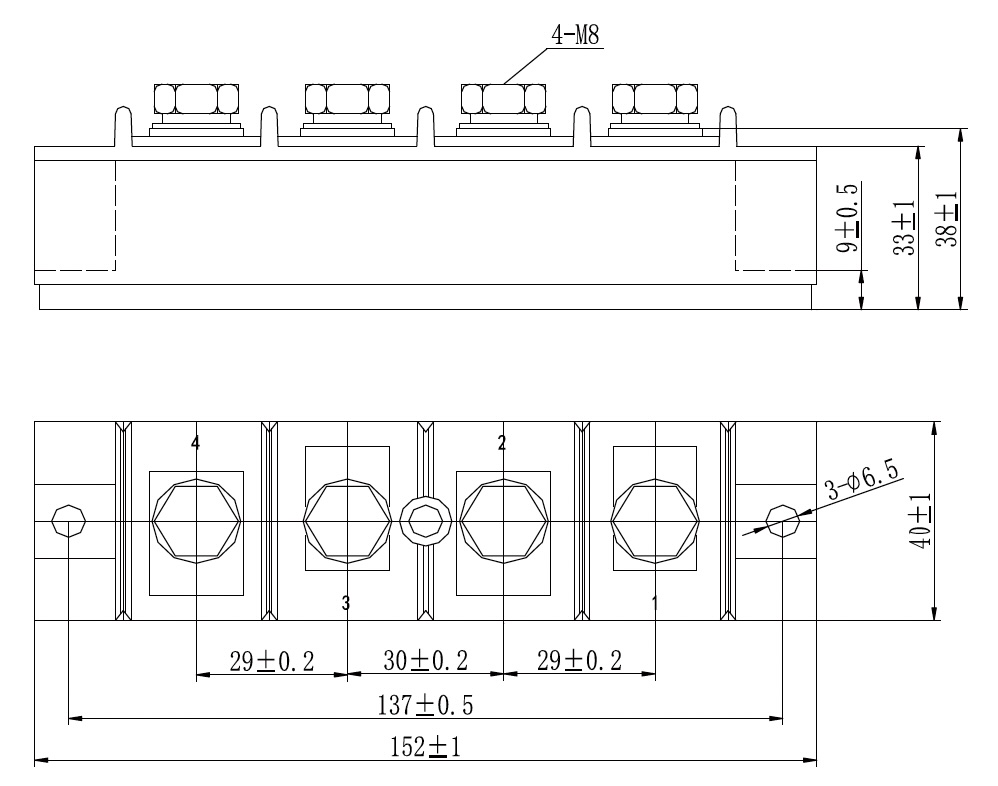

40mm width
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MDC250-12-W40 | 250A | 1200V | 1300V | in Series | W40 |
| MDC250-16-W40 | 250A | 1600V | 1700V | in Series | W40 |
| MDC250-18-W40 | 250A | 1800V | 1900V | in Series | W40 |
| MDC250-20-W40 | 250A | 2000V | 2100V | in Series | W40 |
| MDC250-24-W40 | 250A | 2400V | 2500V | in Series | W40 |
| MDA250-12-W40 | 250A | 1200V | 1300V | Common Anode | W40 |
| MDA250-16-W40 | 250A | 1600V | 1700V | Common Anode | W40 |
| MDA250-18-W40 | 250A | 1800V | 1900V | Common Anode | W40 |
| MDA250-20-W40 | 250A | 2000V | 2100V | Common Anode | W40 |
| MDA250-24-W40 | 250A | 2400V | 2500V | Common Anode | W40 |
| MDK250-12-W40 | 250A | 1200V | 1300V | Common Cathode | W40 |
| MDK250-16-W40 | 250A | 1600V | 1700V | Common Cathode | W40 |
| MDK250-18-W40 | 250A | 1800V | 1900V | Common Cathode | W40 |
| MDK250-20-W40 | 250A | 2000V | 2100V | Common Cathode | W40 |
| MDK250-24-W40 | 250A | 2400V | 2500V | Common Cathode | W40 |
| MDC350-12-W40 | 350A | 1200V | 1300V | in Series | W40 |
| MDC350-16-W40 | 350A | 1600V | 1700V | in Series | W40 |
| MDC350-18-W40 | 350A | 1800V | 1900V | in Series | W40 |
| MDC350-20-W40 | 350A | 2000V | 2100V | in Series | W40 |
| MDC350-24-W40 | 350A | 2400V | 2500V | in Series | W40 |
| MDA350-12-W40 | 350A | 1200V | 1300V | Common Anode | W40 |
| MDA350-16-W40 | 350A | 1600V | 1700V | Common Anode | W40 |
| MDA350-18-W40 | 350A | 1800V | 1900V | Common Anode | W40 |
| MDA350-20-W40 | 350A | 2000V | 2100V | Common Anode | W40 |
| MDA350-24-W40 | 350A | 2400V | 2500V | Common Anode | W40 |
| MDK350-12-W40 | 350A | 1200V | 1300V | Common Cathode | W40 |
| MDK350-16-W40 | 350A | 1600V | 1700V | Common Cathode | W40 |
| MDK350-18-W40 | 350A | 1800V | 1900V | Common Cathode | W40 |
| MDK350-20-W40 | 350A | 2000V | 2100V | Common Cathode | W40 |
| MDK350-24-W40 | 350A | 2400V | 2500V | Common Cathode | W40 |
 |
|
Download
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
