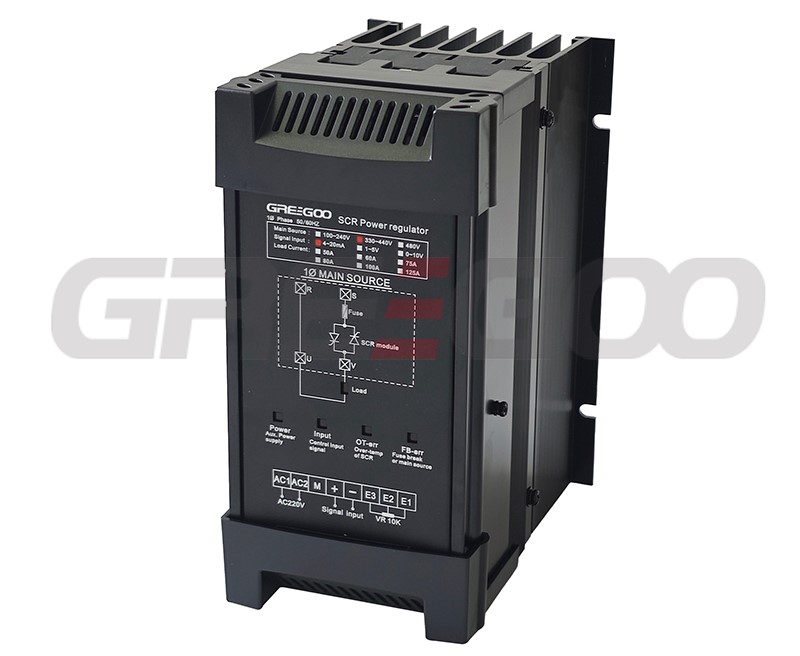

SCR Voltage Regulator Single Phase 30A and 40A
Home Products SCR RegulatorsHGW3 Analog Indicator Basic typeSCR Voltage Regulator Single Phase 30A and 40A
Specification
SCR Voltage Regulator Single Phase 30A and 40A
| Mode | Phase | Input Voltage | Max. Current |
Load(KW) | Weight (KG) |
Control mode | Control signal | |
| 220V | 380V | |||||||
| HGW3-1-4-030-P | 1PH | 330-440V | 30A | 5.5 | 9 | 1.8 | Phase angle | 4-20mA |

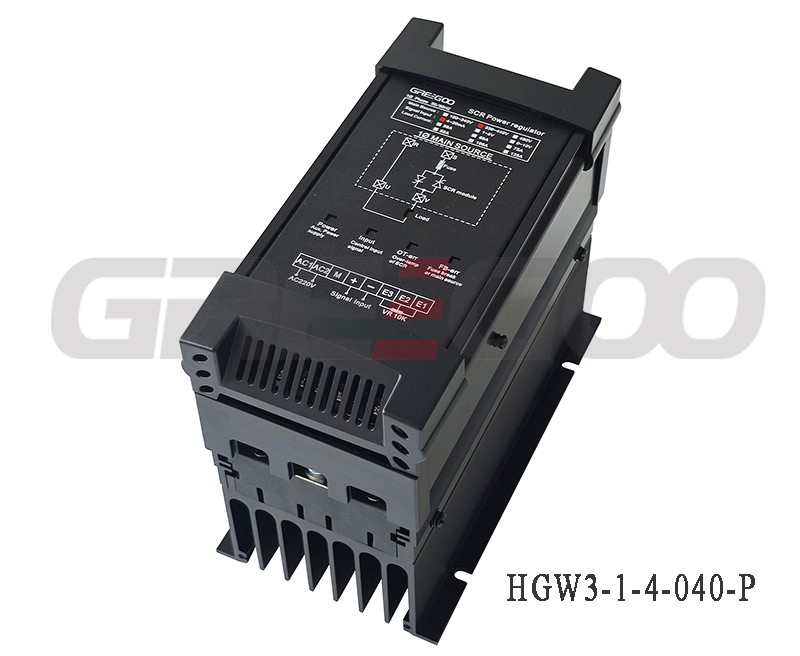

| HGW3-1-4-040-P | 1PH | 330-440V | 40A | 6.5 | 10 | 1.8 | Phase angle | 4-20mA |
| HGW3-1-4-030-P1 | 1PH | 330-440V | 30A | 5.5 | 9 | 1.8 | Phase angle | 0-10V |
| HGW3-1-4-040-P1 | 1PH | 330-440V | 40A | 6.5 | 10 | 1.8 | Phase angle | 0-10V |
| HGW3-1-2-030-P | 1PH | 100-240V | 30A | 5.5 | 9 | 1.8 | Phase angle | 4-20mA |
| HGW3-1-2-040-P | 1PH | 100-240V | 40A | 6.5 | 10 | 1.8 | Phase angle | 4-20mA |
| HGW3-1-2-030-P1 | 1PH | 100-240V | 30A | 5.5 | 9 | 1.8 | Phase angle | 0-10V |
| HGW3-1-2-040-P1 | 1PH | 100-240V | 40A | 6.5 | 10 | 1.8 | Phase angle | 0-10V |
| HGW3-1-8-030-P | 1PH | 480V | 30A | 5.5 | 9 | 1.8 | Phase angle | 4-20mA |
| HGW3-1-8-040-P | 1PH | 480V | 40A | 6.5 | 10 | 1.8 | Phase angle | 4-20mA |
| HGW3-1-8-030-P1 | 1PH | 480V | 30A | 5.5 | 9 | 1.8 | Phase angle | 0-10V |
| HGW3-1-8-040-P1 | 1PH | 480V | 40A | 6.5 | 10 | 1.8 | Phase angle | 0-10V |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
