SCR Voltage Regulator Single Phase 50A to 100A

Home Products SCR RegulatorsHGW3 Analog Indicator Basic typeSCR Voltage Regulator Single Phase 50A to 100A

HGW3-1-4-050-P SCR Voltage Regulator
HGW3-1-4-050-P SCR Voltage Regulator
HGW3-1-4-060-P SCR Voltage Regulator
HGW3-1-4-075-P SCR Voltage Regulator

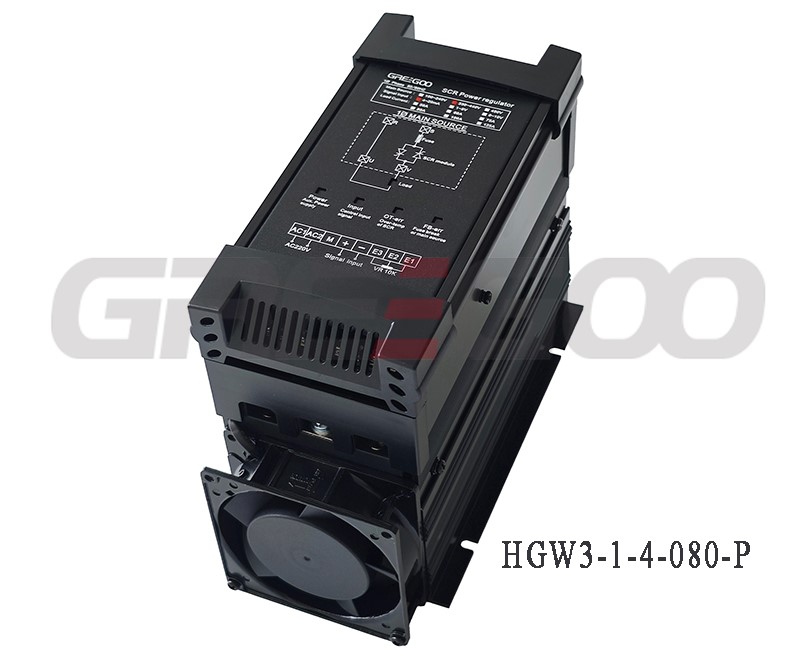

HGW3-1-4-080-P SCR Voltage Regulator
HGW3-1-4-090-P SCR Voltage Regulator

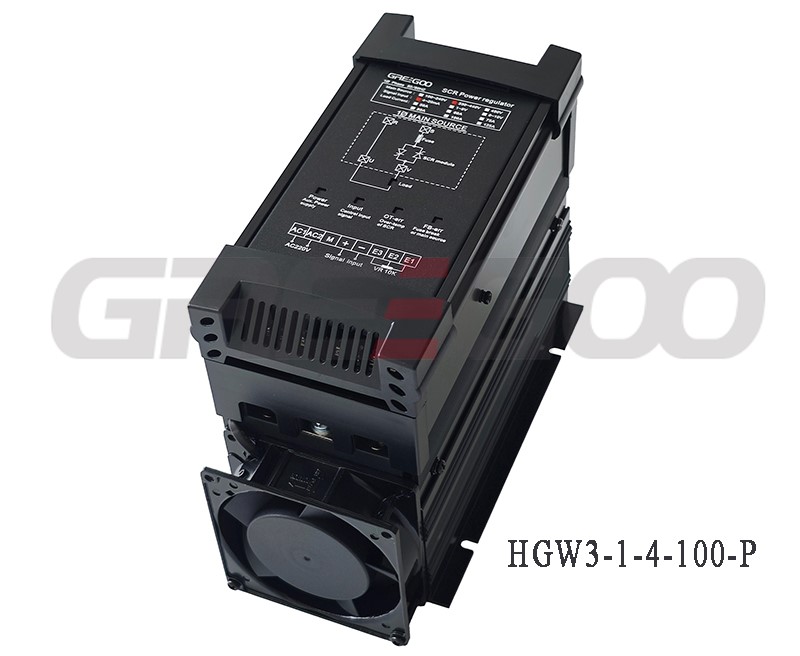

HGW3-1-4-100-P SCR Voltage Regulator

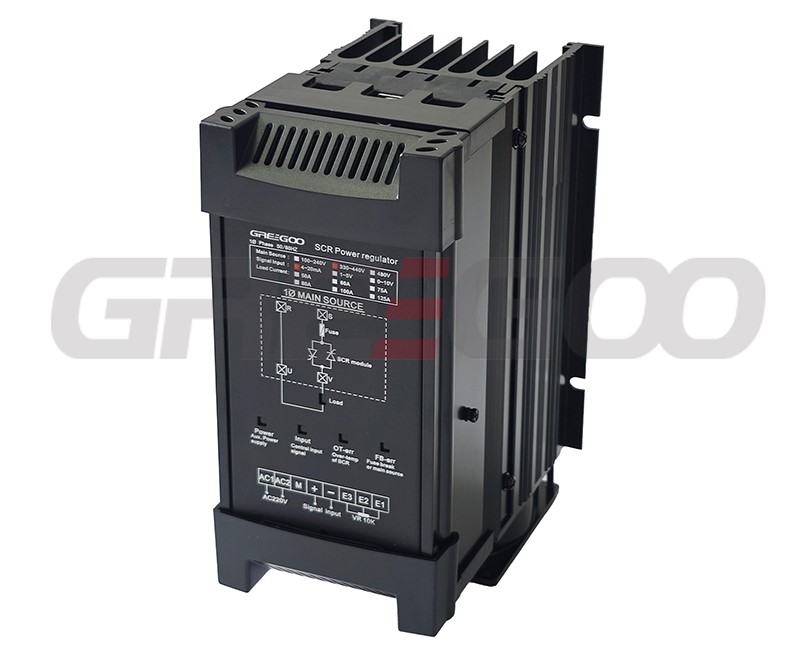

HGW3-1-4-050-P front view SCR Voltage Regulator

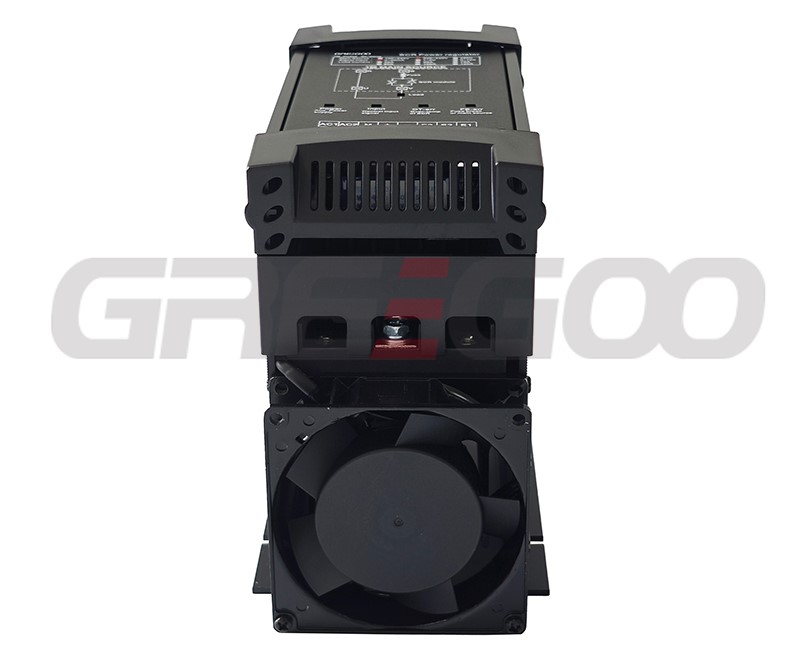

HGW3-1-4-050-P side view SCR Voltage Regulator
Specification

SCR Voltage Regulator Single Phase 50A to 100A

Mode Phase Input Voltage Max.
Current		 Load(KW) Weight
(KG)		 Control mode Control signal
        220V 380V
HGW3-1-4-050-P 1PH 330-440V 50A 8.5 12 2.3 Phase angle 4-20mA
HGW3-1-4-060-P 1PH 330-440V 60A 10 15 2.3 Phase angle 4-20mA
HGW3-1-4-075-P 1PH 330-440V 75A 14 23 2.5 Phase angle 4-20mA
HGW3-1-4-080-P 1PH 330-440V 80A 15 25 2.5 Phase angle 4-20mA
HGW3-1-4-090-P 1PH 330-440V 90A 16.5 27 2.5 Phase angle 4-20mA
HGW3-1-4-100-P 1PH 330-440V 100A 18 30 2.5 Phase angle 4-20mA
HGW3-1-4-050-P1 1PH 330-440V 50A 8.5 12 2.3 Phase angle 0-10V
HGW3-1-4-060-P1 1PH 330-440V 60A 10 15 2.3 Phase angle 0-10V
HGW3-1-4-075-P1 1PH 330-440V 75A 14 23 2.5 Phase angle 0-10V
HGW3-1-4-080-P1 1PH 330-440V 80A 15 25 2.5 Phase angle 0-10V
HGW3-1-4-090-P1 1PH 330-440V 90A 16.5 27 2.5 Phase angle 0-10V
HGW3-1-4-100-P1 1PH 330-440V 100A 18 30 2.5 Phase angle 0-10V
HGW3-1-2-050-P 1PH 100-240V 50A 8.5 12 2.3 Phase angle 4-20mA
HGW3-1-2-060-P 1PH 100-240V 60A 10 15 2.3 Phase angle 4-20mA
HGW3-1-2-075-P 1PH 100-240V 75A 14 23 2.5 Phase angle 4-20mA
HGW3-1-2-080-P 1PH 100-240V 80A 15 25 2.5 Phase angle 4-20mA
HGW3-1-2-090-P 1PH 100-240V 90A 16.5 27 2.5 Phase angle 4-20mA
HGW3-1-2-100-P 1PH 100-240V 100A 18 30 2.5 Phase angle 4-20mA
HGW3-1-2-050-P1 1PH 100-240V 50A 8.5 12 2.3 Phase angle 0-10V
HGW3-1-2-060-P1 1PH 100-240V 60A 10 15 2.3 Phase angle 0-10V
HGW3-1-2-075-P1 1PH 100-240V 75A 14 23 2.5 Phase angle 0-10V
HGW3-1-2-080-P1 1PH 100-240V 80A 15 25 2.5 Phase angle 0-10V
HGW3-1-2-090-P1 1PH 100-240V 90A 16.5 27 2.5 Phase angle 0-10V
HGW3-1-2-100-P1 1PH 100-240V 100A 18 30 2.5 Phase angle 0-10V
HGW3-1-8-050-P 1PH 480V 50A 8.5 12 2.3 Phase angle 4-20mA
HGW3-1-8-060-P 1PH 480V 60A 10 15 2.3 Phase angle 4-20mA
HGW3-1-8-075-P 1PH 480V 75A 14 23 2.5 Phase angle 4-20mA
HGW3-1-8-080-P 1PH 480V 80A 15 25 2.5 Phase angle 4-20mA
HGW3-1-8-090-P 1PH 480V 90A 16.5 27 2.5 Phase angle 4-20mA
HGW3-1-8-100-P 1PH 480V 100A 18 30 2.5 Phase angle 4-20mA
HGW3-1-8-050-P1 1PH 480V 50A 8.5 12 2.3 Phase angle 0-10V
HGW3-1-8-060-P1 1PH 480V 60A 10 15 2.3 Phase angle 0-10V
HGW3-1-8-075-P1 1PH 480V 75A 14 23 2.5 Phase angle 0-10V
HGW3-1-8-080-P1 1PH 480V 80A 15 25 2.5 Phase angle 0-10V
HGW3-1-8-090-P1 1PH 480V 90A 16.5 27 2.5 Phase angle 0-10V
HGW3-1-8-100-P1 1PH 480V 100A 18 30 2.5 Phase angle 0-10V
