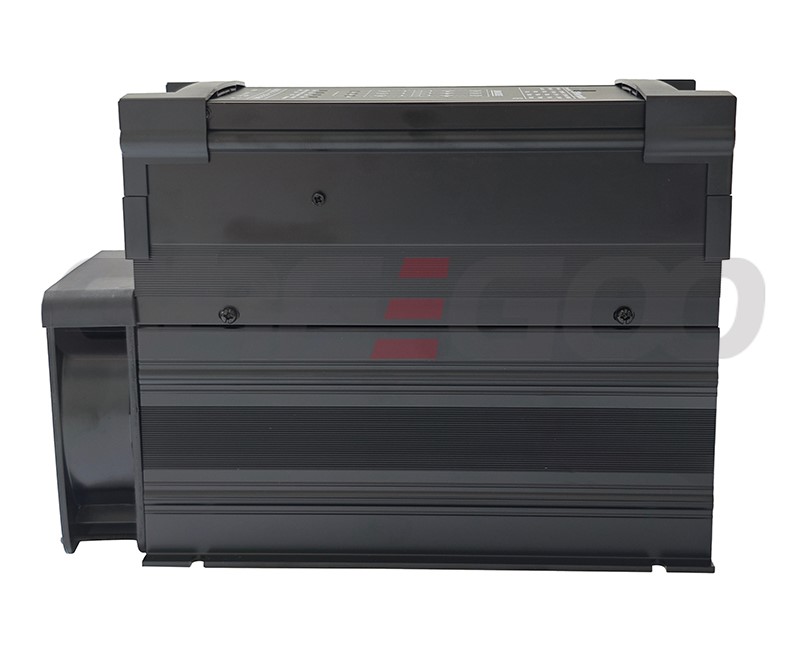

SCR Voltage Regulator three phase 125A
Home Products SCR RegulatorsHGW3 Analog Indicator Basic typeSCR Voltage Regulator three phase 125A
Specification
SCR Voltage Regulator three phase 125A
| Mode | Phase | Input Voltage | Max. Current |
Load(KW) | Weight (KG) |
Control mode | Control signal | |
| 220V | 380V | |||||||
| HGW3-4-4-125-P | 3PH | 330-440V | 125A | 40 | 68.5 | 5.1 | Phase Angle | 4-20mA |
| HGW3-4-4-125-P1 | 3PH | 330-440V | 125A | 40 | 68.5 | 5.1 | Phase Angle | 0-10V |
| HGW3-4-2-125-P | 3PH | 100-240V | 125A | 40 | 68.5 | 5.1 | Phase Angle | 4-20mA |
| HGW3-4-2-125-P1 | 3PH | 100-240V | 125A | 40 | 68.5 | 5.1 | Phase Angle | 0-10V |
| HGW3-4-8-125-P | 3PH | 480V | 125A | 40 | 68.5 | 5.1 | Phase Angle | 4-20mA |
| HGW3-4-8-125-P1 | 3PH | 480V | 125A | 40 | 68.5 | 5.1 | Phase Angle | 0-10V |
