SCR Voltage Regulator three phase 50A to 100A

Home Products SCR RegulatorsHGW3 Analog Indicator Basic typeSCR Voltage Regulator three phase 50A to 100A

HGW3-4-4-050-P SCR Voltage Regulator
HGW3-4-4-050-P SCR Voltage Regulator

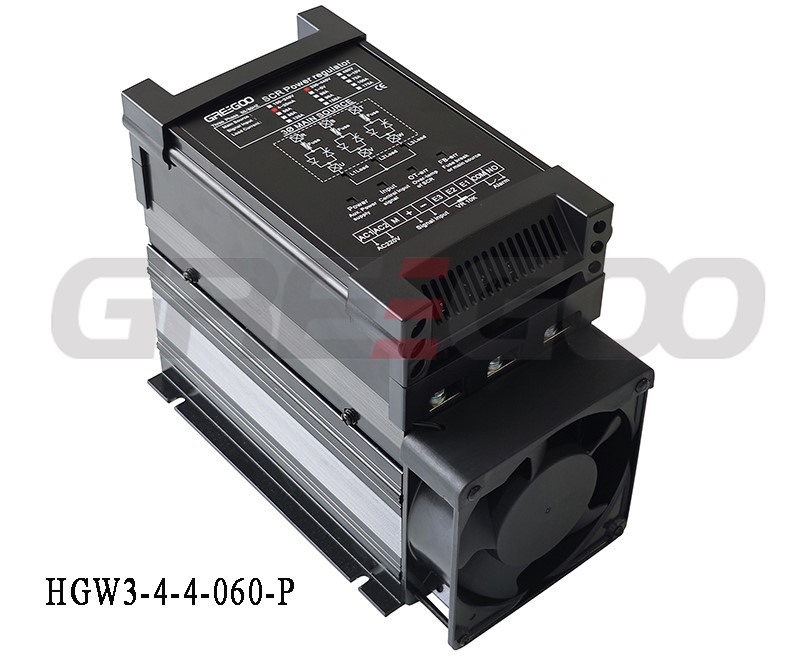

HGW3-4-4-060-P SCR Voltage Regulator

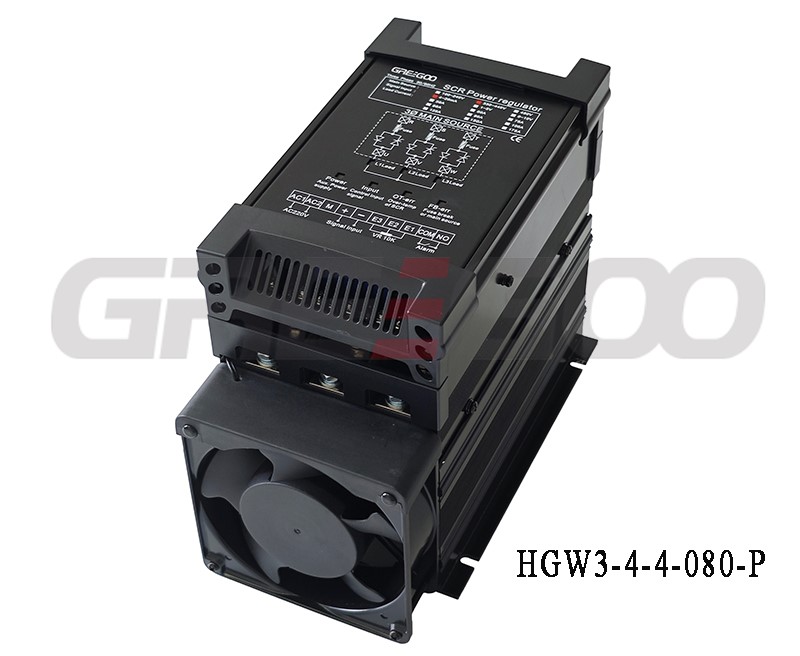

HGW3-4-4-075-P SCR Voltage Regulator
HGW3-4-4-080-P SCR Voltage Regulator
HGW3-4-4-090-P SCR Voltage Regulator
HGW3-4-4-100-P SCR Voltage Regulator

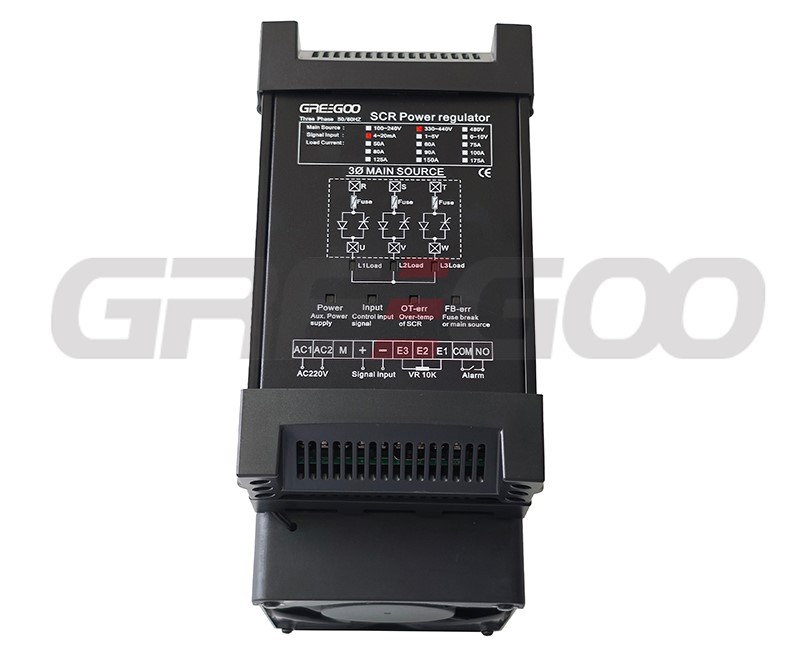

HGW3-4-4-050-P SCR Voltage Regulator front view

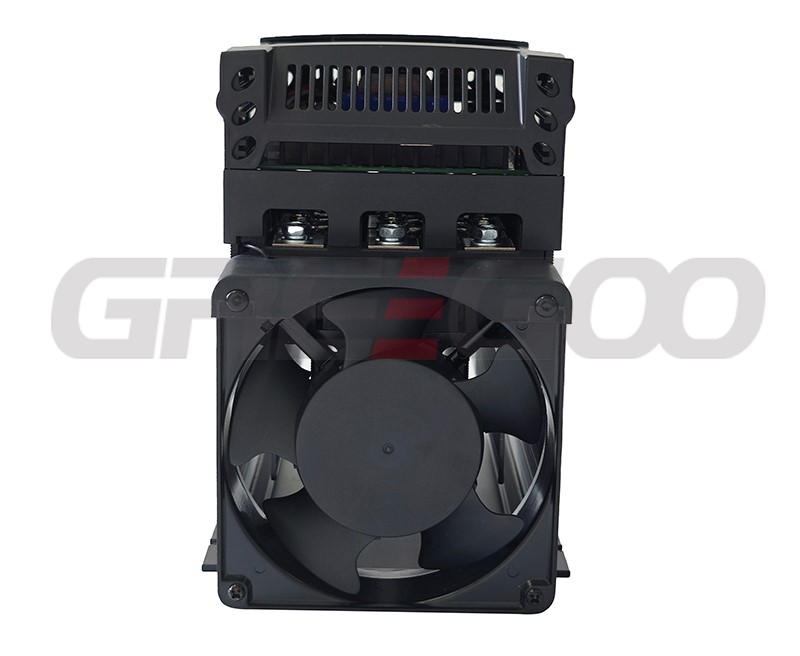

HGW3-4-4-050-P SCR Voltage Regulator side view

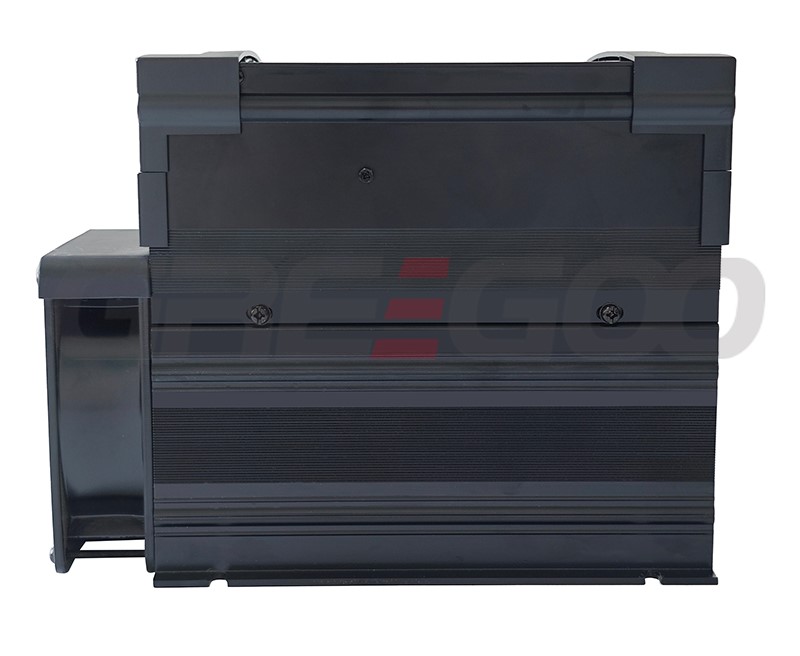

HGW3-4-4-050-P SCR Voltage Regulator side views

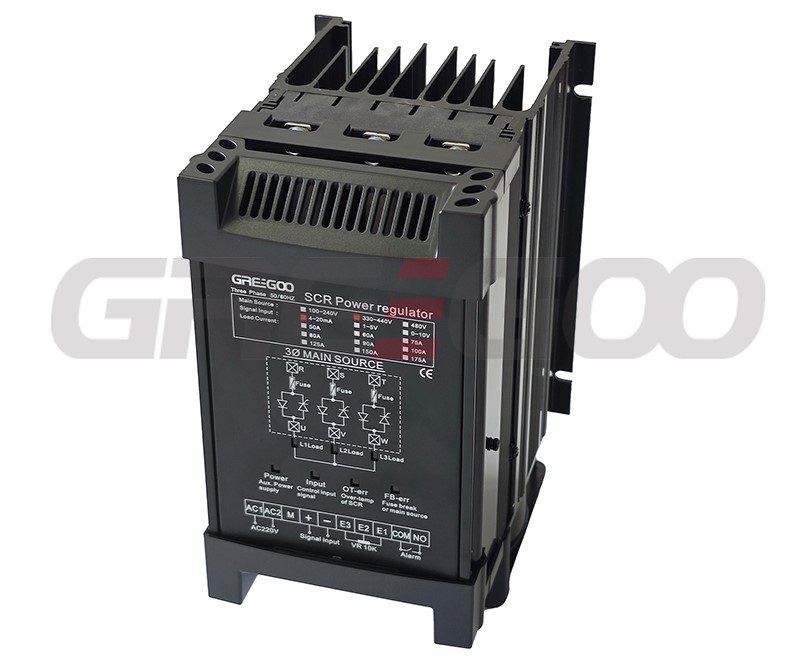

HGW3-4-4-050-P SCR Voltage Regulator top view
Specification

SCR Voltage Regulator three phase 50A to 100A

Mode Phase Input Voltage Max.
Current		 Load(KW) Weight
(KG)		 Control mode Control signal
        220V 380V
HGW3-4-4-050-P 3PH 330-440V 50A 15.5 27 3.5 Phase Angle 4-20mA
HGW3-4-4-060-P 3PH 330-440V 60A 19 33 3.5 Phase Angle 4-20mA
HGW3-4-4-075-P 3PH 330-440V 75A 23.5 41 3.9 Phase Angle 4-20mA
HGW3-4-4-080-P 3PH 330-440V 80A 25.5 44 3.9 Phase Angle 4-20mA
HGW3-4-4-090-P 3PH 330-440V 90A 28.5 49 3.9 Phase Angle 4-20mA
HGW3-4-4-100-P 3PH 330-440V 100A 32 55 3.9 Phase Angle 4-20mA
HGW3-4-4-050-P1 3PH 330-440V 50A 15.5 27 3.5 Phase Angle 0-10V
HGW3-4-4-060-P1 3PH 330-440V 60A 19 33 3.5 Phase Angle 0-10V
HGW3-4-4-075-P1 3PH 330-440V 75A 23.5 41 3.9 Phase Angle 0-10V
HGW3-4-4-080-P1 3PH 330-440V 80A 25.5 44 3.9 Phase Angle 0-10V
HGW3-4-4-090-P1 3PH 330-440V 90A 28.5 49 3.9 Phase Angle 0-10V
HGW3-4-4-100-P1 3PH 330-440V 100A 32 55 3.9 Phase Angle 0-10V
HGW3-4-2-050-P 3PH 100-240V 50A 15.5 27 3.5 Phase Angle 4-20mA
HGW3-4-2-060-P 3PH 100-240V 60A 19 33 3.5 Phase Angle 4-20mA
HGW3-4-2-075-P 3PH 100-240V 75A 23.5 41 3.9 Phase Angle 4-20mA
HGW3-4-2-080-P 3PH 100-240V 80A 25.5 44 3.9 Phase Angle 4-20mA
HGW3-4-2-090-P 3PH 100-240V 90A 28.5 49 3.9 Phase Angle 4-20mA
HGW3-4-2-100-P 3PH 100-240V 100A 32 55 3.9 Phase Angle 4-20mA
HGW3-4-2-050-P1 3PH 100-240V 50A 15.5 27 3.5 Phase Angle 0-10V
HGW3-4-2-060-P1 3PH 100-240V 60A 19 33 3.5 Phase Angle 0-10V
HGW3-4-2-075-P1 3PH 100-240V 75A 23.5 41 3.9 Phase Angle 0-10V
HGW3-4-2-080-P1 3PH 100-240V 80A 25.5 44 3.9 Phase Angle 0-10V
HGW3-4-2-090-P1 3PH 100-240V 90A 28.5 49 3.9 Phase Angle 0-10V
HGW3-4-2-100-P1 3PH 100-240V 100A 32 55 3.9 Phase Angle 0-10V
HGW3-4-8-050-P 3PH 480V 50A 15.5 27 3.5 Phase Angle 4-20mA
HGW3-4-8-060-P 3PH 480V 60A 19 33 3.5 Phase Angle 4-20mA
HGW3-4-8-075-P 3PH 480V 75A 23.5 41 3.9 Phase Angle 4-20mA
HGW3-4-8-080-P 3PH 480V 80A 25.5 44 3.9 Phase Angle 4-20mA
HGW3-4-8-090-P 3PH 480V 90A 28.5 49 3.9 Phase Angle 4-20mA
HGW3-4-8-100-P 3PH 480V 100A 32 55 3.9 Phase Angle 4-20mA
HGW3-4-8-050-P1 3PH 480V 50A 15.5 27 3.5 Phase Angle 0-10V
HGW3-4-8-060-P1 3PH 480V 60A 19 33 3.5 Phase Angle 0-10V
HGW3-4-8-075-P1 3PH 480V 75A 23.5 41 3.9 Phase Angle 0-10V
HGW3-4-8-080-P1 3PH 480V 80A 25.5 44 3.9 Phase Angle 0-10V
HGW3-4-8-090-P1 3PH 480V 90A 28.5 49 3.9 Phase Angle 0-10V
HGW3-4-8-100-P1 3PH 480V 100A 32 55 3.9 Phase Angle 0-10V
