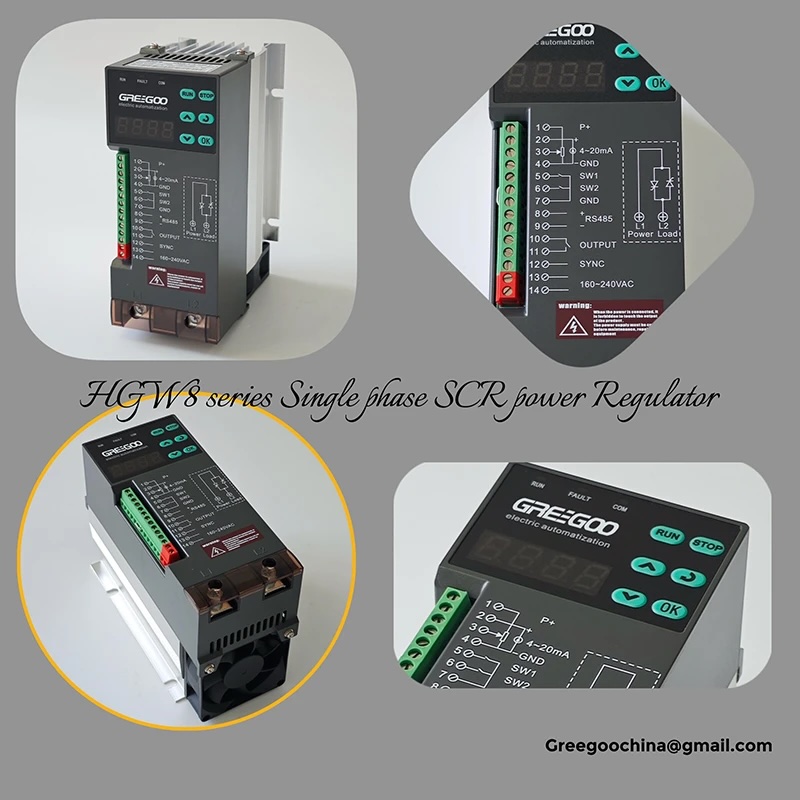

A single-phase thyristor controller, also known as a Silicon Controlled Rectifier (SCR) power controller, is an industrial device that provides precise and efficient regulation of power to electric heaters. Instead of using mechanical relays, it uses solid-state switches (thyristors) to offer highly accurate and proportional control over the heating process.

How it works

Thyristor controllers use two main firing methods to regulate power delivery to a resistive heating load:

Phase angle control: This method varies the phase angle of the AC sine wave to deliver a proportional, infinitely variable amount of power to the heater. This gives the most precise control and can extend heater life.

Zero-voltage switching (or burst firing): This method delivers whole or partial AC cycles to the load, with the switching taking place when the AC waveform crosses zero volts. This minimizes electrical interference (EMI/RFI) and is a good option for resistive loads.

Product examples

Increased heater life: By reducing thermal shock from frequent on/off cycling, thyristors can extend the lifespan of heating elements.

Energy efficiency: Modern thyristor controllers are highly efficient (up to 99.8%) and can help reduce energy consumption by preventing power spikes and precisely matching the load requirements.

Precise temperature control: They offer more accurate and consistent temperature control, which can improve product quality in industrial processes.

Reduced maintenance: As solid-state devices, they have no moving parts to wear out, resulting in higher reliability and lower maintenance costs.

Better performance: The faster switching times and higher frequency capabilities of thyristors offer superior performance and longer operational life.
